Model LG 10SM3TB-B – Common Parts & Diagrams

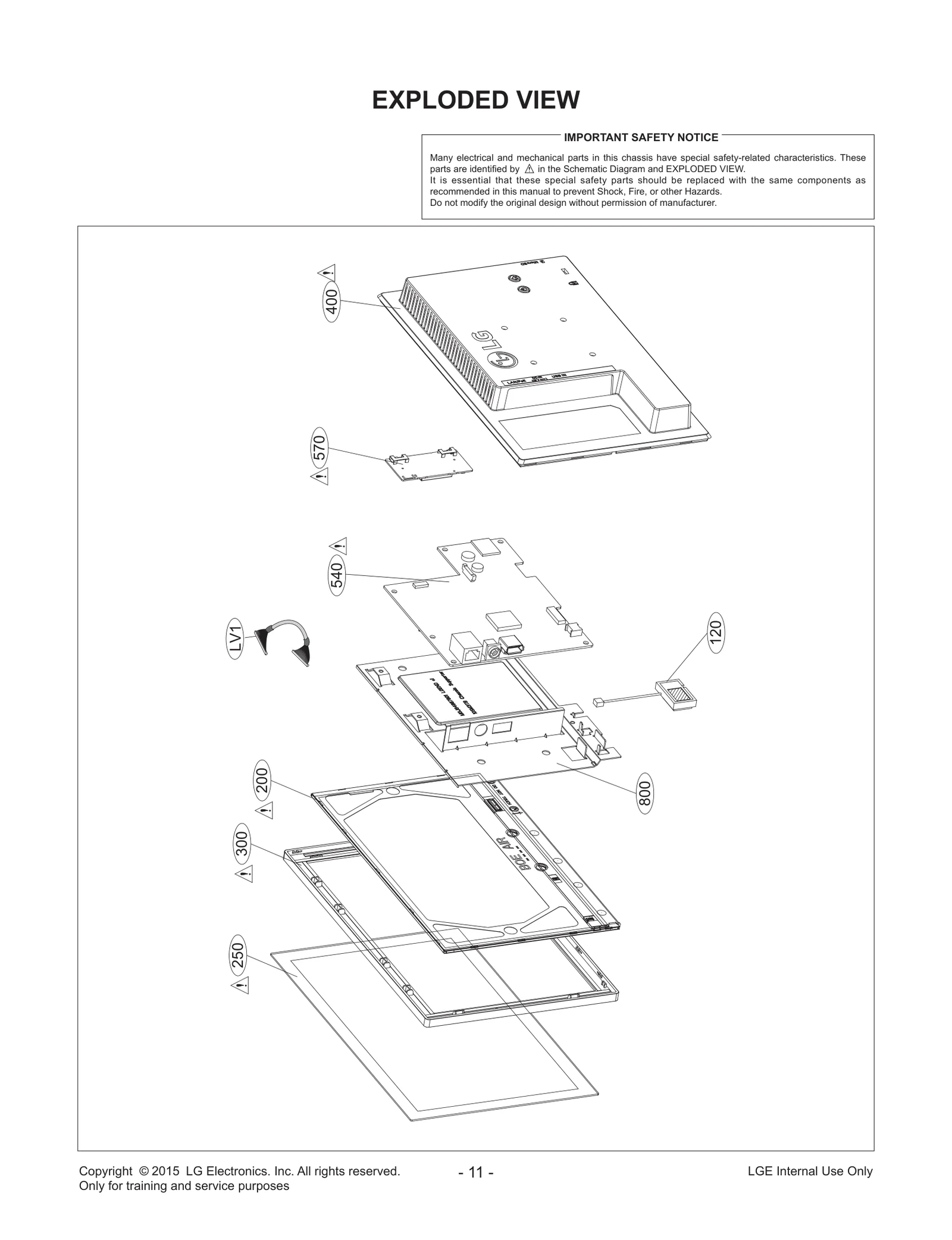

Diagram 0
Diagram 1
Common parts from model LG 10SM3TB-B
200
LCD,Module-TFT LGE EAJ63747802 Contact Us For Availability
250
Touch Panel LGE EBD63185201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75087501 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88388305 Contact Us For Availability
540
PCB Assembly LGE EBR81842003 Contact Us For Availability
570
Module,Assembly LGE EAT62093303 Contact Us For Availability
A1
Manual Assembly LGE AFN77277921 Contact Us For Availability
A4
Card LGE MBM65302904 Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
C10
Harness,Single LGE EAD63849401 Contact Us For Availability
C234
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C237
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C241
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C245
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C252
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C261
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C277
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C400
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C402
Capacitor,Ceramic,Chip LGE 0CK105CFG6A Contact Us For Availability
C418
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C423
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C428
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE 0CK475DF40A Contact Us For Availability
C705
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C724
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C737
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C1101
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1102
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1202
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C1217
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C1218
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
LV1
PCB,Flexible LGE EAX66792501 Contact Us For Availability
R207
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R211
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R221
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R224
Resistor,Chip LGE 0RJ1601C478 Contact Us For Availability
R229
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R240
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R241
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R246
Resistor,Chip LGE 0RJ3603E472 Contact Us For Availability
R248
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R255
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R259
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R260
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R261
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R262
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R266
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R273
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R276
Resistor,Chip LGE 0RJ2700C478 Contact Us For Availability
R280
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R283
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R290
Resistor,Chip LGE EBC00768102 Contact Us For Availability
R293
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R296
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R430
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ1005C678 Contact Us For Availability
R459
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R470
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R489
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R495
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R702
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R703
Resistor,Chip LGE 0RH1003D422 Contact Us For Availability
R707
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R727
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R735
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R737
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R745
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R746
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R747
Resistor,Chip LGE 0RJ1803C478 Contact Us For Availability
R754
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R1002
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R1110
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R1202
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1208
Resistor,Chip LGE EBC00796902 Contact Us For Availability
SW200
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X700
Crystal LGE 6212AB2872B Contact Us For Availability
× ![]()
