Model Maytag 109-2N ROOM AIR CONDITIONER – Common Parts & Diagrams

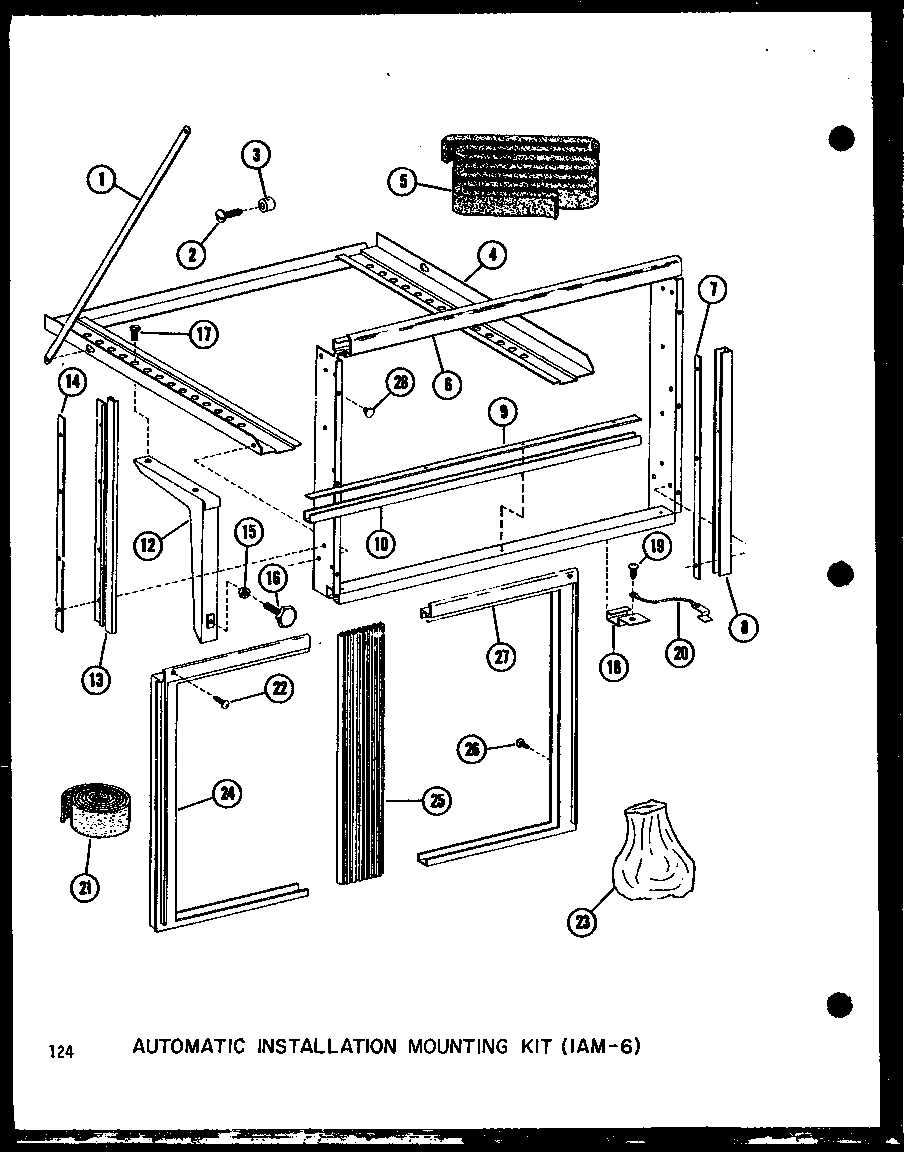

01 - AUTOMATIC INSTALLATION MTG KIT (1AM-6)

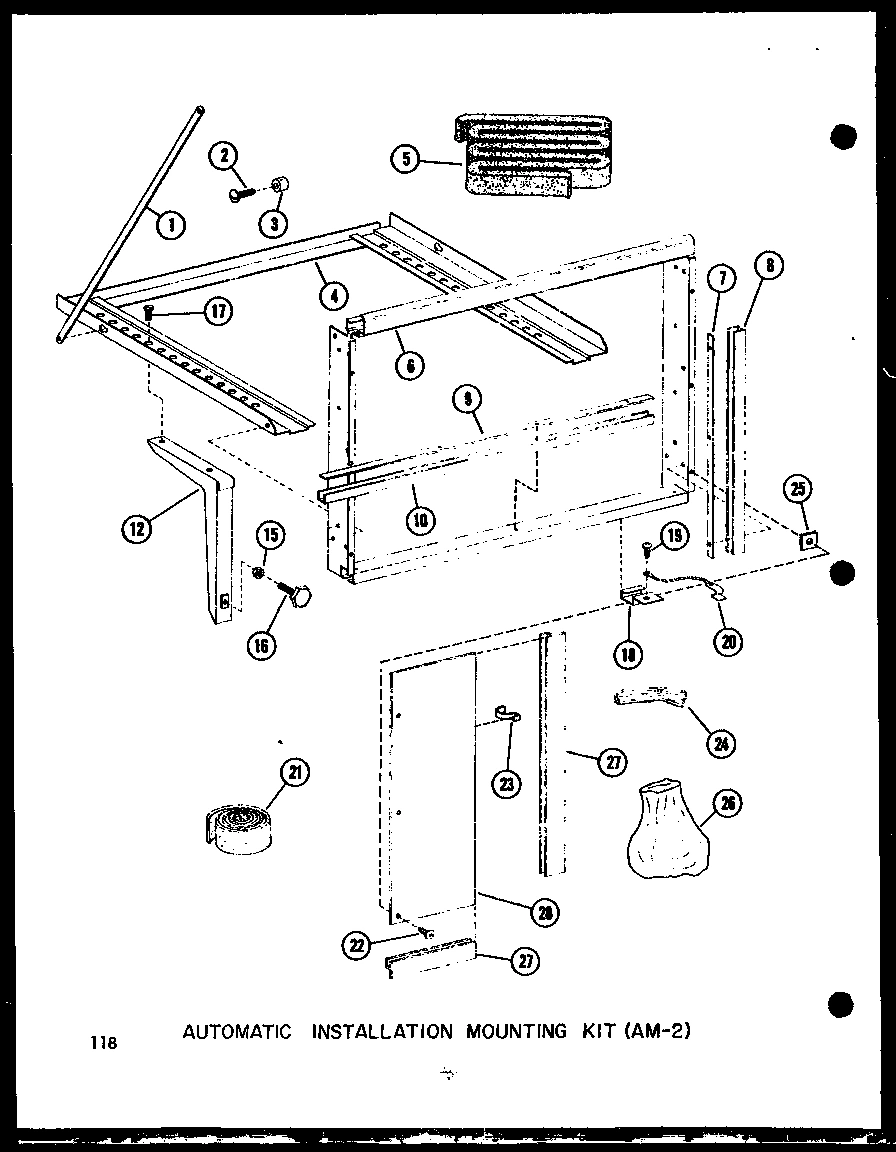

02 - AUTOMATIC INSTALLATION MTG KIT (AM-2)

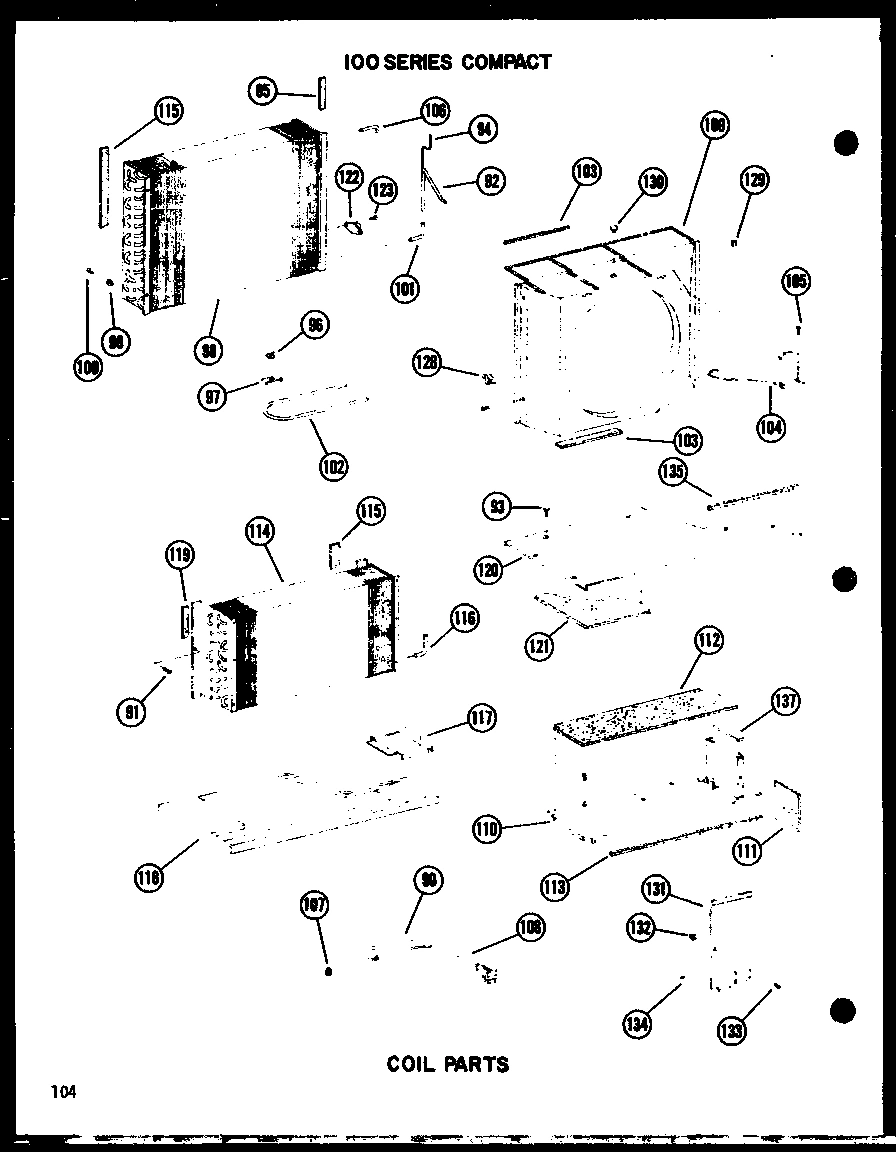

03 - COIL PARTS

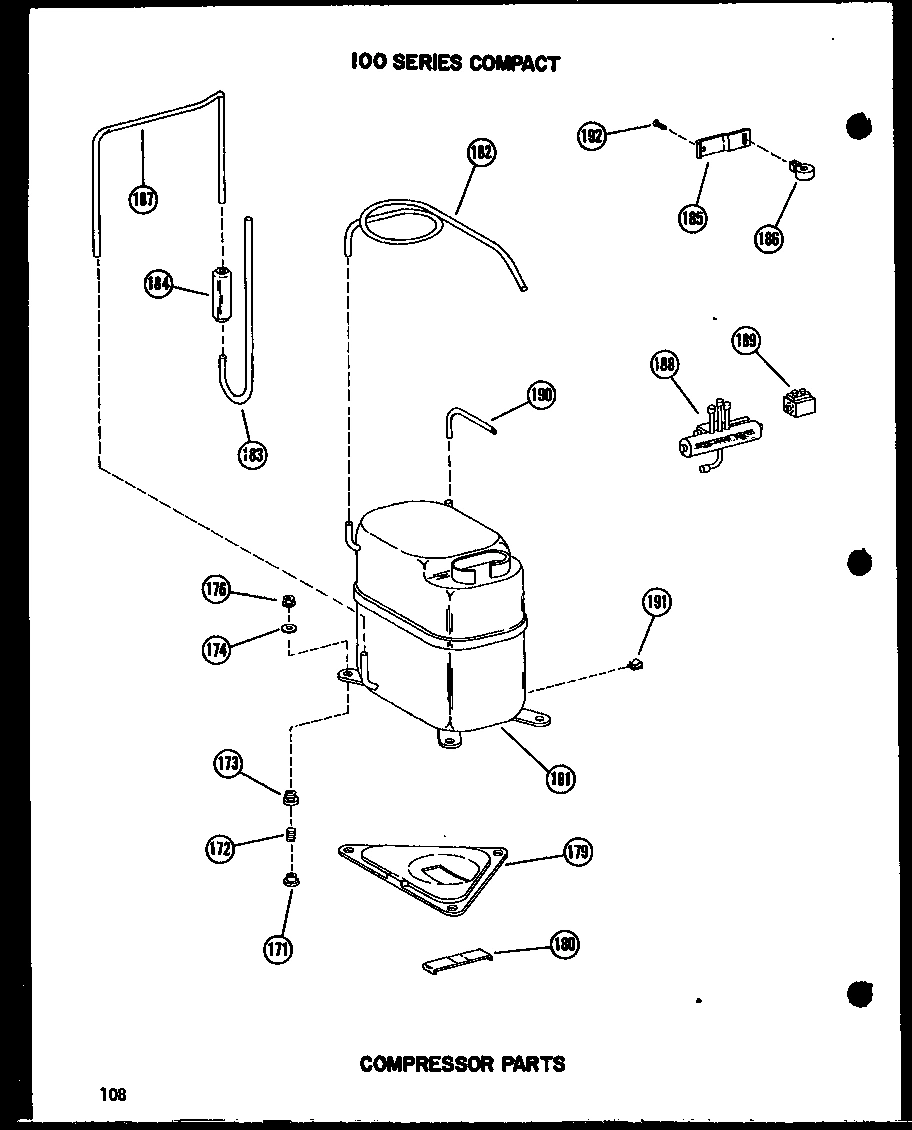

04 - COMPRESSOR PARTS

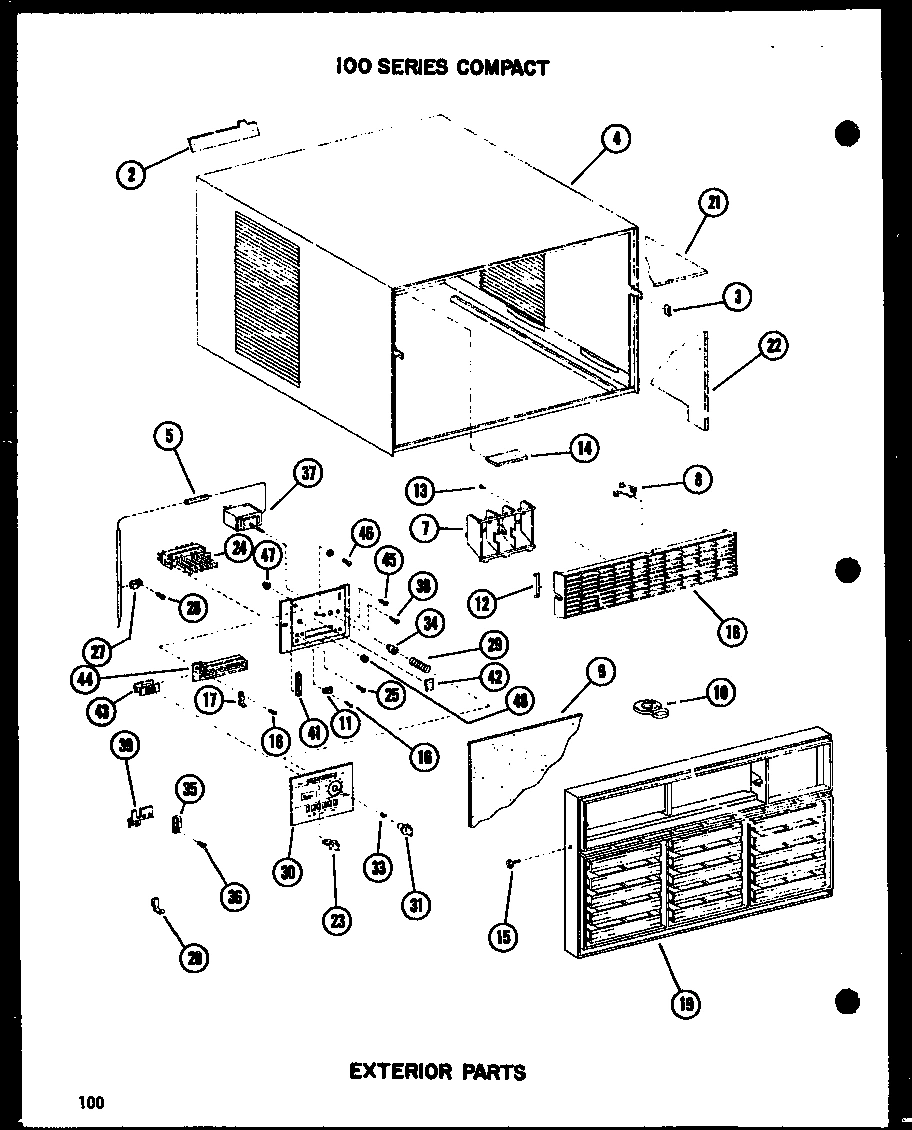

05 - EXTERIOR PARTS
06 - INTERIOR PARTS

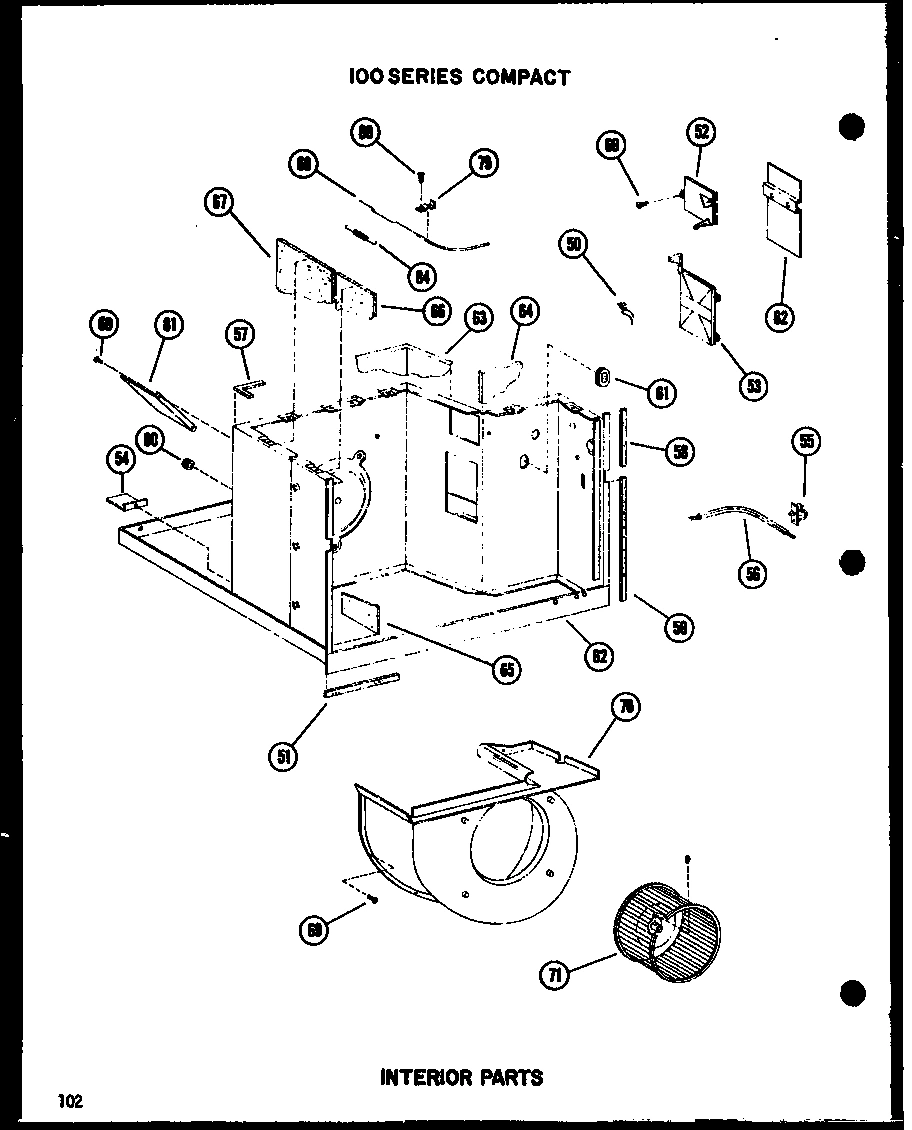

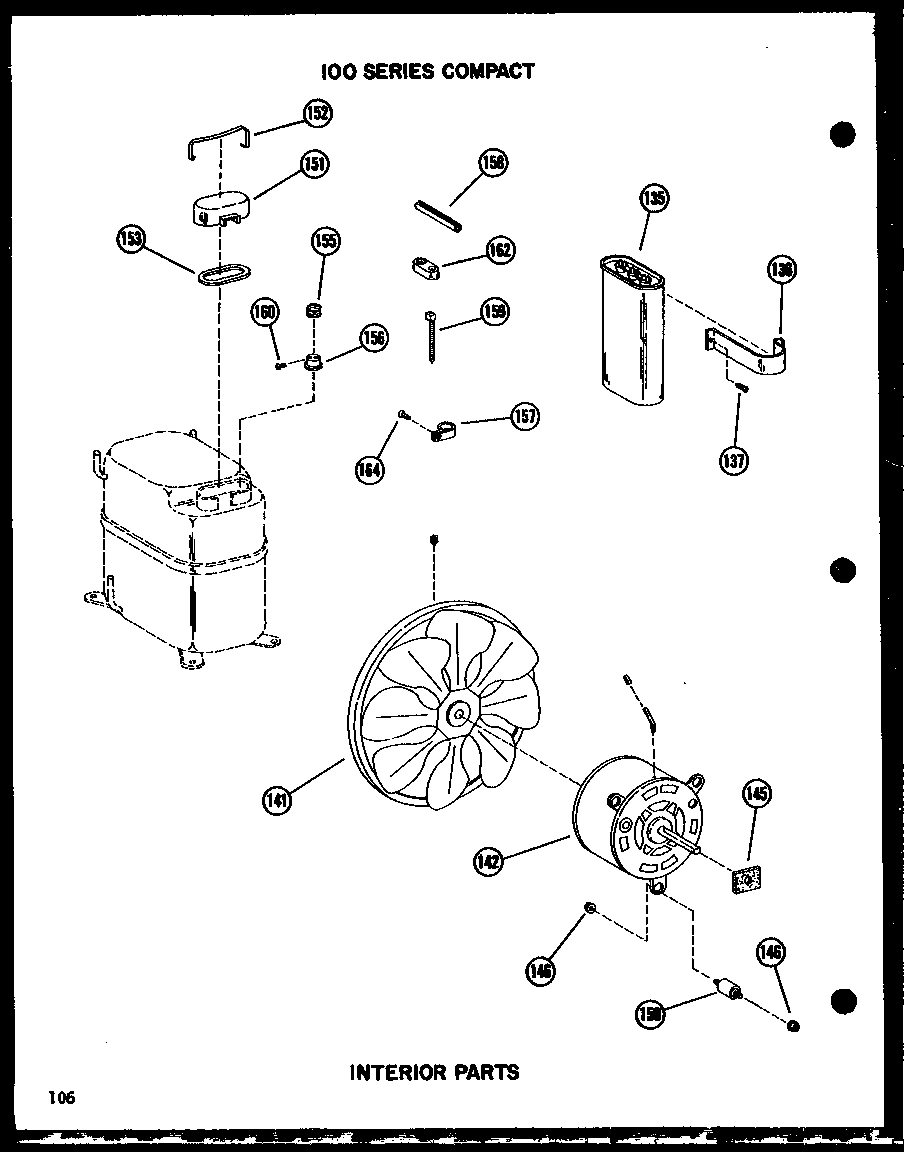

07 - INTERIOR PARTS
Common parts from model Maytag 109-2N ROOM AIR CONDITIONER
1
MAY B5107703 MAY B5107703 Contact Us For Availability
2
MAY M0212062 MAY M0212062 Contact Us For Availability
2
MAY B4115501 MAY B4115501 Contact Us For Availability
3
MAY A4065501 MAY A4065501 Contact Us For Availability
3
MAY M0288412 MAY M0288412 Contact Us For Availability
4
MAY C5935403 MAY C5935403 Contact Us For Availability
4
MAY D5506801 MAY D5506801 Contact Us For Availability
5
MAY A4660601 MAY A4660601 Contact Us For Availability
5
MAY M0321014 MAY M0321014 Contact Us For Availability
6
MAY C5949901 MAY C5949901 Contact Us For Availability
7
MAY B1158902 MAY B1158902 Contact Us For Availability
7
MAY C5934401 MAY C5934401 Contact Us For Availability
8
MAY B1158802 MAY B1158802 Contact Us For Availability
8
MAY B5183001 MAY B5183001 Contact Us For Availability
9
MAY B1158901 MAY B1158901 Contact Us For Availability
9
MAY B1151101 MAY B1151101 Contact Us For Availability
10
MAY B1158801 MAY B1158801 Contact Us For Availability
10
MAY A4542805 MAY A4542805 Contact Us For Availability
11
MAY M0102320 MAY M0102320 Contact Us For Availability
12
MAY C5872101 MAY C5872101 Contact Us For Availability
12
MAY C5872102 MAY C5872102 Contact Us For Availability
12
MAY M0117501 MAY M0117501 Contact Us For Availability
13
MAY B1124801 MAY B1124801 Contact Us For Availability
13
MAY M0229004 MAY M0229004 Contact Us For Availability
14
MAY B1158903 MAY B1158903 Contact Us For Availability
14
MAY A3030321 MAY A3030321 Contact Us For Availability
15
MAY M0282019 MAY M0282019 Contact Us For Availability
15
MAY M0234916 MAY M0234916 Contact Us For Availability
16
MAY M0200003 MAY M0200003 Contact Us For Availability
17
MAY M0206557 MAY M0206557 Contact Us For Availability
18
MAY A3321001 MAY A3321001 Contact Us For Availability
18
MAY D5502801 MAY D5502801 Contact Us For Availability
19
MAY M0211532 MAY M0211532 Contact Us For Availability
19
MAY D5502003 MAY D5502003 Contact Us For Availability
20
MAY B5113103 MAY B5113103 Contact Us For Availability
20
MAY A4634103 MAY A4634103 Contact Us For Availability
21
MAY A3030302 MAY A3030302 Contact Us For Availability
21
MAY C5938401 MAY C5938401 Contact Us For Availability
22
MAY M0213032 MAY M0213032 Contact Us For Availability
22
MAY M0211519 MAY M0211519 Contact Us For Availability
22
MAY C5938402 MAY C5938402 Contact Us For Availability
23
MAY B1139005 MAY B1139005 Contact Us For Availability
23
MAY B1100601 MAY B1100601 Contact Us For Availability
23
MAY B1151001 MAY B1151001 Contact Us For Availability
24
MAY D5481101 MAY D5481101 Contact Us For Availability
24
MAY M0275521 MAY M0275521 Contact Us For Availability
24
MAY C5940002 MAY C5940002 Contact Us For Availability
25
MAY D5516701 MAY D5516701 Contact Us For Availability
25
MAY M0288305 MAY M0288305 Contact Us For Availability
25
MAY M0255014 MAY M0255014 Contact Us For Availability
26
MAY M1250031 MAY M1250031 Contact Us For Availability
26
MAY A3313002 MAY A3313002 Contact Us For Availability
26
MAY B1149501 MAY B1149501 Contact Us For Availability
27
MAY D5481102 MAY D5481102 Contact Us For Availability
27
MAY B4144504 MAY B4144504 Contact Us For Availability
28
MAY M0310312 MAY M0310312 Contact Us For Availability
28
MAY A3321501 MAY A3321501 Contact Us For Availability
29
MAY A4663604 MAY A4663604 Contact Us For Availability
30
MAY C5938101 MAY C5938101 Contact Us For Availability
31
MAY D7009804 MAY D7009804 Contact Us For Availability
33
MAY YM0115901 MAY YM0115901 Contact Us For Availability
34
MAY A3073601 MAY A3073601 Contact Us For Availability
35
MAY M0103901 MAY M0103901 Contact Us For Availability
37
MAY B4795203 MAY B4795203 Contact Us For Availability
38
MAY M0232012 MAY M0232012 Contact Us For Availability
39
MAY B1151301 MAY B1151301 Contact Us For Availability
41
MAY A3030303 MAY A3030303 Contact Us For Availability
42
MAY A3324501 MAY A3324501 Contact Us For Availability
43
MAY C5940801 MAY C5940801 Contact Us For Availability
44
MAY C5940901 MAY C5940901 Contact Us For Availability
46
MAY M0255015 MAY M0255015 Contact Us For Availability
47
MAY M0282007 MAY M0282007 Contact Us For Availability
50
MAY A3314301 MAY A3314301 Contact Us For Availability
51
MAY B1106212 MAY B1106212 Contact Us For Availability
52
MAY C5924701 MAY C5924701 Contact Us For Availability
53
MAY C5931201 MAY C5931201 Contact Us For Availability
54
MAY A3325801 MAY A3325801 Contact Us For Availability
55
MAY M0585101 MAY M0585101 Contact Us For Availability
56
MAY B1151602 MAY B1151602 Contact Us For Availability
58
MAY B1106210 MAY B1106210 Contact Us For Availability
59
MAY B1106211 MAY B1106211 Contact Us For Availability
60
MAY A3023301 MAY A3023301 Contact Us For Availability
61
MAY A3310201 MAY A3310201 Contact Us For Availability
62
MAY D5506402 MAY D5506402 Contact Us For Availability
63
MAY D5507401 MAY D5507401 Contact Us For Availability
65
MAY B1167701 MAY B1167701 Contact Us For Availability
66
MAY A3315002 MAY A3315002 Contact Us For Availability
67
MAY A3315003 MAY A3315003 Contact Us For Availability
68
MAY C5941101 MAY C5941101 Contact Us For Availability
70
MAY D5502601 MAY D5502601 Contact Us For Availability
71
MAY C5939301 MAY C5939301 Contact Us For Availability
79
MAY A3314501 MAY A3314501 Contact Us For Availability
81
MAY B1150701 MAY B1150701 Contact Us For Availability
84
MAY A3314401 MAY A3314401 Contact Us For Availability
90
MAY M0321016 MAY M0321016 Contact Us For Availability
92
MAY B4143101 MAY B4143101 Contact Us For Availability
93
MAY M0216529 MAY M0216529 Contact Us For Availability
94
MAY C5942301 MAY C5942301 Contact Us For Availability
95
MAY A3030311 MAY A3030311 Contact Us For Availability
96
MAY M0285701 MAY M0285701 Contact Us For Availability
97
MAY A4685101 MAY A4685101 Contact Us For Availability
98
MAY D5507701 MAY D5507701 Contact Us For Availability
99
MAY A3309801 MAY A3309801 Contact Us For Availability
100
MAY M0216531 MAY M0216531 Contact Us For Availability
101
MAY A3311901 MAY A3311901 Contact Us For Availability
102
MAY C5938601 MAY C5938601 Contact Us For Availability
103
MAY A3030301 MAY A3030301 Contact Us For Availability
104
MAY C5922702 MAY C5922702 Contact Us For Availability
106
MAY A3320801 MAY A3320801 Contact Us For Availability
107
MAY M0500101 MAY M0500101 Contact Us For Availability
108
MAY B4113209 MAY B4113209 Contact Us For Availability
109
MAY D5504101 MAY D5504101 Contact Us For Availability
110
MAY C5936101 MAY C5936101 Contact Us For Availability
111
MAY A3324601 MAY A3324601 Contact Us For Availability
112
MAY C5939602 MAY C5939602 Contact Us For Availability
113
MAY A3030318 MAY A3030318 Contact Us For Availability
114
MAY D5508001 MAY D5508001 Contact Us For Availability
115
GASKET (PER FOOT) MAY A3030313 Contact Us For Availability
116
MAY A3309102 MAY A3309102 Contact Us For Availability
116
MAY A4083917 MAY A4083917 Contact Us For Availability
117
MAY B1147101 MAY B1147101 Contact Us For Availability
118
MAY D5502701 MAY D5502701 Contact Us For Availability
119
MAY C5952402 MAY C5952402 Contact Us For Availability
120
MAY C5936901 MAY C5936901 Contact Us For Availability
121
MAY C5939801 MAY C5939801 Contact Us For Availability
128
MAY B1145301 MAY B1145301 Contact Us For Availability
129
MAY M0113603 MAY M0113603 Contact Us For Availability
130
MAY M0310008 MAY M0310008 Contact Us For Availability
131
MAY C5939901 MAY C5939901 Contact Us For Availability
132
MAY A3315701 MAY A3315701 Contact Us For Availability
134
MAY M0118401 MAY M0118401 Contact Us For Availability
135
MAY B1106209 MAY B1106209 Contact Us For Availability
135
MAY D5515641 MAY D5515641 Contact Us For Availability
136
MAY A4634202 MAY A4634202 Contact Us For Availability
141
MAY C5939401 MAY C5939401 Contact Us For Availability
142
MAY C5938801 MAY C5938801 Contact Us For Availability
145
MAY B5107608 MAY B5107608 Contact Us For Availability
146
MAY M0287801 MAY M0287801 Contact Us For Availability
150
MAY M0500601 MAY M0500601 Contact Us For Availability
151
MAY B5187501 MAY B5187501 Contact Us For Availability
152
MAY A4635901 MAY A4635901 Contact Us For Availability
153
MAY A4673301 MAY A4673301 Contact Us For Availability
155
MAY A4674801 MAY A4674801 Contact Us For Availability
156
MAY D4976674 MAY D4976674 Contact Us For Availability
157
MAY M0102304 MAY M0102304 Contact Us For Availability
160
MAY M0206116 MAY M0206116 Contact Us For Availability
162
MAY A0372901 MAY A0372901 Contact Us For Availability
164
MAY M0211016 MAY M0211016 Contact Us For Availability
171
MAY A3314101 MAY A3314101 Contact Us For Availability
172
MAY A3314201 MAY A3314201 Contact Us For Availability
173
MAY A3314001 MAY A3314001 Contact Us For Availability
174
MAY M0274008 MAY M0274008 Contact Us For Availability
176
MAY M0283610 MAY M0283610 Contact Us For Availability
179
MAY C5940301 MAY C5940301 Contact Us For Availability
180
MAY A4635601 MAY A4635601 Contact Us For Availability
181
MAY D5451401 MAY D5451401 Contact Us For Availability
182
MAY C5941301 MAY C5941301 Contact Us For Availability
183
MAY C5941501 MAY C5941501 Contact Us For Availability
184
MAY C5885806 MAY C5885806 Contact Us For Availability
185
MAY A3310501 MAY A3310501 Contact Us For Availability
186
MAY A3311001 MAY A3311001 Contact Us For Availability
187
MAY C5941601 MAY C5941601 Contact Us For Availability
190
MAY A4637801 MAY A4637801 Contact Us For Availability
× ![]()
