Model LG 10783805 – Common Parts & Diagrams

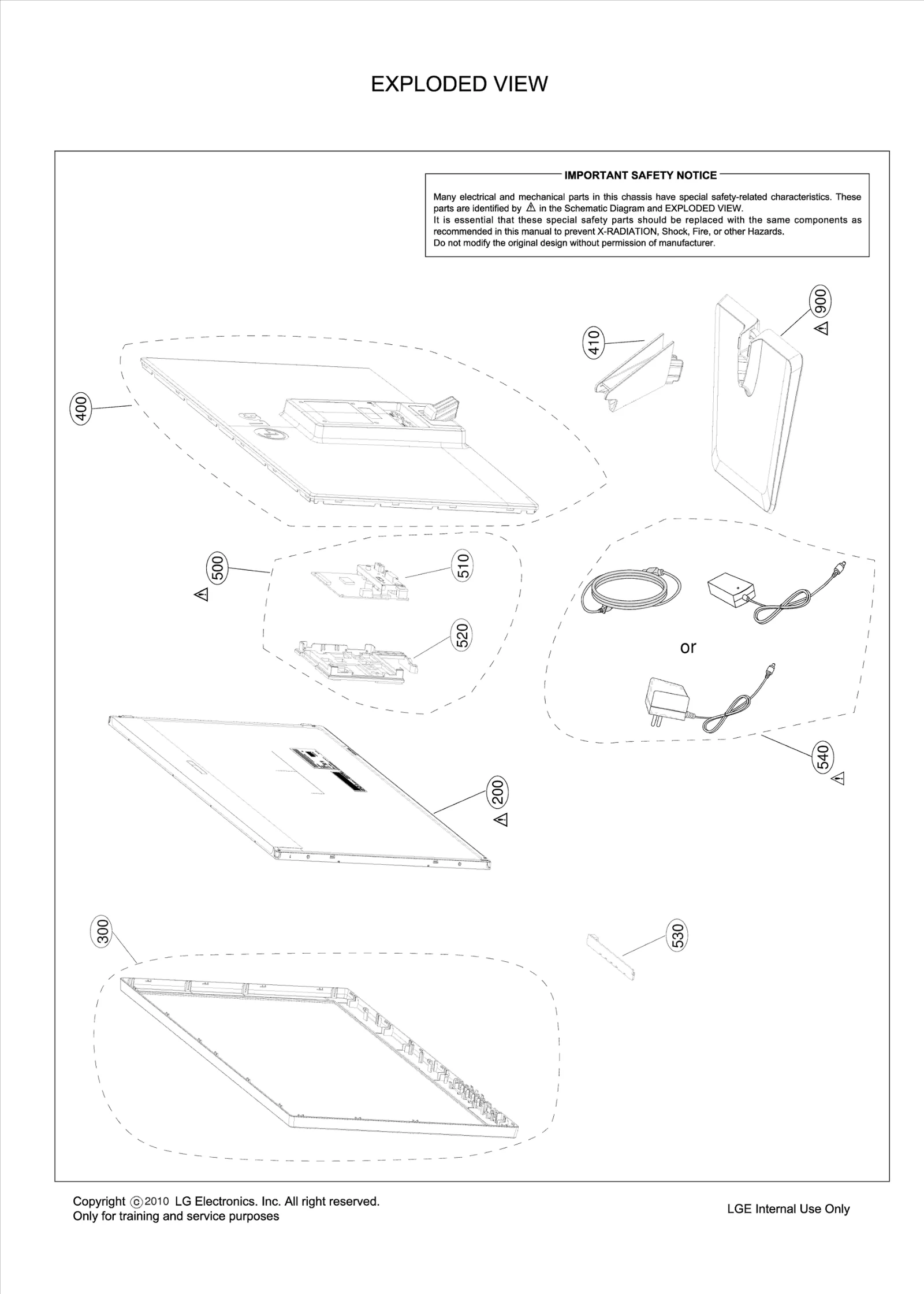

Diagram 0
Diagram 1
Common parts from model LG 10783805
200
LCD,Module-TFT LGE EAJ62353502 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62353501 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73808507 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85921302 Contact Us For Availability
410
Base Assembly LGE AAN74131901 Contact Us For Availability
520
Bracket LGE MAZ63429701 Contact Us For Availability
530
PCB Assembly LGE EBR74906801 Contact Us For Availability
540
Adapters LGE EAY62790007 Contact Us For Availability
900
Base Assembly LGE AAN74132201 Contact Us For Availability
A1
S/W Package LGE SAB35319121 Contact Us For Availability
A4
Card LGE MBM61965743 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734003 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A6
Cable,Assembly LGE EAD57760001 Contact Us For Availability
A7
Card LGE MBM63822101 Contact Us For Availability
A9
Card LGE 3840TRL039A Contact Us For Availability
A10
Card LGE 3840TWL061C Contact Us For Availability
C10
Harness,Single LGE EAD61426314 Contact Us For Availability
C100
Capacitor,Ceramic,Chip LGE EAE62772301 Contact Us For Availability
C108
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C110
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C124
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C141
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C143
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C146
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C151
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C153
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
D2
Diode,TVS LGE EAH42720601 Contact Us For Availability
D313
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D313
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC104
S/W,Firmware LGE SAA36472801 Contact Us For Availability
JK100
Jack,DC Power LGE EAG35306605 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
Q103
FET LGE EBK42767801 Contact Us For Availability
Q109
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R1
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R4
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R105
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R113
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R132
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R134
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R135
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R142
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R143
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R145
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R164
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R178
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
X100
Crystal LGE 6212AA2001H Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
