Model Whirlpool 106W14BIML5 Refrigerator (Kenmore 106W14BIML5) – Common Parts & Diagrams
ICE MAKER PARTS
UNIT PARTS

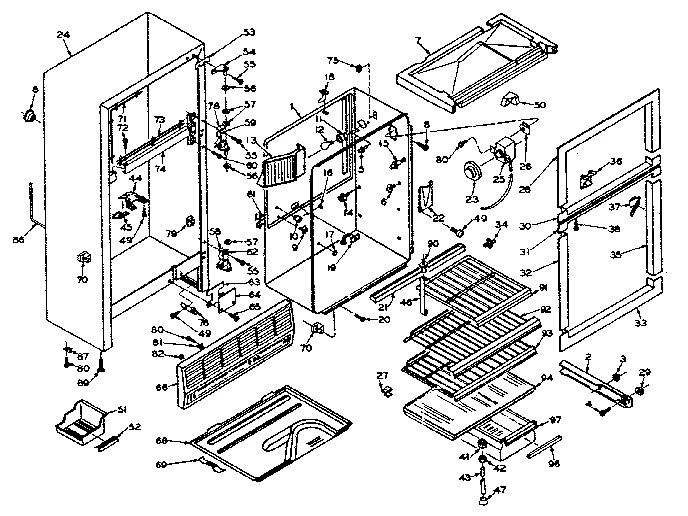

CABINET PARTS

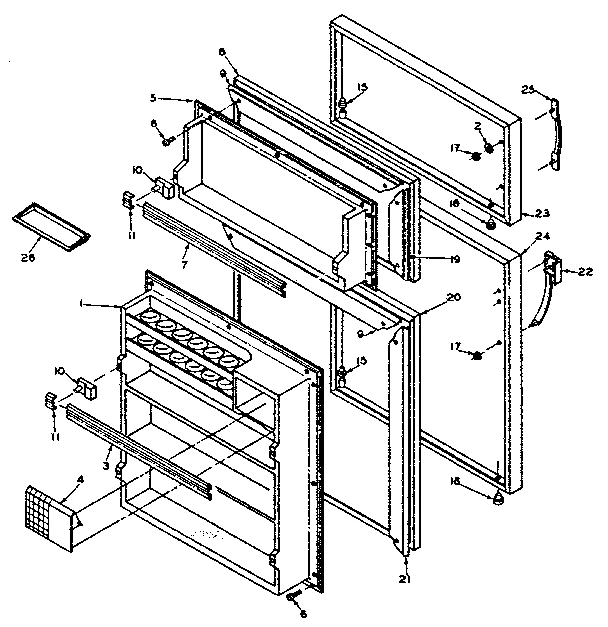

DOOR PARTS
All Parts
Common parts from model Whirlpool 106W14BIML5 Refrigerator (Kenmore 106W14BIML5)
1
Condenser WPL 513836 Contact Us For Availability
1
Refrigerator Door Panel WPL 532294 Contact Us For Availability
2
Bracket WPL 510721 Contact Us For Availability
2
Refrigerator Track WPL 533387 Contact Us For Availability
2
Washer WPL 529576 Contact Us For Availability
2A
Refrigerator Track WPL 533388 Contact Us For Availability
3
Grommet WPL 509812 Contact Us For Availability
3
Refrigerator Shelf Trim WPL 532010 Contact Us For Availability
4
Bumper WPL 204349 Contact Us For Availability
4
Butter Door WPL 532304 Contact Us For Availability
5
Screw WPL 487888 Contact Us For Availability
5
Refrigerator Stud WPL 533162 Contact Us For Availability
5
Refrigerator Door Panel WPL 532053 Contact Us For Availability
6
Bracket WPL 510722 Contact Us For Availability
6
Refrigerator Shelf Support WPL 521878 Contact Us For Availability
7
Refrigerator Separator WPL 516938 Contact Us For Availability
7
Refrigerator Shelf Trim WPL 532011 Contact Us For Availability
8
Refrigerator Door Gasket WPL 520820 Contact Us For Availability
9
Grommet WPL 519505 Contact Us For Availability
9
Refrigerator Stud WPL 509133 Contact Us For Availability
9
Retainer WPL 520869 Contact Us For Availability
10
Housing WPL 532499 Contact Us For Availability
10
Mounting Rail WPL 530075 Contact Us For Availability
10
Spacer WPL 512792 Contact Us For Availability
10
Trim Stud WPL 532145 Contact Us For Availability
11
Screw WPL 486214 Contact Us For Availability
11
Screw WPL 488293 Contact Us For Availability
11
Refrigerator Socket WPL 527731 Contact Us For Availability
11
Refrigerator Trim Cap WPL 532300 Contact Us For Availability
11A
Refrigerator Trim Cap WPL 532301 Contact Us For Availability
12
Arm Stop WPL 542926 Contact Us For Availability
12
Grommet WPL 510912 Contact Us For Availability
13
Arm WPL 625817 Contact Us For Availability
13
Screw WPL 488043 Contact Us For Availability
13
Refrigerator Shield WPL 532018 Contact Us For Availability
14
Rail Pad WPL 530562 Contact Us For Availability
14
Stud WPL 523263 Contact Us For Availability
14A
Stud WPL 523264 Contact Us For Availability
15
Clip WPL 625700 Contact Us For Availability
15
Dampener WPL 34243 Contact Us For Availability
15
Refrigerator Switch WPL 518790 Contact Us For Availability
15
Cap WPL 509929 Contact Us For Availability
16
Clip WPL 625713 Contact Us For Availability
16
Cord WPL 510543 Contact Us For Availability
17
Box WPL 515584 Contact Us For Availability
17
Hole Plug WPL 519890 Contact Us For Availability
17
Nut WPL 509324 Contact Us For Availability
18
Switch WPL 625862 Contact Us For Availability
18
Screw WPL 487843 Contact Us For Availability
18
Refrigerator Fitting WPL 509646 Contact Us For Availability
18
Grommet WPL 520895 Contact Us For Availability
18A
Switch WPL 625863 Contact Us For Availability
19
Refrigerator Clip WPL 625772 Contact Us For Availability
19
Cleat WPL 501472 Contact Us For Availability
19
Refrigerator Fitting WPL 532733 Contact Us For Availability
19
Refrigerator Retainer WPL 509462 Contact Us For Availability
20
Refrigerator Thermostat WPL 625861 Contact Us For Availability
20
Refrigerator Door Gasket WPL 520819 Contact Us For Availability
21
Precooler WPL 515612 Contact Us For Availability
21
Refrigerator Drip Rail WPL 532738 Contact Us For Availability
21
Refrigerator Retainer WPL 509464 Contact Us For Availability
22
Coupling WPL 544315 Contact Us For Availability
22
Grommet WPL 513646 Contact Us For Availability
22
Refrigerator Cover WPL 511405 Contact Us For Availability
22
Handle WPL 532250 Contact Us For Availability
22A
Refrigerator Door Handle WPL 532251 Contact Us For Availability
23
Heater WPL 544311 Contact Us For Availability
23
Grommet WPL 513819 Contact Us For Availability
23
FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability
23
Refrigerator Knob WPL 532017 Contact Us For Availability
23A
Refrigerator Door Panel WPL 532045 Contact Us For Availability
23B
Refrigerator Door Panel WPL 532567 Contact Us For Availability
23C
Refrigerator Door Panel WPL 533456 Contact Us For Availability
23D
Refrigerator Door Panel WPL 532046 Contact Us For Availability
23E
Refrigerator Door Panel WPL 532568 Contact Us For Availability
23F
Refrigerator Door Panel WPL 533457 Contact Us For Availability
24
Motor WPL 544316 Contact Us For Availability
24
Refrigerator Heater WPL 530838 Contact Us For Availability
24A
Refrigerator Door Panel WPL 532033 Contact Us For Availability
24B
Refrigerator Door Panel WPL 532563 Contact Us For Availability
24C
Refrigerator Door Panel WPL 533470 Contact Us For Availability
24D
Refrigerator Door Panel WPL 532034 Contact Us For Availability
24E
Refrigerator Door Panel WPL 532564 Contact Us For Availability
24F
Refrigerator Door Panel WPL 533471 Contact Us For Availability
25
Retainer WPL 543649 Contact Us For Availability
25
Refrigerator Clamp WPL 40843 Contact Us For Availability
25
Refrigerator Thermostat WPL 530800 Contact Us For Availability
25
Refrigerator Door Handle WPL 532342 Contact Us For Availability
26
Refrigerator Spring WPL 242706 Contact Us For Availability
26
Frame WPL 530041 Contact Us For Availability
27
Screw WPL 488116 Contact Us For Availability
27
Refrigerator Stud WPL 512891 Contact Us For Availability
28
Lever Arm WPL 543654 Contact Us For Availability
28
Refrigerator Frame WPL 532531 Contact Us For Availability
28A
Refrigerator Frame WPL 532532 Contact Us For Availability
29
Cam WPL 544318 Contact Us For Availability
29
Refrigerator Grommet WPL 523970 Contact Us For Availability
30
Screw WPL 625738 Contact Us For Availability
30
Refrigerator Trim WPL 532482 Contact Us For Availability
30A
Refrigerator Trim WPL 532483 Contact Us For Availability
31
Washer WPL 487948 Contact Us For Availability
31
Refrigerator Trim WPL 516687 Contact Us For Availability
31A
Refrigerator Trim WPL 516688 Contact Us For Availability
32
Refrigerator Trim WPL 516679 Contact Us For Availability
32A
Refrigerator Trim WPL 516667 Contact Us For Availability
33
Switch WPL 544324 Contact Us For Availability
33
Trim WPL 516655 Contact Us For Availability
33A
Refrigerator Trim WPL 516656 Contact Us For Availability
34
Switch WPL 544322 Contact Us For Availability
34
Refrigerator Shelf Stud WPL 533417 Contact Us For Availability
35
Switch WPL 543648 Contact Us For Availability
35
Refrigerator Trim WPL 516666 Contact Us For Availability
35A
Refrigerator Trim WPL 516680 Contact Us For Availability
36
Flat Washer WPL 487795 Contact Us For Availability
36
Refrigerator Clip WPL 532519 Contact Us For Availability
37
Bearing WPL 544304 Contact Us For Availability
37
Clip WPL 534164 Contact Us For Availability
38
Refrigerator Inlet Tube WPL 519838 Contact Us For Availability
38
Screw WPL 487955 Contact Us For Availability
39
Clamp WPL 510716 Contact Us For Availability
40
Valve WPL 625717 Contact Us For Availability
40
Screw WPL 488044 Contact Us For Availability
41
Coil WPL 625733 Contact Us For Availability
41
Rail WPL 520461 Contact Us For Availability
41
Refrigerator Grommet WPL 501966 Contact Us For Availability
42
Screw WPL 488265 Contact Us For Availability
42
Refrigerator Nut WPL 487216 Contact Us For Availability
43
Connector WPL 227991 Contact Us For Availability
43
Refrigerator Post WPL 514148 Contact Us For Availability
44
Nut WPL 487621 Contact Us For Availability
44
Refrigerator Spacer WPL 532514 Contact Us For Availability
45
Refrigerator Evaporator WPL 480393 Contact Us For Availability
45
Refrigerator Insulator WPL 532510 Contact Us For Availability
46
Union WPL 512503 Contact Us For Availability
46
Refrigerator Hanger WPL 516908 Contact Us For Availability
47
Clamp WPL 510714 Contact Us For Availability
47
Refrigerator Foot WPL 526151 Contact Us For Availability
48
Washer WPL 488365 Contact Us For Availability
50
Clamp WPL 513839 Contact Us For Availability
50
Refrigerator Block WPL 509112 Contact Us For Availability
51
Cube Pan WPL 532608 Contact Us For Availability
52
Refrigerator Screw WPL 488350 Contact Us For Availability
52
Trim WPL 526461 Contact Us For Availability
53
Refrigerator Strainer WPL 541158 Contact Us For Availability
53
Clip WPL 510414 Contact Us For Availability
53
Hinge Shim WPL 520822 Contact Us For Availability
54
Refrigerator Water Supply Shut-Off Valve WPL 541157 Contact Us For Availability
54
Hinge WPL 520826 Contact Us For Availability
54A
Refrigerator Hinge WPL 520827 Contact Us For Availability
55
Wire WPL 544327 Contact Us For Availability
55
Screw WPL 487894 Contact Us For Availability
55
Screw WPL 488204 Contact Us For Availability
55A
Screw WPL 488205 Contact Us For Availability
56
Tube Cover WPL 511046 Contact Us For Availability
57
Valve WPL 541057 Contact Us For Availability
57
Tube Cover WPL 511047 Contact Us For Availability
58
Clamp WPL 510447 Contact Us For Availability
58
Shim WPL 509586 Contact Us For Availability
59
Plug Wire WPL 479983 Contact Us For Availability
59
Sleeve WPL 510446 Contact Us For Availability
59
Refrigerator Door Hinge WPL 520828 Contact Us For Availability
59A
Refrigerator Door Hinge WPL 520829 Contact Us For Availability
61
Adapter WPL 533238 Contact Us For Availability
61
Screw WPL 488042 Contact Us For Availability
61
Heater Rail WPL 519244 Contact Us For Availability
62
Clip WPL 530312 Contact Us For Availability
62
Hinge WPL 509173 Contact Us For Availability
62A
Refrigerator Hinge WPL 509174 Contact Us For Availability
63
Clip WPL 506885 Contact Us For Availability
63
Bracket WPL 512733 Contact Us For Availability
64
Grommet WPL 506884 Contact Us For Availability
64
Plate WPL 512578 Contact Us For Availability
65
Cover WPL 517616 Contact Us For Availability
66
Refrigerator Grille WPL 532056 Contact Us For Availability
67
Grommet WPL 517742 Contact Us For Availability
68
Evaporator Tray WPL 509559 Contact Us For Availability
69
Clip WPL 516355 Contact Us For Availability
70
Spacer WPL 520649 Contact Us For Availability
71
Refrigerator Heater WPL 530342 Contact Us For Availability
73
Refrigerator Heater WPL 530341 Contact Us For Availability
74
Refrigerator Rail (White) WPL 532516 Contact Us For Availability
74A
Refrigerator Rail WPL 532520 Contact Us For Availability
75
Refrigerator Switch WPL 530576 Contact Us For Availability
75A
Refrigerator Switch WPL 519289 Contact Us For Availability
76
Support WPL 512951 Contact Us For Availability
76A
Support WPL 512952 Contact Us For Availability
78
Hinge Shim WPL 520824 Contact Us For Availability
79
Speed Clip WPL 488295 Contact Us For Availability
81
Clip WPL 512773 Contact Us For Availability
82
Bumper WPL 520075 Contact Us For Availability
87
Clip WPL 515622 Contact Us For Availability
89
Leveler WPL 520851 Contact Us For Availability
90
Refrigerator Stud WPL 528642 Contact Us For Availability
91
Refrigerator Shelf WPL 520957 Contact Us For Availability
92
Refrigerator Shelf Wire WPL 532530 Contact Us For Availability
93
Refrigerator Shelf WPL 532365 Contact Us For Availability
94
Refrigerator Cover WPL 514124 Contact Us For Availability
96
Refrigerator Trim WPL 532108 Contact Us For Availability
97
Refrigerator Crisper Pan WPL 532107 Contact Us For Availability
98
Refrigerator Switch WPL 512524 Contact Us For Availability
NI
Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability
NI
Paint WPL 206925 Contact Us For Availability
NI
Insulation WPL 510051 Contact Us For Availability
NI
Touch Up WPL 511881 Contact Us For Availability
NI
Refrigerator Insert WPL 532258 Contact Us For Availability
NI
Refrigerator Part WPL 532434 Contact Us For Availability
NI
Refrigerator Owner's Manual WPL 532679 Contact Us For Availability
NI
Refrigerator Booklet WPL 532692 Contact Us For Availability
NI
Refrigerator Parts List WPL 532767 Contact Us For Availability
NI
Refrigerator Owner's Manual WPL 532768 Contact Us For Availability
NI
Adhesive WPL 542639 Contact Us For Availability
NI
Pnt-blk-qrt WPL 799340 Contact Us For Availability
NI
Pnt-cppr-qrt WPL 799342 Contact Us For Availability
NI
Thinner WPL 799351 Contact Us For Availability
NI
Enamel WPL 799611 Contact Us For Availability
NI
Porc Rep Kit WPL 799640 Contact Us For Availability
NI
Enamel 1 Pt WPL 799735 Contact Us For Availability
× ![]()
Login and Registration Form
