Model Whirlpool 106S13GIMLY Refrigerator (Kenmore 106S13GIMLY) – Common Parts & Diagrams
UNIT PARTS
REFRIGERATOR FREEZER PARTS
All Parts

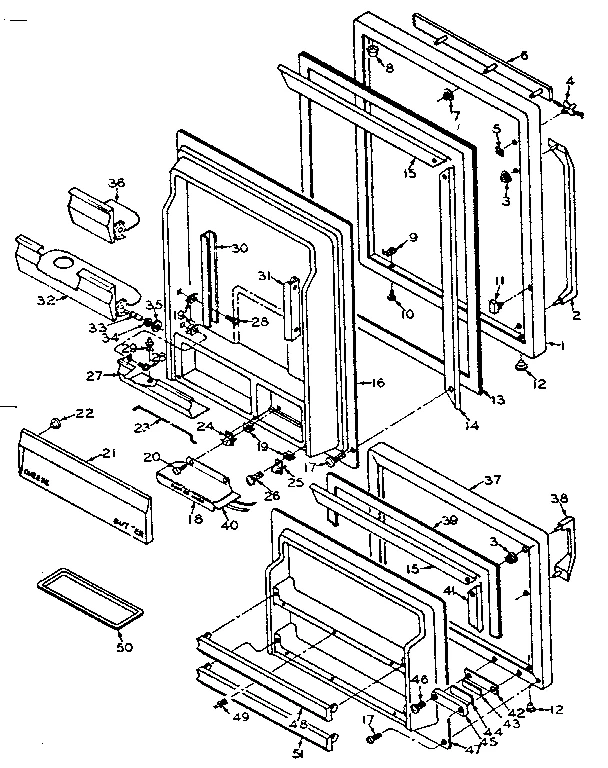

REFRIGERATOR DOOR PARTS
REFRIGERATOR AUTOMATIC ICE MAKER PARTS

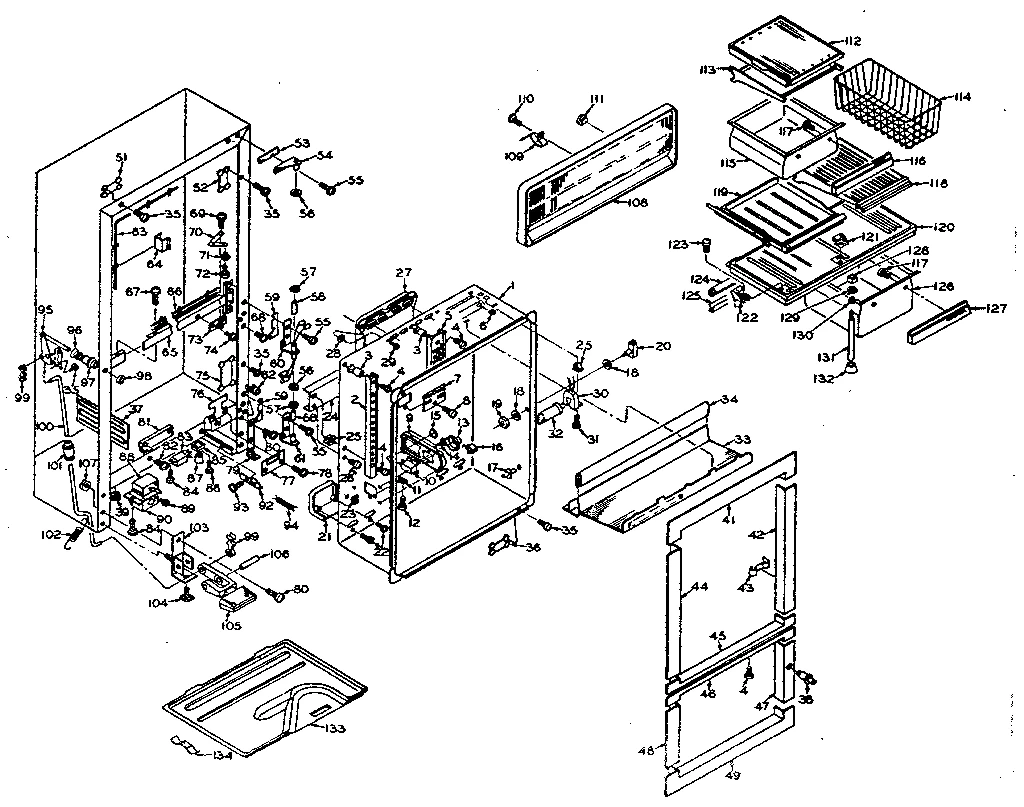

CABINET PARTS
Common parts from model Whirlpool 106S13GIMLY Refrigerator (Kenmore 106S13GIMLY)
1
Refrigerator Liner WPL 514022 Contact Us For Availability
1
Refrigerator Panel WPL 514002 Contact Us For Availability
1
Refrigerator Support WPL 544051 Contact Us For Availability
1
Refrigerator Liner WPL 512846 Contact Us For Availability
1A
Refrigerator Panel WPL 514006 Contact Us For Availability
1A
Refrigerator Liner WPL 512847 Contact Us For Availability
2
Handle WPL 514011 Contact Us For Availability
2
Lug WPL 543791 Contact Us For Availability
2
Refrigerator Ladder WPL 512865 Contact Us For Availability
2A
Refrigerator Ladder WPL 512866 Contact Us For Availability
3
Refrigerator Cover WPL 511998 Contact Us For Availability
3
Nut WPL 509324 Contact Us For Availability
3
Refrigerator Screw WPL 486316 Contact Us For Availability
3
Refrigerator Grommet WPL 512923 Contact Us For Availability
4
Refrigerator Float WPL 512766 Contact Us For Availability
4
Refrigerator Emblem WPL 514134 Contact Us For Availability
4
Refrigerator Bracket WPL 542670 Contact Us For Availability
4
Screw WPL 487955 Contact Us For Availability
5
Refrigerator Fitting WPL 509109 Contact Us For Availability
5
Fastener WPL 487418 Contact Us For Availability
5
Refrigerator Bracket WPL 543642 Contact Us For Availability
5
Refrigerator Ladder WPL 512868 Contact Us For Availability
5A
Refrigerator Ladder WPL 512869 Contact Us For Availability
6
Refrigerator Grommet WPL 512570 Contact Us For Availability
6
Refrigerator Escutcheon WPL 512902 Contact Us For Availability
7
Grommet WPL 502037 Contact Us For Availability
7
Nut WPL 529054 Contact Us For Availability
7
Refrigerator Grille WPL 514281 Contact Us For Availability
8
Stud WPL 507486 Contact Us For Availability
8
Cap WPL 509929 Contact Us For Availability
8
Screw WPL 487257 Contact Us For Availability
8A
Stud WPL 507485 Contact Us For Availability
9
Cube Pan WPL 512699 Contact Us For Availability
9
Refrigerator Plate WPL 511296 Contact Us For Availability
9
Refrigerator Coil WPL 544619 Contact Us For Availability
9
Refrigerator Escutcheon WPL 514180 Contact Us For Availability
10
Refrigerator Trim WPL 540609 Contact Us For Availability
10
Refrigerator Screw WPL 487919 Contact Us For Availability
11
Refrigerator Strike WPL 514182 Contact Us For Availability
11
Refrigerator Speed Nut WPL 514012 Contact Us For Availability
12
Refrigerator Blade WPL 513953 Contact Us For Availability
12
Refrigerator Stud WPL 512431 Contact Us For Availability
12
Grommet WPL 509203 Contact Us For Availability
12A
Blade WPL 510650 Contact Us For Availability
13
Refrigerator Plate WPL 512126 Contact Us For Availability
13
Refrigerator Gasket WPL 512273 Contact Us For Availability
13
Refrigerator Tube WPL 543650 Contact Us For Availability
13
Refrigerator Knob WPL 514181 Contact Us For Availability
13A
Refrigerator Gasket WPL 512274 Contact Us For Availability
14
Cord WPL 513940 Contact Us For Availability
14
Plug WPL 512090 Contact Us For Availability
14
Refrigerator Retainer WPL 509463 Contact Us For Availability
14
Refrigerator Grommet WPL 512380 Contact Us For Availability
14A
Refrigerator Retainer WPL 509464 Contact Us For Availability
15
Refrigerator Box WPL 513459 Contact Us For Availability
15
Connector WPL 227991 Contact Us For Availability
15
Retainer WPL 509460 Contact Us For Availability
15
Refrigerator Plug WPL 478198 Contact Us For Availability
16
Screw WPL 487843 Contact Us For Availability
16
Refrigerator Panel WPL 514026 Contact Us For Availability
16
Refrigerator Clamp WPL 540517 Contact Us For Availability
16
Refrigerator Stud WPL 512891 Contact Us For Availability
16A
Refrigerator Door Panel WPL 514027 Contact Us For Availability
17
Cleat WPL 501472 Contact Us For Availability
17
Stud WPL 212853 Contact Us For Availability
17
Refrigerator Board WPL 514225 Contact Us For Availability
18
FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability
18
Refrigerator Bracket WPL 512746 Contact Us For Availability
18
Refrigerator Heater Plate WPL 512873 Contact Us For Availability
18
Screw WPL 486214 Contact Us For Availability
18
Washer WPL 488119 Contact Us For Availability
19
Refrigerator Housing WPL 512710 Contact Us For Availability
19
Refrigerator Nut WPL 488140 Contact Us For Availability
20
Refrigerator Screw WPL 488005 Contact Us For Availability
20
Refrigerator Switch WPL 529799 Contact Us For Availability
21
Refrigerator Thermostat WPL 512117 Contact Us For Availability
21
Refrigerator Door WPL 514046 Contact Us For Availability
21
Refrigerator Shelf WPL 543659 Contact Us For Availability
21
Refrigerator Air Duct WPL 512023 Contact Us For Availability
21A
Refrigerator Thermostat WPL 512131 Contact Us For Availability
22
Knob WPL 512826 Contact Us For Availability
22
Bumper-black WPL 512875 Contact Us For Availability
22
Refrigerator Heater Kit WPL 544049 Contact Us For Availability
23
Refrigerator Spring WPL 514160 Contact Us For Availability
23
Refrigerator Gasket WPL 542667 Contact Us For Availability
23
Refrigerator Grommet WPL 509124 Contact Us For Availability
24
Refrigerator Hinge Butt WPL 514152 Contact Us For Availability
24
Refrigerator Reinforcement WPL 512856 Contact Us For Availability
25
Grommet WPL 509812 Contact Us For Availability
25
Refrigerator Drain Pan WPL 512404 Contact Us For Availability
25
Refrigerator Hinge Butt WPL 514151 Contact Us For Availability
25
Ejector WPL 544050 Contact Us For Availability
26
Screw WPL 488043 Contact Us For Availability
26
Refrigerator Baffle WPL 514286 Contact Us For Availability
26
Refrigerator Thermostat WPL 543643 Contact Us For Availability
26
Refrigerator Screw WPL 487065 Contact Us For Availability
27
Refrigerator Shelf WPL 514034 Contact Us For Availability
27
Refrigerator Screw WPL 488006 Contact Us For Availability
27
Refrigerator Air Duct WPL 512830 Contact Us For Availability
27A
Refrigerator Air Duct WPL 512831 Contact Us For Availability
28
Refrigerator Shroud WPL 512407 Contact Us For Availability
28
Valve WPL 541057 Contact Us For Availability
28
Refrigerator Speed Nut WPL 488058 Contact Us For Availability
29
Shelf-zinc WPL 514087 Contact Us For Availability
29
Screw WPL 488116 Contact Us For Availability
29
Refrigerator Screw WPL 488032 Contact Us For Availability
30
Refrigerator Cover WPL 512408 Contact Us For Availability
30
Refrigerator Track WPL 512253 Contact Us For Availability
30
Refrigerator Coupling WPL 542677 Contact Us For Availability
30
Refrigerator Holder WPL 516377 Contact Us For Availability
30A
Refrigerator Holder WPL 516378 Contact Us For Availability
31
Refrigerator Heater WPL 511978 Contact Us For Availability
31
Refrigerator Track WPL 512254 Contact Us For Availability
31
Flat Washer WPL 487795 Contact Us For Availability
32
Refrigerator Drain Pan WPL 515634 Contact Us For Availability
32
Refrigerator Shelf WPL 514037 Contact Us For Availability
32
Refrigerator Screw WPL 487946 Contact Us For Availability
32
Refrigerator Bulb WPL 512414 Contact Us For Availability
33
Refrigerator Rod WPL 509570 Contact Us For Availability
33
Refrigerator Fastener WPL 487987 Contact Us For Availability
33
Refrigerator Lens WPL 512880 Contact Us For Availability
34
Refrigerator Basket WPL 512897 Contact Us For Availability
34
Refrigerator Bushing WPL 509568 Contact Us For Availability
34
Refrigerator Clamp WPL 542698 Contact Us For Availability
34
Refrigerator Gasket WPL 512804 Contact Us For Availability
35
Slide WPL 529052 Contact Us For Availability
35
Refrigerator Gear WPL 509571 Contact Us For Availability
36
Support WPL 510956 Contact Us For Availability
36
Refrigerator Shelf WPL 514035 Contact Us For Availability
36
Refrigerator Screw WPL 486181 Contact Us For Availability
36
Refrigerator Spacer WPL 509119 Contact Us For Availability
37
Refrigerator Air Duct WPL 514157 Contact Us For Availability
37
Refrigerator Panel WPL 514060 Contact Us For Availability
37
Refrigerator Switch WPL 542693 Contact Us For Availability
37
Cabinet Heater WPL 511979 Contact Us For Availability
38
Frame WPL 513817 Contact Us For Availability
38
Refrigerator Gasket WPL 512549 Contact Us For Availability
38
Refrigerator Handle WPL 514013 Contact Us For Availability
38
Refrigerator Insulation WPL 542697 Contact Us For Availability
38
Refrigerator Switch WPL 512524 Contact Us For Availability
39
Grommet WPL 510953 Contact Us For Availability
39
Refrigerator Motor WPL 513580 Contact Us For Availability
39
Refrigerator Door Gasket WPL 512300 Contact Us For Availability
39
Refrigerator Conductor WPL 542674 Contact Us For Availability
39
Grommet WPL 206986 Contact Us For Availability
40
Plate WPL 510955 Contact Us For Availability
40
Cabinet Heater WPL 512072 Contact Us For Availability
40
Refrigerator Motor Kit WPL 544069 Contact Us For Availability
41
Grommet WPL 510954 Contact Us For Availability
41
Refrigerator Evaporator Fan Blade WPL 513543 Contact Us For Availability
41
Refrigerator Retainer WPL 509465 Contact Us For Availability
41
Refrigerator Screw WPL 487423 Contact Us For Availability
41
Trim WPL 512006 Contact Us For Availability
42
Screw WPL 487914 Contact Us For Availability
42
Refrigerator Base WPL 512196 Contact Us For Availability
42
Switch WPL 543648 Contact Us For Availability
42
Refrigerator Trim WPL 512358 Contact Us For Availability
42A
Refrigerator Trim WPL 512457 Contact Us For Availability
43
Precooler WPL 515648 Contact Us For Availability
43
Refrigerator Trim WPL 512832 Contact Us For Availability
43
Refrigerator Plate WPL 512237 Contact Us For Availability
43
Retainer WPL 543649 Contact Us For Availability
43
Clip WPL 527665 Contact Us For Availability
44
Refrigerator Retainer WPL 509920 Contact Us For Availability
44
Magnet WPL 512312 Contact Us For Availability
44
Spring WPL 542706 Contact Us For Availability
44
Refrigerator Trim WPL 512364 Contact Us For Availability
44A
Refrigerator Trim WPL 512460 Contact Us For Availability
45
Refrigerator Condenser WPL 515368 Contact Us For Availability
45
Refrigerator Plate WPL 512823 Contact Us For Availability
45
Refrigerator Cover WPL 512315 Contact Us For Availability
45
Refrigerator Arm WPL 542704 Contact Us For Availability
45
Refrigerator Trim WPL 512535 Contact Us For Availability
46
Clamp WPL 510716 Contact Us For Availability
46
Screw WPL 488013 Contact Us For Availability
46
Arm Stop WPL 542926 Contact Us For Availability
46
Refrigerator Trim WPL 512566 Contact Us For Availability
47
Screw WPL 488044 Contact Us For Availability
47
Refrigerator Panel WPL 514070 Contact Us For Availability
47
Arm Cap WPL 543755 Contact Us For Availability
47
Refrigerator Trim WPL 512160 Contact Us For Availability
48
Dampener WPL 510769 Contact Us For Availability
48
Refrigerator Front WPL 512928 Contact Us For Availability
48
Refrigerator Trim WPL 512436 Contact Us For Availability
49
Rivet WPL 512277 Contact Us For Availability
49
Refrigerator Screw WPL 542701 Contact Us For Availability
49
Refrigerator Trim WPL 515993 Contact Us For Availability
50
Lever Arm WPL 543654 Contact Us For Availability
51
Clamp WPL 508832 Contact Us For Availability
51
Refrigerator Front WPL 512859 Contact Us For Availability
51
Refrigerator Cam WPL 542681 Contact Us For Availability
51
Spacer WPL 509117 Contact Us For Availability
52
Cam Spacer WPL 542682 Contact Us For Availability
52
Spacer WPL 509118 Contact Us For Availability
53
Refrigerator Cam WPL 542683 Contact Us For Availability
53
Shim WPL 509396 Contact Us For Availability
54
Refrigerator Cam WPL 542684 Contact Us For Availability
54
Hinge WPL 509169 Contact Us For Availability
55
Grommet WPL 32719 Contact Us For Availability
55
Washer WPL 487948 Contact Us For Availability
55
Screw WPL 487903 Contact Us For Availability
55A
Screw WPL 487904 Contact Us For Availability
56
Rail WPL 513820 Contact Us For Availability
56
Refrigerator Switch WPL 544052 Contact Us For Availability
58
Plug WPL 511433 Contact Us For Availability
59
Screw WPL 488042 Contact Us For Availability
59
Shim WPL 509586 Contact Us For Availability
60
Rail WPL 510620 Contact Us For Availability
60
Refrigerator Hinge WPL 509797 Contact Us For Availability
61
Hinge WPL 509173 Contact Us For Availability
62
Screw WPL 487814 Contact Us For Availability
62
Grommet WPL 509894 Contact Us For Availability
63
Refrigerator Heater WPL 512674 Contact Us For Availability
64
Terminal WPL 45571 Contact Us For Availability
64
Refrigerator Cover WPL 544433 Contact Us For Availability
64
Clip WPL 510291 Contact Us For Availability
65
Refrigerator Extension WPL 512946 Contact Us For Availability
65
Refrigerator Screw WPL 486515 Contact Us For Availability
65
Refrigerator Rail WPL 512717 Contact Us For Availability
66
Grommet WPL 510912 Contact Us For Availability
66
Refrigerator Heater WPL 509883 Contact Us For Availability
66A
Refrigerator Resistor WPL 512527 Contact Us For Availability
68
Pad WPL 510915 Contact Us For Availability
68
Union WPL 512503 Contact Us For Availability
69
Screw WPL 487734 Contact Us For Availability
70
Grommet WPL 513819 Contact Us For Availability
70
Refrigerator Link WPL 509999 Contact Us For Availability
71
Refrigerator Spacer WPL 509228 Contact Us For Availability
72
Clip WPL 43310 Contact Us For Availability
73
Refrigerator Bracket WPL 509209 Contact Us For Availability
75
Refrigerator Spacer WPL 509572 Contact Us For Availability
76
Bracket WPL 512733 Contact Us For Availability
77
Plate WPL 512578 Contact Us For Availability
78
Screw WPL 488128 Contact Us For Availability
79
Bracket WPL 509137 Contact Us For Availability
80
Screw WPL 487950 Contact Us For Availability
80
Refrigerator Evaporator WPL 515352 Contact Us For Availability
81
Refrigerator Board WPL 510395 Contact Us For Availability
82
Refrigerator Clamp WPL 513550 Contact Us For Availability
82
Refrigerator Screw WPL 488046 Contact Us For Availability
83
Refrigerator Screw WPL 488045 Contact Us For Availability
83
Refrigerator Ballast WPL 512411 Contact Us For Availability
84
Refrigerator Heater WPL 513549 Contact Us For Availability
85
Clip WPL 513542 Contact Us For Availability
85
Refrigerator Socket WPL 512413 Contact Us For Availability
86
Refrigerator Heat Exchange WPL 515355 Contact Us For Availability
86
Refrigerator Screw WPL 487982 Contact Us For Availability
87
Refrigerator Starter WPL 512412 Contact Us For Availability
88
Refrigerator Timer WPL 513629 Contact Us For Availability
88A
Refrigerator Timer WPL 513630 Contact Us For Availability
89
Clamp WPL 513584 Contact Us For Availability
90
Refrigerator Clip WPL 513781 Contact Us For Availability
90
Refrigerator Cover WPL 512760 Contact Us For Availability
91
Refrigerator Tube WPL 512675 Contact Us For Availability
92
Support WPL 512951 Contact Us For Availability
92A
Support WPL 512952 Contact Us For Availability
93
Screw WPL 487114 Contact Us For Availability
94
Crossover WPL 509890 Contact Us For Availability
95
Refrigerator Mechanism WPL 512950 Contact Us For Availability
96
Refrigerator Spring WPL 512958 Contact Us For Availability
97
Refrigerator Guide WPL 512957 Contact Us For Availability
98
Refrigerator Gasket WPL 512956 Contact Us For Availability
99
Refrigerator Fastener WPL 527837 Contact Us For Availability
100
Refrigerator Rod WPL 512959 Contact Us For Availability
101
Refrigerator Boot WPL 509867 Contact Us For Availability
102
Refrigerator Spring WPL 509668 Contact Us For Availability
103
Refrigerator Bracket WPL 512961 Contact Us For Availability
104
Leveler WPL 508981 Contact Us For Availability
104A
Leveler WPL 544198 Contact Us For Availability
105
Refrigerator Pedal WPL 512909 Contact Us For Availability
106
Refrigerator Pin WPL 512963 Contact Us For Availability
107
Nut WPL 486835 Contact Us For Availability
108
Refrigerator Grille WPL 512919 Contact Us For Availability
109
Clip WPL 512773 Contact Us For Availability
111
Bumper WPL 511481 Contact Us For Availability
112
Refrigerator Slide WPL 514129 Contact Us For Availability
113
Shelf-alumnm WPL 514099 Contact Us For Availability
115
Refrigerator Meat Pan WPL 514122 Contact Us For Availability
116
Refrigerator Handle WPL 514123 Contact Us For Availability
118
Refrigerator Shelf WPL 514096 Contact Us For Availability
119
Refrigerator Shelf WPL 514127 Contact Us For Availability
120
Refrigerator Cover WPL 514125 Contact Us For Availability
121
Refrigerator Support WPL 514132 Contact Us For Availability
122
Refrigerator Support WPL 512031 Contact Us For Availability
123
Refrigerator Screw WPL 487956 Contact Us For Availability
124
Refrigerator Gasket WPL 512985 Contact Us For Availability
125
Refrigerator Retainer WPL 512986 Contact Us For Availability
126
Refrigerator Pan WPL 514112 Contact Us For Availability
127
Refrigerator Handle WPL 514114 Contact Us For Availability
128
Refrigerator Grommet WPL 501966 Contact Us For Availability
129
Washer WPL 487244 Contact Us For Availability
130
Refrigerator Nut WPL 487216 Contact Us For Availability
131
Refrigerator Post WPL 514148 Contact Us For Availability
132
Refrigerator Foot WPL 526151 Contact Us For Availability
133
Evaporator Tray WPL 509559 Contact Us For Availability
134
Clip WPL 516355 Contact Us For Availability
NI
Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability
NI
Paint WPL 206925 Contact Us For Availability
NI
Refrigerator Wire WPL 508437 Contact Us For Availability
NI
Cover WPL 509458 Contact Us For Availability
NI
Insulation WPL 510051 Contact Us For Availability
NI
Touch Up WPL 511881 Contact Us For Availability
NI
Refrigerator Parts List WPL 514170 Contact Us For Availability
NI
Refrigerator Owner's Manual WPL 514280 Contact Us For Availability
NI
Adhesive WPL 542639 Contact Us For Availability
× ![]()
Login and Registration Form
