Model Whirlpool 106R16GBCL1 Refrigerator (Kenmore 106R16GBCL1) – Common Parts & Diagrams
UNIT PARTS
DOOR PARTS

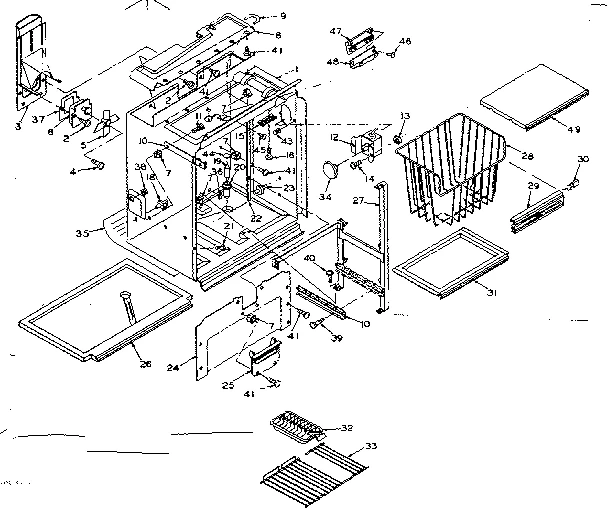

FREEZER SECTION PARTS
All Parts

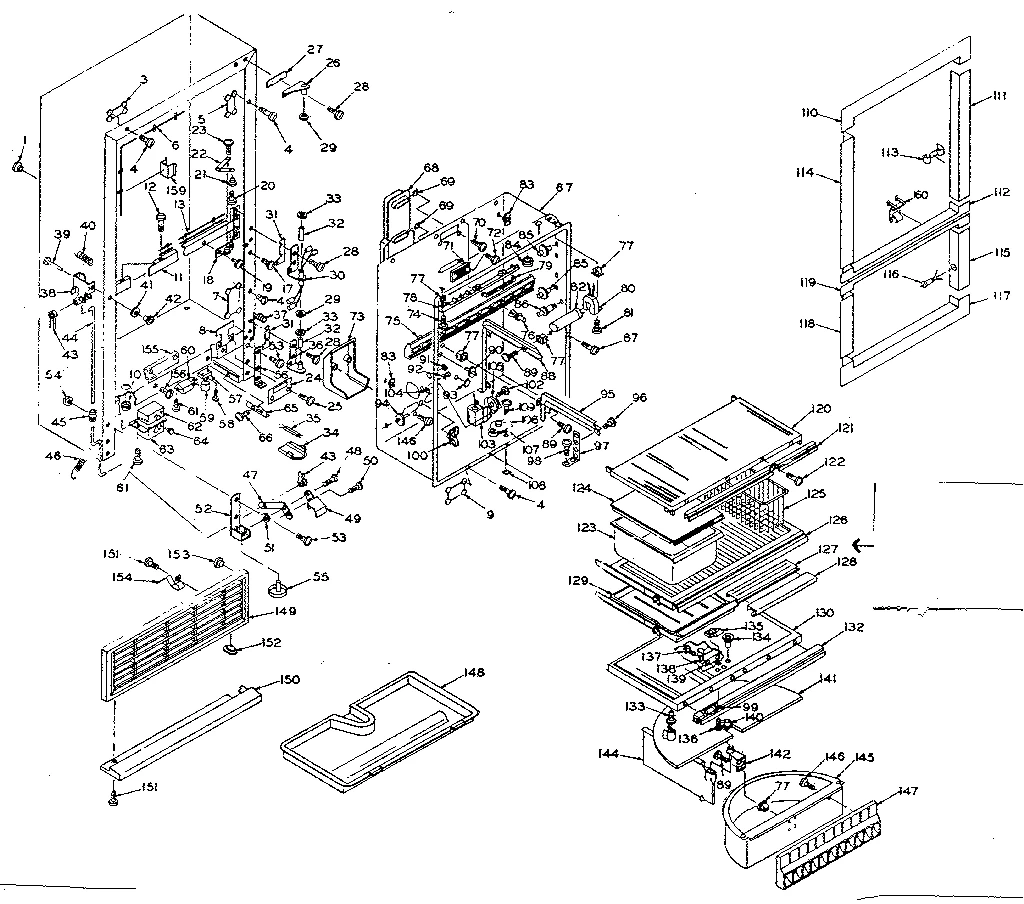

CABINET PARTS
Common parts from model Whirlpool 106R16GBCL1 Refrigerator (Kenmore 106R16GBCL1)
1
Refrigerator Door Panel WPL 512230 Contact Us For Availability
1
Refrigerator Part WPL 512065 Contact Us For Availability
1
Grommet WPL 509613 Contact Us For Availability
1A
Refrigerator Door Panel WPL 512231 Contact Us For Availability
1B
Refrigerator Panel WPL 512782 Contact Us For Availability
1C
Refrigerator Door Panel WPL 512783 Contact Us For Availability
1D
Refrigerator Door Panel WPL 512780 Contact Us For Availability
1E
Refrigerator Door Panel WPL 512781 Contact Us For Availability
1F
Refrigerator Door Panel WPL 512607 Contact Us For Availability
1G
Refrigerator Panel WPL 512606 Contact Us For Availability
2
Script WPL 509514 Contact Us For Availability
3
Fastener WPL 487418 Contact Us For Availability
3
Refrigerator Air Duct WPL 512399 Contact Us For Availability
3
Spacer WPL 509117 Contact Us For Availability
4
Refrigerator Emblem WPL 512234 Contact Us For Availability
5
Cap WPL 509929 Contact Us For Availability
5
Refrigerator Evaporator Fan Blade WPL 513543 Contact Us For Availability
5
Spacer WPL 509118 Contact Us For Availability
6
Refrigerator Trim WPL 509496 Contact Us For Availability
6
Refrigerator Motor WPL 513580 Contact Us For Availability
6
Refrigerator Heater WPL 512674 Contact Us For Availability
7
Handle WPL 509599 Contact Us For Availability
7
Refrigerator Spacer WPL 509572 Contact Us For Availability
7A
Refrigerator Handle WPL 509600 Contact Us For Availability
8
Screw WPL 509320 Contact Us For Availability
8
Refrigerator Drain Pan WPL 512453 Contact Us For Availability
8
Bracket WPL 512733 Contact Us For Availability
9
Handle WPL 509601 Contact Us For Availability
9
Cabinet Heater WPL 513579 Contact Us For Availability
9
Refrigerator Spacer WPL 509119 Contact Us For Availability
10
Insert WPL 509612 Contact Us For Availability
10
Refrigerator Slide WPL 512384 Contact Us For Availability
10
Refrigerator Grommet WPL 260986 Contact Us For Availability
11
Screw WPL 487803 Contact Us For Availability
11
Refrigerator Rail WPL 512717 Contact Us For Availability
11A
Refrigerator Rail WPL 512718 Contact Us For Availability
11B
Refrigerator Rail WPL 512719 Contact Us For Availability
11C
Refrigerator Rail WPL 512970 Contact Us For Availability
12
Blade WPL 510650 Contact Us For Availability
12
Screw WPL 509319 Contact Us For Availability
12
Refrigerator Thermostat WPL 512117 Contact Us For Availability
12A
Refrigerator Thermostat WPL 512131 Contact Us For Availability
13
Refrigerator Strike WPL 509669 Contact Us For Availability
13
Refrigerator Heater WPL 509883 Contact Us For Availability
13A
Refrigerator Resistor WPL 512527 Contact Us For Availability
14
Cord WPL 513940 Contact Us For Availability
14
Grommet WPL 509203 Contact Us For Availability
15
Refrigerator Box WPL 510819 Contact Us For Availability
15
Refrigerator Plate WPL 511296 Contact Us For Availability
15
Refrigerator Plate WPL 512126 Contact Us For Availability
16
Screw WPL 487843 Contact Us For Availability
16
Refrigerator Door Panel WPL 512249 Contact Us For Availability
17
Cleat WPL 501472 Contact Us For Availability
17
Retainer WPL 509460 Contact Us For Availability
18
FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability
18
Refrigerator Retainer WPL 509464 Contact Us For Availability
18
Refrigerator Stud WPL 512431 Contact Us For Availability
18
Refrigerator Bracket WPL 509209 Contact Us For Availability
19
Refrigerator Gasket WPL 512274 Contact Us For Availability
19
Refrigerator Float WPL 512766 Contact Us For Availability
20
Refrigerator Fitting WPL 509109 Contact Us For Availability
21
Refrigerator Spacer WPL 509228 Contact Us For Availability
22
Refrigerator Trim WPL 512213 Contact Us For Availability
22
Refrigerator Baffle WPL 512405 Contact Us For Availability
22
Refrigerator Link WPL 509999 Contact Us For Availability
23
Screw WPL 487734 Contact Us For Availability
24
Refrigerator Track WPL 512253 Contact Us For Availability
24
Refrigerator Shroud WPL 512508 Contact Us For Availability
24
Plate WPL 512578 Contact Us For Availability
25
Refrigerator Shelf WPL 512258 Contact Us For Availability
25
Refrigerator Cover WPL 512408 Contact Us For Availability
25A
Refrigerator Shelf WPL 512256 Contact Us For Availability
26
Screw WPL 488043 Contact Us For Availability
26
Refrigerator Rod WPL 509570 Contact Us For Availability
26
Refrigerator Drain Pan WPL 512663 Contact Us For Availability
26
Hinge WPL 509169 Contact Us For Availability
26A
Refrigerator Hinge WPL 509170 Contact Us For Availability
27
Refrigerator Bushing WPL 509568 Contact Us For Availability
27
Refrigerator Frame WPL 512003 Contact Us For Availability
27
Shim WPL 509396 Contact Us For Availability
28
Refrigerator Gear WPL 509571 Contact Us For Availability
28
Refrigerator Basket WPL 512349 Contact Us For Availability
28
Screw WPL 487903 Contact Us For Availability
28A
Screw WPL 487904 Contact Us For Availability
29
Refrigerator Shelf WPL 512255 Contact Us For Availability
29
Refrigerator Trim WPL 512350 Contact Us For Availability
30
Rivet WPL 512277 Contact Us For Availability
30
Refrigerator Retainer WPL 509920 Contact Us For Availability
30
Refrigerator Hinge WPL 509797 Contact Us For Availability
30A
Refrigerator Hinge WPL 509798 Contact Us For Availability
31
Refrigerator Plate WPL 512066 Contact Us For Availability
31
Refrigerator Shelf WPL 512351 Contact Us For Availability
31
Shim WPL 509586 Contact Us For Availability
32
Cabinet Heater WPL 512072 Contact Us For Availability
32
Refrigerator Ice Tray WPL 512051 Contact Us For Availability
32
Plug WPL 511433 Contact Us For Availability
33
Refrigerator Insulation WPL 512492 Contact Us For Availability
33
Refrigerator Rack WPL 512642 Contact Us For Availability
34
Refrigerator Switch WPL 512155 Contact Us For Availability
34
Refrigerator Knob WPL 512232 Contact Us For Availability
34
Cover WPL 509458 Contact Us For Availability
35
Refrigerator Heater WPL 511978 Contact Us For Availability
35
Crossover WPL 509890 Contact Us For Availability
36
Hinge WPL 509173 Contact Us For Availability
36A
Refrigerator Hinge WPL 509174 Contact Us For Availability
37
Refrigerator Screw WPL 488071 Contact Us For Availability
37
Refrigerator Shelf WPL 512262 Contact Us For Availability
37
Refrigerator Gasket WPL 512549 Contact Us For Availability
37
Grommet WPL 509894 Contact Us For Availability
38
Frame WPL 513817 Contact Us For Availability
38
Refrigerator Door WPL 512263 Contact Us For Availability
38
Refrigerator Mechanism WPL 511615 Contact Us For Availability
38A
Refrigerator Mechanism WPL 511616 Contact Us For Availability
39
Refrigerator Door WPL 512266 Contact Us For Availability
39
Refrigerator Pin WPL 511617 Contact Us For Availability
40
Refrigerator Handle WPL 509270 Contact Us For Availability
40
Refrigerator Spring WPL 511618 Contact Us For Availability
41
Refrigerator Screw WPL 487593 Contact Us For Availability
41
Washer WPL 487957 Contact Us For Availability
42
Refrigerator Door Panel WPL 512289 Contact Us For Availability
42
Refrigerator Plug WPL 528721 Contact Us For Availability
42
Refrigerator Nut WPL 511839 Contact Us For Availability
42A
Refrigerator Door Panel WPL 512290 Contact Us For Availability
42B
Refrigerator Door Panel WPL 512790 Contact Us For Availability
42C
Refrigerator Panel WPL 512791 Contact Us For Availability
42D
Refrigerator Door Panel WPL 512788 Contact Us For Availability
42E
Refrigerator Panel WPL 512789 Contact Us For Availability
42F
Refrigerator Door Panel WPL 512611 Contact Us For Availability
42G
DOOR, PINK, R.H. MODEL WPL 512510 Contact Us For Availability
43
Refrigerator Handle WPL 512291 Contact Us For Availability
43
Refrigerator Clip WPL 509664 Contact Us For Availability
43A
Refrigerator Clip WPL 509672 Contact Us For Availability
44
Screw WPL 509787 Contact Us For Availability
44
Refrigerator Cover WPL 511998 Contact Us For Availability
44
Refrigerator Rod WPL 509663 Contact Us For Availability
44A
Refrigerator Rod WPL 509673 Contact Us For Availability
45
Refrigerator Condenser WPL 511892 Contact Us For Availability
45
Nameplate WPL 512233 Contact Us For Availability
45
Refrigerator Boot WPL 509867 Contact Us For Availability
46
Clamp WPL 510716 Contact Us For Availability
46
Refrigerator Door Panel WPL 512296 Contact Us For Availability
46
Refrigerator Spring WPL 509668 Contact Us For Availability
47
Refrigerator Screw WPL 488021 Contact Us For Availability
47
Refrigerator Retainer WPL 509465 Contact Us For Availability
47
Refrigerator Terminal Board WPL 512742 Contact Us For Availability
47
Refrigerator Lever WPL 509666 Contact Us For Availability
48
Dampener WPL 510770 Contact Us For Availability
48
Refrigerator Door Gasket WPL 512300 Contact Us For Availability
48
Refrigerator Bracket WPL 512746 Contact Us For Availability
48
Refrigerator Pin WPL 509667 Contact Us For Availability
49
Refrigerator Frame WPL 512269 Contact Us For Availability
49
Refrigerator Shelf WPL 512352 Contact Us For Availability
49
Refrigerator Pedal WPL 509665 Contact Us For Availability
50
Refrigerator Front WPL 512298 Contact Us For Availability
50
Refrigerator Screw WPL 487878 Contact Us For Availability
51
Refrigerator Drain Pan Washer WPL 487596 Contact Us For Availability
51
Clamp WPL 508832 Contact Us For Availability
51
Refrigerator Front WPL 512297 Contact Us For Availability
52
Refrigerator Trim WPL 509196 Contact Us For Availability
52
Refrigerator Bracket WPL 509657 Contact Us For Availability
53
Refrigerator Spacer WPL 32720 Contact Us For Availability
53
Screw WPL 487950 Contact Us For Availability
53
Refrigerator Container WPL 509457 Contact Us For Availability
54
Washer WPL 32721 Contact Us For Availability
54
Nut WPL 486835 Contact Us For Availability
54
Refrigerator Screw WPL 487919 Contact Us For Availability
55
Grommet WPL 32719 Contact Us For Availability
55
Refrigerator Butter Tray WPL 214703 Contact Us For Availability
55
Leveler WPL 508981 Contact Us For Availability
56
Rail WPL 513820 Contact Us For Availability
56
Bracket WPL 509137 Contact Us For Availability
57
Refrigerator Socket WPL 512413 Contact Us For Availability
58
Refrigerator Base WPL 512196 Contact Us For Availability
58
Refrigerator Screw WPL 487982 Contact Us For Availability
59
Screw WPL 488042 Contact Us For Availability
59
Refrigerator Plate WPL 512237 Contact Us For Availability
59
Refrigerator Starter WPL 512412 Contact Us For Availability
60
Rail WPL 510620 Contact Us For Availability
60
Magnet WPL 512312 Contact Us For Availability
60
Refrigerator Ballast WPL 512411 Contact Us For Availability
61
Refrigerator Cover WPL 512315 Contact Us For Availability
62
Screw WPL 487814 Contact Us For Availability
62
Screw WPL 488013 Contact Us For Availability
62
Refrigerator Timer WPL 513629 Contact Us For Availability
62A
Refrigerator Timer WPL 513630 Contact Us For Availability
63
Refrigerator Brush WPL 511840 Contact Us For Availability
63
Refrigerator Track WPL 512254 Contact Us For Availability
63
Refrigerator Cover WPL 529149 Contact Us For Availability
64
Clip WPL 511298 Contact Us For Availability
65
Terminal WPL 45571 Contact Us For Availability
65
Support WPL 509654 Contact Us For Availability
65A
Support WPL 509655 Contact Us For Availability
66
Grommet WPL 510912 Contact Us For Availability
66
Screw WPL 487114 Contact Us For Availability
67
Liner WPL 512064 Contact Us For Availability
68
Pad WPL 510915 Contact Us For Availability
68
Refrigerator Air Duct WPL 512515 Contact Us For Availability
69
Refrigerator Speed Nut WPL 488058 Contact Us For Availability
70
Grommet WPL 513819 Contact Us For Availability
70
Refrigerator Screw WPL 488032 Contact Us For Availability
71
Refrigerator Grille WPL 512125 Contact Us For Availability
72
Clip WPL 43310 Contact Us For Availability
72
Refrigerator Screw WPL 488003 Contact Us For Availability
73
Refrigerator Air Duct WPL 512023 Contact Us For Availability
74
Screw WPL 487979 Contact Us For Availability
75
Refrigerator Grille WPL 512123 Contact Us For Availability
76
Refrigerator Rivet WPL 511989 Contact Us For Availability
77
Grommet WPL 509812 Contact Us For Availability
78
Refrigerator Baffle WPL 512121 Contact Us For Availability
79
Insert WPL 512115 Contact Us For Availability
80
Refrigerator Evaporator WPL 511893 Contact Us For Availability
80
Refrigerator Holder WPL 511882 Contact Us For Availability
81
SCREW, 8-15 X (4) WPL 487162 Contact Us For Availability
82
Refrigerator Clamp WPL 513550 Contact Us For Availability
82
Refrigerator Shelf WPL 512114 Contact Us For Availability
83
Refrigerator Screw WPL 488045 Contact Us For Availability
83
Refrigerator Grommet WPL 509124 Contact Us For Availability
84
Refrigerator Heater WPL 513549 Contact Us For Availability
84
Refrigerator Grommet WPL 512570 Contact Us For Availability
85
Clip WPL 513542 Contact Us For Availability
85
Stud WPL 208492 Contact Us For Availability
86
Refrigerator Heat Exchange WPL 511891 Contact Us For Availability
86
Refrigerator Switch WPL 512525 Contact Us For Availability
87
Connector WPL 227991 Contact Us For Availability
88
Refrigerator Track WPL 512099 Contact Us For Availability
89
Refrigerator Clamp WPL 513587 Contact Us For Availability
90
Refrigerator Stud WPL 509986 Contact Us For Availability
90
Refrigerator Clip WPL 513781 Contact Us For Availability
91
Refrigerator Spacer WPL 513943 Contact Us For Availability
92
Refrigerator Grommet WPL 513945 Contact Us For Availability
92
Button WPL 502235 Contact Us For Availability
93
Precooler WPL 513837 Contact Us For Availability
93
Plug WPL 512090 Contact Us For Availability
94
Refrigerator Plate WPL 513944 Contact Us For Availability
94
Stud WPL 212853 Contact Us For Availability
95
Refrigerator Tube WPL 512675 Contact Us For Availability
95
Refrigerator Track WPL 512100 Contact Us For Availability
97
Refrigerator Support WPL 512122 Contact Us For Availability
99
Screw WPL 487273 Contact Us For Availability
100
Refrigerator Retainer WPL 512725 Contact Us For Availability
103
Refrigerator Thermostat WPL 513558 Contact Us For Availability
103A
Refrigerator Thermostat WPL 513560 Contact Us For Availability
105
Refrigerator Knob WPL 512132 Contact Us For Availability
106
Refrigerator Pivot WPL 509092 Contact Us For Availability
107
Refrigerator Gasket WPL 511299 Contact Us For Availability
108
Refrigerator Fastener WPL 85488 Contact Us For Availability
110
Trim WPL 512006 Contact Us For Availability
110A
Refrigerator Trim WPL 512036 Contact Us For Availability
111
Refrigerator Trim WPL 512457 Contact Us For Availability
111A
Refrigerator Trim WPL 512461 Contact Us For Availability
112
Refrigerator Trim WPL 512535 Contact Us For Availability
112A
Refrigerator Trim WPL 512561 Contact Us For Availability
113
Clip WPL 527665 Contact Us For Availability
114
Refrigerator Trim WPL 512460 Contact Us For Availability
114A
Refrigerator Trim WPL 512458 Contact Us For Availability
115
Refrigerator Trim WPL 512160 Contact Us For Availability
115A
Refrigerator Trim WPL 512462 Contact Us For Availability
116
Refrigerator Switch WPL 512524 Contact Us For Availability
117
Refrigerator Trim WPL 512151 Contact Us For Availability
117A
Refrigerator Trim WPL 512152 Contact Us For Availability
118
Refrigerator Trim WPL 512436 Contact Us For Availability
118A
Refrigerator Trim WPL 512218 Contact Us For Availability
119
Refrigerator Trim WPL 512566 Contact Us For Availability
119A
Refrigerator Trim WPL 512567 Contact Us For Availability
120
Refrigerator Shelf WPL 512347 Contact Us For Availability
121
Refrigerator Trim WPL 512324 Contact Us For Availability
123
Refrigerator Meat Pan WPL 512428 Contact Us For Availability
124
Refrigerator Cover WPL 512429 Contact Us For Availability
127
Shelf Link WPL 512345 Contact Us For Availability
128
Refrigerator Trim WPL 509437 Contact Us For Availability
129
Refrigerator Shelf WPL 512340 Contact Us For Availability
130
Refrigerator Shelf WPL 512030 Contact Us For Availability
132
Refrigerator Trim WPL 512104 Contact Us For Availability
134
Refrigerator Pin WPL 509409 Contact Us For Availability
135
Refrigerator Support WPL 512031 Contact Us For Availability
136
Refrigerator Screw WPL 487956 Contact Us For Availability
137
Refrigerator Screw WPL 487876 Contact Us For Availability
138
Refrigerator Spring WPL 509234 Contact Us For Availability
139
Refrigerator Plate WPL 509140 Contact Us For Availability
140
Refrigerator Positioner WPL 509366 Contact Us For Availability
141
Refrigerator Cover WPL 511612 Contact Us For Availability
142
Refrigerator Bracket WPL 512308 Contact Us For Availability
144
Refrigerator Divider WPL 512310 Contact Us For Availability
145
Refrigerator Crisper Pan WPL 512303 Contact Us For Availability
147
Refrigerator Front WPL 512304 Contact Us For Availability
148
Evaporator Tray WPL 509559 Contact Us For Availability
149
Grille WPL 509491 Contact Us For Availability
150
Refrigerator Trim WPL 509427 Contact Us For Availability
150A
Refrigerator Trim WPL 509650 Contact Us For Availability
152
Grommet WPL 511995 Contact Us For Availability
153
Bumper WPL 511481 Contact Us For Availability
154
Clip WPL 512773 Contact Us For Availability
155
Refrigerator Board WPL 512741 Contact Us For Availability
156
Refrigerator Screw WPL 488046 Contact Us For Availability
159
Clip WPL 510291 Contact Us For Availability
160
Refrigerator Clip WPL 529515 Contact Us For Availability
NI
Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability
NI
Paint WPL 206925 Contact Us For Availability
NI
Paint-yellow WPL 216085 Contact Us For Availability
NI
Refrigerator Wire WPL 508437 Contact Us For Availability
NI
Insulation WPL 510051 Contact Us For Availability
NI
Touch Up WPL 511881 Contact Us For Availability
NI
Refrigerator Parts List WPL 511974 Contact Us For Availability
NI
Refrigerator Instruction Manual WPL 512497 Contact Us For Availability
NI
Paint-pink WPL 99028 Contact Us For Availability
× ![]()
Login and Registration Form
