Model Whirlpool 1068740770-AC Air Conditioner (Kenmore 1068740770-AC) – Common Parts & Diagrams
AIR FLOW AND CONTROL PARTS
All Parts

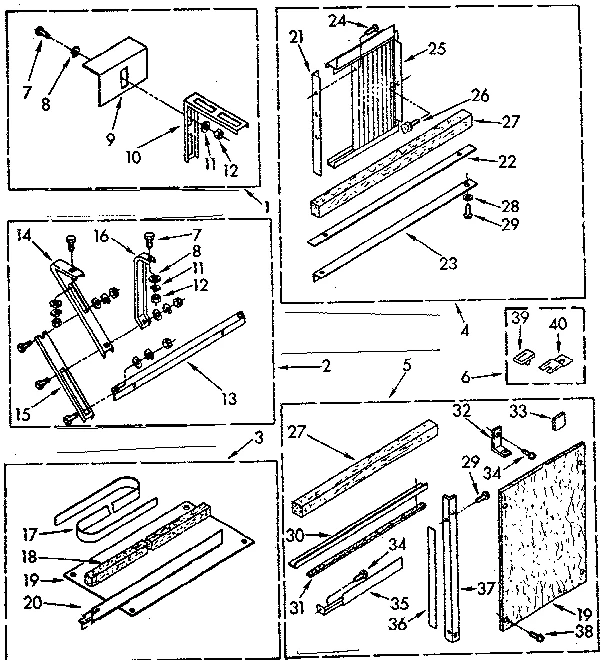

ACCESSORY KIT PARTS

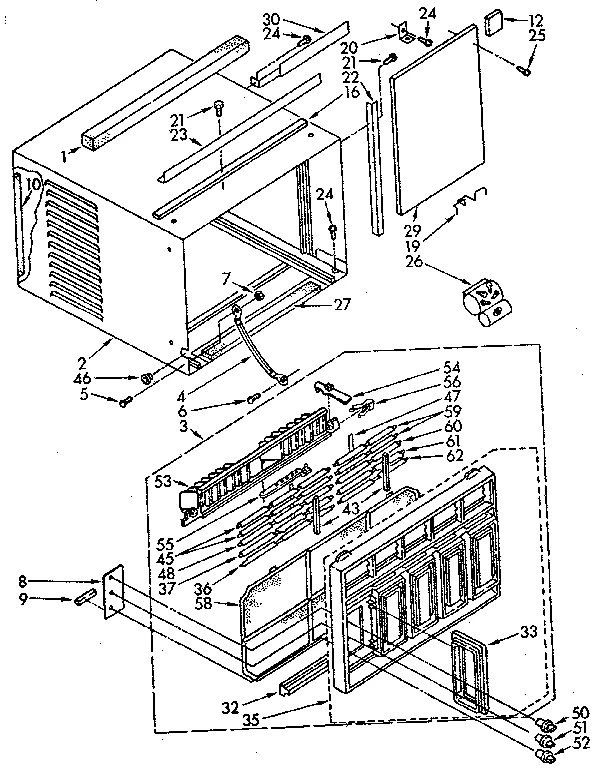

CABINET PARTS

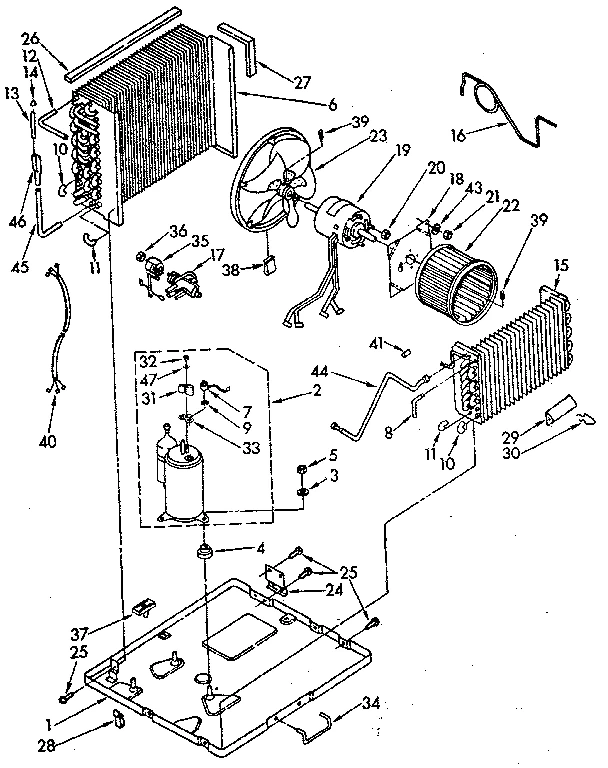

UNIT PARTS
Common parts from model Whirlpool 1068740770-AC Air Conditioner (Kenmore 1068740770-AC)
1
Bracket Kit WPL 485678 Contact Us For Availability
1
Rail Seal WPL 469877 Contact Us For Availability
1
Base WPL 951381 Contact Us For Availability
2
Support Kit WPL 485679 Contact Us For Availability
2
Cabinet WPL 858828 Contact Us For Availability
2
Compressor WPL 813556 Contact Us For Availability
3
Window Kit WPL 485676 Contact Us For Availability
3
& 876893 CAPACITOR WPL N/P Contact Us For Availability
4
Mounting Kit WPL 485675 Contact Us For Availability
4
Ground Wire WPL 857017 Contact Us For Availability
5
Installation Kit WPL 485674 Contact Us For Availability
5
Screw WPL 488853 Contact Us For Availability
5
Lock Nut WPL 858122 Contact Us For Availability
6
Cup Kit WPL 978929 Contact Us For Availability
6
Screw WPL 488854 Contact Us For Availability
6
Condenser WPL 951449 Contact Us For Availability
7
Bolt, 1/4 X 3 WPL 488750 Contact Us For Availability
7
Overload WPL 951454 Contact Us For Availability
8
Escutcheon WPL 996885 Contact Us For Availability
8
Tube WPL 647949 Contact Us For Availability
9
Bracket, Sil2 WPL 645515 Contact Us For Availability
9
Spacer WPL 859766 Contact Us For Availability
9
Spring WPL 950032 Contact Us For Availability
10
Wire WPL 948285 Contact Us For Availability
10
Rail Bracket WPL 485466 Contact Us For Availability
10
Bend WPL 855199 Contact Us For Availability
11
Lock Washer WPL 486009 No Longer Available
11
BEND, RETURN (6) WPL 854264 Contact Us For Availability
12
Shroud WPL 647862 Contact Us For Availability
12
Nut WPL 486035 Contact Us For Availability
12
Spacer WPL 995274 Contact Us For Availability
12
Relay Kit WPL 485635 Contact Us For Availability
13
Housing WPL 852875 Contact Us For Availability
13
Bracket Support WPL 644281 Contact Us For Availability
13
Tube WPL 484230 Contact Us For Availability
14
Door WPL 649720 Contact Us For Availability
14
Support WPL 644283 Contact Us For Availability
14
Strainer WPL 49599 Contact Us For Availability
15
Fastener WPL 487808 Contact Us For Availability
15
Extension WPL 644284 Contact Us For Availability
15
Evaporator WPL 951446 Contact Us For Availability
16
Spring WPL 859369 Contact Us For Availability
16
Retainer, Cabinet WPL 644285 Contact Us For Availability
16
Strip WPL 855265 Contact Us For Availability
16
Restrictor Tube WPL 951448 Contact Us For Availability
17
Bushing WPL 647879 Contact Us For Availability
17
Reverse Valve WPL 467396 Contact Us For Availability
18
Pan WPL 852993 Contact Us For Availability
18
Rail Seal WPL 479158 Contact Us For Availability
18
Plate WPL 998024 Contact Us For Availability
19
Pan WPL 853268 Contact Us For Availability
19
Clip WPL 649966 Contact Us For Availability
19
Fan Motor WPL 947785 Contact Us For Availability
20
Insulation WPL 853269 Contact Us For Availability
20
Extension WPL 485454 Contact Us For Availability
20
Bracket WPL 644228 Contact Us For Availability
20A
Extension WPL 485455 Contact Us For Availability
21
Tube WPL 49181 Contact Us For Availability
21
Retainer WPL 644388 Contact Us For Availability
22
Shroud Clip WPL 647873 Contact Us For Availability
22
Seal WPL 477597 Contact Us For Availability
22
Angle WPL 645564 Contact Us For Availability
22
Wheel WPL 859495 Contact Us For Availability
23
Shaft WPL 854369 Contact Us For Availability
23
Channel WPL 644387 Contact Us For Availability
23
Channel WPL 644380 Contact Us For Availability
23
Fan Blade WPL 859496 Contact Us For Availability
24
Guard WPL 997949 Contact Us For Availability
24
Screw WPL 488730 Contact Us For Availability
24
Screw WPL 488255 Contact Us For Availability
24
Support WPL 647824 Contact Us For Availability
25
Curtain WPL 647840 Contact Us For Availability
25A
Curtain WPL 647841 Contact Us For Availability
26
Wall WPL 852994 Contact Us For Availability
26
Screw WPL 475581 Contact Us For Availability
26
Parts Bag WPL 993823 Contact Us For Availability
26
Seal WPL 649609 Contact Us For Availability
27
Clip WPL 649620 Contact Us For Availability
27
Seal WPL 647854 Contact Us For Availability
27
Seal WPL 649610 Contact Us For Availability
28
Cover WPL 856957 Contact Us For Availability
28
Washer WPL 488520 Contact Us For Availability
28
Clamp WPL 471088 Contact Us For Availability
29
Insulation WPL 948410 Contact Us For Availability
29
Board WPL 647835 Contact Us For Availability
29
Anticipator WPL 475573 Contact Us For Availability
30
Box WPL 993630 Contact Us For Availability
30
Bracket WPL 645563 Contact Us For Availability
30
Clip WPL 475577 Contact Us For Availability
30A
Bracket WPL 645562 Contact Us For Availability
31
Clamp WPL 947072 Contact Us For Availability
32
Cover WPL 998009 Contact Us For Availability
32
Seal WPL 649726 Contact Us For Availability
32A
Room Air Conditioner Cabinet Seal WPL 859522 Contact Us For Availability
33
Capacitor WPL 950192 Contact Us For Availability
33
Door WPL 859516 Contact Us For Availability
34
Thermostat WPL 950634 Contact Us For Availability
34
Handle WPL 647971 Contact Us For Availability
35
Sleeve WPL 475841 Contact Us For Availability
35
Front WPL 948777 Contact Us For Availability
35
Coil WPL 852978 Contact Us For Availability
36
Control WPL 993522 Contact Us For Availability
36
Seal WPL 856979 Contact Us For Availability
36
Louver WPL 994303 Contact Us For Availability
37
Screw WPL 488734 Contact Us For Availability
37
Cup WPL 647850 Contact Us For Availability
37
Louver WPL 994304 Contact Us For Availability
38
Switch WPL 948307 Contact Us For Availability
38
Clip WPL 485334 Contact Us For Availability
39
Grommet WPL 647865 Contact Us For Availability
39
Screw WPL 595085 Contact Us For Availability
40
Cable WPL 648535 Contact Us For Availability
40
Support WPL 995075 Contact Us For Availability
40
Harness WPL 484136 Contact Us For Availability
41
Ground Wire WPL 857634 Contact Us For Availability
41
Strainer WPL 474013 Contact Us For Availability
42
Support WPL 852318 Contact Us For Availability
43
Washer WPL 647881 Contact Us For Availability
43
Rack WPL 854371 Contact Us For Availability
43
Washer WPL 470280 Contact Us For Availability
44
Cam WPL 647882 Contact Us For Availability
44
Tube & Strnr WPL 998355 Contact Us For Availability
45
Wire WPL 998010 Contact Us For Availability
45
Louver WPL 994301 Contact Us For Availability
46
Grommet WPL 647849 Contact Us For Availability
47
Bracket WPL 947321 Contact Us For Availability
47
Retainer WPL 859520 Contact Us For Availability
48
Clamp WPL 43996 Contact Us For Availability
48
Louver WPL 994302 Contact Us For Availability
50
Wire WPL 859370 Contact Us For Availability
50
Knob WPL 859768 Contact Us For Availability
51
Knob WPL 859772 Contact Us For Availability
52
Knob WPL 859769 Contact Us For Availability
53
Louver WPL 854619 Contact Us For Availability
54
Handle WPL 649950 Contact Us For Availability
55
Link WPL 647799 Contact Us For Availability
56
Spring WPL 641484 Contact Us For Availability
58
Filter WPL 9156 Contact Us For Availability
59
Louver WPL 994305 Contact Us For Availability
60
Louver WPL 994306 Contact Us For Availability
61
Louver WPL 994308 Contact Us For Availability
62
Louver WPL 994307 Contact Us For Availability
NI
Refrigerant Access Valve, 5/8-in WPL 978029 Contact Us For Availability
NI
Cover WPL 484069 Contact Us For Availability
NI
Tape WPL 505168 Contact Us For Availability
NI
Oil WPL 10943 Contact Us For Availability
NI
Wire (Black) WPL 47261 Contact Us For Availability
NI
Wire (Red) WPL 47262 Contact Us For Availability
NI
Wire (White) WPL 47263 Contact Us For Availability
NI
Epoxy WPL 484310 Contact Us For Availability
NI
Lacquer WPL 485426 Contact Us For Availability
NI
Instructions WPL 485687 Contact Us For Availability
NI
Instructions WPL 485688 Contact Us For Availability
NI
Instructions WPL 485706 Contact Us For Availability
NI
Instructions WPL 485707 Contact Us For Availability
NI
Insulation WPL 647847 Contact Us For Availability
NI
Insulation WPL 647848 Contact Us For Availability
NI
Tube WPL 947364 Contact Us For Availability
NI
Front Assembly WPL 948949 Contact Us For Availability
NI
Gasket Nut WPL 950037 Contact Us For Availability
NI
Insulation WPL 950157 Contact Us For Availability
NI
Tube WPL 950814 Contact Us For Availability
NI
Valve Kit WPL 978028 Contact Us For Availability
NI
Installation Instructions WPL 978930 Contact Us For Availability
NI
INSTRUCTIONS INSTALLATION (KIT, STANDARD INST WPL 993380 Contact Us For Availability
NI
Parts List WPL LIT948976 Contact Us For Availability
NI
Installation Instructions WPL LIT948988 Contact Us For Availability
NI
Technical Sheet WPL LIT951471 Contact Us For Availability
NI
Parts List WPL LIT951475 Contact Us For Availability
NI
Checklist WPL LIT951477 Contact Us For Availability
NI
Energy Guide WPL LIT952023 Contact Us For Availability
× ![]()
