Model Whirlpool 1067772991Z Air Conditioner (Kenmore 1067772991Z) – Common Parts & Diagrams

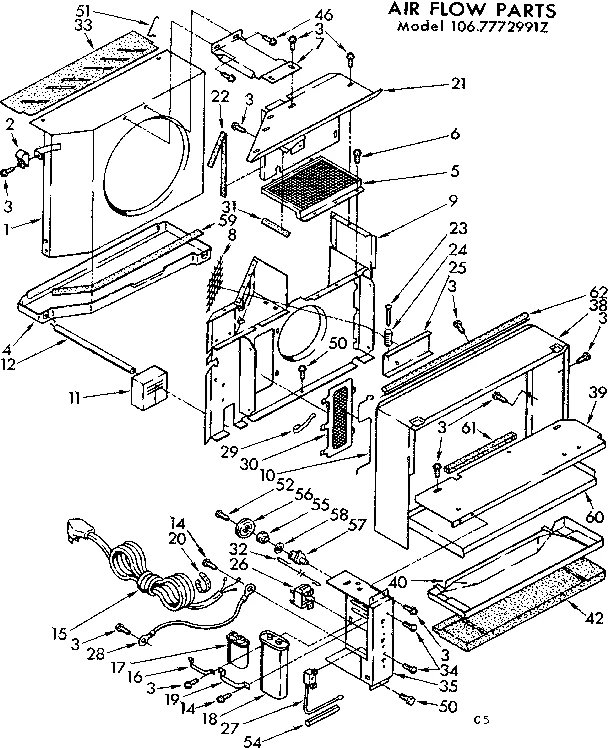

AIR FLOW PARTS

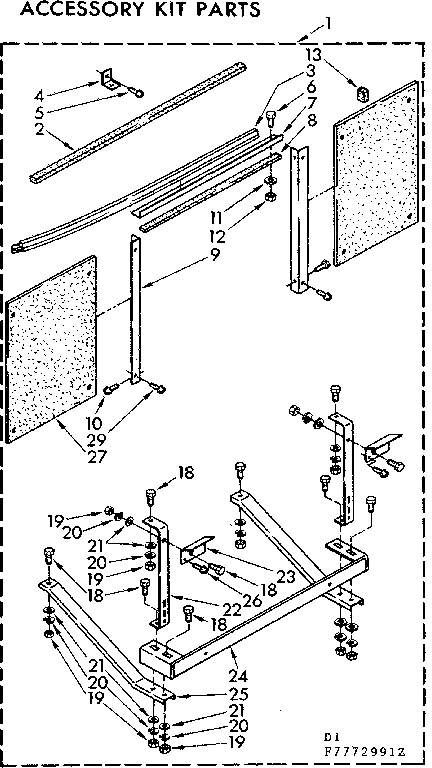

ACCESSORY KIT PARTS

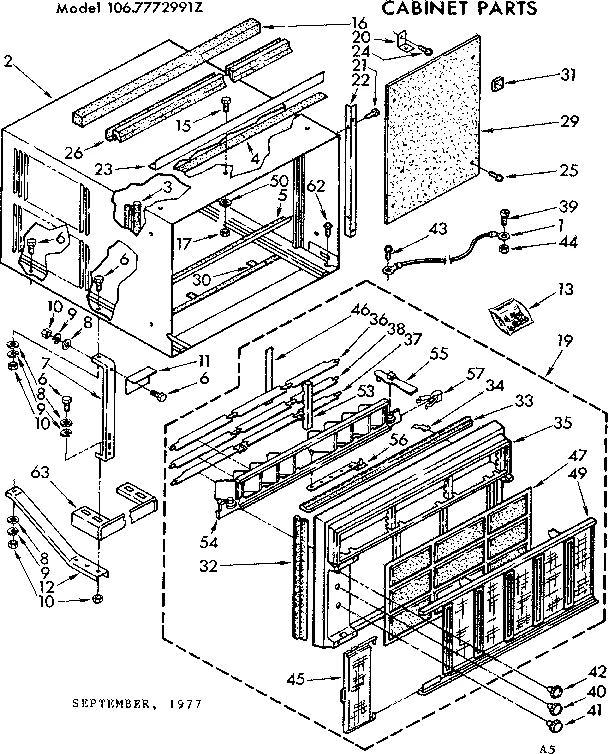

CABINET PARTS

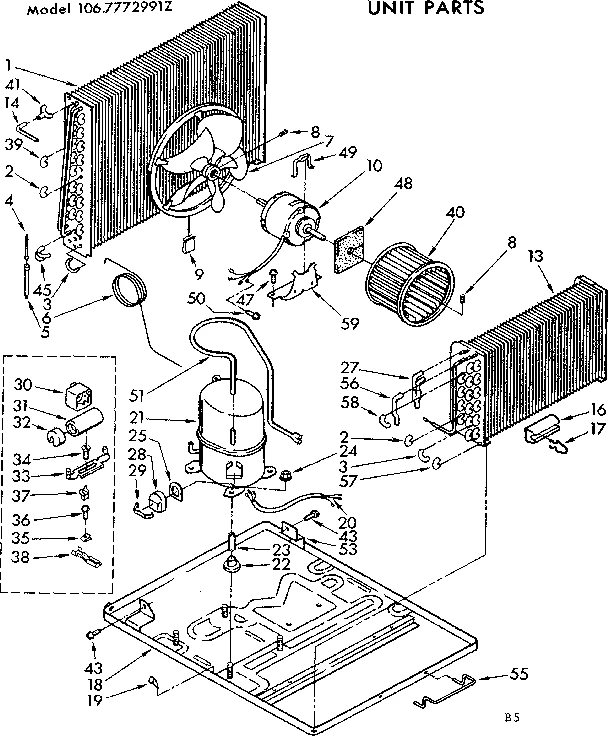

UNIT PARTS
All Parts
Common parts from model Whirlpool 1067772991Z Air Conditioner (Kenmore 1067772991Z)
1
Installation Kit WPL 485451 Contact Us For Availability
1
Wire WPL 857078 Contact Us For Availability
1
Condenser WPL 993103 Contact Us For Availability
2
Cabinet WPL 856602 Contact Us For Availability
2
Bend-retrn WPL 854624 Contact Us For Availability
3
Seal WPL 476796 Contact Us For Availability
3
Bend WPL 855199 Contact Us For Availability
4
Strip WPL 855265 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
5
Seal WPL 857154 Contact Us For Availability
5
Tube WPL 484230 Contact Us For Availability
6
Bolt, 1/4 X 3 WPL 488750 Contact Us For Availability
6
Tube WPL 993319 Contact Us For Availability
7
Support WPL 645517 Contact Us For Availability
7
Fan Blade WPL 646247 Contact Us For Availability
8
Screw WPL 595085 Contact Us For Availability
9
Lock Washer WPL 486009 No Longer Available
9
Wall WPL 648315 Contact Us For Availability
9
Clip WPL 485334 Contact Us For Availability
10
Actuator WPL 648138 Contact Us For Availability
10
Nut WPL 486035 Contact Us For Availability
10
Fan Motor WPL 852700 Contact Us For Availability
11
Tube Seal WPL 856916 Contact Us For Availability
11
Bracket, Sil2 WPL 645515 Contact Us For Availability
12
Support WPL 645518 Contact Us For Availability
12A
Tube WPL 477542 Contact Us For Availability
12B
Tube WPL 475710 Contact Us For Availability
13
Accessory Ba WPL 858343 Contact Us For Availability
13
Evaporator WPL 855436 Contact Us For Availability
14
Inlet Tube WPL 484088 Contact Us For Availability
15
Cable WPL 644176 Contact Us For Availability
15
Screw WPL 487336 Contact Us For Availability
16
Rail Seal WPL 469877 Contact Us For Availability
16
Anticipator WPL 472046 Contact Us For Availability
17
Capacitor WPL 641488 Contact Us For Availability
17
Nut WPL 487642 Contact Us For Availability
17
Clip WPL 472047 Contact Us For Availability
18
Capacitor WPL 475902 Contact Us For Availability
18
Bolt WPL 488090 Contact Us For Availability
18
Base WPL 856498 Contact Us For Availability
19
Bracket WPL 471132 Contact Us For Availability
19
Front Kit WPL 994608 Contact Us For Availability
19
Clamp WPL 642684 Contact Us For Availability
20
Strap WPL 474058 Contact Us For Availability
20
Bracket WPL 644228 Contact Us For Availability
20
Harness WPL 484136 Contact Us For Availability
21
Plate WPL 475736 Contact Us For Availability
21
Screw WPL 488481 Contact Us For Availability
21
Washer WPL 486420 Contact Us For Availability
21
Compressor WPL AH310GT-090 Contact Us For Availability
22
Angle WPL 644272 Contact Us For Availability
22
Grommet WPL 475041 Contact Us For Availability
22A
Seal WPL 475740 Contact Us For Availability
22B
Seal WPL 475741 Contact Us For Availability
23
Hinge Pin WPL 471108 Contact Us For Availability
23
Angle WPL 645514 Contact Us For Availability
23
Sleeve WPL 858116 Contact Us For Availability
24
Spring WPL 471109 Contact Us For Availability
24
Screw WPL 488255 Contact Us For Availability
24
Lock Nut WPL 858121 Contact Us For Availability
25
Door WPL 473781 Contact Us For Availability
25
Gasket WPL 475063 Contact Us For Availability
26
Switch WPL 644148 Contact Us For Availability
26
Gasket WPL 644288 Contact Us For Availability
27
Control WPL 649423 Contact Us For Availability
27
Tube WPL 485826 Contact Us For Availability
28
Wire WPL 856509 Contact Us For Availability
28
Cover WPL 475061 Contact Us For Availability
29
Spring WPL 649428 Contact Us For Availability
29
Board WPL 645513 Contact Us For Availability
29
Retainer WPL 475062 Contact Us For Availability
30
Door WPL 648137 Contact Us For Availability
30
Start Relay WPL 484177 Contact Us For Availability
31
Spacer WPL 995274 Contact Us For Availability
31
Capacitor WPL 47406 Contact Us For Availability
32
Wire WPL 648321 Contact Us For Availability
32
Seal WPL 857715 Contact Us For Availability
32
Cap WPL 791868 Contact Us For Availability
32A
Wire WPL 648322 Contact Us For Availability
33
Insulation WPL 855213 Contact Us For Availability
33
Bracket WPL 41629 Contact Us For Availability
33A
Seal WPL 855878 Contact Us For Availability
33B
Seal WPL 855879 Contact Us For Availability
34
Screw WPL 488734 Contact Us For Availability
34
Retainer WPL 469486 Contact Us For Availability
34
Screw WPL 487880 Contact Us For Availability
35
Box WPL 648427 Contact Us For Availability
35
Front WPL 994610 Contact Us For Availability
36
Louver WPL 859882 Contact Us For Availability
37
Louver WPL 859884 Contact Us For Availability
37
Terminal WPL 90654 Contact Us For Availability
38
Cover WPL 475730 Contact Us For Availability
38
Louver WPL 859883 Contact Us For Availability
38
Terminal WPL 45571 Contact Us For Availability
39
Cover WPL 648319 Contact Us For Availability
39
Screw WPL 488853 Contact Us For Availability
39
Bend WPL 855644 Contact Us For Availability
40
Pan WPL 475708 Contact Us For Availability
40
Knob WPL 859885 Contact Us For Availability
40
Wheel WPL 856953 Contact Us For Availability
41
Knob WPL 859886 Contact Us For Availability
41
Bend WPL 476078 Contact Us For Availability
42
Insulation WPL 856917 Contact Us For Availability
42
Knob WPL 859887 Contact Us For Availability
43
Screw WPL 488854 Contact Us For Availability
45
Door WPL 859881 Contact Us For Availability
45
Bend WPL 49493 Contact Us For Availability
46
Screw WPL 488624 Contact Us For Availability
46
Rack WPL 855872 Contact Us For Availability
47
Filter WPL 47-9158 Contact Us For Availability
47
Screw WPL 488311 Contact Us For Availability
48
Seal WPL 476719 Contact Us For Availability
49
Panel WPL 859880 Contact Us For Availability
50
Washer WPL 486608 Contact Us For Availability
51
Clip WPL 477442 Contact Us For Availability
51
Tube WPL 485433 Contact Us For Availability
53
Retainer WPL 855887 Contact Us For Availability
53
Support WPL 856028 Contact Us For Availability
54
Sleeve WPL 475841 Contact Us For Availability
54
Louver WPL 855873 Contact Us For Availability
55
Bushing WPL 647879 Contact Us For Availability
55
Handle WPL 855874 Contact Us For Availability
55
Handle WPL 647971 Contact Us For Availability
56
Cam WPL 648131 Contact Us For Availability
56
Link WPL 855875 Contact Us For Availability
56
Tube WPL 485827 Contact Us For Availability
57
Shaft WPL 647880 Contact Us For Availability
57
Spring WPL 641484 Contact Us For Availability
57
Bend WPL 854625 Contact Us For Availability
58
Washer WPL 647881 Contact Us For Availability
58
Bend WPL 854626 Contact Us For Availability
59
Seal WPL 476089 Contact Us For Availability
59
Cradle WPL 471719 Contact Us For Availability
60
Cover WPL 475711 Contact Us For Availability
61
Seal WPL 476099 Contact Us For Availability
62
Seal WPL 475733 Contact Us For Availability
62
Screw WPL 487488 Contact Us For Availability
63
Bracket WPL 645516 Contact Us For Availability
NI
Cover WPL 484066 No Longer Available
NI
Refrigerant Access Valve, 5/8-in WPL 978029 Contact Us For Availability
NI
& 876893 CAPACITOR WPL N/P Contact Us For Availability
NI
Oil WPL 10943 Contact Us For Availability
NI
Insulation WPL 469938 Contact Us For Availability
NI
Wire (Black) WPL 47261 Contact Us For Availability
NI
Wire (Red) WPL 47262 Contact Us For Availability
NI
Wire (White) WPL 47263 Contact Us For Availability
NI
Start Kit WPL 484220 Contact Us For Availability
NI
Lacquer WPL 485426 Contact Us For Availability
NI
Start Kit WPL 485883 Contact Us For Availability
NI
Dvx Thnnr Gl WPL 799351 Contact Us For Availability
NI
Spray Tool WPL 799451 Contact Us For Availability
NI
Valve Kit WPL 978028 Contact Us For Availability
NI
Technical Sheet WPL LIT857492 Contact Us For Availability
NI
Installation Instructions WPL LIT993383 Contact Us For Availability
NI
Owner's Manual WPL LIT995822 Contact Us For Availability
NI
Installation Instructions WPL LIT995827 Contact Us For Availability
NI
Parts List WPL LIT995833 Contact Us For Availability
× ![]()
