Model Whirlpool 1067771591Z Air Conditioner (Kenmore 1067771591Z) – Common Parts & Diagrams
ACCESSORY KIT PARTS
AIR FLOW PARTS
All Parts

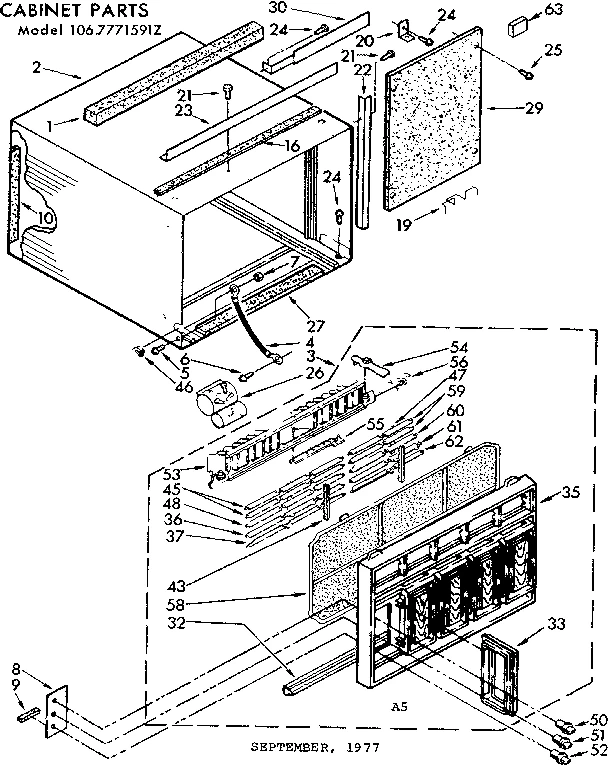

CABINET PARTS

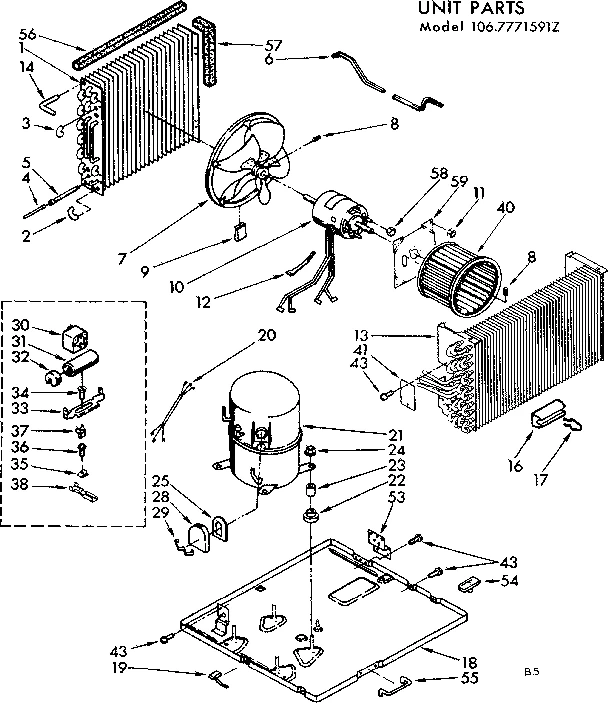

UNIT PARTS
Common parts from model Whirlpool 1067771591Z Air Conditioner (Kenmore 1067771591Z)
1
Rail Seal WPL 469877 Contact Us For Availability
1
Shroud WPL 647862 Contact Us For Availability
1
Condenser WPL 859913 Contact Us For Availability
2
Housing WPL 852876 Contact Us For Availability
2
Cabinet WPL 858828 Contact Us For Availability
2
Bend-retrn WPL 854624 Contact Us For Availability
3
Front Kit WPL 995855 Contact Us For Availability
3
Bend WPL 855199 Contact Us For Availability
4
Pan WPL 859238 Contact Us For Availability
4
Ground Wire WPL 857017 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
5
Insulation WPL 857002 Contact Us For Availability
5
Screw WPL 488853 Contact Us For Availability
5
Tube WPL 484230 Contact Us For Availability
6
Screw WPL 488474 Contact Us For Availability
6
Screw WPL 488854 Contact Us For Availability
6
Tube WPL 994395 Contact Us For Availability
7
Lock Washer WPL 486009 No Longer Available
7
Fastener WPL 487808 Contact Us For Availability
7
Fan Blade WPL 857855 Contact Us For Availability
8
Escutcheon WPL 994601 Contact Us For Availability
8
Screw WPL 595085 Contact Us For Availability
9
Wall WPL 994397 Contact Us For Availability
9
Spacer WPL 859766 Contact Us For Availability
9
Clip WPL 485334 Contact Us For Availability
10
Fan Motor WPL 993670 Contact Us For Availability
11
Insulation WPL 853269 Contact Us For Availability
11
Lock Nut WPL 858122 Contact Us For Availability
12
Tube WPL 49181 Contact Us For Availability
13
Grommet WPL 647865 Contact Us For Availability
13
Evaporator WPL 994378 Contact Us For Availability
14
Tube WPL 485022 Contact Us For Availability
15
Power Cord WPL 648411 Contact Us For Availability
16
Pan WPL 853268 Contact Us For Availability
16
Strip WPL 855265 Contact Us For Availability
16
Anticipator WPL 475573 Contact Us For Availability
17
Cover WPL 856956 Contact Us For Availability
17
Clip WPL 994690 Contact Us For Availability
18
Base WPL 857200 Contact Us For Availability
19
Clip WPL 649966 Contact Us For Availability
19
Clamp WPL 642684 Contact Us For Availability
20
Bracket WPL 644228 Contact Us For Availability
20
Harness WPL 484136 Contact Us For Availability
21
Compressor WPL AB111FT-004 Contact Us For Availability
22
Angle WPL 645564 Contact Us For Availability
22
Grommet WPL 475041 Contact Us For Availability
23
Channel WPL 644380 Contact Us For Availability
23
Sleeve WPL 858116 Contact Us For Availability
24
Capacitor WPL 648414 Contact Us For Availability
24
Screw WPL 488255 Contact Us For Availability
24
Lock Nut WPL 858121 Contact Us For Availability
25
Door WPL 649720 Contact Us For Availability
25
Gasket WPL 855947 Contact Us For Availability
26
Switch WPL 993511 Contact Us For Availability
26
Parts Bag WPL 993823 Contact Us For Availability
27
Control WPL 993521 Contact Us For Availability
27
Seal WPL 647854 Contact Us For Availability
28
Bracket WPL 993662 Contact Us For Availability
28
Cover WPL 855948 Contact Us For Availability
29
Board WPL 647835 Contact Us For Availability
29
Spring WPL 859369 Contact Us For Availability
29
Retainer WPL 475062 Contact Us For Availability
29A
Extension WPL 485454 Contact Us For Availability
29B
Extension WPL 485455 Contact Us For Availability
30
Seal WPL 470800 Contact Us For Availability
30
Ground Wire WPL 857634 Contact Us For Availability
30
Start Relay WPL 484177 Contact Us For Availability
30A
Bracket WPL 645563 Contact Us For Availability
30B
Bracket WPL 645562 Contact Us For Availability
31
Channel WPL 852317 Contact Us For Availability
31
Capacitor WPL 47406 Contact Us For Availability
32
Cap WPL 791868 Contact Us For Availability
32A
Wire WPL 859370 Contact Us For Availability
32A
Seal WPL 649726 Contact Us For Availability
32B
Wire WPL 648132 Contact Us For Availability
32B
Room Air Conditioner Cabinet Seal WPL 859522 Contact Us For Availability
33
Guard WPL 856382 Contact Us For Availability
33
Door WPL 859516 Contact Us For Availability
33
Bracket WPL 41629 Contact Us For Availability
34
Screw WPL 488734 Contact Us For Availability
34
Screw WPL 487880 Contact Us For Availability
35
Box WPL 993629 Contact Us For Availability
35
Front WPL 859514 Contact Us For Availability
36
Support WPL 644283 Contact Us For Availability
36
Louver WPL 994303 Contact Us For Availability
37
Retainer, Cabinet WPL 644285 Contact Us For Availability
37
Support WPL 852318 Contact Us For Availability
37
Louver WPL 994304 Contact Us For Availability
37
Terminal WPL 90654 Contact Us For Availability
38
Extension WPL 644284 Contact Us For Availability
38
Terminal WPL 45571 Contact Us For Availability
39
Bracket Support WPL 644281 Contact Us For Availability
40
Door WPL 859639 Contact Us For Availability
40
Air Conditioner Blower Wheel WPL 645932 Contact Us For Availability
41
Actuator WPL 853434 Contact Us For Availability
41
Cover WPL 994400 Contact Us For Availability
42
Spring WPL 649428 Contact Us For Availability
43
& 876893 CAPACITOR WPL N/P Contact Us For Availability
43
Rack WPL 854213 Contact Us For Availability
43B
Screw WPL 488481 Contact Us For Availability
45
Louver WPL 994301 Contact Us For Availability
46
Wall WPL 852994 Contact Us For Availability
46
Grommet WPL 647849 Contact Us For Availability
47
Clip WPL 649620 Contact Us For Availability
47
Retainer WPL 859520 Contact Us For Availability
48
Sleeve WPL 475841 Contact Us For Availability
48
Louver WPL 994302 Contact Us For Availability
50
Control Knob WPL 993445 Contact Us For Availability
51
Shroud Clip WPL 647873 Contact Us For Availability
52
Support Kit WPL 485679 Contact Us For Availability
52
Knob WPL 993765 Contact Us For Availability
53
Louver WPL 854619 Contact Us For Availability
53
Support WPL 647824 Contact Us For Availability
54
Handle WPL 649950 Contact Us For Availability
54
Cup WPL 647850 Contact Us For Availability
55
Bushing WPL 647879 Contact Us For Availability
55
Link WPL 647799 Contact Us For Availability
55
Handle WPL 647971 Contact Us For Availability
56
Cam WPL 647882 Contact Us For Availability
56
Spring WPL 641484 Contact Us For Availability
56
Seal WPL 649609 Contact Us For Availability
57
Shaft WPL 993463 Contact Us For Availability
57
Seal WPL 649610 Contact Us For Availability
58
Washer WPL 647881 Contact Us For Availability
58
Filter WPL 47-9156 Contact Us For Availability
59
Cover WPL 994399 Contact Us For Availability
59
Louver WPL 994305 Contact Us For Availability
59
Plate WPL 649812 Contact Us For Availability
60
Louver WPL 994306 Contact Us For Availability
61
Louver WPL 994307 Contact Us For Availability
62
Seal WPL 477597 Contact Us For Availability
62
Louver WPL 994308 Contact Us For Availability
63
Retainer WPL 644388 Contact Us For Availability
63
Spacer WPL 995274 Contact Us For Availability
64
Screw WPL 488730 Contact Us For Availability
65
Channel WPL 644387 Contact Us For Availability
68
Screw WPL 475581 Contact Us For Availability
69A
Curtain WPL 647841 Contact Us For Availability
69B
Curtain WPL 647840 Contact Us For Availability
70
Washer WPL 488520 Contact Us For Availability
NI
Refrigerant Access Valve, 5/8-in WPL 978029 Contact Us For Availability
NI
Cover WPL 484069 Contact Us For Availability
NI
Oil WPL 10943 Contact Us For Availability
NI
Wire (Black) WPL 47261 Contact Us For Availability
NI
Wire (Red) WPL 47262 Contact Us For Availability
NI
Wire (White) WPL 47263 Contact Us For Availability
NI
Start Kit WPL 484220 Contact Us For Availability
NI
Lacquer WPL 485426 Contact Us For Availability
NI
Installation Kit WPL 485674 Contact Us For Availability
NI
Instructions WPL 485687 Contact Us For Availability
NI
Instructions WPL 485688 Contact Us For Availability
NI
Instructions WPL 485706 Contact Us For Availability
NI
Instructions WPL 485707 Contact Us For Availability
NI
Start Kit WPL 485883 Contact Us For Availability
NI
Insulation WPL 647846 Contact Us For Availability
NI
Insulation WPL 647847 Contact Us For Availability
NI
Insulation WPL 647848 Contact Us For Availability
NI
Instructions WPL 648435 Contact Us For Availability
NI
Insulation WPL 649939 Contact Us For Availability
NI
Dvx Thnnr Gl WPL 799351 Contact Us For Availability
NI
Spray Tool WPL 799451 Contact Us For Availability
NI
Valve Kit WPL 978028 Contact Us For Availability
NI
Installation Instructions WPL LIT993380 Contact Us For Availability
NI
Technical Sheet WPL LIT993725 Contact Us For Availability
NI
Owner's Manual WPL LIT995822 Contact Us For Availability
NI
Installation Instructions WPL LIT995825 Contact Us For Availability
NI
Parts List WPL LIT995830 Contact Us For Availability
× ![]()
