Model Whirlpool 1067771491Z Air Conditioner (Kenmore 1067771491Z) – Common Parts & Diagrams
UNIT PARTS
CABINET PARTS

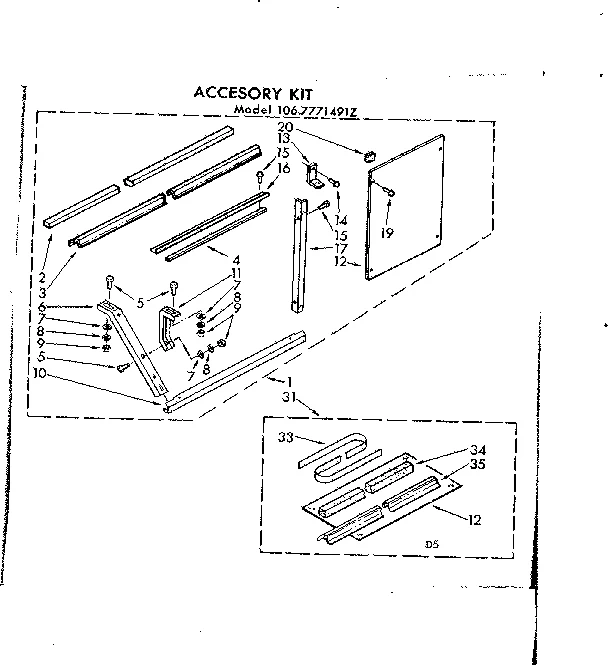

ACCESSORY KIT PARTS
All Parts

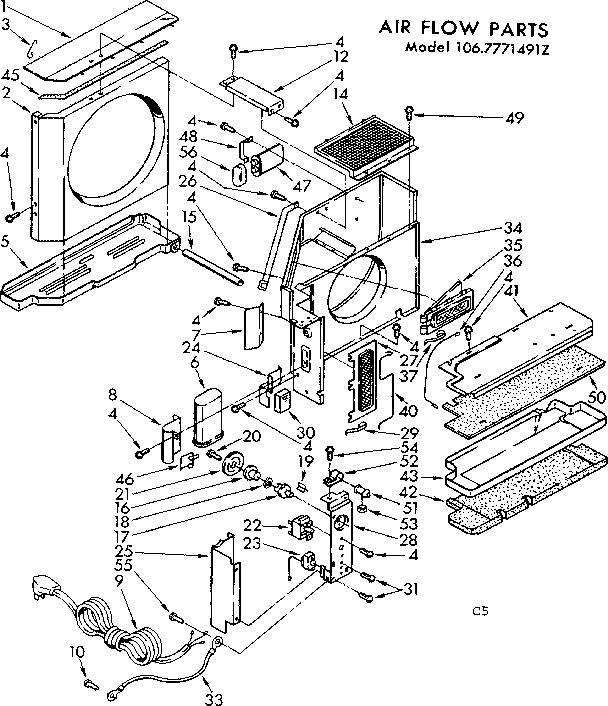

AIR FLOW PARTS
Common parts from model Whirlpool 1067771491Z Air Conditioner (Kenmore 1067771491Z)
1
Installation Kit WPL 485854 Contact Us For Availability
1
Cover WPL 853395 Contact Us For Availability
2
Rail Seal WPL 469877 Contact Us For Availability
2
Shroud WPL 649692 Contact Us For Availability
3
Cabinet WPL 856557 Contact Us For Availability
3
Gasket WPL 644288 Contact Us For Availability
3
Clip WPL 477442 Contact Us For Availability
4
& 876893 CAPACITOR WPL N/P Contact Us For Availability
4
Strip WPL 855265 Contact Us For Availability
5
Bolt, 1/4 X 3 WPL 488750 Contact Us For Availability
5
Pan WPL 649695 Contact Us For Availability
6
Cabinet Support WPL 649945 Contact Us For Availability
6
Capacitor WPL 995610 Contact Us For Availability
7
Baffle WPL 856504 Contact Us For Availability
8
Lock Washer WPL 486009 No Longer Available
8
Bracket WPL 859219 Contact Us For Availability
9
Nut WPL 486035 Contact Us For Availability
9
Front Kit WPL 995846 Contact Us For Availability
9
Room Air Conditioner Power Cord WPL 859444 Contact Us For Availability
10
Tube WPL 649800 Contact Us For Availability
10
Bracket WPL 649947 Contact Us For Availability
11
Start Relay WPL 484369 Contact Us For Availability
11
Support, Retainer WPL 649946 Contact Us For Availability
12
Gasket WPL 643296 Contact Us For Availability
12
Grommet WPL 647849 Contact Us For Availability
12
Board WPL 644303 Contact Us For Availability
12
Support WPL 649728 Contact Us For Availability
13
Compressor WPL 876785 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Clip WPL 852272 Contact Us For Availability
13A
Capacitor WPL STD377345 Contact Us For Availability
13B
Mount WPL 876878 Contact Us For Availability
13C
Capacitor WPL 876893 Contact Us For Availability
14
Lock Nut WPL 858121 Contact Us For Availability
14
Screw WPL 487371 Contact Us For Availability
14
Seal WPL 852220 Contact Us For Availability
14
Guard WPL 856506 Contact Us For Availability
15
Bend WPL 476078 Contact Us For Availability
15
Tube WPL 649759 Contact Us For Availability
16
Bend WPL 49493 Contact Us For Availability
16
Angle WPL 644271 Contact Us For Availability
16
Bushing WPL 647879 Contact Us For Availability
17
Sleeve WPL 858116 Contact Us For Availability
17
Angle WPL 644272 Contact Us For Availability
17
Shaft WPL 993262 Contact Us For Availability
18
Grommet WPL 475041 Contact Us For Availability
18
Washer WPL 647881 Contact Us For Availability
19
Strip WPL 855266 Contact Us For Availability
19
Clip WPL 853700 Contact Us For Availability
20
Ground Wire WPL 857022 Contact Us For Availability
20
Spacer WPL 995274 Contact Us For Availability
21
Base WPL 859044 Contact Us For Availability
21
Cam WPL 647882 Contact Us For Availability
22
Tube WPL 993867 Contact Us For Availability
22
Switch WPL 993514 Contact Us For Availability
23
Screw WPL 595085 Contact Us For Availability
23
Screw WPL 488853 Contact Us For Availability
23
Control WPL 993523 Contact Us For Availability
24
Fan Motor WPL 995595 Contact Us For Availability
24
Louver WPL 994340 Contact Us For Availability
24
Retainer WPL 854337 Contact Us For Availability
25
Plate WPL 649812 Contact Us For Availability
25
Retainer WPL 859536 Contact Us For Availability
25
Cover WPL 993250 Contact Us For Availability
26
Wheel WPL 855608 Contact Us For Availability
26
Louver WPL 994341 Contact Us For Availability
26
Channel WPL 856503 Contact Us For Availability
27
Tube WPL 485864 Contact Us For Availability
27
Louver WPL 994342 Contact Us For Availability
27
Door WPL 648137 Contact Us For Availability
28
Tube WPL 485826 Contact Us For Availability
28
Rack, Louver WPL 852197 Contact Us For Availability
28
Panel WPL 852217 Contact Us For Availability
29
Bend WPL 45148 Contact Us For Availability
29
Screw WPL 488854 Contact Us For Availability
29
Spring WPL 649428 Contact Us For Availability
30
Filter WPL 47-9186 Contact Us For Availability
30
Tube Seal WPL 856916 Contact Us For Availability
31
Lock Nut WPL 858122 Contact Us For Availability
31
Mounting Kit WPL 485856 Contact Us For Availability
31
Screw WPL 488734 Contact Us For Availability
31A
Room Air Conditioner Cabinet Seal WPL 859522 Contact Us For Availability
31B
Seal WPL 649726 Contact Us For Availability
33
Anticipator WPL 472046 Contact Us For Availability
33
Seal Strip WPL 465324 Contact Us For Availability
33
Ground WPL 856508 Contact Us For Availability
34
Clip WPL 472047 Contact Us For Availability
34
Seal WPL 470800 Contact Us For Availability
34
Wall WPL 649769 Contact Us For Availability
35
Bend WPL 855457 Contact Us For Availability
35
Parts Bag WPL 993848 Contact Us For Availability
35
Gasket WPL 485457 Contact Us For Availability
35
Door WPL 649720 Contact Us For Availability
36A
Wire WPL 853156 Contact Us For Availability
36B
Wire WPL 853155 Contact Us For Availability
37
Seal WPL 853170 Contact Us For Availability
37
Spring WPL 647872 Contact Us For Availability
38
Handle WPL 647971 Contact Us For Availability
39
Evaporator WPL 485922 Contact Us For Availability
39
Escutcheon WPL 994605 Contact Us For Availability
40
Spacer WPL 859766 Contact Us For Availability
40
Actuator WPL 648138 Contact Us For Availability
41
Bracket WPL 853304 Contact Us For Availability
41
Front WPL 859529 Contact Us For Availability
41
Cover WPL 649721 Contact Us For Availability
42
Capacitor WPL 583205 Contact Us For Availability
42
Insulation WPL 852862 Contact Us For Availability
43
Cap WPL 791868 Contact Us For Availability
43
Pan WPL 649696 Contact Us For Availability
44
Bracket WPL 41629 Contact Us For Availability
45
Screw WPL 487880 Contact Us For Availability
45A
Seal WPL 853914 Contact Us For Availability
45B
Seal WPL 853915 Contact Us For Availability
46
Terminal WPL 90654 Contact Us For Availability
46
Door WPL 859532 Contact Us For Availability
46
Lug WPL 858008 Contact Us For Availability
47
Capacitor WPL 645953 Contact Us For Availability
48
Harness WPL 484136 Contact Us For Availability
49
Support WPL 995075 Contact Us For Availability
50
Cup WPL 647850 Contact Us For Availability
50
Control Knob WPL 993445 Contact Us For Availability
50
Insulation WPL 852470 Contact Us For Availability
51
Overload WPL 852521 Contact Us For Availability
51
Thermistor WPL 993237 Contact Us For Availability
52
Spring WPL 644362 Contact Us For Availability
52
Knob WPL 993765 Contact Us For Availability
52
Clamp WPL 993243 Contact Us For Availability
53
Gasket WPL 646626 Contact Us For Availability
53
Nut WPL 487642 Contact Us For Availability
54
Louver WPL 859780 Contact Us For Availability
55
Clamp WPL 642684 Contact Us For Availability
55
Handle, Vertical Louver WPL 852208 Contact Us For Availability
55
Screw WPL 488624 Contact Us For Availability
56
Link, Vertical Louver WPL 852209 Contact Us For Availability
56
Cover WPL 43254 Contact Us For Availability
57
Spring WPL 641484 Contact Us For Availability
58
Gasket Nut WPL 950037 Contact Us For Availability
58
Louver WPL 994343 Contact Us For Availability
59
Louver WPL 994344 Contact Us For Availability
60
Overload WPL 950031 Contact Us For Availability
60
Louver WPL 994345 Contact Us For Availability
61
Spring WPL 950032 Contact Us For Availability
NI
Refrigerant Access Valve, 5/8-in WPL 978029 Contact Us For Availability
NI
Cover WPL 484069 Contact Us For Availability
NI
Oil WPL 10943 Contact Us For Availability
NI
Insulation WPL 469938 Contact Us For Availability
NI
Wire (Black) WPL 47261 Contact Us For Availability
NI
Wire (Red) WPL 47262 Contact Us For Availability
NI
Wire (White) WPL 47263 Contact Us For Availability
NI
Start Kit WPL 484220 Contact Us For Availability
NI
Start Kit WPL 484248 Contact Us For Availability
NI
Start Kit WPL 484368 Contact Us For Availability
NI
Lacquer WPL 485426 Contact Us For Availability
NI
Insulation WPL 649939 Contact Us For Availability
NI
Dvx Thnnr Gl WPL 799351 Contact Us For Availability
NI
Spray Tool WPL 799451 Contact Us For Availability
NI
Instructions WPL 852908 Contact Us For Availability
NI
Insulation WPL 855438 Contact Us For Availability
NI
Seal Kit WPL 857121 Contact Us For Availability
NI
Valve Kit WPL 978028 Contact Us For Availability
NI
Glue WPL 978317 Contact Us For Availability
NI
Installation Instructions WPL LIT993382 Contact Us For Availability
NI
Technical Sheet WPL LIT995605 Contact Us For Availability
NI
Owner's Manual WPL LIT995822 Contact Us For Availability
NI
Installation Instructions WPL LIT995824 Contact Us For Availability
NI
Parts List WPL LIT995829 Contact Us For Availability
× ![]()
