Model Whirlpool 1067770510Z Air Conditioner (Kenmore 1067770510Z) – Common Parts & Diagrams

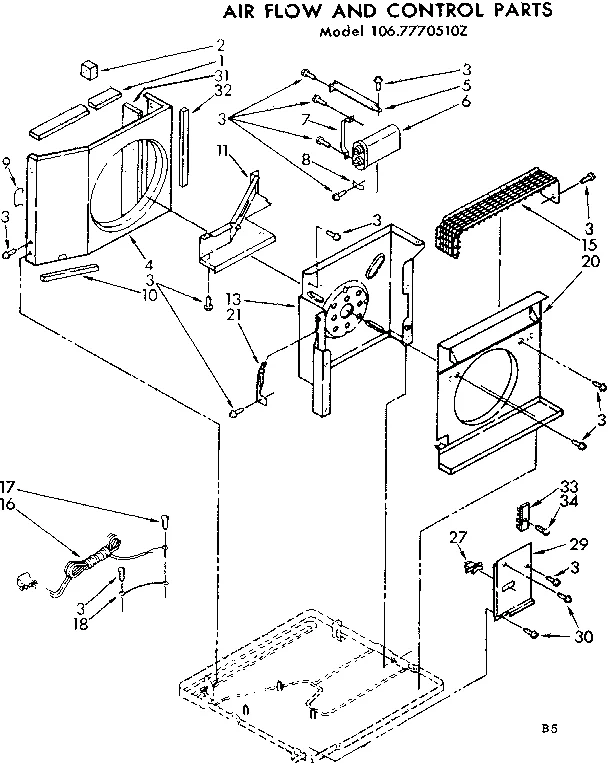

AIR FLOW AND CONTROL PARTS

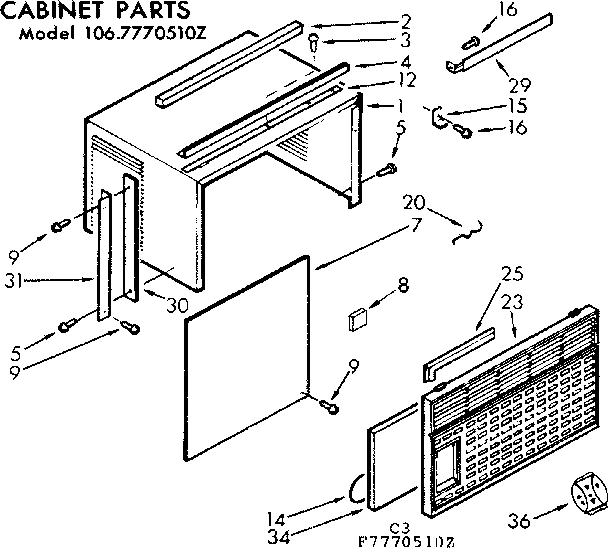

CABINET PARTS
All Parts

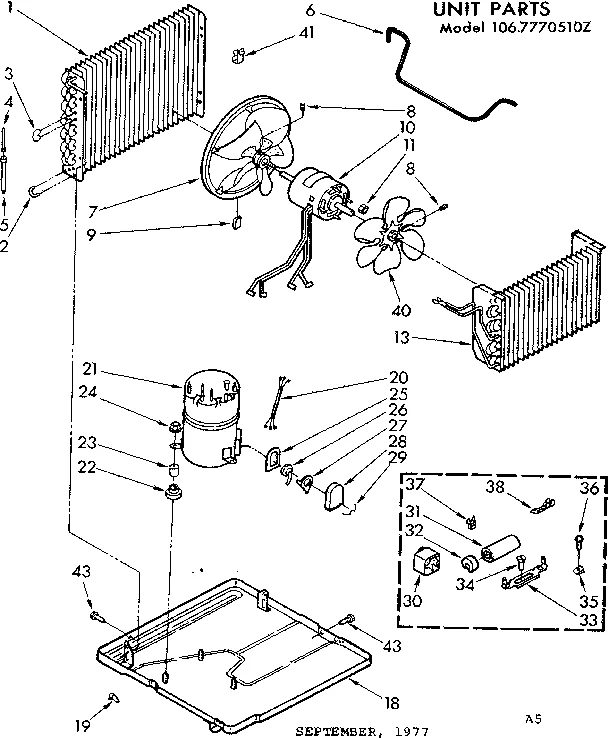

UNIT PARTS
Common parts from model Whirlpool 1067770510Z Air Conditioner (Kenmore 1067770510Z)
1
Cabinet WPL 857903 Contact Us For Availability
1
Condenser WPL 859963 Contact Us For Availability
2
Rail Seal WPL 469877 Contact Us For Availability
2
Bend WPL 856665 Contact Us For Availability
3
Screw WPL 488506 Contact Us For Availability
3
Bend WPL 855199 Contact Us For Availability
4
Channel WPL 646985 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
5
Tube WPL 484230 Contact Us For Availability
6
Capacitor WPL 645598 Contact Us For Availability
6
Tube WPL 859817 Contact Us For Availability
7
Bracket WPL 856105 Contact Us For Availability
7
Board WPL 648854 Contact Us For Availability
7
Fan Blade WPL 857759 Contact Us For Availability
8
Clamp WPL 855929 Contact Us For Availability
8
Spacer WPL 995274 Contact Us For Availability
8
Screw WPL 595085 Contact Us For Availability
9
Clip, Shroud WPL 994686 Contact Us For Availability
9
Clip WPL 485334 Contact Us For Availability
10
Seal WPL 854841 Contact Us For Availability
10
Fan Motor WPL 859391 Contact Us For Availability
11
Extension WPL 646774 Contact Us For Availability
12
Seal Strip WPL 856990 Contact Us For Availability
13
Wall WPL 859822 Contact Us For Availability
13
Evaporator WPL 859805 Contact Us For Availability
14
Retainer WPL 646963 Contact Us For Availability
15
Guard WPL 856101 Contact Us For Availability
15
Bracket WPL 644228 Contact Us For Availability
16
Cable WPL 647216 Contact Us For Availability
16
Screw WPL 488255 Contact Us For Availability
18
Ground Wire WPL 856094 Contact Us For Availability
18
Base WPL 859295 Contact Us For Availability
19
Clamp WPL 852451 Contact Us For Availability
20
Shroud WPL 646123 Contact Us For Availability
20
Clip WPL 649966 Contact Us For Availability
20
Harness WPL 484136 Contact Us For Availability
21
Plate WPL 859890 Contact Us For Availability
21
Compressor WPL 484217 Contact Us For Availability
22
Grommet WPL 646499 Contact Us For Availability
23
Front WPL 994707 Contact Us For Availability
23
Sleeve WPL 858424 Contact Us For Availability
24
Lock Nut WPL 858121 Contact Us For Availability
25
Strip WPL 855581 Contact Us For Availability
25
Gasket WPL 643296 Contact Us For Availability
26
Overload WPL 646781 Contact Us For Availability
27
Switch WPL 647693 Contact Us For Availability
27
Spring WPL 644362 Contact Us For Availability
28
Cover WPL 855762 Contact Us For Availability
29
Panel WPL 648969 Contact Us For Availability
29
& 876893 CAPACITOR WPL N/P Contact Us For Availability
29
Retainer WPL 475062 Contact Us For Availability
29A
Bracket WPL 645562 Contact Us For Availability
29B
Bracket WPL 645563 Contact Us For Availability
30
Screw WPL 488734 Contact Us For Availability
30
Seal WPL 856979 Contact Us For Availability
30
Start Relay WPL 484177 Contact Us For Availability
31
Seal WPL 859931 Contact Us For Availability
31
Angle WPL 646988 Contact Us For Availability
31
Capacitor WPL 48616 Contact Us For Availability
32
Seal WPL 857923 Contact Us For Availability
32
Cap WPL 465280 Contact Us For Availability
33
Board WPL 855634 Contact Us For Availability
33
Bracket WPL 35564 Contact Us For Availability
34
Filter WPL 47-9186 Contact Us For Availability
34
Screw WPL 487880 Contact Us For Availability
36
Bag WPL 858358 Contact Us For Availability
37
Terminal WPL 90654 Contact Us For Availability
38
Terminal WPL 45571 Contact Us For Availability
40
Blade WPL 646122 Contact Us For Availability
41
Tube Clamp WPL 855930 Contact Us For Availability
NI
Refrigerant Access Valve, 5/8-in WPL 978029 Contact Us For Availability
NI
Oil WPL 10943 Contact Us For Availability
NI
Insulation WPL 469938 Contact Us For Availability
NI
Wire (Black) WPL 47261 Contact Us For Availability
NI
Wire (Red) WPL 47262 Contact Us For Availability
NI
Wire (White) WPL 47263 Contact Us For Availability
NI
Insulation WPL 476810 Contact Us For Availability
NI
Cover WPL 484067 Contact Us For Availability
NI
Start Kit WPL 484220 Contact Us For Availability
NI
Lacquer WPL 485426 Contact Us For Availability
NI
Dvx Thnnr Gl WPL 799351 Contact Us For Availability
NI
Spray Tool WPL 799451 Contact Us For Availability
NI
Valve Kit WPL 978028 Contact Us For Availability
NI
Technical Sheet WPL LIT859553 Contact Us For Availability
NI
Technical Sheet WPL LIT993373 Contact Us For Availability
NI
Owner's Manual WPL LIT995822 Contact Us For Availability
NI
Installation Instructions WPL LIT995823 Contact Us For Availability
NI
Parts List WPL LIT995828 Contact Us For Availability
× ![]()
