Model Whirlpool 106.77122790 Air Conditioner (Kenmore 10677122790) – Common Parts & Diagrams

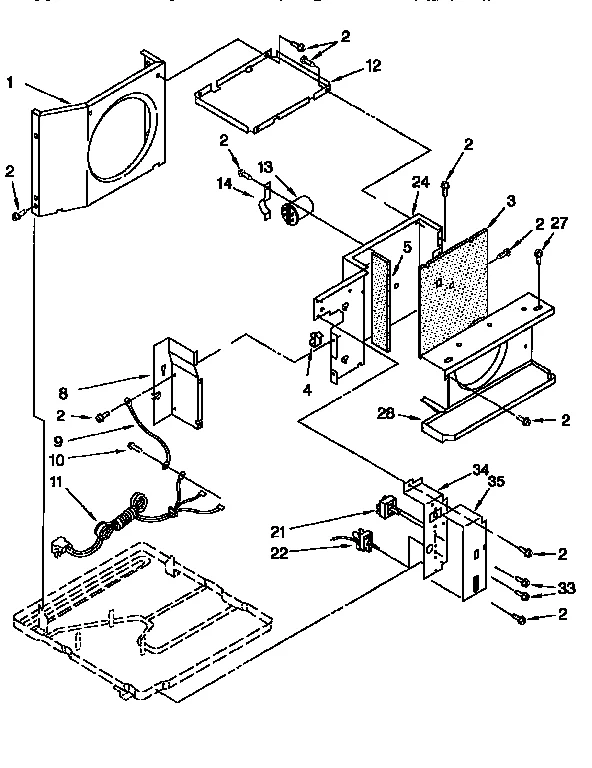

AIR FLOW AND CONTROL

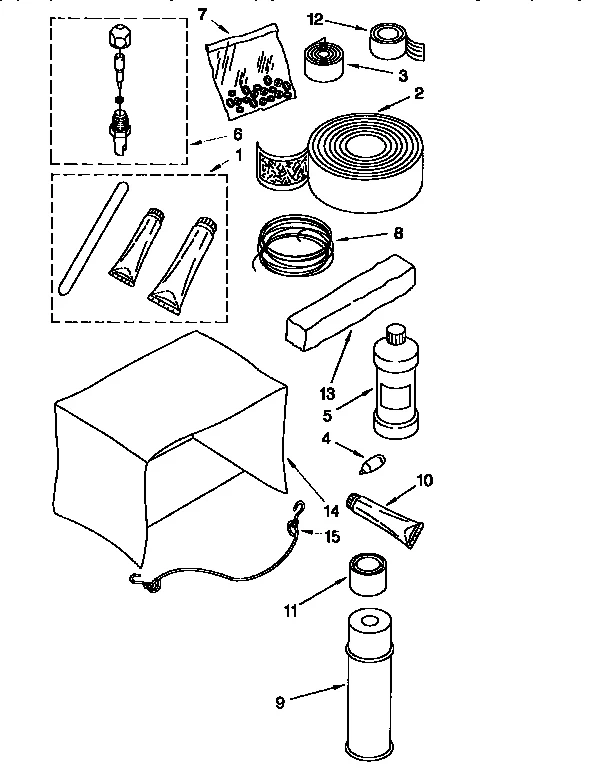

OPTIONAL
All Parts

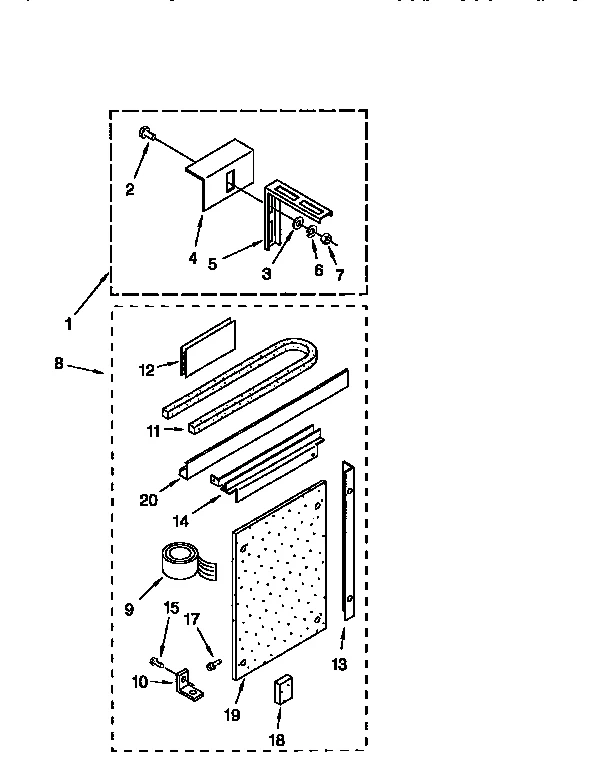

INSTALLATION

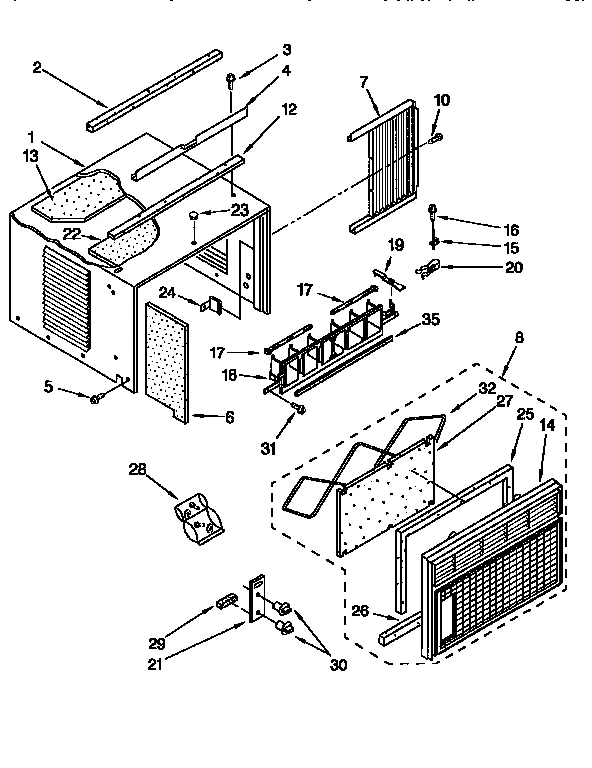

CABINET

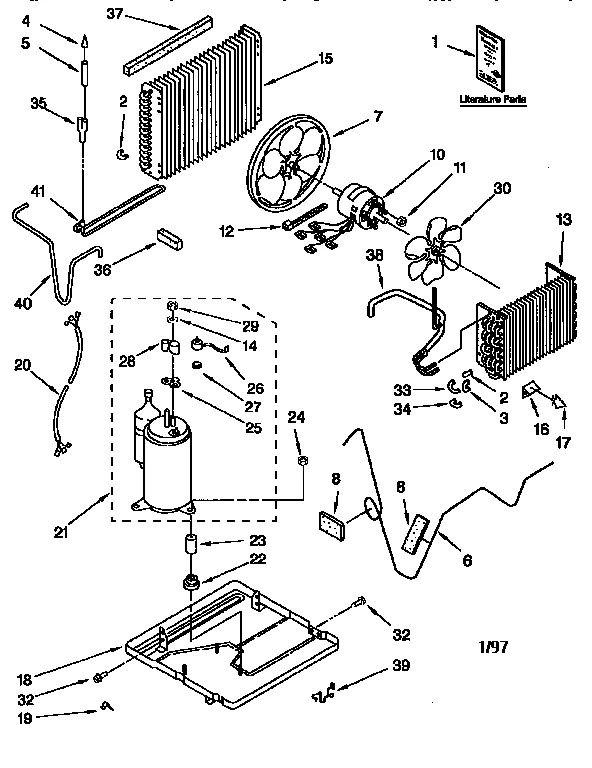

UNIT
Common parts from model Whirlpool 106.77122790 Air Conditioner (Kenmore 10677122790)
1
Epoxy Tube WPL 799833 Contact Us For Availability
1
Bracket Kit WPL 485678 Contact Us For Availability
1
Cabinet WPL 1163513 Contact Us For Availability
1
Technical Sheet WPL LIT1169636 Contact Us For Availability
1A
Wiring Diagram WPL LIT1166370 Contact Us For Availability
1B
Wiring Diagram WPL LIT1169265 Contact Us For Availability
1C
Parts List WPL LIT1169819 Contact Us For Availability
2
Tape WPL 505168 Contact Us For Availability
2
Bolt, 1/4 X 3 WPL 488750 Contact Us For Availability
2
Rail Seal WPL 469877 Contact Us For Availability
2
Return Bend WPL 708532 Contact Us For Availability
3
Tape WPL 479502 Contact Us For Availability
3
Washer WPL 120393 Contact Us For Availability
3
Return Bend WPL 708531 Contact Us For Availability
4
Oil WPL 10943 Contact Us For Availability
4
Bracket, Sil2 WPL 645515 Contact Us For Availability
4
Channel WPL 1169001 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
5
Oil WPL 99243 Contact Us For Availability
5
Rail Bracket WPL 485466 Contact Us For Availability
5
Tube-strnr WPL 950825 Contact Us For Availability
6
Lock Washer WPL 486009 No Longer Available
6
Insulation WPL 1163430 Contact Us For Availability
6
Restrictor Tube WPL 1156455 Contact Us For Availability
6A
Insulation WPL 1163431 Contact Us For Availability
6D
Valve Kit WPL 978028 Contact Us For Availability
6E
Refrigerant Access Valve, 5/8-in WPL 978029 Contact Us For Availability
7
Washer WPL 978865 Contact Us For Availability
7
Nut WPL 487541 Contact Us For Availability
7
Curtain WPL 1164154 Contact Us For Availability
7
Fan Blade WPL 1161594 Contact Us For Availability
7A
Curtain WPL 1164155 Contact Us For Availability
8
Wire WPL 10875 Contact Us For Availability
8
Mount-wind WPL 1155851 Contact Us For Availability
8
Front WPL 1166275 Contact Us For Availability
8
ANTI-RUB SEAL WPL 1162616 Contact Us For Availability
8A
Wire WPL 242820 Contact Us For Availability
8B
Wire WPL 242825 Contact Us For Availability
8C
Wire WPL 242826 Contact Us For Availability
8D
Wire (Black) WPL 47261 Contact Us For Availability
8E
Wire WPL 299885 Contact Us For Availability
8F
Wire (White) WPL 47263 Contact Us For Availability
9
Adhesive WPL 813684 Contact Us For Availability
9
Strip WPL 855265 Contact Us For Availability
10
Screw, 3 WPL 1161561 Contact Us For Availability
10
Fan Motor WPL 947852 Contact Us For Availability
11
Room Air Conditioner Window Rail Seal WPL 855841 Contact Us For Availability
11
Lacquer WPL 485426 Contact Us For Availability
12
Seal WPL 856989 Contact Us For Availability
13
Angle WPL 646233 Contact Us For Availability
13
Insulation WPL 1158501 Contact Us For Availability
13
Evaporator WPL 1156743 Contact Us For Availability
14
Cover WPL 484066 No Longer Available
14
Bracket WPL 645562 Contact Us For Availability
14
Frame WPL 1166099 Contact Us For Availability
14
Gasket Nut WPL 950037 Contact Us For Availability
14A
Cover WPL 484067 Contact Us For Availability
14A
Bracket WPL 645563 Contact Us For Availability
14B
Cover WPL 484069 Contact Us For Availability
14C
GE Room Air Conditioner Outdoor Cover WPL 484184 Contact Us For Availability
15
Retainer WPL 813610 Contact Us For Availability
15
Screw WPL 47435 Contact Us For Availability
15
Bracket WPL 644228 Contact Us For Availability
15
Condenser WPL 1164709 Contact Us For Availability
16
Screw WPL 488255 Contact Us For Availability
16
Anticipator WPL 1166782 Contact Us For Availability
17
Louver Link WPL 855158 Contact Us For Availability
17
Clip WPL 642080 Contact Us For Availability
18
Spacer WPL 995274 Contact Us For Availability
18
Louver WPL 1166081 Contact Us For Availability
18
Base WPL 950019 Contact Us For Availability
18A
Louver WPL 641481 Contact Us For Availability
18B
Handle-lvr WPL 1159980 Contact Us For Availability
19
Board, Filler WPL 876826 Contact Us For Availability
19
Handle-lvr WPL 1161636 Contact Us For Availability
19
Clamp WPL 642684 Contact Us For Availability
20
Channel WPL 646232 Contact Us For Availability
20
Detent Spring WPL 644006 Contact Us For Availability
20
Harness WPL 484136 Contact Us For Availability
21
Escutcheon WPL 1166376 Contact Us For Availability
21
Compressor WPL 1163573 Contact Us For Availability
22
Insulation WPL 1163429 Contact Us For Availability
23
Button Plug WPL 1157126 Contact Us For Availability
23
Sleeve WPL 950020 Contact Us For Availability
24
Clip, Louver WPL 1158294 Contact Us For Availability
24
Lock Nut WPL 858121 Contact Us For Availability
25
Seal WPL 476899 Contact Us For Availability
26
Seal Strip WPL 1166095 Contact Us For Availability
26
Overload WPL 1155700 Contact Us For Availability
27
Air Filter WPL 951039 Contact Us For Availability
27
Spring WPL 950032 Contact Us For Availability
28
Shroud WPL 856039 Contact Us For Availability
28
Bag WPL 476180 Contact Us For Availability
29
Spacer WPL 470036 Contact Us For Availability
30
Room Air Conditioner Control Knob WPL 996647 Contact Us For Availability
30
Fan Blade WPL 1160946 Contact Us For Availability
31
Screw WPL 1159222 Contact Us For Availability
32
Retainer WPL 646963 Contact Us For Availability
32A
Screw WPL 488481 Contact Us For Availability
33
Screw WPL 488734 Contact Us For Availability
33
Bend-retrn WPL 1158407 Contact Us For Availability
34
Control Panel WPL 1159147 Contact Us For Availability
34
Bend-retrn WPL 1156533 Contact Us For Availability
35
Insulation Control WPL 1159104 Contact Us For Availability
35
Seal WPL 855238 Contact Us For Availability
35
Room Air Conditioner Flow Divider Tube WPL 1162071 Contact Us For Availability
37
Seal WPL 948090 Contact Us For Availability
38
Suction Tube WPL 1163983 Contact Us For Availability
39
Clip WPL 949634 Contact Us For Availability
40
Discharge Tube WPL 1165484 Contact Us For Availability
41
Wet Loop Tube WPL 1168421 Contact Us For Availability
NI
Window Kit WPL 485676 Contact Us For Availability
NI
Installation Instructions WPL LIT1155124 Contact Us For Availability
NI
Installation Instructions WPL LIT485706 Contact Us For Availability
× ![]()
