Model Whirlpool 106.77109790 Air Conditioner (Kenmore 10677109790) – Common Parts & Diagrams
UNIT
CABINET
All Parts

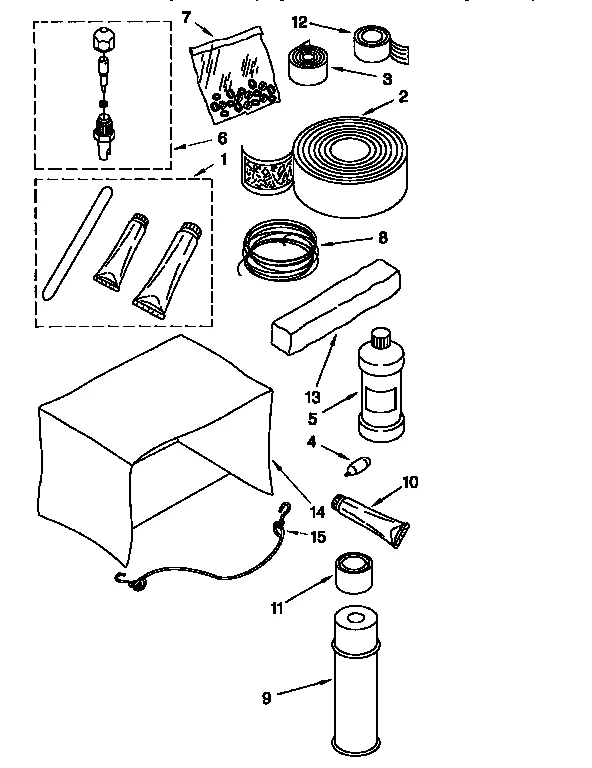

OPTIONAL PARTS (NOT INCLUDED)

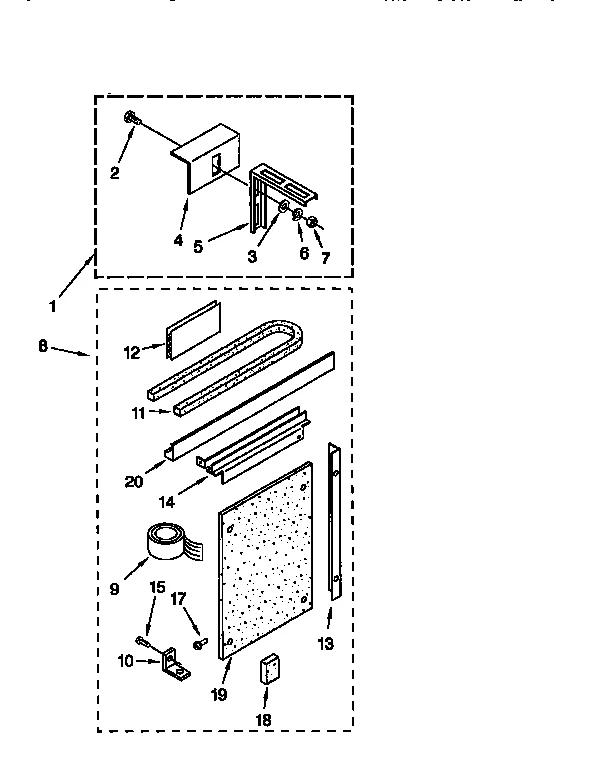

INSTALLATION

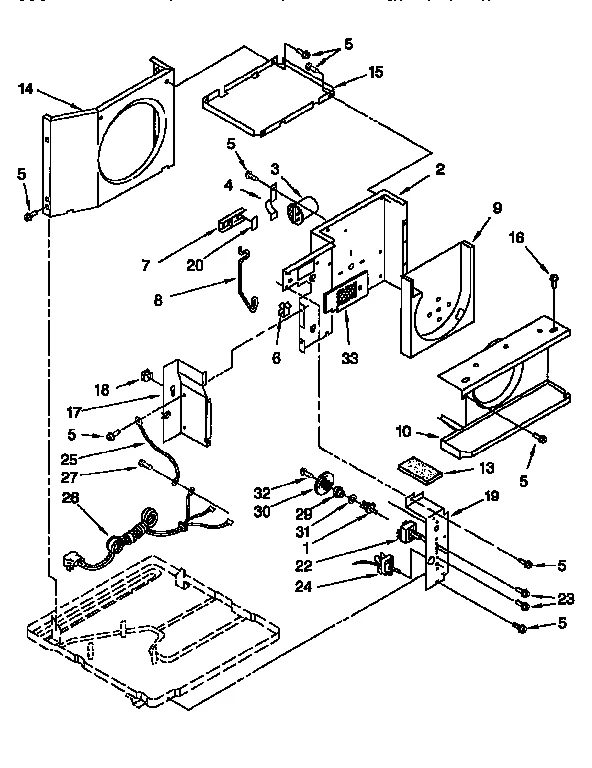

AIR FLOW AND CONTROL
Common parts from model Whirlpool 106.77109790 Air Conditioner (Kenmore 10677109790)
1
Cabinet WPL 1167178 Contact Us For Availability
1
Epoxy Tube WPL 799833 Contact Us For Availability
1
Bracket Kit WPL 485678 Contact Us For Availability
1
Shaft WPL 859232 Contact Us For Availability
2
Tape WPL 505168 Contact Us For Availability
2
Rail Seal WPL 469877 Contact Us For Availability
2
Bolt, 1/4 X 3 WPL 488750 Contact Us For Availability
2
Dividing Wall WPL 1167154 Contact Us For Availability
3
Tape WPL 479502 Contact Us For Availability
3
Washer WPL 120393 Contact Us For Availability
3
Capacitor WPL 1162592 Contact Us For Availability
4
Channel WPL 1169001 Contact Us For Availability
4
Oil WPL 10943 Contact Us For Availability
4
Bracket, Sil2 WPL 645515 Contact Us For Availability
4
Capacitor Bracket WPL 1167611 Contact Us For Availability
5
Oil WPL 99243 Contact Us For Availability
5
Rail Bracket WPL 485466 Contact Us For Availability
6
Lock Washer WPL 486009 No Longer Available
6
Screw WPL 1159222 Contact Us For Availability
6
Clamp WPL 852451 Contact Us For Availability
6D
Valve Kit WPL 978028 Contact Us For Availability
6E
Refrigerant Access Valve, 5/8-in WPL 978029 Contact Us For Availability
7
Curtain WPL 1164154 Contact Us For Availability
7
Washer WPL 978865 Contact Us For Availability
7
Nut WPL 487541 Contact Us For Availability
7
Door WPL 644206 Contact Us For Availability
7A
Curtain WPL 1164155 Contact Us For Availability
8
Wire WPL 10875 Contact Us For Availability
8
Mount-wind WPL 1155851 Contact Us For Availability
8
Arm WPL 859235 Contact Us For Availability
8A
Wire WPL 242820 Contact Us For Availability
8B
Wire WPL 242825 Contact Us For Availability
8C
Wire WPL 242826 Contact Us For Availability
8D
Wire (Black) WPL 47261 Contact Us For Availability
8E
Wire WPL 299885 Contact Us For Availability
8F
Wire (White) WPL 47263 Contact Us For Availability
9
Adhesive WPL 813684 Contact Us For Availability
9
Strip WPL 855265 Contact Us For Availability
9
Scroll WPL 1167166 Contact Us For Availability
10
Screw, 3 WPL 1161561 Contact Us For Availability
10
Bracket WPL 644228 Contact Us For Availability
10
Shroud WPL 856039 Contact Us For Availability
11
Room Air Conditioner Window Rail Seal WPL 855841 Contact Us For Availability
11
Lacquer WPL 485426 Contact Us For Availability
12
Seal WPL 856989 Contact Us For Availability
13
Screw WPL 1157141 Contact Us For Availability
13
Angle WPL 646233 Contact Us For Availability
13
Insulation Control WPL 1158576 Contact Us For Availability
14
Cover WPL 484066 No Longer Available
14
Control Door WPL 1166720 Contact Us For Availability
14
Bracket WPL 645562 Contact Us For Availability
14
Shroud WPL 856037 Contact Us For Availability
14A
Cover WPL 484067 Contact Us For Availability
14A
Bracket WPL 645563 Contact Us For Availability
14B
Cover WPL 484069 Contact Us For Availability
14C
GE Room Air Conditioner Outdoor Cover WPL 484184 Contact Us For Availability
15
Retainer WPL 813610 Contact Us For Availability
15
Screw WPL 47435 Contact Us For Availability
15
Support, Unit WPL 1156536 Contact Us For Availability
16
Screw WPL 488255 Contact Us For Availability
17
Louver Link WPL 855158 Contact Us For Availability
17
Extension WPL 994561 Contact Us For Availability
18
Handle-lvr WPL 1159980 Contact Us For Availability
18
Spacer WPL 995274 Contact Us For Availability
18
Clip WPL 644401 Contact Us For Availability
19
Restrictor Tube WPL 1164700 Contact Us For Availability
19
Handle-lvr WPL 1161636 Contact Us For Availability
19
Board, Filler WPL 876826 Contact Us For Availability
19
Panel WPL 996962 Contact Us For Availability
20
Condenser WPL 1167170 Contact Us For Availability
20
Detent Spring WPL 644006 Contact Us For Availability
20
Channel WPL 646232 Contact Us For Availability
20
Insulation WPL 1159175 Contact Us For Availability
21
Return Bend WPL 708531 Contact Us For Availability
21
Escutcheon WPL 1166704 Contact Us For Availability
22
Return Bend WPL 708532 Contact Us For Availability
22
Clip WPL 1157140 Contact Us For Availability
22
Rotary Switch WPL 1165250 Contact Us For Availability
23
Room Air Conditioner Flow Divider Tube WPL 1162071 Contact Us For Availability
23
Front WPL 1167308 Contact Us For Availability
23
Screw WPL 488734 Contact Us For Availability
24
Wet Loop Tube WPL 1168421 Contact Us For Availability
24
Louver WPL 1166723 Contact Us For Availability
24
Room Air Conditioner Thermostat WPL 1166759 Contact Us For Availability
25
Tube WPL 1155460 Contact Us For Availability
25
Front Frame WPL 1166706 Contact Us For Availability
25
Ground Wire WPL 856094 Contact Us For Availability
26
Strainer WPL 49599 Contact Us For Availability
26
Louver WPL 1166724 Contact Us For Availability
26
Power Cord WPL 1165241 Contact Us For Availability
27
Room Air Conditioner Air Filter WPL 1167300 Contact Us For Availability
28
Anticipator WPL 1166782 Contact Us For Availability
28
Bag WPL 476180 Contact Us For Availability
29
Clip WPL 642080 Contact Us For Availability
29
Seal Strip WPL 1158628 Contact Us For Availability
29
Bushing WPL 859233 Contact Us For Availability
30
Clamp WPL 642684 Contact Us For Availability
30
Control Knob WPL 1166715 Contact Us For Availability
30
Cam WPL 859234 Contact Us For Availability
31
Washer WPL 647881 Contact Us For Availability
32
Seal WPL 948090 Contact Us For Availability
32
Screw WPL 489092 Contact Us For Availability
33
Suction Tube WPL 1167173 Contact Us For Availability
33
Clip, Louver WPL 1158294 Contact Us For Availability
33
Insulation WPL 1162926 Contact Us For Availability
34
Seal Strip WPL 1166927 Contact Us For Availability
34
Room Air Conditioner Louver Link WPL 1166722 Contact Us For Availability
35
Harness WPL 484136 Contact Us For Availability
35
Seal WPL 855238 Contact Us For Availability
36
Seal Strip WPL 1157622 Contact Us For Availability
37
Bend-retrn WPL 1156329 Contact Us For Availability
37
Louver WPL 1166725 Contact Us For Availability
37A
Louver WPL 1166726 Contact Us For Availability
38
Manifold Tube WPL 1167179 Contact Us For Availability
39
Discharge Tube WPL 1165484 Contact Us For Availability
40
Base WPL 950019 Contact Us For Availability
40
MONITOR, FILTER WPL 1167134 Contact Us For Availability
42
Seal Strip WPL 1167159 Contact Us For Availability
43
Seal Strip WPL 1167158 Contact Us For Availability
50
Insulation WPL 1158501 Contact Us For Availability
51
INSULATION, CAB. (RIGHT SIDE) WPL 116176 Contact Us For Availability
51A
Insulation WPL 1167177 Contact Us For Availability
52
Insulation WPL 1167175 Contact Us For Availability
NI
Window Kit WPL 485676 Contact Us For Availability
NI
Installation Instructions WPL LIT1155124 Contact Us For Availability
NI
Installation Instructions WPL LIT485706 Contact Us For Availability
× ![]()
