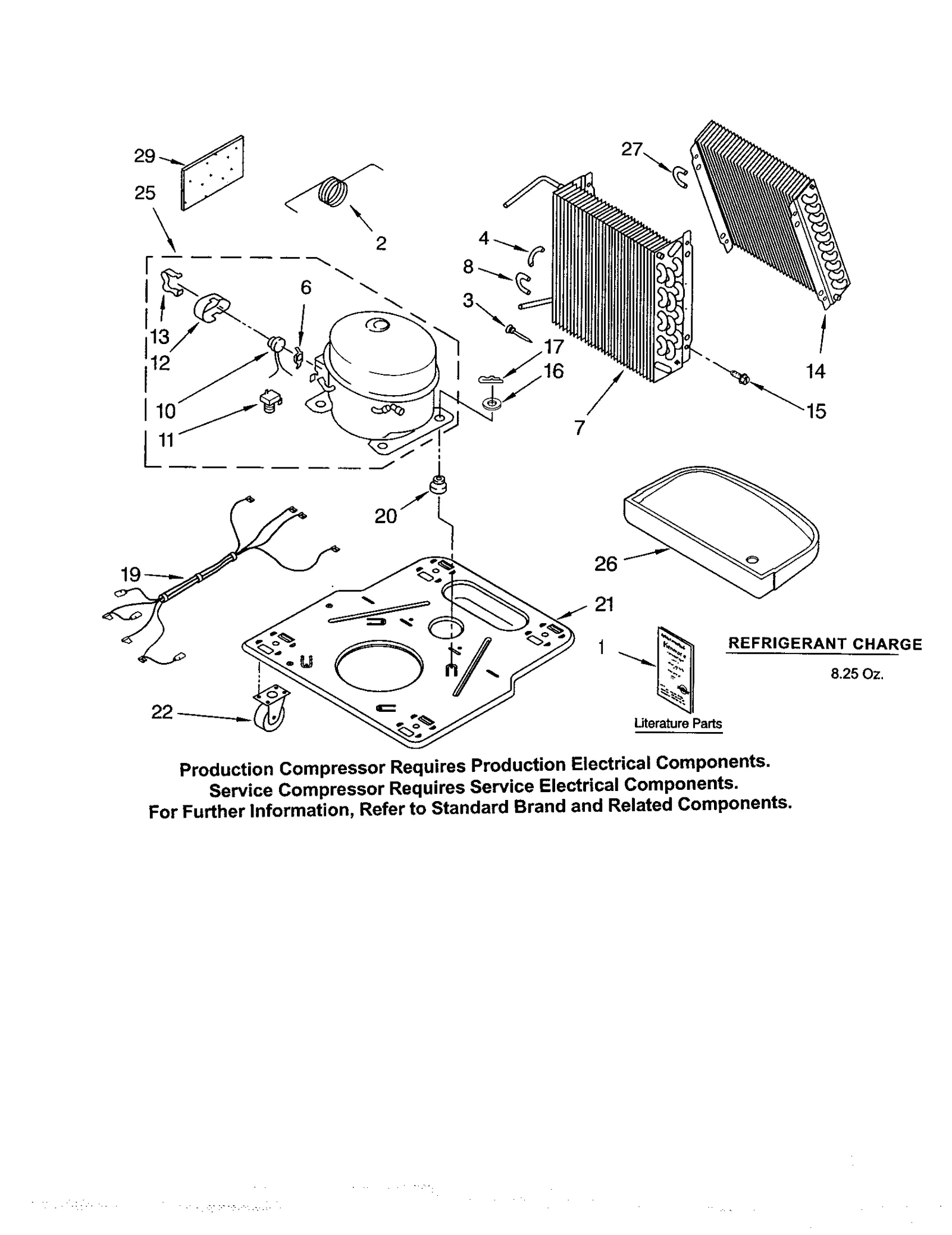

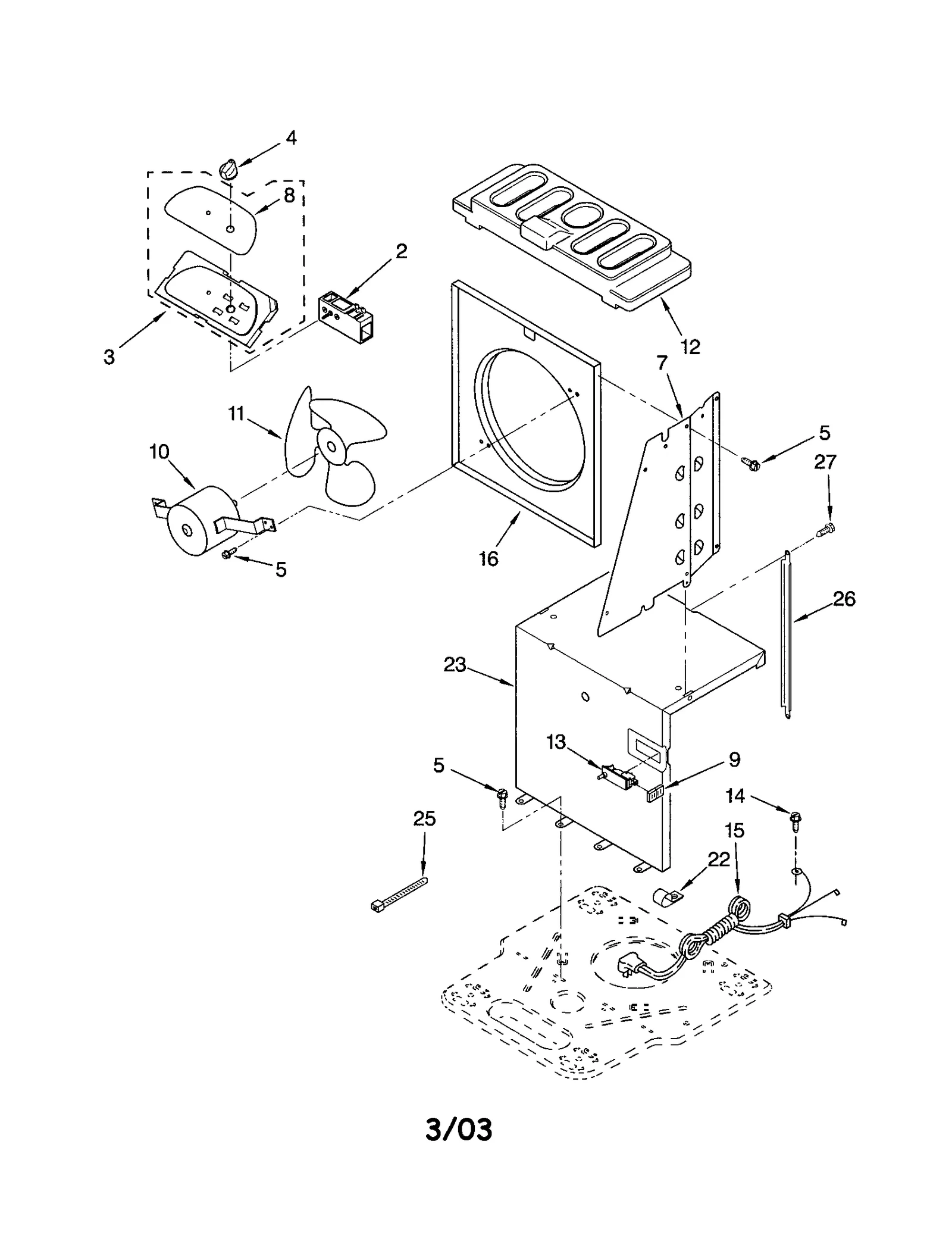

Model Whirlpool 106.57300790 Dehumidifier (Kenmore 10657300790) – Common Parts & Diagrams

1
Wiring Diagram
Wiring Diagram WPL LIT1168823 Contact Us For Availability
View on Model
1A
Owner's Manual
Owner's Manual WPL LIT1168798 Contact Us For Availability
View on Model
1B
Parts List
Parts List WPL LIT1168709 Contact Us For Availability
View on Model
2
Humidistat
Humidistat WPL 1168670 Contact Us For Availability
View on Model
2
Restrictor Tube
Restrictor Tube WPL 1168728 Contact Us For Availability
View on Model
3
Control Panel Assembly
Control Panel Assembly WPL 1168814 Contact Us For Availability
View on Model
4
Knob
Knob WPL 1168687 Contact Us For Availability
View on Model
4
Bend-retrn
Bend-retrn WPL 1169762 Contact Us For Availability
View on Model
6
Spring
Spring WPL 950061 Contact Us For Availability
View on Model
7
Panel
Panel WPL 1168758 Contact Us For Availability
View on Model
7
Condenser
Condenser WPL 1181854 Contact Us For Availability
View on Model
7A
Panel
Panel WPL 1168759 Contact Us For Availability
View on Model
8
Escutcheon
Escutcheon WPL 1168816 Contact Us For Availability
View on Model
8
Return Bend
Return Bend WPL 708531 Contact Us For Availability
View on Model
9
Guard Edge
Guard Edge WPL 1180634 Contact Us For Availability
View on Model
9
Barrier
Barrier WPL 1168781 Contact Us For Availability
View on Model
10
Fan Motor
Fan Motor WPL 1168811 Contact Us For Availability
View on Model
10
OVERLOAD, PROTECTOR
OVERLOAD, PROTECTOR WPL 1172077 Contact Us For Availability
View on Model
11
Fan Blade
Fan Blade WPL 1168731 Contact Us For Availability
View on Model
11
Relay
Relay WPL 950058 Contact Us For Availability
View on Model
12
Air Cover
Air Cover WPL 1168681 Contact Us For Availability
View on Model
12
Cover
Cover WPL 950055 Contact Us For Availability
View on Model
13
Water-Level Switch
Water-Level Switch WPL 1168699 Contact Us For Availability
View on Model
13
Retainer
Retainer WPL 950056 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 1168655 Contact Us For Availability
View on Model
15
Power Cord
Power Cord WPL 1168703 Contact Us For Availability
View on Model
16
Plate Orifice
Plate Orifice WPL 1168666 Contact Us For Availability
View on Model
16
Washer
Washer WPL 680975 Contact Us For Availability
View on Model
17
CLIP, COMPRESSOR
CLIP, COMPRESSOR WPL 24364001 Contact Us For Availability
View on Model
19
Wire Harness
Wire Harness WPL 1168810 Contact Us For Availability
View on Model
20
Grommet
Grommet WPL 1168722 Contact Us For Availability
View on Model
21
Base
Base WPL 1168654 Contact Us For Availability
View on Model
22
Relief Stirrer
Relief Stirrer WPL 1180504 Contact Us For Availability
View on Model
22
Caster
Caster WPL 1164241 Contact Us For Availability
View on Model
23
Support
Support WPL 1168735 Contact Us For Availability
View on Model
25
Compressor
Compressor WPL 1164773 Contact Us For Availability
View on Model
26
Brace
Brace WPL 1168752 Contact Us For Availability
View on Model
26
Drain Pan
Drain Pan WPL 1168761 Contact Us For Availability
View on Model
27
Bend-retrn
Bend-retrn WPL 854624 Contact Us For Availability
View on Model
29
Seal Tube
Seal Tube WPL 1162650 Contact Us For Availability
View on Model
NI01
Epoxy
Epoxy WPL 484310 Contact Us For Availability
View on Model
NI02
Tape
Tape WPL 505168 Contact Us For Availability
View on Model
NI06
Valve Kit
Valve Kit WPL 978028 Contact Us For Availability
View on Model
NI07
Refrigerant Access Valve, 5/8-in
Refrigerant Access Valve, 5/8-in WPL 978029 Contact Us For Availability
View on Model
NI09
Washer
Washer WPL 978865 Contact Us For Availability
View on Model
