Model Whirlpool 106.1068130610 Refrigerator (Kenmore 106106-8130610) – Common Parts & Diagrams
LINER PARTS
All Parts

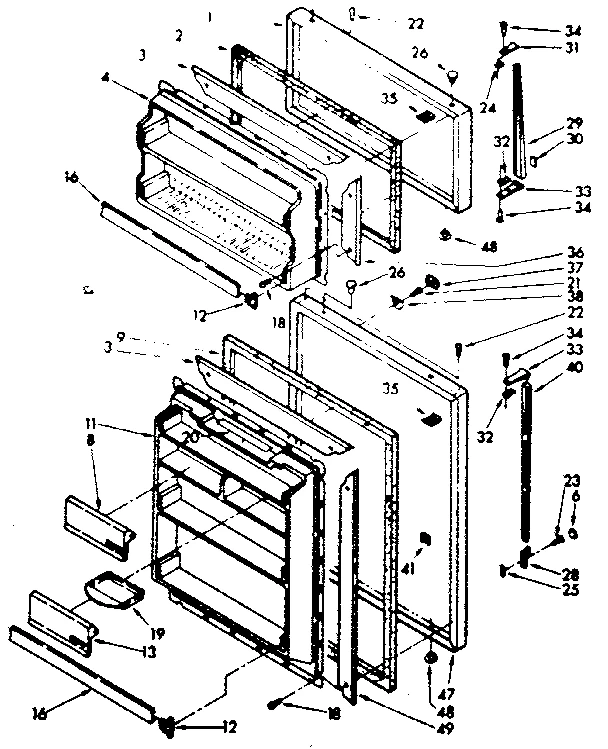

DOOR PARTS

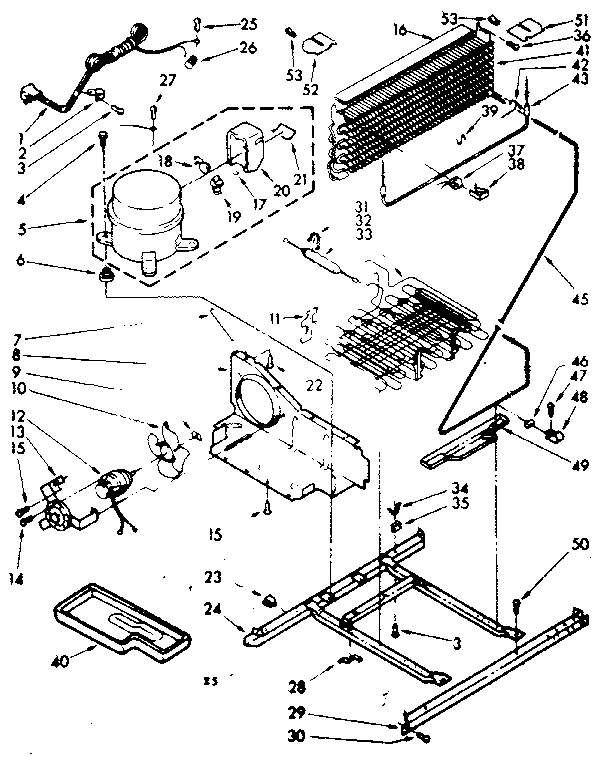

UNIT PARTS

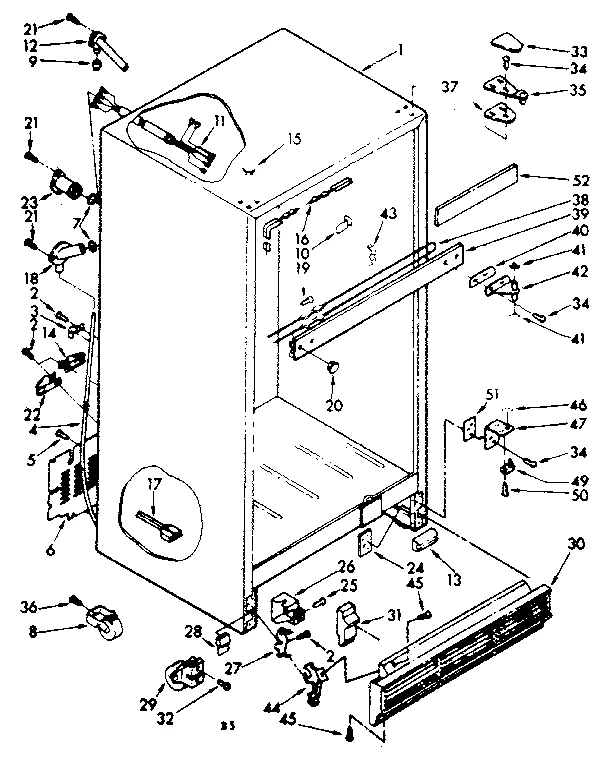

CABINET PARTS

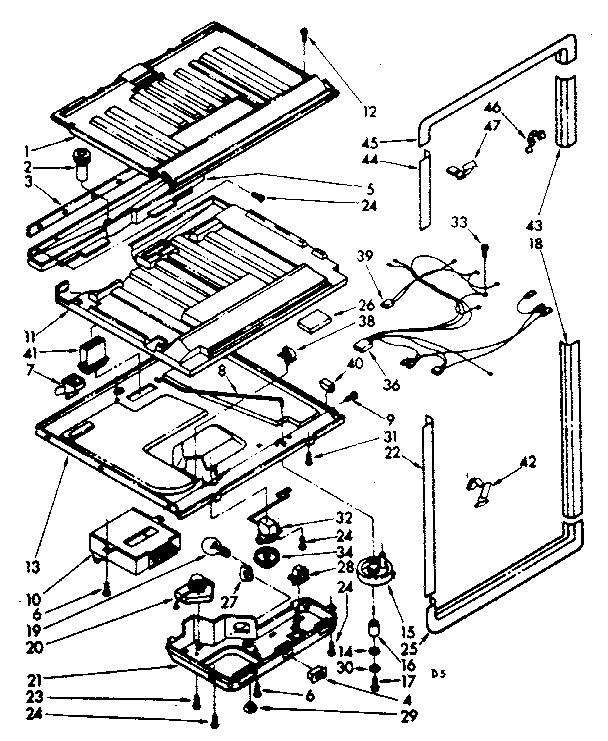

COMPARTMENT SEPARATOR AND CONTROL PARTS
Common parts from model Whirlpool 106.1068130610 Refrigerator (Kenmore 106106-8130610)
1
FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability
1
Cable WPL 850626 Contact Us For Availability
1
Refrigerator Top WPL 937257 Contact Us For Availability
1A
Refrigerator Panel (White) WPL 944141 Contact Us For Availability
1B
Refrigerator Panel WPL 944142 Contact Us For Availability
1C
Refrigerator Panel WPL 944144 Contact Us For Availability
1D
Refrigerator Panel WPL 944143 Contact Us For Availability
1E
Refrigerator Panel (Almond) WPL 944145 Contact Us For Availability
2
Refrigerator Door Gasket WPL 942903 Contact Us For Availability
2
Refrigerator Fitting WPL 836088 Contact Us For Availability
3
Retainer WPL 836115 Contact Us For Availability
3
Refrigerator Clamp WPL 836077 Contact Us For Availability
3
Refrigerator Gasket WPL 937292 Contact Us For Availability
4
Refrigerator Panel WPL 943934 Contact Us For Availability
4
Screw WPL 488400 Contact Us For Availability
5
Refrigerator Compressor WPL 444082 Contact Us For Availability
5
Refrigerator Drain Pan WPL 937291 Contact Us For Availability
6
Grommet WPL 547283 Contact Us For Availability
6
Cover WPL 850639 Contact Us For Availability
7
Refrigerator Drain Cup WPL 939191 Contact Us For Availability
7
Guard WPL 850156 Contact Us For Availability
7
Refrigerator Gasket WPL 940121 Contact Us For Availability
8
Refrigerator Door WPL 938582 Contact Us For Availability
8
Baffle WPL 850764 Contact Us For Availability
8
Refrigerator Rod WPL 937271 Contact Us For Availability
9
Refrigerator Door Gasket WPL 942299 Contact Us For Availability
9
Screw WPL 488624 Contact Us For Availability
10
Fan Blade WPL 989524 Contact Us For Availability
10
Clip WPL 935663 Contact Us For Availability
10
Refrigerator Diffuser WPL 937283 Contact Us For Availability
11
Refrigerator Panel WPL 943933 Contact Us For Availability
11
Spacer WPL 987210 Contact Us For Availability
11
Refrigerator Wiring WPL 937267 Contact Us For Availability
11
Refrigerator Insulation WPL 937256 Contact Us For Availability
12
Refrigerator Screw WPL 483320 Contact Us For Availability
13
Bracket WPL 548695 Contact Us For Availability
13
Bumper WPL 546131 Contact Us For Availability
13
Refrigerator Bottom WPL 941712 Contact Us For Availability
14
Screw WPL 488848 Contact Us For Availability
14
Clamp WPL 939009 Contact Us For Availability
14
Washer WPL 489071 Contact Us For Availability
15
Refrigerator Knob WPL 937270 Contact Us For Availability
15A
Hole Plug WPL 842031 Contact Us For Availability
15B
Plug WPL 989875 Contact Us For Availability
15C
Plug WPL 989877 Contact Us For Availability
15D
Plug WPL 989876 Contact Us For Availability
15E
Plug (Almond) WPL 989195 Contact Us For Availability
16
Refrigerator Trim WPL 938632 Contact Us For Availability
16
Refrigerator Baffle WPL 937289 Contact Us For Availability
16
Refrigerator Heater WPL 943397 Contact Us For Availability
16
Refrigerator Spacer WPL 941767 Contact Us For Availability
17
Shelf Stud WPL 536475 Contact Us For Availability
17
Bumper WPL 547272 Contact Us For Availability
17
Refrigerator Harness WPL 548734 Contact Us For Availability
17
Refrigerator Screw WPL 489074 Contact Us For Availability
18
Overload WPL 549041 Contact Us For Availability
18
Refrigerator Fitting WPL 939271 Contact Us For Availability
18
Refrigerator Breaker WPL 937258 Contact Us For Availability
19
Relay WPL 989662 Contact Us For Availability
19A
Screw WPL 487470 Contact Us For Availability
20
Refrigerator Label WPL LIT939820 Contact Us For Availability
20
Case WPL 549945 Contact Us For Availability
20
Refrigerator Timer WPL 938035 Contact Us For Availability
20A
Plug (White) WPL 835974 Contact Us For Availability
20B
Refrigerator Plug WPL 989881 Contact Us For Availability
20C
Refrigerator Plug WPL 989883 Contact Us For Availability
20D
Refrigerator Plug WPL 989882 Contact Us For Availability
20E
Plug (Almond) WPL 989193 Contact Us For Availability
21
Spring WPL 531318 Contact Us For Availability
21
Refrigerator Box WPL 939140 Contact Us For Availability
22
Screw WPL 489050 Contact Us For Availability
22
Refrigerator Clamp WPL 940108 Contact Us For Availability
22
Refrigerator Breaker WPL 937259 Contact Us For Availability
22A
Refrigerator Screw WPL 488930 Contact Us For Availability
23
Clip WPL 548745 Contact Us For Availability
24
Refrigerator Door Hinge Shim WPL 943187 Contact Us For Availability
24
Frame WPL 548655 Contact Us For Availability
24
Plate WPL 836162 Contact Us For Availability
25
Refrigerator Shim WPL 981175 Contact Us For Availability
25
Screw WPL 488474 Contact Us For Availability
25
Refrigerator Breaker WPL 944556 Contact Us For Availability
26
Connector WPL 227991 Contact Us For Availability
26
Box WPL 549947 Contact Us For Availability
26
Refrigerator Insulation WPL 939083 Contact Us For Availability
26B
Refrigerator Plug WPL 989892 Contact Us For Availability
26C
Refrigerator Plug (Almond) WPL 989894 Contact Us For Availability
26E
Refrigerator Plug (Almond) WPL 989196 Contact Us For Availability
27
Support WPL 844614 Contact Us For Availability
28
Refrigerator Cap WPL 981171 Contact Us For Availability
28
Clip WPL 548744 Contact Us For Availability
28
Filler WPL 934569 Contact Us For Availability
29
Handle WPL 981177 Contact Us For Availability
29
Rail WPL 548663 Contact Us For Availability
29
Refrigerator Roller WPL 981127 Contact Us For Availability
29
Refrigerator Control Panel Hole Plug WPL 940014 Contact Us For Availability
30
Insert WPL 984688 Contact Us For Availability
30
Grille WPL 934567 Contact Us For Availability
30
Refrigerator O-Ring WPL 489072 Contact Us For Availability
31
Refrigerator Cap WPL 944300 Contact Us For Availability
31
Clamp WPL 548508 Contact Us For Availability
31
Insert WPL 836372 Contact Us For Availability
31
Refrigerator Screw WPL 488206 Contact Us For Availability
32
Refrigerator Door Spacer WPL 943188 Contact Us For Availability
32
Screw WPL 488681 Contact Us For Availability
33
Refrigerator End Cap WPL 944301 Contact Us For Availability
33
Condenser WPL 481846 Contact Us For Availability
33B
Cover WPL 989895 Contact Us For Availability
33C
Cover (Almond) WPL 989897 Contact Us For Availability
33D
Cover WPL 989896 Contact Us For Availability
34
Clamp WPL 548738 Contact Us For Availability
34
Refrigerator Thermostat Knob WPL 937144 Contact Us For Availability
34A
Screw WPL 488949 Contact Us For Availability
35
Grommet WPL 548737 Contact Us For Availability
35
Hinge WPL 842039 Contact Us For Availability
36
Refrigerator Retainer WPL 836119 Contact Us For Availability
36
Screw WPL 488454 Contact Us For Availability
37
Shim WPL 836151 Contact Us For Availability
37A
Refrigerator Medallion (White) WPL 843212 Contact Us For Availability
37B
Refrigerator Medallion WPL 989898 Contact Us For Availability
37C
Refrigerator Medallion WPL 989900 Contact Us For Availability
37D
Refrigerator Medallion WPL 989899 Contact Us For Availability
37E
Refrigerator Medallion (Almond) WPL 989192 Contact Us For Availability
38
Refrigerator Clip WPL 843213 Contact Us For Availability
38
Clamp WPL 513584 Contact Us For Availability
38
Refrigerator Heater WPL 941681 Contact Us For Availability
38
Fastener WPL 851039 Contact Us For Availability
39
Support WPL 851358 Contact Us For Availability
39
Refrigerator Harness WPL 941725 Contact Us For Availability
39A
Refrigerator Rail (White) WPL 836066 Contact Us For Availability
39B
Refrigerator Rail WPL 989905 Contact Us For Availability
39C
Refrigerator Rail WPL 989907 Contact Us For Availability
39D
Refrigerator Rail WPL 989906 Contact Us For Availability
39E
Refrigerator Rail (Almond) WPL 989191 Contact Us For Availability
40
Refrigerator Drip Pan WPL 842041 Contact Us For Availability
40
Refrigerator Handle WPL 981178 Contact Us For Availability
40
Refrigerator Door Hinge Shim WPL 836155 Contact Us For Availability
40
Refrigerator Protector WPL 939143 Contact Us For Availability
41
Refrigerator Evaporator WPL 938337 Contact Us For Availability
41
Refrigerator Duct WPL 939078 Contact Us For Availability
42
Refrigerator Clip WPL 850721 Contact Us For Availability
42
Refrigerator Hinge WPL 836153 Contact Us For Availability
42
Clip WPL 939139 Contact Us For Availability
43
Refrigerator Stud WPL 836423 Contact Us For Availability
43
Refrigerator Heater WPL 937302 Contact Us For Availability
43
Refrigerator Clip WPL 942478 Contact Us For Availability
43
Refrigerator Breaker WPL 941708 Contact Us For Availability
44
Refrigerator Breaker WPL 941709 Contact Us For Availability
45
Refrigerator Heat Exchange WPL 943348 Contact Us For Availability
45
Refrigerator Breaker WPL 937263 Contact Us For Availability
46
Refrigerator Grommet WPL 836409 Contact Us For Availability
46
Dampener WPL 510769 Contact Us For Availability
46
Refrigerator Clip WPL 941876 Contact Us For Availability
47
Refrigerator Hinge WPL 836159 Contact Us For Availability
47
Refrigerator Clip WPL 534365 Contact Us For Availability
47A
Refrigerator Panel (White) WPL 945243 Contact Us For Availability
47B
Refrigerator Panel WPL 945244 Contact Us For Availability
47C
Refrigerator Panel WPL 945246 Contact Us For Availability
47D
Refrigerator Panel WPL 945245 Contact Us For Availability
47E
Refrigerator Panel (Almond) WPL 945247 Contact Us For Availability
48
Plug (White) WPL 534927 Contact Us For Availability
48
Clamp WPL 510716 Contact Us For Availability
49
Refrigerator Door Hinge Pin, Lower WPL 654366 Contact Us For Availability
49
Refrigerator Retainer WPL 836117 Contact Us For Availability
49
Pan WPL 989269 Contact Us For Availability
50
Refrigerator Shelf Support Arm WPL 848562 No Longer Available
50
Refrigerator Door Hinge Pin Screw WPL 488714 Contact Us For Availability
51
Refrigerator Baffle WPL 939106 Contact Us For Availability
51
Shim WPL 836196 Contact Us For Availability
52
Refrigerator Shelf WPL 937345 Contact Us For Availability
52
Refrigerator Baffle WPL 939105 Contact Us For Availability
53
Refrigerator Retainer WPL 939104 Contact Us For Availability
58
Stud WPL 523263 Contact Us For Availability
58A
Stud WPL 523264 Contact Us For Availability
59
Cap WPL 850738 Contact Us For Availability
60
Refrigerator Wire Harness WPL 937264 Contact Us For Availability
65
Refrigerator Shelf Support WPL 521878 Contact Us For Availability
66
Plug WPL 659776 Contact Us For Availability
68
Refrigerator Gasket WPL 981750 Contact Us For Availability
99
Refrigerator Pack Handle WPL 847796 Contact Us For Availability
NI
Refrigerator Service Valve WPL 978029 Contact Us For Availability
NI
Foam Slab WPL 876029 Contact Us For Availability
NI
Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability
NI
Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability
NI
Lacquer WPL 261886 Contact Us For Availability
NI
Lacquer WPL 261887 Contact Us For Availability
NI
Lacquer WPL 261888 Contact Us For Availability
NI
Lacquer WPL 261889 Contact Us For Availability
NI
Lacquer WPL 261890 Contact Us For Availability
NI
Lacquer WPL 261891 Contact Us For Availability
NI
Thinner WPL 350941 Contact Us For Availability
NI
Transformer WPL 515393 Contact Us For Availability
NI
Adhesive WPL 542639 Contact Us For Availability
NI
Touch-up Kit WPL 72108 Contact Us For Availability
NI
Pnt-blk-qrt WPL 799340 Contact Us For Availability
NI
Thinner WPL 799351 Contact Us For Availability
NI
Epoxy WPL 799832 Contact Us For Availability
NI
Epoxy WPL 799833 Contact Us For Availability
NI
Slipicone WPL 799908 Contact Us For Availability
NI
Refrigerator Service Valve WPL 978028 Contact Us For Availability
NI
Touch-Up Paint (Almond) WPL 978883 Contact Us For Availability
NI
Refrigerator Technical Sheet WPL LIT943780 Contact Us For Availability
NI
Refrigerator Owner's Manual WPL LIT944519 Contact Us For Availability
NI
Refrigerator Parts List WPL LIT944526 Contact Us For Availability
NI
Refrigerator Checklist WPL LIT944535 Contact Us For Availability
NI
Refrigerator Energy Guide WPL LIT944604 Contact Us For Availability
× ![]()
Login and Registration Form
