Model Whirlpool 1053B2A BUILT-IN GAS OVEN – Common Parts & Diagrams
03 - FULL GLASS UPPER OVEN AND LOWER BRO

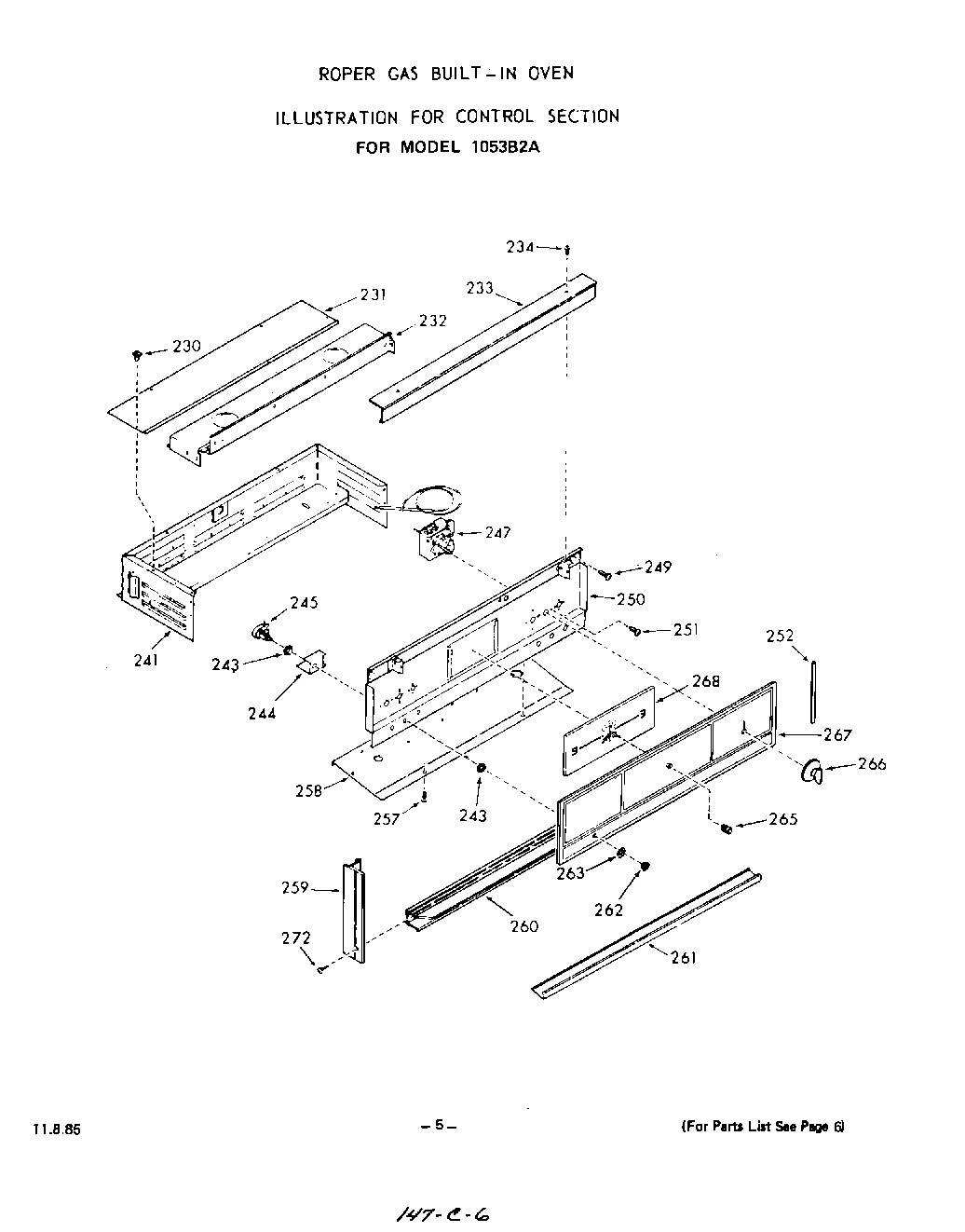

04 - CONTROL
02 - BODY
05 - LIT/OPTIONAL ROTISSERIE
06 - WIRING DIAGRAM
Common parts from model Whirlpool 1053B2A BUILT-IN GAS OVEN
38
Channel Trim-Lt. or Rt. WPL 288296 Contact Us For Availability
39
Accordian Rivet (4 Required) WPL 281160 Contact Us For Availability
41
Oven Back WPL 332347 Contact Us For Availability
42
Insulation-Oven Back WPL 308683 Contact Us For Availability
43
Wire Cover-Oven Back WPL 323574 Contact Us For Availability
44
Oven Side (Left) WPL 332348 Contact Us For Availability
44
Oven Side (Right) WPL 332349 Contact Us For Availability
45
Oven Bottom w/Baffle WPL 332451 Contact Us For Availability
46
Oven Lamp Holder WPL 87883 Contact Us For Availability
47
Oven Lamp Bulb WPL 111257 Contact Us For Availability
48
Support-Oven Door Hinge (Right) WPL 104738 Contact Us For Availability
48
Support-Oven Door Hinge (Left) WPL 104739 Contact Us For Availability
49
Bracket Door Spring (2 Required) WPL 104659 Contact Us For Availability
50
Plug Button WPL 98230 Contact Us For Availability
51
Support-Broiler Door Hinge (2 Required) WPL 323446 Contact Us For Availability
52
Disconnect Plate WPL 232407 Contact Us For Availability
53
Body Side (Left) WPL 323561 Contact Us For Availability
53
Body Side (Right) WPL 323562 Contact Us For Availability
54
Side Trim-Front Frame (Right) WPL 300906 Contact Us For Availability
54
Side Trim-Front Frame (Left) WPL 300907 Contact Us For Availability
55
Disconnect Plug WPL 232150 Contact Us For Availability
56
Side Trim Spacer (4 Required) WPL 302862 Contact Us For Availability
57
Right Cover Plate WPL 332303 Contact Us For Availability
58
Left Cover Plate WPL 332302 Contact Us For Availability
59
Clip WPL 70588 Contact Us For Availability
60
Main Bottom WPL 332301 Contact Us For Availability
61
Channel-Main Bottom (Rt. or Lt.) WPL 328042 Contact Us For Availability
62
Baffle-Main Bottom WPL 279438 Contact Us For Availability
63
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
64
Oven Cabinet Top WPL 323578 Contact Us For Availability
65
Insulation-Oven Top & Sides (1 Piece) WPL 104991 Contact Us For Availability
66
Vent Box WPL 323487 Contact Us For Availability
67
Oven Top WPL 332350 Contact Us For Availability
68
Thermostat Bulb Clip (2 Required) WPL 115533 Contact Us For Availability
69
Frt. Frame w/Rivets, Sleeves & Washers WPL 332362 Contact Us For Availability
70
Seal-Oven & Broiler Door (3 Required) WPL 315944 Contact Us For Availability
71
Seal-Oven Door (Rt. or Lt.) WPL 315945 Contact Us For Availability
79
Lower Trim-Front Frame WPL 302871 Contact Us For Availability
80
Screw 6-32x5/16`` WPL 97221 Contact Us For Availability
81
Service Cord WPL 232132 Contact Us For Availability
82
Clip WPL 106767 Contact Us For Availability
83
Bolt 1/4-20x3/8`` WPL 288881 Contact Us For Availability
84
Washer WPL 323451 Contact Us For Availability
85
Lockwasher WPL 69459 Contact Us For Availability
86
Spring-Broiler Door (2 Required) WPL 307363 Contact Us For Availability
87
Shoulder Rivet WPL 104735 Contact Us For Availability
88
Roller WPL 104734 Contact Us For Availability
89
Door Hinge (Incl`s Key WPL 324036 Contact Us For Availability
89
WPL 324037 WPL 324037 Contact Us For Availability
90
WPL 97717 WPL 97717 Contact Us For Availability
91
WPL 97748 WPL 97748 Contact Us For Availability
92
WPL 103208 WPL 103208 Contact Us For Availability
93
WPL 323456 WPL 323456 Contact Us For Availability
93
WPL 323457 WPL 323457 Contact Us For Availability
94
WPL 97749 WPL 97749 Contact Us For Availability
95
WPL 324038 WPL 324038 Contact Us For Availability
95
WPL 324039 WPL 324039 Contact Us For Availability
96
WPL 104629 WPL 104629 Contact Us For Availability
97
WPL 323454 WPL 323454 Contact Us For Availability
98
WPL 279539 WPL 279539 Contact Us For Availability
99
WPL 331851 WPL 331851 Contact Us For Availability
100
WPL 332306 WPL 332306 Contact Us For Availability
114
WPL 104702 WPL 104702 Contact Us For Availability
115
WPL 232899 WPL 232899 Contact Us For Availability
115
WPL 232900 WPL 232900 Contact Us For Availability
126
WPL 111480 WPL 111480 Contact Us For Availability
126
WPL 111481 WPL 111481 Contact Us For Availability
128
WPL 105825 WPL 105825 Contact Us For Availability
129
WPL 324047 WPL 324047 Contact Us For Availability
129
WPL 324048 WPL 324048 Contact Us For Availability
130
WPL 103314 WPL 103314 Contact Us For Availability
131
WPL 97696 WPL 97696 Contact Us For Availability
131
WPL 97697 WPL 97697 Contact Us For Availability
132
WPL 230980 WPL 230980 Contact Us For Availability
132
WPL 230981 WPL 230981 Contact Us For Availability
180
Door Frame (Upper Oven) WPL 325757 Contact Us For Availability
180
Door Frame (Lower Broiler) WPL 327224 Contact Us For Availability
181
Door Glass-Outer (Upper Oven) WPL 322093 Contact Us For Availability
181
Door Glass-Outer (Lower Broiler) WPL 322094 Contact Us For Availability
182
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
183
Hex Nut 10-32 WPL 97816 Contact Us For Availability
184
Hinge Arm Guide (Left) WPL 323459 Contact Us For Availability
184
Hinge Arm Guide (Right) WPL 323460 Contact Us For Availability
185
Shoulder Bolt (4 Required) WPL 97709 Contact Us For Availability
186
Upper Oven Door WPL 299782 Contact Us For Availability
186
Lower Broiler Door WPL 299783 Contact Us For Availability
186
Insulation WPL ARI7419A20 Contact Us For Availability
187
Door Glass-Inner WPL 111887 Contact Us For Availability
188
Door Lining (Upper Oven) WPL 331853 Contact Us For Availability
188
Door Lining (Lower Broiler) WPL 332305 Contact Us For Availability
189
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
190
Insulation Retainer (Upper Oven) WPL 322096 Contact Us For Availability
190
Insulation Retainer (Lower Broiler) WPL 322099 Contact Us For Availability
192
Spacer (4 Req.) WPL 299314 Contact Us For Availability
193
Keps Nut 8-32 WPL 239764 Contact Us For Availability
194
Door Handle WPL 318940 Contact Us For Availability
231
Rear Top Cover WPL 323580 Contact Us For Availability
232
Top Cover (Front) WPL 323572 Contact Us For Availability
233
Lamp Shade WPL 300195 Contact Us For Availability
234
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
241
Control Cover WPL 323568 Contact Us For Availability
243
Pal Nut WPL 236129 Contact Us For Availability
244
Switch Shield WPL 291351 Contact Us For Availability
245
Push Switch WPL 298794 Contact Us For Availability
247
Thermostat WPL 307438 Contact Us For Availability
249
Screw 6-32x3/8`` WPL 105667 Contact Us For Availability
250
Control Mounting Panel WPL 307962 Contact Us For Availability
251
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
252
End Trim-Lt. or Rt. WPL 239565 Contact Us For Availability
257
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
258
Bottom-Backguard WPL 323564 Contact Us For Availability
259
Side Trim-Control Panel (Left) WPL 300185 Contact Us For Availability
259
Side Trim-Control Panel (Right) WPL 300186 Contact Us For Availability
260
Lower Trim-Control Panel WPL 300209 Contact Us For Availability
261
Vent Trim WPL 239569 Contact Us For Availability
262
Knurled Nut WPL 87403 Contact Us For Availability
263
Washer WPL 104838 Contact Us For Availability
265
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
266
Knob-Thermostat WPL 308054 Contact Us For Availability
267
Backguard Glass WPL 324068 Contact Us For Availability
268
Clock WPL 307956 Contact Us For Availability
272
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
365
Screw 10 - 32 x 1/2`` WPL 102430 Contact Us For Availability
366
Rotisserie Motor WPL 106575 Contact Us For Availability
367
Rotisserie Mounting Box WPL 324197 Contact Us For Availability
368
Insulation Retainer WPL 281539 Contact Us For Availability
369
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
370
Screw 8-32x1/2`` WPL 70602 Contact Us For Availability
371
Rotisserie Spit WPL 100092 Contact Us For Availability
372
Spit Support WPL 104827 Contact Us For Availability
373
Thumbscrew WPL 70287 Contact Us For Availability
374
Skewer (2 Required) WPL 88433 Contact Us For Availability
× ![]()
