Model Whirlpool 1035 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BASIC ASSEMBLIES & LOOSE PARTS
03 - CONTROLS GROUP

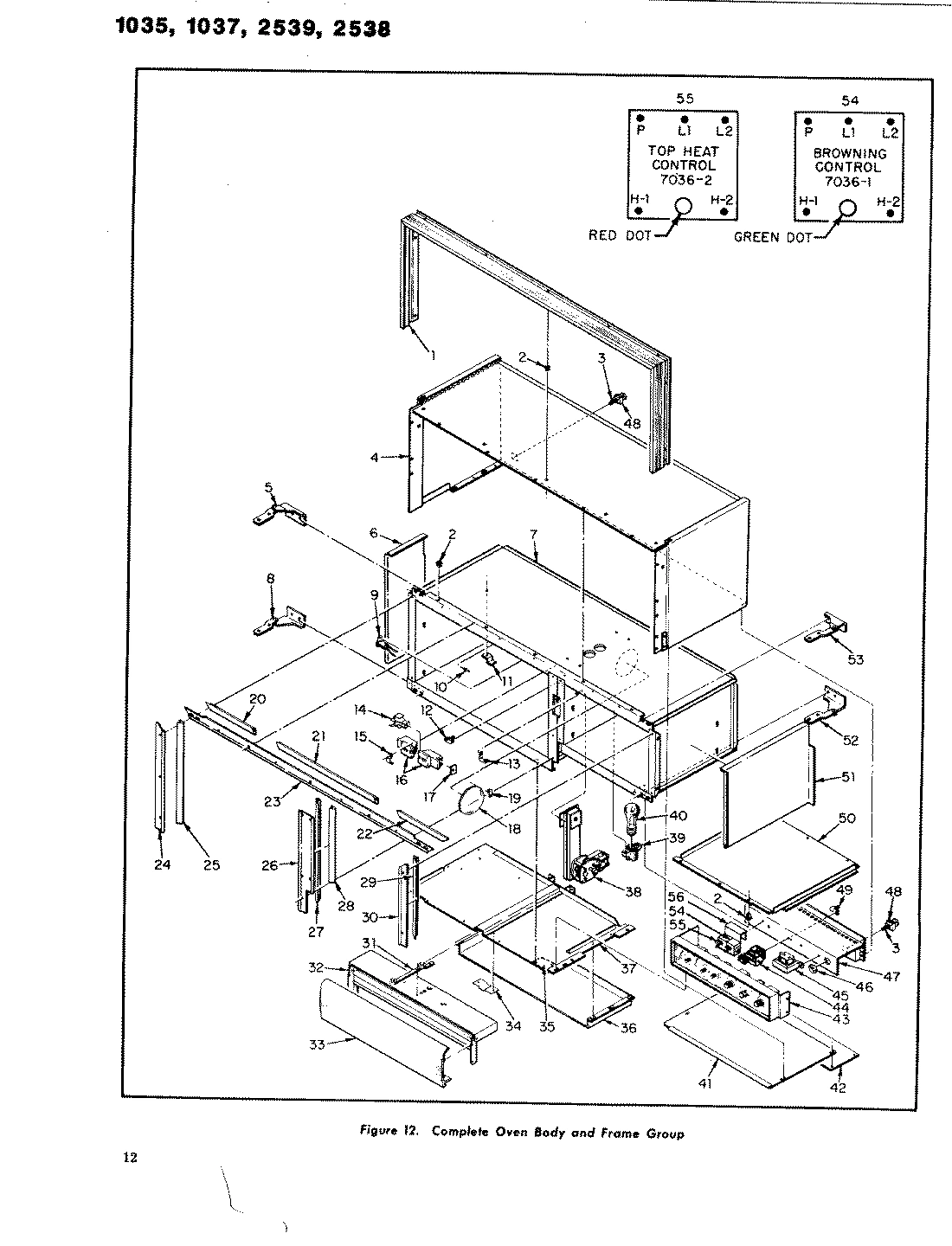

02 - BODY

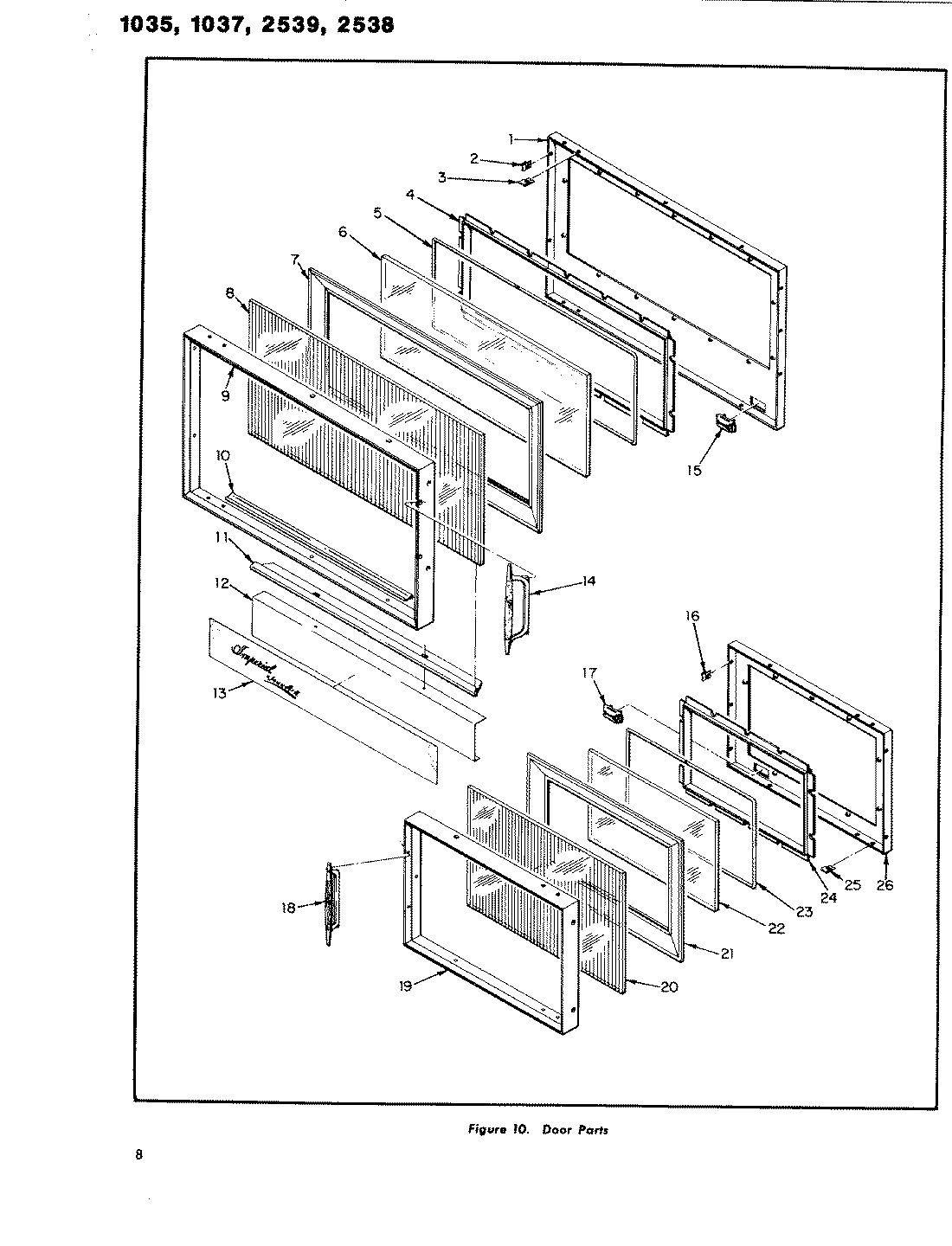

04 - DOOR
Common parts from model Whirlpool 1035 ELECTRIC WALL OVEN
1
COVER, CONTROL BOX WPL 707241 Contact Us For Availability
1
EXTRUSION, OUTSIDE FRAME WPL 707209 Contact Us For Availability
1
PANEL, DOOR (LG) WPL 707184 Contact Us For Availability
2
SPACER, NYLON WPL 707329 Contact Us For Availability
3
RACK, BAKE/BROIL WPL 707191 Contact Us For Availability
3
CLOCK WPL 707236 Contact Us For Availability
4
PANEL, CONTROL WPL 707358 Contact Us For Availability
4
RETAINER, GLASS (LG DOOR) WPL 707214 Contact Us For Availability
5
GLASS, CONTROL PANEL WPL 707359 Contact Us For Availability
5
HINGE, DOOR (LH)(TOP) WPL 7072059 Contact Us For Availability
5
SEAL, DOOR WPL 7072292 Contact Us For Availability
6
KNOB, OVEN CONTROL WPL 707233 Contact Us For Availability
6
PASSAGE, AIR (LFT) WPL 707332 Contact Us For Availability
6
GLASS WPL 707225 Contact Us For Availability
7
KNOB, SELECTOR SWITCH WPL 707232 Contact Us For Availability
7
MAIN OVEN ASSY. WPL 707378 Contact Us For Availability
7
SPACER, GLASS (LG) WPL 707372 Contact Us For Availability
8
SELECTOR & THERMOSTAT POINTER WPL 707270 Contact Us For Availability
8
HINGE, DOOR (LH)(BOTTOM) WPL 70720511 Contact Us For Availability
8
DOOR GLASS, INSIDE, LARGE WPL 707226 Contact Us For Availability
9
BROILER PAN RACK WPL 707204 Contact Us For Availability
9
INDICATOR LIGHT W/MOUNTING NUT WPL 707247 Contact Us For Availability
9
FRAME, EXTERNAL DOOR WPL 707210 Contact Us For Availability
10
FRAME, CONTROL PANEL WPL 707219 Contact Us For Availability
10
SCREW, BAFFLE PLATE WPL 707046A Contact Us For Availability
10
DOOR SEAL WPL 707180 Contact Us For Availability
11
BROILER PAN WPL 707201 Contact Us For Availability
11
PUSH SWITCH EXTENSION WPL 707318 Contact Us For Availability
11
BRACLET, SUPPORT WPL 707284 Contact Us For Availability
11
DIVIDER, DOOR WPL 707215 Contact Us For Availability
12
BOX, SPACER WPL 707185 Contact Us For Availability
13
OVEN RACK, MAIN OVEN WPL 707194 Contact Us For Availability
13
THERMOSTAT WPL 707238 Contact Us For Availability
13
PANEL, NAME WPL 707312 Contact Us For Availability
14
PLATE, BAFFLE WPL 707266 Contact Us For Availability
14
SELECTOR SWITCH W/MOUNTING NUT WPL 707240 Contact Us For Availability
14
CONTACT, OVEN RECEPTACLE WPL 707272 Contact Us For Availability
15
THERMOSTAT WPL 707237 Contact Us For Availability
15
RETAINER, ELEM RECEPTACLE WPL 707311 Contact Us For Availability
16
RACK SUPPORT, MAIN OVEN WPL 707193 Contact Us For Availability
16
OVEN ELEMENT RECEPTACLE WPL 707246 Contact Us For Availability
16
TINNERMAN WPL 707328 Contact Us For Availability
17
WASHER, RETAINING WPL 707303 Contact Us For Availability
17
LATCH, MAGNETIC WPL 707297 Contact Us For Availability
18
LENS, LIGHT WPL 707239 Contact Us For Availability
18
DOOR HANDLE WPL 707231 Contact Us For Availability
19
PASTRY OVEN RACK SUPPORT WPL 707197 Contact Us For Availability
19
CLIP, LIGHT LENS WPL 707326 Contact Us For Availability
19
FRAME, EXTERNAL DOOR WPL 707216 Contact Us For Availability
20
SEAL STRIP WPL 7071806 Contact Us For Availability
20
DOOR GLASS, OUTSIDE,SMALL WPL 707228 Contact Us For Availability
21
SEAL STRIP WPL 7071807 Contact Us For Availability
21
SPACER, GLASS (SM) WPL 707371 Contact Us For Availability
22
OVEN RACK WPL 707195 Contact Us For Availability
22
SEAL STRIP WPL 7071805 Contact Us For Availability
22
DOOR GLASS, INSIDE, SMALL WPL 707227 Contact Us For Availability
23
ELEM. SM WPL 707186 Contact Us For Availability
23
RETAINER, SEAL TOP WPL 707281 Contact Us For Availability
23
SEAL, GLASS (RH DOOR) WPL 7072291 Contact Us For Availability
24
RACK, PASTRY ELEMENT WPL 707192 Contact Us For Availability
24
TRIM WPL 707282 Contact Us For Availability
24
RETAINER, GLASS (SM DOOR) WPL 707218 Contact Us For Availability
25
BLOCK, CERAMIC WPL 707265 Contact Us For Availability
25
SEAL STRIP WPL 7071801 Contact Us For Availability
25
CLIP, J WPL 707327 Contact Us For Availability
26
CLIP, FASTENER WPL 707375 Contact Us For Availability
26
SEAL RETAINER, CENTER WPL 707220 Contact Us For Availability
26
PANEL, DOOR (SM) WPL 707183 Contact Us For Availability
27
ELEMENT, BROIL WPL 707230 Contact Us For Availability
27
SEAL STRIP WPL 7071804 Contact Us For Availability
28
BRACKET, HANGER ASSY. WPL 707223 Contact Us For Availability
28
SEAL STRIP WPL 7071803 Contact Us For Availability
29
SEAL STRIP WPL 7071802 Contact Us For Availability
30
SEAL RETAINER, RIGHT WPL 707283 Contact Us For Availability
31
EXHAUST GUIDE BAR ASSY. WPL 707379 Contact Us For Availability
32
EXHAUST ASSY. WPL 707376 Contact Us For Availability
32
EXHAUST ASSY. WPL 707380 Contact Us For Availability
33
COVER, EXHAUST FRONT WPL 707221 Contact Us For Availability
34
STOP, SLIDE WPL 707336 Contact Us For Availability
35
NOT REQUIRED PART OR SEE NOTE LOCATION OF SER WPL W10124350 Contact Us For Availability
36
BOX, EXHAUST WPL 707198 Contact Us For Availability
37
BOTTOM, OVEN ASSY WPL 707196 Contact Us For Availability
39
LIGHT RECEPTACLE WPL 707244 Contact Us For Availability
41
SHIELD, WIRE WPL 707292 Contact Us For Availability
42
PANEL, INSPECTION WPL 707291 Contact Us For Availability
43
MOUNT, SWITCH ASSY. WPL 707208 Contact Us For Availability
46
GROMMET WPL 707078 Contact Us For Availability
47
WIRING BOX ASSY. WPL 707287 Contact Us For Availability
48
NUT WPL 707374 Contact Us For Availability
49
WIRE CONNECTING LUG WPL 707381 Contact Us For Availability
50
BOTTOM, OVEN WPL 707271 Contact Us For Availability
51
PASSAGE, AIR (RT) WPL 707331 Contact Us For Availability
52
HINGE, DOOR (RH)(BOTTOM) WPL 7072056 Contact Us For Availability
53
HINGE, DOOR (RH)(TOP) WPL 7072051 Contact Us For Availability
54
CONTROL, BROWNING (GREEN DOT) WPL 7070361 Contact Us For Availability
55
CONTROL, TOP HEAT (RED DOT) WPL 7070362 Contact Us For Availability
56
BRACKET, MOUNTING WPL 707409 Contact Us For Availability
× ![]()
