Model LG 058231295863 DVD-Writer Drive External – Common Parts & Diagrams

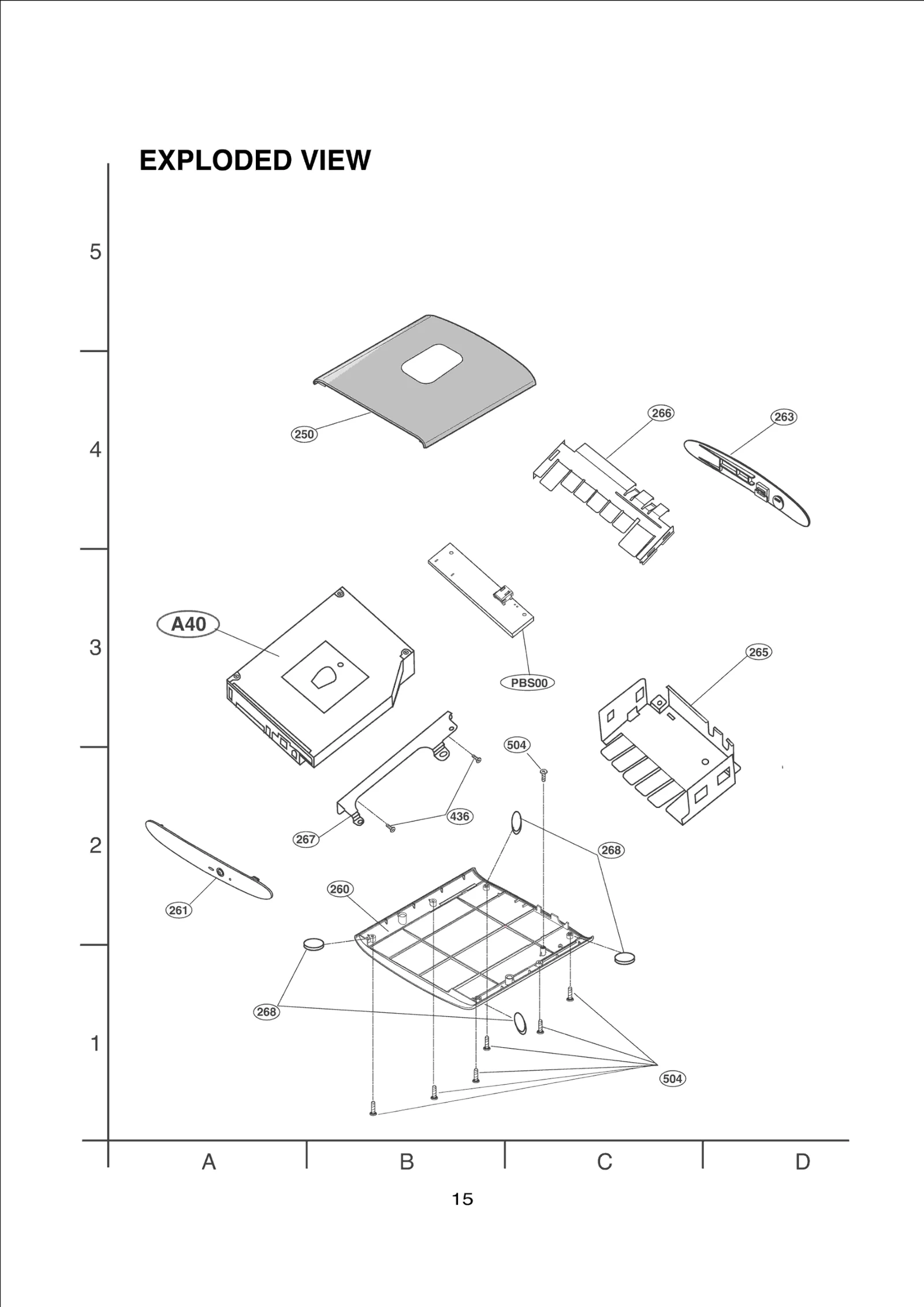

Diagram 0
Diagram 1
Common parts from model LG 058231295863 DVD-Writer Drive External
011
Rack LGE MGR61841702 Contact Us For Availability
012
Rack LGE MGR61841802 Contact Us For Availability
014
Pick Up Assembly LGE EAZ60679901 Contact Us For Availability
014
Pick Up Assembly,General LGE EAZ60862001 Contact Us For Availability
016
Guide LGE MEA51219301 Contact Us For Availability
017
Guide LGE MEA51219401 Contact Us For Availability
018
Sheet LGE MHK60888201 Contact Us For Availability
033
Chassis LGE MBS51219002 Contact Us For Availability
250
Cover LGE MCK62033701 Contact Us For Availability
260
Cover LGE MCK62374803 Contact Us For Availability
261
Bezel Assembly LGE AAU72910101 Contact Us For Availability
263
Cover LGE MCK62033901 Contact Us For Availability
265
Housing LGE MEK37720401 Contact Us For Availability
266
Housing LGE MEK37720301 Contact Us For Availability
267
Bracket LGE MAZ37720501 Contact Us For Availability
268
Gasket LGE MDS61907601 Contact Us For Availability
436
Screw,Customized LGE 1SZZH-1009R Contact Us For Availability
504
Screw,Taptite LGE FAB30112502 Contact Us For Availability
801
Card,Information LGE MBM31885036 Contact Us For Availability
804
Card,Warranty LGE 3840HW1023E Contact Us For Availability
805
Manual,Installation LGE 3828HN1009U Contact Us For Availability
806
Box LGE MAY63641702 Contact Us For Availability
807
Bag LGE MAF61859001 Contact Us For Availability
808
Packing LGE MFZ62132501 Contact Us For Availability
811
Cable,Assembly LGE EAD60773501 Contact Us For Availability
A40
Mechanism Assembly LGE AFP73065606 Contact Us For Availability
C308
Capacitor,Ceramic,Chip LGE 0CK472BH56A Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE 0CK683BF5CA Contact Us For Availability
C310
Capacitor,Ceramic,Ch LGE EAE35171501 Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C351
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C414
Capacitor,Ceramic,Chip LGE 0CC105BC5DA Contact Us For Availability
C429
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C505
Capacitor,Ceramic,Chip LGE 0CK103BF56A Contact Us For Availability
C507
Capacitor,Ceramic,Chip LGE 0CK475CCG7A Contact Us For Availability
C522
Capacitor,Ceramic,Chip LGE 0CC100BK41A Contact Us For Availability
C524
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C525
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C1080
Capacitor,Ceramic,Chip LGE 0CC101BK41A Contact Us For Availability
C1111
Capacitor,Ceramic,Chip LGE 0CK333BD56A Contact Us For Availability
C1116
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C1117
Capacitor,Ceramic,Chip LGE 0CC823BDGDA Contact Us For Availability
C3293
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C3321
Capacitor,Ceramic,Chip LGE 0CK104BDG7A Contact Us For Availability
C5101
Capacitor,Ceramic,Chip LGE 0CK106DC57A Contact Us For Availability
C10192
Capacitor,Ceramic,Chip LGE 0CK220BK4CA Contact Us For Availability
D441
Diode,Schottky LGE EAH60701502 Contact Us For Availability
IC101
IC,Digital Signal Processors LGE EAN60698501 Contact Us For Availability
IC201
IC,Serial Flash Memory LGE EAN60678402 Contact Us For Availability
IC201
IC,Serial Flash Memory LGE EAN60694102 Contact Us For Availability
IC301
IC,Motor Driver LGE EAN52412402 Contact Us For Availability
IC501
IC,Data Controller LGE EAN36214302 Contact Us For Availability
IC502
IC,Serial Flash Memory LGE EAN42668301 Contact Us For Availability
IC502
IC,Serial Flash Memory LGE EAN42433101 Contact Us For Availability
L328
Inductor,Wire Wound,Chip LGE EAP60240102 Contact Us For Availability
L402
Filter,Bead LGE 6200JB8011C Contact Us For Availability
L501
Filter,Bead LGE 6200JB8010M Contact Us For Availability
PBM00
PCB Assembly,Main LGE EBR70050201 Contact Us For Availability
PBS00
PCB Assembly,Main LGE EBR65873401 Contact Us For Availability
R202
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R310
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R511
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R517
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R1022
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
R1032
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R1079
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R1086
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R1126
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R3291
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R10641
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
RA501
Filter,Bead LGE 6200J000179 Contact Us For Availability
SWT1
Switch,Lever LGE EBF57635401 Contact Us For Availability
SWT1
Switch,Lever LGE EBF60668301 Contact Us For Availability
TH201
Poly Switch LGE EAF60665101 Contact Us For Availability
X201
Resonator,Ceramic LGE EAW60667201 Contact Us For Availability
X501
Crystal LGE EAW58900101 Contact Us For Availability
× ![]()
