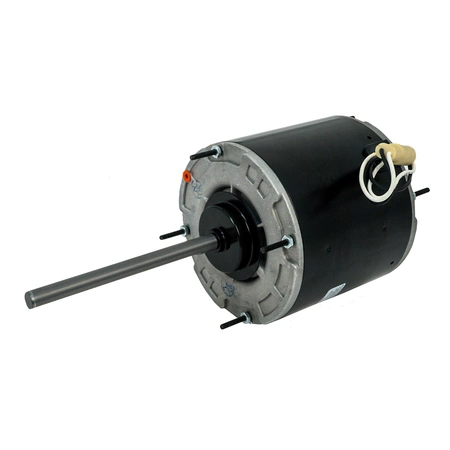

40825F Packard 5 5/8" Dia. High Temp. Condenser Fan Motor, 1/4 HP, 208-230 Volts, 825 RPM
Part #: PAC 40825F
Application: Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with "belly band" or extended clamp screw mounting.
- Class F Insulation
- 70°C Ambient
- Ball Bearing
- Single Speed
- Drilled and tapped holes in the shell for Rheem mounting
- Reversible
- All Angle Mounting
- Extended Thru Bolts
- 36" Leads
- Energy Efficient PSC Design
Compatible Replacement For
- Wagner WG840204HT Mars 20404 genteq 3204HS genteq 3404HS US Motors 1874H
Weight : 4.597400 lbs
Dimension : 13.779500 x 6.929100 x 6.692900
Application: Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with "belly band" or extended clamp screw mounting.
- Class F Insulation
- 70°C Ambient
- Ball Bearing
- Single Speed
- Drilled and tapped holes in the shell for Rheem mounting
- Reversible
- All Angle Mounting
- Extended Thru Bolts
- 36" Leads
- Energy Efficient PSC Design
Compatible Replacement For
- Wagner WG840204HT Mars 20404 genteq 3204HS genteq 3404HS US Motors 1874H
Weight : 4.597400 lbs
Dimension : 13.779500 x 6.929100 x 6.692900
