Model LG UU36WC.U40 – Common Parts & Diagrams

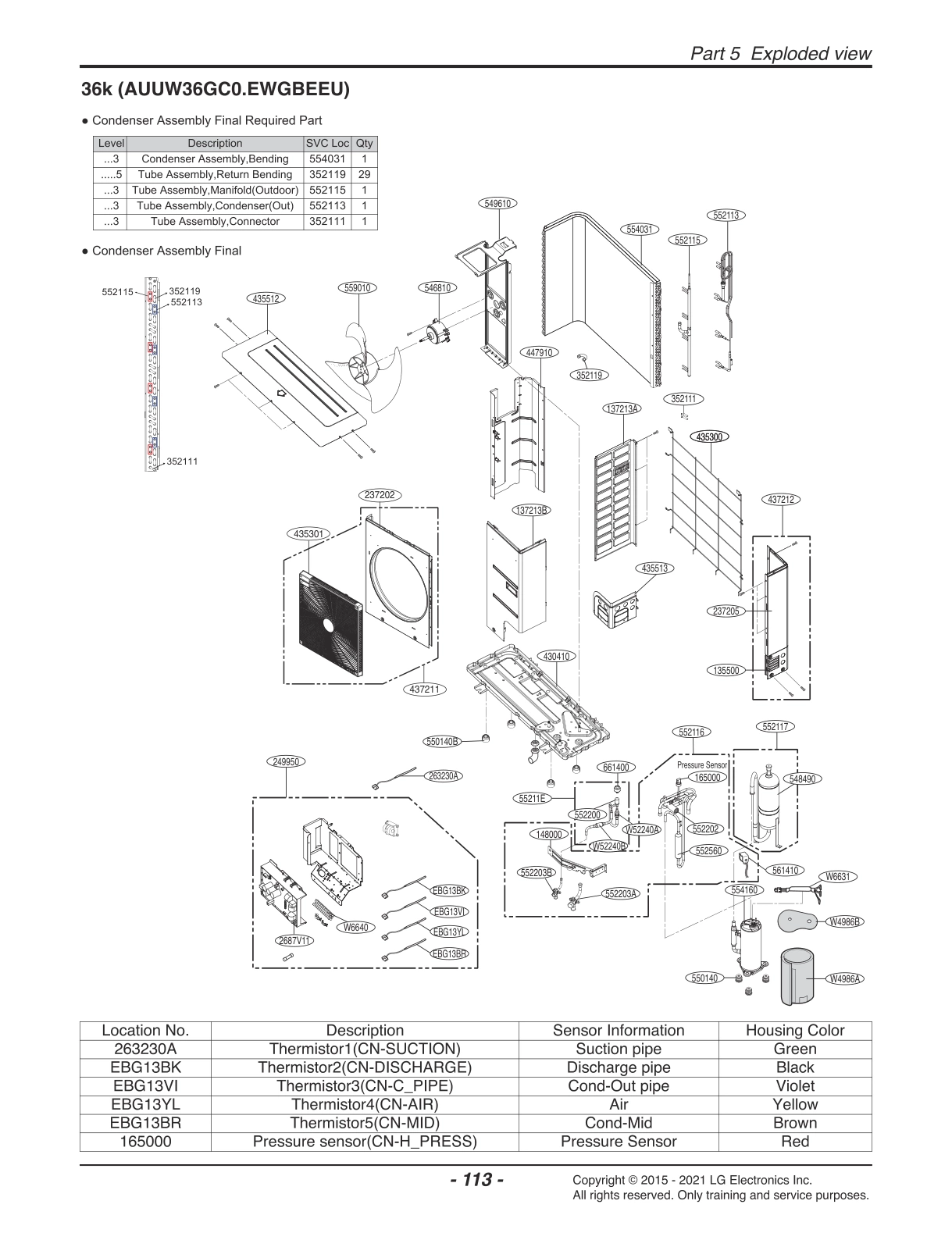

CONDENSER ASSEMBLY
Common parts from model LG UU36WC.U40
263230A
Thermistor Assembly,NTC LGE EBG61405904 Contact Us For Availability
352111
Tube Assembly,Connector LGE 5211A20349Z Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN34062012 Contact Us For Availability
435300
Grille,Rear LGE MDX61843728 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ35131824 Contact Us For Availability
435513
Cover Assembly,Tubing LGE ACQ34583401 Contact Us For Availability
437212
Panel Assembly,Rear(Outdoor) LGE AGL72910419 Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM72909135 Contact Us For Availability
548490
Accumulator LGE 4848A20007P Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA74032401 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR65507614 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR65521309 Contact Us For Availability
W4986A
Sound proof LGE MMC00280404 Contact Us For Availability
W4986B
Sound proof LGE MMC00280304 Contact Us For Availability
W6640
Connector,Terminal Block LGE 3A00493K Contact Us For Availability
× ![]()
