Model Maytag UMC5200BAS MICROWAVE – Common Parts & Diagrams

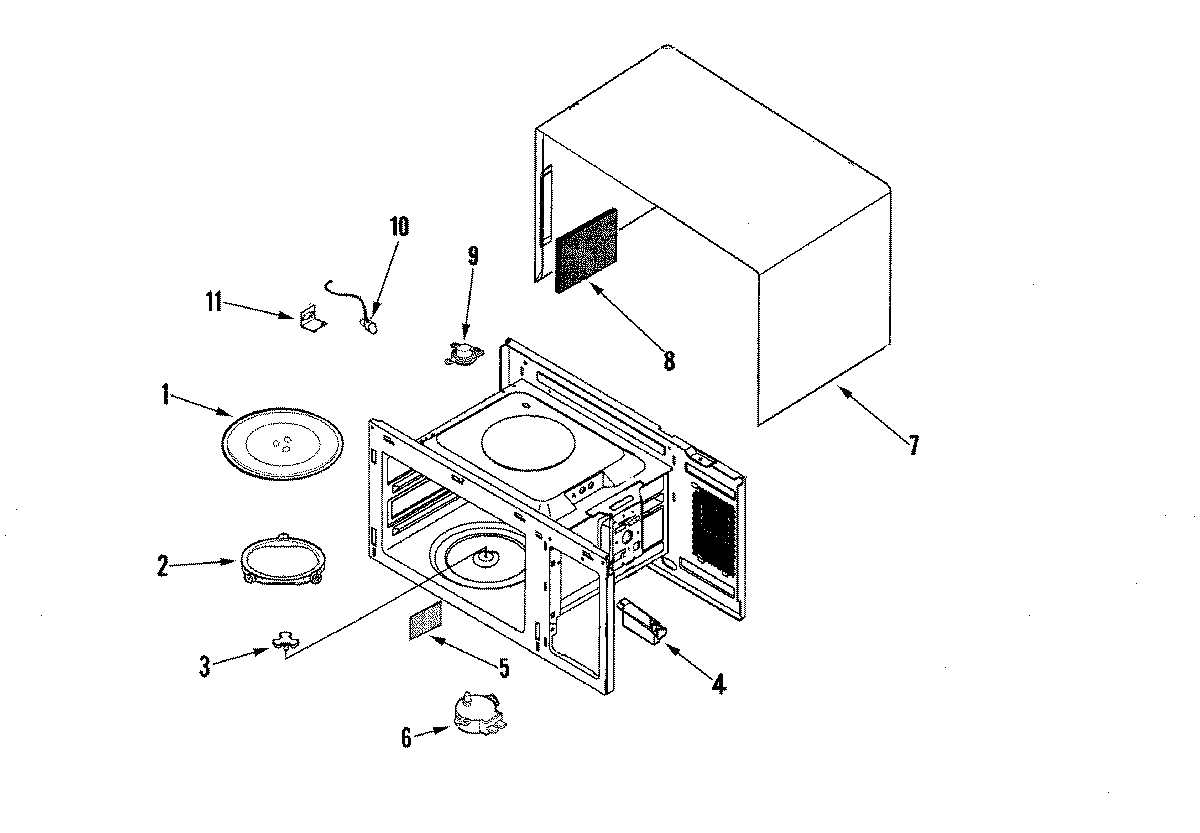

01 - BODY/CAVITY

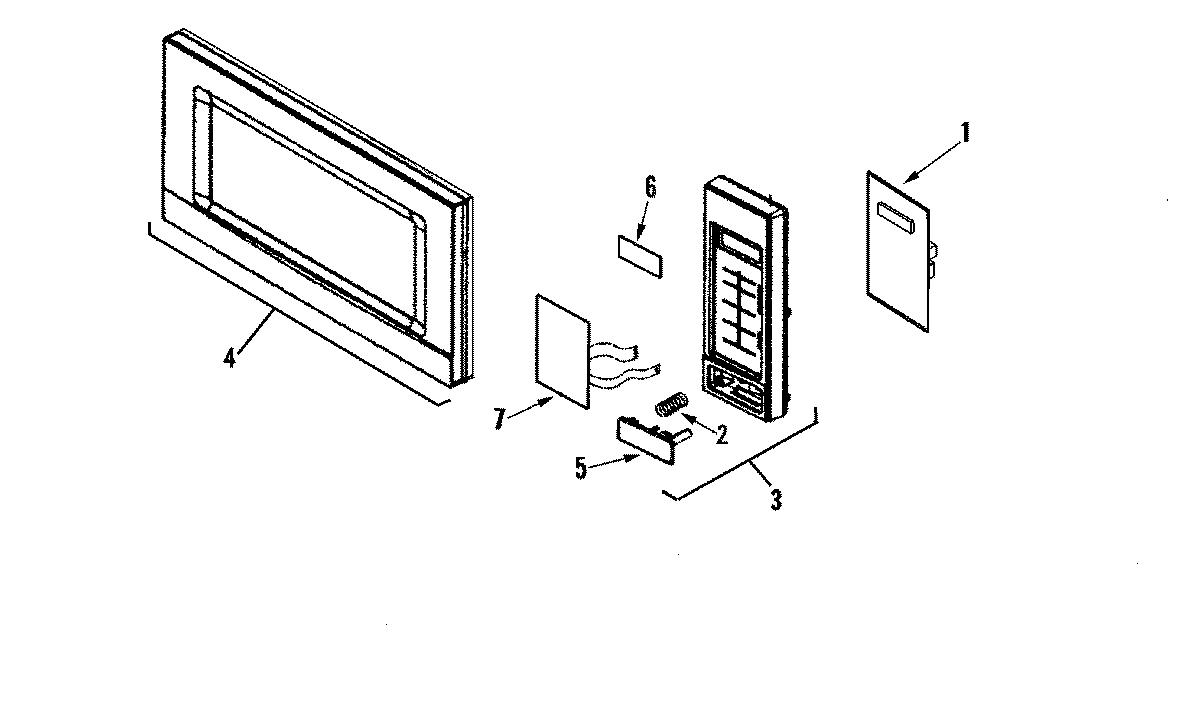

02 - CONTROL PANEL/DOOR ASSEMBLY
03 - INTERNAL CONTROLS/LATCH ASY./BASE
04 - SUPPLEMENTAL INFORMATION
Common parts from model Maytag UMC5200BAS MICROWAVE
1
MOTOR-FAN MAY DE31-10155T Contact Us For Availability
1
MAY DE71-00165A MAY DE71-00165A Contact Us For Availability
1
Manual, Use & Care MAY W10177946 Contact Us For Availability
2
MAY DE72-00138A MAY DE72-00138A Contact Us For Availability
3
COUPLER MAY DE67-00214A Contact Us For Availability
4
MAY 3405-001033 MAY 3405-001033 Contact Us For Availability
4
LEVER-DOOR MAY DE66-90113A Contact Us For Availability
4
ASY DOOR (STL) MAY DE94-01342H Contact Us For Availability
5
MAY DE66-00088B MAY DE66-00088B Contact Us For Availability
6
MOTOR-DRIVE MAY DE31-10154A Contact Us For Availability
6
ASY POWER CORD MAY DE39-00040G Contact Us For Availability
7
Switch-Membrane (BLK) MAY W10261280 Contact Us For Availability
7
ASSY NOISE FILTER MAY DE96-00399B Contact Us For Availability
8
BASE-PLATE MAY DE80-10032K Contact Us For Availability
9
LAMP-INCANDESCENT MAY DE07-00005A Contact Us For Availability
10
Asy Sensor-Gas MAY DE32-60011A Contact Us For Availability
10
COVER-AIR MAY DE71-00012A Contact Us For Availability
11
BRACKET-HVC MAY DE61-50170A Contact Us For Availability
13
FOOT MAY DE61-40066A Contact Us For Availability
16
HARNESS, WIRE MAY DE96-00392A Contact Us For Availability
16
MAY W10261281 MAY W10261281 Contact Us For Availability
20
BLADE, FAN MAY DE31-90051A Contact Us For Availability
NI
MAY 8112P306-60 MAY 8112P306-60 Contact Us For Availability
× ![]()
