Model UniMac UHT30F Dryer – Common Parts & Diagrams

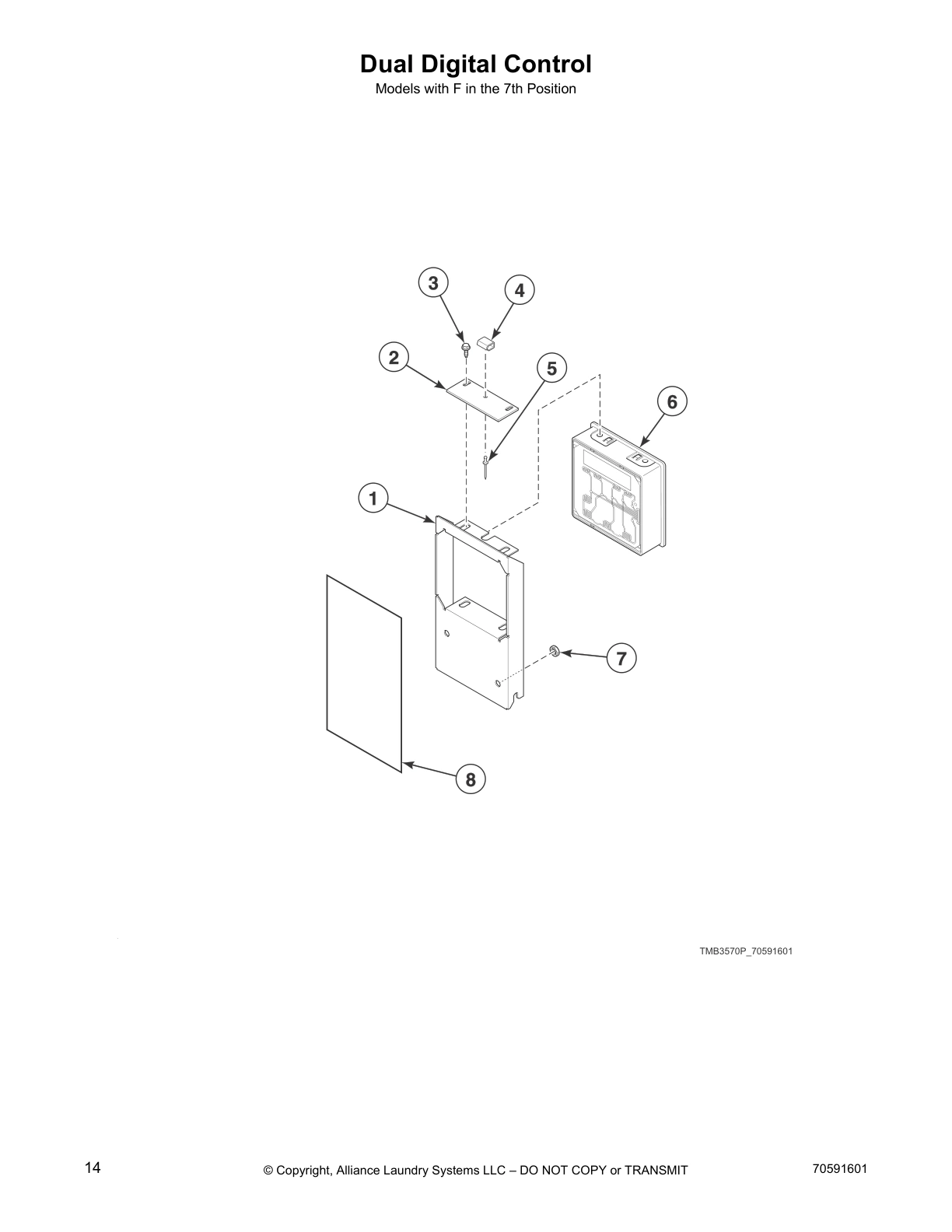

Dual Digital Control

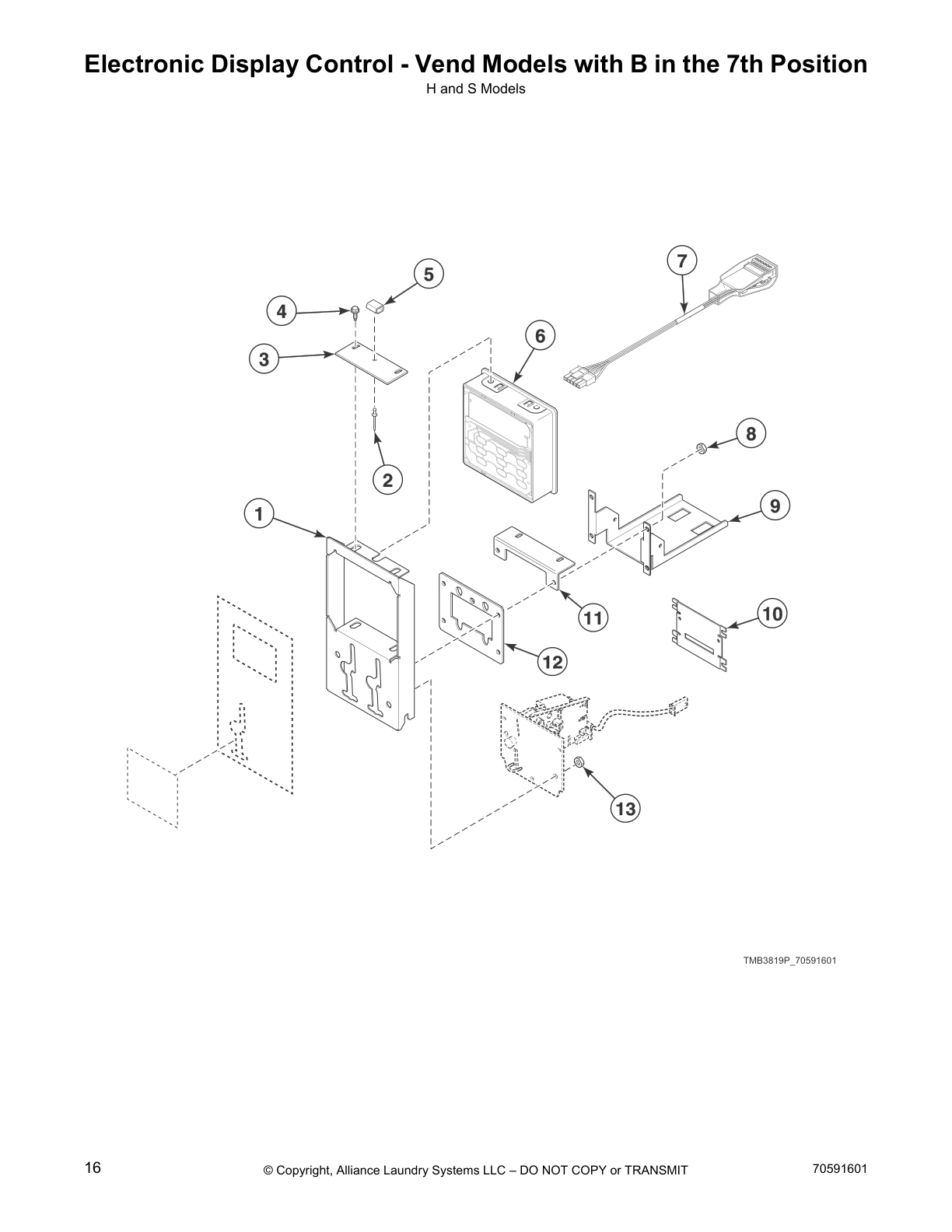

Electronic Display Control - Vend Models with B in the 7th Position
Electronic Display Control -
Vend Models with N or W in the 7th Position
Electronic Display Control - OPL Models with N in the 7th Position
3.5 Inch Graphical Control
Network Board, Central Pay and Card Reader Components
Door Assemblies
Door Components
Hinge Components - Design 3 Models
Hinge Components - Design 5 Models
Upper Front Panel Assemblies and False Fronts - Design 3 Models
Lower Front Panel Assemblies - Design 3 Models
Front Panel Assemblies and False Fronts - Design 5 Models
Upper Cabinet Front Components - Design 3 Models
(Drawing 1 of 2)
Upper Cabinet Front Components - Design 3 Models
(Drawing 2 of 2)
Lower Cabinet Front Components - Design 3 Models
Cabinet Front Components - Design 5 Models
Emergency Stop Button - OPL Models
Lint Drawer Components - Design 3 Models
Lint Drawer Overlays - Design 3 Models
Lint Drawer Components - Design 5 Models
Cylinder and Trunnion Components
Moisture Sensing Components
Bearing Components
Cabinet Components - Design 3 Models
Cabinet Components - Design 5 Models
Drive Motor Components
Exhaust Components
Blower Components
Airflow Switch
Gas Burner Housing and Secondary Stove Limit
Gas Valve and Piping
Electric Heater Components
Steam Heater Components
Control Tray and Accessory Box
Common parts from model UniMac UHT30F Dryer
SPQ 70117901P SPQ 70117901P Contact Us For Availability
SPQ 70619001 SPQ 70619001 Contact Us For Availability
SPQ 70322903 SPQ 70322903 Contact Us For Availability
SPQ 70342402 SPQ 70342402 Contact Us For Availability
SPQ 70257201 SPQ 70257201 Contact Us For Availability
SPQ M413862 SPQ M413862 Contact Us For Availability
1
Door Ring Gasket SPQ 70296801 Contact Us For Availability
1
Key SPQ 70155601 Contact Us For Availability
1
Door Assembly SPQ 70212300 Contact Us For Availability
1
Nut SPQ 44088001 Contact Us For Availability
1
Upper Front Panel Assembly SPQ 70619501LG Contact Us For Availability
1
Control Trim SPQ 70116902 Contact Us For Availability
1
Screw SPQ 70069901 Contact Us For Availability
1
Lint Screen Assembly SPQ 70290601 Contact Us For Availability
1
Overlay SPQ 70519401 Contact Us For Availability
1
Cylinder Assembly SPQ 70372502P Contact Us For Availability
1
Nut SPQ M400035 Contact Us For Availability
1
Exhaust Pipe SPQ 44154301 Contact Us For Availability
1
Fan Motor SPQ 70484901P Contact Us For Availability
1
Airflow Switch Wrapper SPQ 70356101 Contact Us For Availability
1
Connector Cover SPQ 70525701 Contact Us For Availability
2
Front Panel Seal SPQ 70619402W Contact Us For Availability
2
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
2
Lint Drawer Gasket SPQ 70116906 Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
SPQ 70136401 SPQ 70136401 Contact Us For Availability
2
Screw SPQ 70070101 Contact Us For Availability
2
Slip Ring Holder SPQ 70455401 Contact Us For Availability
2
Air Duct SPQ 70339601 Contact Us For Availability
2
Duct Cover SPQ 70478101 Contact Us For Availability
2
Switch SPQ 70411901 Contact Us For Availability
2
Auxiliary Contact Block SPQ 70335601 Contact Us For Availability
3
Key SPQ 70155602 Contact Us For Availability
3
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
3
Door Hinge SPQ 70115901W Contact Us For Availability
3
False Front SPQ 70618601 Contact Us For Availability
3
Front Panel Seal SPQ 562738 Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Cylinder Guide Tool SPQ 70070102 Contact Us For Availability
3
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
3
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
3
Stove Top and Sides SPQ 70525601 Contact Us For Availability
4
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
4
Door Glass SPQ M400784P Contact Us For Availability
4
Hinge Cam Kit SPQ 70115904 Contact Us For Availability
4
Nameplate SPQ F8443105 Contact Us For Availability
4
Door Latch SPQ M401223 Contact Us For Availability
4
Coin Vault Trim SPQ 70275801 Contact Us For Availability
4
Lint Screen Bracket SPQ 70026901 Contact Us For Availability
4
Rear Cylinder Channel SPQ 70433002 Contact Us For Availability
4
Gasket SPQ 23222 Contact Us For Availability
4
Stove Partition SPQ 70357201 Contact Us For Availability
5
Support Bearing SPQ 70448701 Contact Us For Availability
5
Cylinder Bearing Stud Plate Asse SPQ 70506402 Contact Us For Availability
5
Door Glass Installation Tool SPQ M4221P4 Contact Us For Availability
5
Lower Front Panel SPQ 70619902W Contact Us For Availability
5
Pop Rivet SPQ 44166601 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
Lint Frame Gasket SPQ 70333101 Contact Us For Availability
5
Trunnion and Seal Kit SPQ 70391101 Contact Us For Availability
5
Clip SPQ 70226701 Contact Us For Availability
5
SPQ 70501301 SPQ 70501301 Contact Us For Availability
5
Switch Bracket SPQ 70356301 Contact Us For Availability
5
Heater Element SPQ 70034416P Contact Us For Availability
5
Insulator SPQ 44313201 Contact Us For Availability
6
Spray Paint SPQ 70013701P Contact Us For Availability
6
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
6
Nut SPQ M414215 Contact Us For Availability
6
Pin SPQ 70115903LG Contact Us For Availability
6
Lint Drawer Gasket SPQ 70182601 Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Lint Drawer Handle Plate SPQ 70323201 Contact Us For Availability
6
Exhaust Duct Gaskets Assembly SPQ 70340201 Contact Us For Availability
6
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
6
Heater Element SPQ 70034415P Contact Us For Availability
7
Washer SPQ M400991 Contact Us For Availability
7
Door Handle SPQ 44263801 Contact Us For Availability
7
SPQ 70576101 SPQ 70576101 Contact Us For Availability
7
Front Panel Baffle Seal SPQ 70033502 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272402 Contact Us For Availability
7
Lint Drawer Front Kit SPQ 70322901P Contact Us For Availability
7
Porcelain Touch-Up Paint SPQ 70066003 Contact Us For Availability
7
SPQ 70508301 SPQ 70508301 Contact Us For Availability
7
Gasket SPQ 70340401 Contact Us For Availability
7
SPQ 70126101 SPQ 70126101 Contact Us For Availability
7
Airflow Switch Vane SPQ 70319201 Contact Us For Availability
7
Stove Grill SPQ 70034414P Contact Us For Availability
7
Conversion Kit SPQ M411283 Contact Us For Availability
8
SPQ M411072 SPQ M411072 Contact Us For Availability
8
Door Handle SPQ 44007902P Contact Us For Availability
8
SPQ M400044 SPQ M400044 Contact Us For Availability
8
Lint Drawer Handle SPQ 70322902P Contact Us For Availability
8
Nut SPQ 70257101 Contact Us For Availability
8
Jumper Strip SPQ 70214901 Contact Us For Availability
8
Pop Rivet SPQ 70058502 Contact Us For Availability
9
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
9
Power Harness SPQ M413865 Contact Us For Availability
9
Door Ring Assembly SPQ 70543906 Contact Us For Availability
9
Nut SPQ 44087101 Contact Us For Availability
9
Lint Panel and Studs Assembly SPQ 70320802 Contact Us For Availability
9
Washer SPQ 70257102 Contact Us For Availability
9
SPQ 70339501 SPQ 70339501 Contact Us For Availability
9
SPQ F430144 SPQ F430144 Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Terminal Block SPQ 430642 Contact Us For Availability
10
Screw SPQ 70442101 Contact Us For Availability
10
Pop Rivet SPQ 44251101 Contact Us For Availability
10
Panel Lock SPQ 44390902 Contact Us For Availability
10
Cylinder and Trunnion Assembly SPQ 70372501P Contact Us For Availability
10
Lever Arm and Belt Kit SPQ 70655102 Contact Us For Availability
10
Screw SPQ 70478701P Contact Us For Availability
11
Screw SPQ 70436301 Contact Us For Availability
11
Screw SPQ 44349101 Contact Us For Availability
11
Control Housing SPQ 70119901 Contact Us For Availability
11
Pushbutton Switch SPQ 70413301 Contact Us For Availability
11
Pop Rivet SPQ 70117618 Contact Us For Availability
11
End Cap SPQ 70443901P Contact Us For Availability
11
Screw SPQ 51783 Contact Us For Availability
12
Shadow Box Clip SPQ 70126401 Contact Us For Availability
12
Cylinder Rib Assembly SPQ 70443902 Contact Us For Availability
12
Channel Base Assembly SPQ 70288201 Contact Us For Availability
12
Drive Motor SPQ 70485001P Contact Us For Availability
12
Blower Inlet Cone SPQ 70340801 Contact Us For Availability
12
Snap Bushing SPQ M400770 Contact Us For Availability
13
Label SPQ 70472801 Contact Us For Availability
13
Motor Pulley SPQ 70478601P Contact Us For Availability
13
Rear Stabilizer Bracket SPQ 70014101 Contact Us For Availability
13
End Stop SPQ F8449801 Contact Us For Availability
14
Double Ended Stud SPQ 70559101 Contact Us For Availability
15
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
15
Nut SPQ 70200301 Contact Us For Availability
15
Contactor SPQ F8206901 Contact Us For Availability
16
Washer SPQ 70261401 Contact Us For Availability
16
Roller Seal SPQ 70443601 Contact Us For Availability
16
Screw SPQ 44333202 Contact Us For Availability
17
Blower Assembly SPQ M400022 Contact Us For Availability
17
Roller Shaft SPQ 70249501 Contact Us For Availability
17
Idler Wheel Assembly SPQ 70334701 Contact Us For Availability
18
Sheet Metal Edge Gasket SPQ 70339001 Contact Us For Availability
19
Sheet Metal Edge Gasket SPQ 70288801 Contact Us For Availability
19
Lever Arm and Bushing Assembly SPQ 70126104 Contact Us For Availability
19
Washer SPQ 70341001 Contact Us For Availability
19
Circuit Breaker SPQ 70482601 Contact Us For Availability
21
Cylinder Shroud SPQ 70500101 Contact Us For Availability
22
SPQ 70050401P SPQ 70050401P Contact Us For Availability
23
Cylinder Shroud SPQ 70015711 Contact Us For Availability
23
SPQ 70653801 SPQ 70653801 Contact Us For Availability
24
Clip SPQ 70015712 Contact Us For Availability
24
Power Distribution Block SPQ 70488102 Contact Us For Availability
25
Terminal Block Shield SPQ 70488101 Contact Us For Availability
26
Power Distribution Block Cover SPQ 70482701 Contact Us For Availability
27
Rear Cylinder Seal Support SPQ 70030401 Contact Us For Availability
28
Rear Cylinder Seal SPQ 70339301 Contact Us For Availability
29
Center Cylinder Seal SPQ 70339302 Contact Us For Availability
NI
SPQ 70173401P SPQ 70173401P Contact Us For Availability
NI
SPQ 70144101 SPQ 70144101 Contact Us For Availability
NI
SPQ 70564803 SPQ 70564803 Contact Us For Availability
NI
Supply Harness SPQ F8613201 Contact Us For Availability
NI
Power Supply Transformer Harness SPQ 44355603 Contact Us For Availability
NI
SPQ 44272305 SPQ 44272305 Contact Us For Availability
NI
SPQ 44272303 SPQ 44272303 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
SPQ 70496502P SPQ 70496502P Contact Us For Availability
NI
SPQ 70496501 SPQ 70496501 Contact Us For Availability
NI
SPQ 70543902 SPQ 70543902 Contact Us For Availability
NI
SPQ M400661 SPQ M400661 Contact Us For Availability
NI
SPQ 70071401 SPQ 70071401 Contact Us For Availability
NI
SPQ 70371703LG SPQ 70371703LG Contact Us For Availability
NI
SPQ 70619701W SPQ 70619701W Contact Us For Availability
NI
SPQ 70616801LG SPQ 70616801LG Contact Us For Availability
NI
SPQ 70524007LG SPQ 70524007LG Contact Us For Availability
NI
SPQ 70289101P SPQ 70289101P Contact Us For Availability
NI
Screw SPQ 44088801 Contact Us For Availability
NI
SPQ 431264 SPQ 431264 Contact Us For Availability
NI
SPQ 70116901 SPQ 70116901 Contact Us For Availability
NI
SPQ 70116905 SPQ 70116905 Contact Us For Availability
NI
SPQ 70017301 SPQ 70017301 Contact Us For Availability
NI
Kickplate SPQ 70126301 Contact Us For Availability
NI
SPQ 70117605 SPQ 70117605 Contact Us For Availability
NI
SPQ 70117502 SPQ 70117502 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
Emergency Stop Bypass Harness SPQ 44272401 Contact Us For Availability
NI
SPQ F8519403 SPQ F8519403 Contact Us For Availability
NI
Lock Shim SPQ 70320801 Contact Us For Availability
NI
SPQ 70322906 SPQ 70322906 Contact Us For Availability
NI
SPQ 70342401 SPQ 70342401 Contact Us For Availability
NI
SPQ 70552701 SPQ 70552701 Contact Us For Availability
NI
Drywall Screw Magnet Kit SPQ 70564804 Contact Us For Availability
NI
SPQ 70411301 SPQ 70411301 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ 381P4 SPQ 381P4 Contact Us For Availability
NI
SPQ 70392701P SPQ 70392701P Contact Us For Availability
NI
Airflow Switch Kit SPQ 70429601P Contact Us For Availability
NI
SPQ 70500601 SPQ 70500601 Contact Us For Availability
NI
Jumper Bar SPQ M400869 Contact Us For Availability
NI
Nut SPQ 70066501 Contact Us For Availability
NI
Jumper Harness SPQ 70564303 Contact Us For Availability
NI
SPQ 70500505 SPQ 70500505 Contact Us For Availability
NI
SPQ 70333001 SPQ 70333001 Contact Us For Availability
NI
SPQ 44014901P SPQ 44014901P Contact Us For Availability
NI
SPQ 70559304 SPQ 70559304 Contact Us For Availability
× ![]()
