Model Maytag SBK24AA GAS RANGE – Common Parts & Diagrams

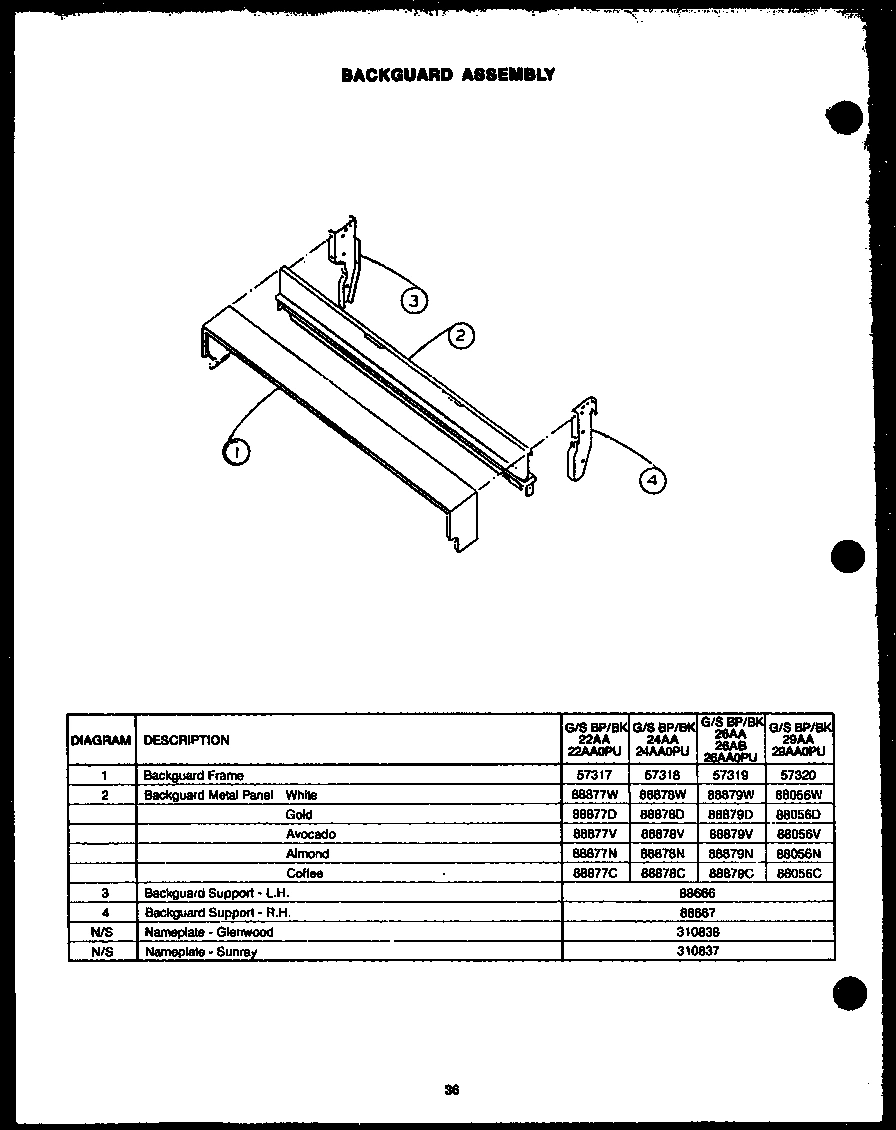

01 - BACKGUARD ASSY

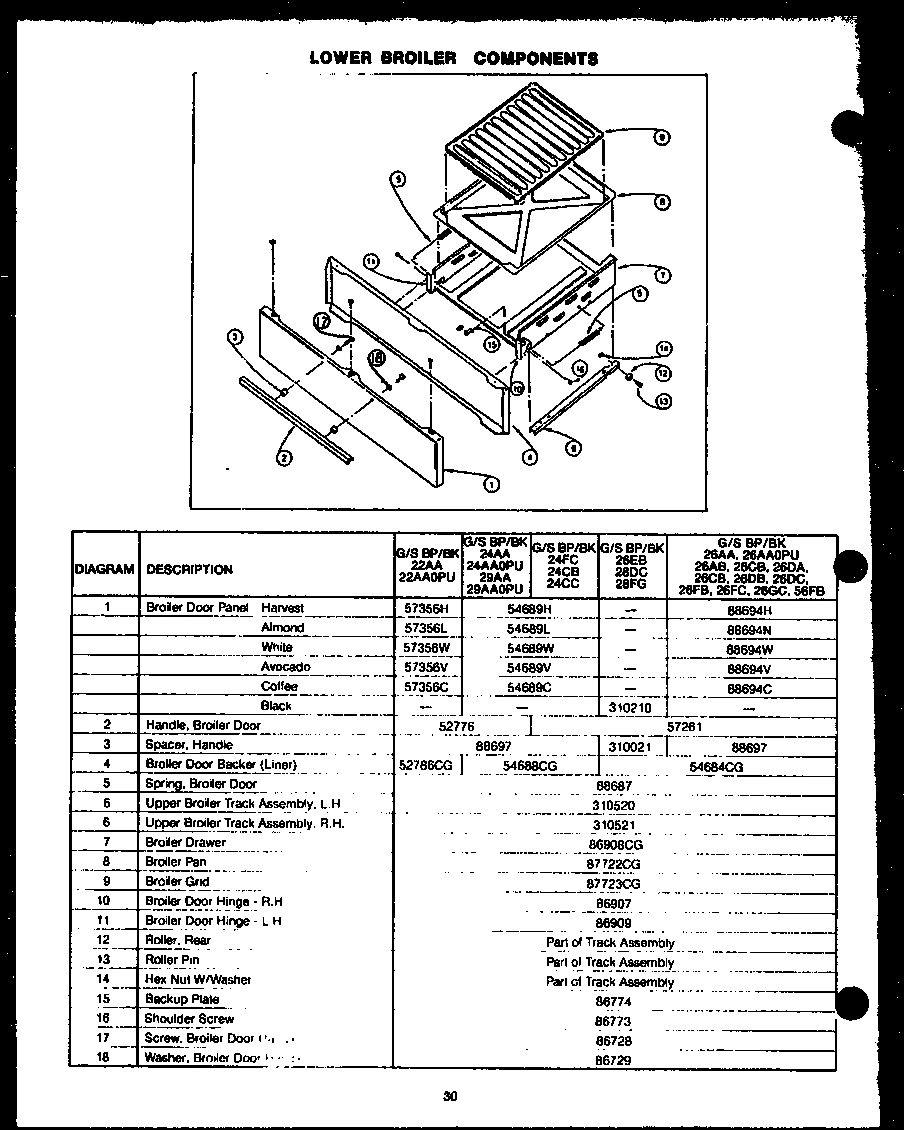

02 - LOWER BROILER COMPONENTS
03 - LOWER OVEN COMPONENTS
04 - Page 2
05 - PLAIN OVEN DOOR ASSY
06 - TOP & TOP BURNER ASSY WITH SPARK IGN
Common parts from model Maytag SBK24AA GAS RANGE
1
MAY 54689C MAY 54689C Contact Us For Availability
1
MAY 54689H MAY 54689H Contact Us For Availability
1
MAY 54689L MAY 54689L Contact Us For Availability
1
MAY 54689V MAY 54689V Contact Us For Availability
1
MAY 54689W MAY 54689W Contact Us For Availability
1
MAY 57349 MAY 57349 Contact Us For Availability
1
MAY 311003C MAY 311003C Contact Us For Availability
1
MAY 311003D MAY 311003D Contact Us For Availability
1
MAY 311003N MAY 311003N Contact Us For Availability
1
MAY 311003V MAY 311003V Contact Us For Availability
1
MAY 311003W MAY 311003W Contact Us For Availability
1
MAY 088512W MAY 088512W Contact Us For Availability
1
MAY 310075H MAY 310075H Contact Us For Availability
1
MAY 88512N MAY 88512N Contact Us For Availability
1
MAY Y088512C MAY Y088512C Contact Us For Availability
1
MAY Y088512V MAY Y088512V Contact Us For Availability
1
MAY 57240A MAY 57240A Contact Us For Availability
1
MAY 57240C MAY 57240C Contact Us For Availability
1
MAY 57240H MAY 57240H Contact Us For Availability
1
MAY 57240L MAY 57240L Contact Us For Availability
1
MAY 57240W MAY 57240W Contact Us For Availability
2
MAY 088878W MAY 088878W Contact Us For Availability
2
MAY Y088878C MAY Y088878C Contact Us For Availability
2
MAY Y088878D MAY Y088878D Contact Us For Availability
2
MAY Y088878N MAY Y088878N Contact Us For Availability
2
MAY Y088878V MAY Y088878V Contact Us For Availability
2
MAY Y0088697 MAY Y0088697 Contact Us For Availability
2
MAY Y0089062 MAY Y0089062 Contact Us For Availability
2
MAY 312028E MAY 312028E Contact Us For Availability
2
MAY 312028X MAY 312028X Contact Us For Availability
2
MAY 57311 MAY 57311 Contact Us For Availability
3
MAY 0088666 MAY 0088666 Contact Us For Availability
3
MAY Y0052776 MAY Y0052776 Contact Us For Availability
3
MAY Y0089064 MAY Y0089064 Contact Us For Availability
3
MAY Y0310487 MAY Y0310487 Contact Us For Availability
4
MAY 0088667 MAY 0088667 Contact Us For Availability
4
MAY 54688CG MAY 54688CG Contact Us For Availability
4
MAY 0056137 MAY 0056137 Contact Us For Availability
4
MAY 57207CX MAY 57207CX Contact Us For Availability
4
MAY 88546CG MAY 88546CG Contact Us For Availability
4
MAY 0088807 MAY 0088807 Contact Us For Availability
4
MAY 0088650 MAY 0088650 Contact Us For Availability
5
MAY Y0088687 MAY Y0088687 Contact Us For Availability
5
SEE NOTE BRACKER, IGNITOR -- (PART OF IGNITOR MAY Y00000000 Contact Us For Availability
5
MAY 57362CX MAY 57362CX Contact Us For Availability
5
MAY 88548CG MAY 88548CG Contact Us For Availability
6
MAY Y0310520 MAY Y0310520 Contact Us For Availability
6
MAY Y0310521 MAY Y0310521 Contact Us For Availability
6
MAY Y0086728 MAY Y0086728 Contact Us For Availability
6
MAY 0088801 MAY 0088801 Contact Us For Availability
6
MAY Y0056084 MAY Y0056084 Contact Us For Availability
7
MAY 86908CG MAY 86908CG Contact Us For Availability
7
MAY Y0086729 MAY Y0086729 Contact Us For Availability
7
MAY Y0088802 MAY Y0088802 Contact Us For Availability
7
MAY 56083 MAY 56083 Contact Us For Availability
8
MAY 87722CG MAY 87722CG Contact Us For Availability
8
MAY Y0310523 MAY Y0310523 Contact Us For Availability
8
MAY 311023E MAY 311023E Contact Us For Availability
9
MAY 87723CG MAY 87723CG Contact Us For Availability
9
MAY 88545CG MAY 88545CG Contact Us For Availability
9
MAY Y0057358 MAY Y0057358 Contact Us For Availability
10
MAY 0086907 MAY 0086907 Contact Us For Availability
10
MAY Y0088539 MAY Y0088539 Contact Us For Availability
10
MAY 57343 MAY 57343 Contact Us For Availability
11
MAY Y0086909 MAY Y0086909 Contact Us For Availability
11
MAY Y0086776 MAY Y0086776 Contact Us For Availability
11
MAY Y0088874 MAY Y0088874 Contact Us For Availability
12
MAY Y0088870 MAY Y0088870 Contact Us For Availability
12
MAY 0052742 MAY 0052742 Contact Us For Availability
12
MAY Y0310524 MAY Y0310524 Contact Us For Availability
13
MAY Y0089068 MAY Y0089068 Contact Us For Availability
13
MAY 0056477 MAY 0056477 Contact Us For Availability
13
MAY 0088782 MAY 0088782 Contact Us For Availability
14
MAY Y0088783 MAY Y0088783 Contact Us For Availability
15
MAY Y0086774 MAY Y0086774 Contact Us For Availability
15
MAY 0088718 MAY 0088718 Contact Us For Availability
15
MAY 0057335 MAY 0057335 Contact Us For Availability
16
MAY Y0086773 MAY Y0086773 Contact Us For Availability
16
MAY Y0310807 MAY Y0310807 Contact Us For Availability
16
MAY Y0057338 MAY Y0057338 Contact Us For Availability
17
MAY 57210CX MAY 57210CX Contact Us For Availability
17
MAY 88550CG MAY 88550CG Contact Us For Availability
18
MAY Y0310525 MAY Y0310525 Contact Us For Availability
18
MAY 311005E MAY 311005E Contact Us For Availability
19
MAY 62362 MAY 62362 Contact Us For Availability
19
MAY 0086725 MAY 0086725 Contact Us For Availability
20
MAY 0057340 MAY 0057340 Contact Us For Availability
24
MAY Y0052778 MAY Y0052778 Contact Us For Availability
25
MAY 56000 MAY 56000 Contact Us For Availability
26
MAY Y0056092 MAY Y0056092 Contact Us For Availability
NI
MAY 0310837 MAY 0310837 Contact Us For Availability
NI
MAY 0310838 MAY 0310838 Contact Us For Availability
NI
MAY Y0087725 MAY Y0087725 Contact Us For Availability
NI
MAY 0088050 MAY 0088050 Contact Us For Availability
NI
MAY Y0088571 MAY Y0088571 Contact Us For Availability
NI
MAY Y0310372 MAY Y0310372 Contact Us For Availability
NI
MAY 888000 MAY 888000 Contact Us For Availability
NI
MAY 0310219 MAY 0310219 Contact Us For Availability
× ![]()
