Model Fisher & Paykel RB2470BRV1-25381-A Refrigerator Freezer – Common Parts & Diagrams

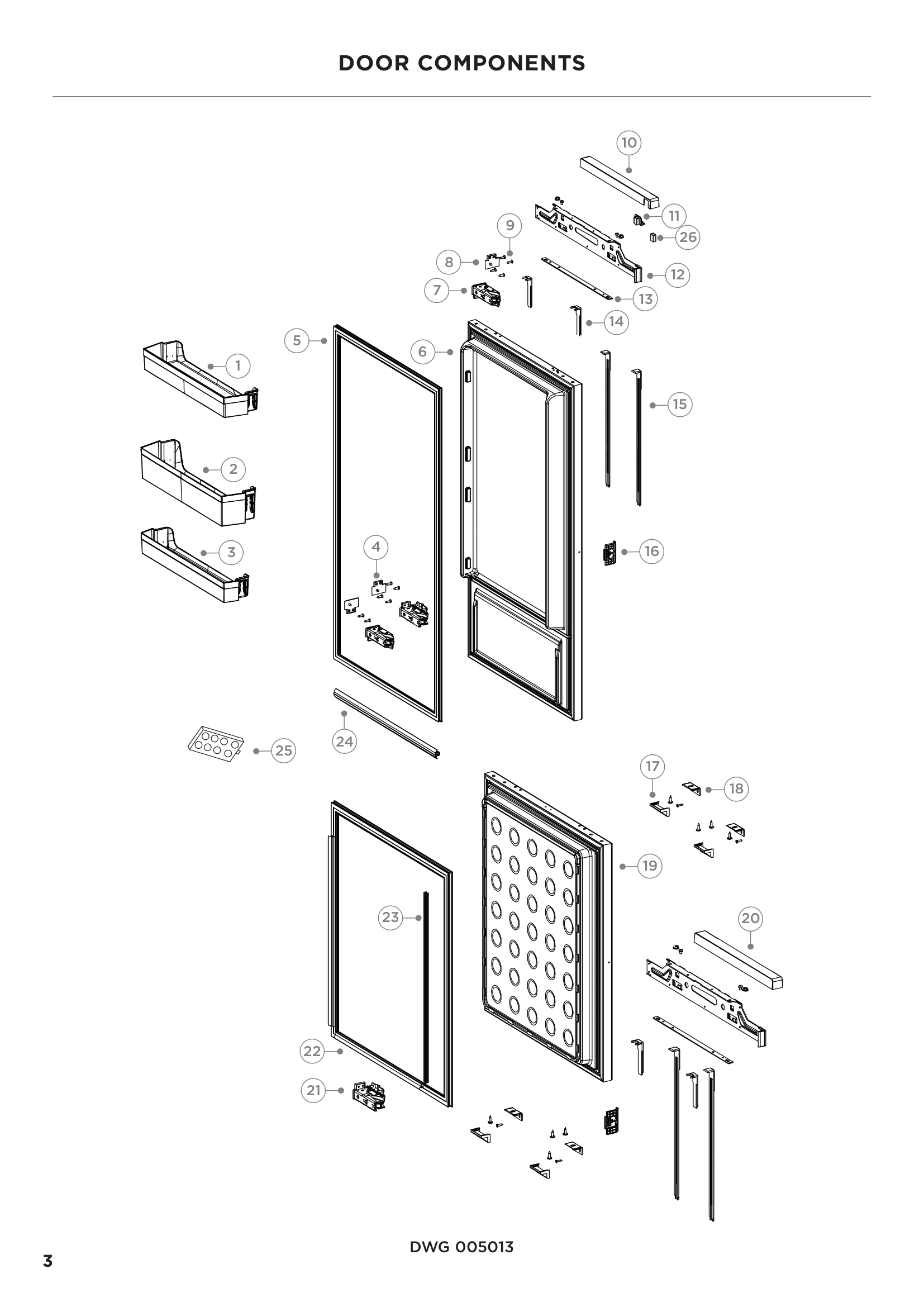

DOOR COMPONENTS

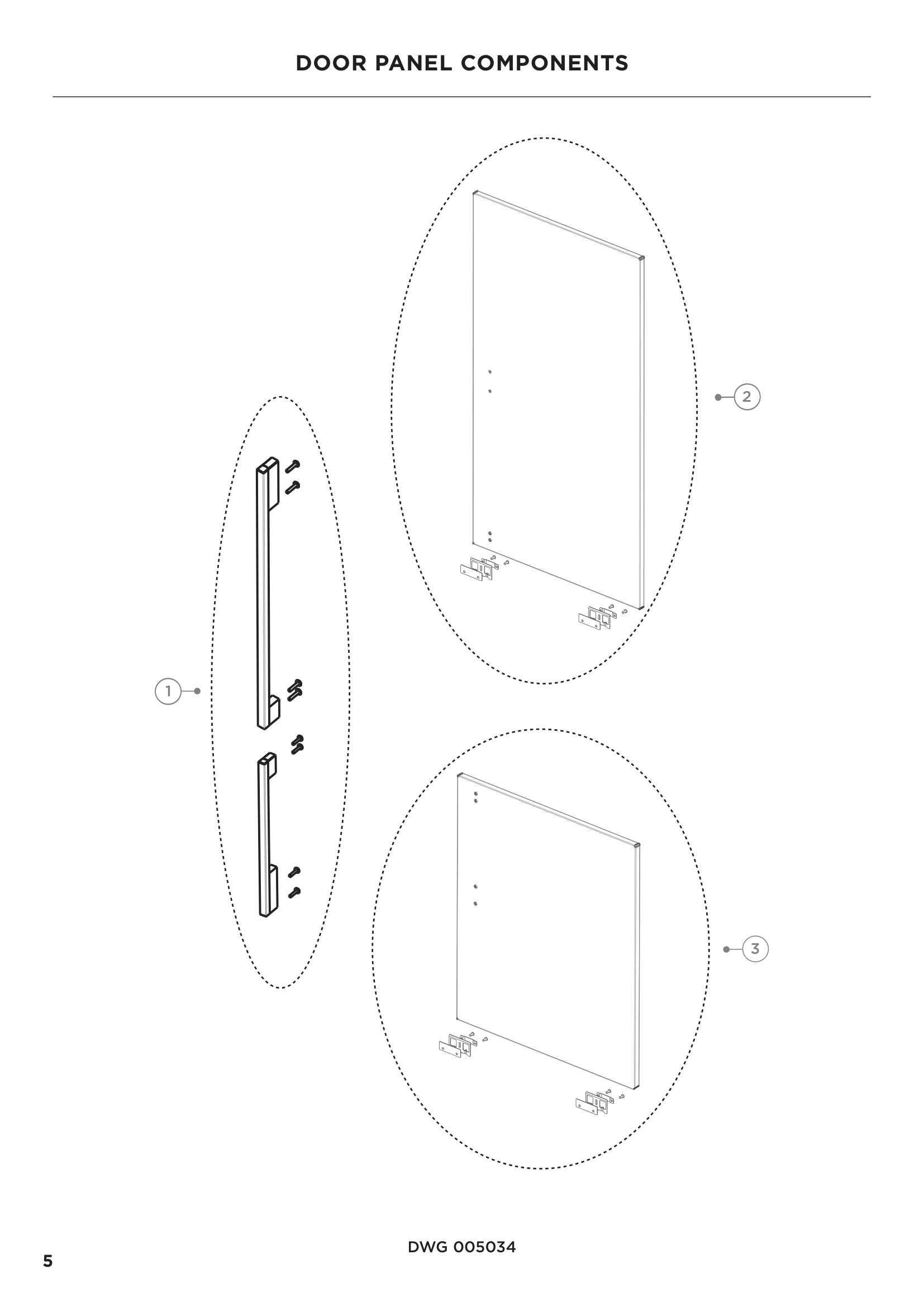

DOOR PANEL COMPONENTS
SHELVES & BINS COMPONENTS
PC & FC INTERNAL COMPONENTS
REAR CABINET COMPONENTS
BUILT IN COMPONENTS
Common parts from model Fisher & Paykel RB2470BRV1-25381-A Refrigerator Freezer
1
SHELF DOOR UPPER FPA H0060835140 Contact Us For Availability
1
KIT HANDLE D3 RD2470B US FPA 849955 Contact Us For Availability
1
KIT HANDLE RD3 RD2470B US FPA 849956 Contact Us For Availability
1
SHELF UPPER REAR PC FPA H0060830888 Contact Us For Availability
1
CONDENSER FPA H0060704205 Contact Us For Availability
1
TRIM SIDE FC HINGED SIDE FPA H0060114626B Contact Us For Availability
2
SHELF DOOR MIDDLE FPA H0060835153 Contact Us For Availability
2
PANEL DR ASSY RD2470B PC R FPA 849756 Contact Us For Availability
2
SHELF UPPER FRONT PC FPA H0060831987B Contact Us For Availability
2
COVER DISPLAY SMALL FPA H0060223015A Contact Us For Availability
2
TRIM SIDE PC HINGED SIDE FPA H0060114626A Contact Us For Availability
3
SHELF DOOR LOWER FPA H0060835154 Contact Us For Availability
3
PANEL DR ASSY RD2470B FC R FPA 849758 Contact Us For Availability
3
PANEL DR ASSY RD2470B FC L FPA 849759 Contact Us For Availability
3
SHELF PC FPA H0060831994H Contact Us For Availability
3
COVER DISPLAY LARGE FPA H0060222516A Contact Us For Availability
3
TUBE DRAIN FPA H0060222476 Contact Us For Availability
3
TRIM TOP FPA H0060114625 Contact Us For Availability
4
COVER END LOWER HINGE FPA H0060210292 Contact Us For Availability
4
SHELF PC LOWER FPA H0060831994J Contact Us For Availability
4
COVER LED LIGHT FPA H0060222464 Contact Us For Availability
4
TRAY COMPRESSOR MOUNTING FPA H0060833183 Contact Us For Availability
4
TRIM SIDE NON-HINGED SIDE FPA H0060114626 Contact Us For Availability
5
GASKET PC FPA H0060830862 Contact Us For Availability
5
BIN PC FPA H0060832871A Contact Us For Availability
5
PCB LED LIGHT FPA H0064001217 Contact Us For Availability
5
FILTER DRIER FPA H0060702807A Contact Us For Availability
5
CLIP TOP TRIM FPA H0060114628 Contact Us For Availability
6
REFRIGERATOR DOOR FPA H0060832776 Contact Us For Availability
6
SHELF DRAWER THERMAL FPA H0060832583 Contact Us For Availability
6
CLIP FILTER DRYER FPA H00602160233 Contact Us For Availability
6
CLIP SIDE TRIM FPA H0060114629 Contact Us For Availability
7
HINGE UPPER FPA H0060812438 Contact Us For Availability
7
DRAWER CRISPER ASSY FPA H0060831935A Contact Us For Availability
7
ROLLER F FPA H0060220056 Contact Us For Availability
7
CORNER TOP NON-HINGED LH FPA H0060224899 Contact Us For Availability
8
END COVER UPPER HINGE FPA H0060212285 Contact Us For Availability
8
DRAWER FC UPPER FPA H0060831936D Contact Us For Availability
8
SLIDE PC BIN FPA H0060830891B Contact Us For Availability
8
RIVETING COLUMN FPA H0060220107 Contact Us For Availability
8
CORNER TOP HINGED LH FPA H0060224900 Contact Us For Availability
9
DRAWER FC MIDDLE FPA H0060832874B Contact Us For Availability
9
TRAY EVAPORATOR FPA H0060112808 Contact Us For Availability
9
COMPRESSOR FPA H0060706450 Contact Us For Availability
9
TRIM END LH FPA H0060224901 Contact Us For Availability
10
COVER END PC DOOR FPA H0060222453 Contact Us For Availability
10
BRACKET CABINET FIXING LOWER FPA H0060113352 Contact Us For Availability
10
TRIM END RH FPA H0060224901A Contact Us For Availability
11
SWITCH REFRIGERATE FPA H0060222452 Contact Us For Availability
11
GLASS FC SMALL FPA H0060303089A Contact Us For Availability
11
FOOT LEVELLING FPA H0060222458 Contact Us For Availability
11
SCREW FPA H0060801021 Contact Us For Availability
12
BRACKET OUTER DOOR MOUNTING .5 FPA H0060817710A Contact Us For Availability
12
GLASS FC LARGE FPA H0060303089 Contact Us For Availability
12
COVER BRACKET FPA H0060222991 Contact Us For Availability
12
COVER COMPRESSOR COMPARTMENT FPA H0060832572 Contact Us For Availability
13
RAIL TOP MOUNTING BAR FPA H0060814178 Contact Us For Availability
13
STOP CABINET LOWER FPA H0060222989 Contact Us For Availability
13
HEATER EVAPORATOR TRAY FPA H0060704211 Contact Us For Availability
14
RAIL DOOR MOUNTING SHORT FPA H0060210294 Contact Us For Availability
14
DEFROST HEATER FPA H0064001459H Contact Us For Availability
14
TRAY OVERFLOW FPA H0060222477 Contact Us For Availability
15
RAIL DOOR MOUNTING LONG FPA H0060210200 Contact Us For Availability
15
SENSOR CABLE FPA H0060402182 Contact Us For Availability
15
MOTOR COOLING FAN FPA H0064001311B Contact Us For Availability
16
STOPPER GASKET FPA H0060223016 Contact Us For Availability
16
FREEZER PROBE SENSOR FPA H0060400810 Contact Us For Availability
17
COVER DOOR BRACKET FPA H0060210289 Contact Us For Availability
17
FAN BLADE FPA H0060205561 Contact Us For Availability
18
BRACKET DOOR MOUNTING FPA H0060106782 Contact Us For Availability
18
FREEZE FAN FPA H0060831985 Contact Us For Availability
19
FREEZER DOOR FPA H0060832778 Contact Us For Availability
19
FREEZER EVAPORATOR FPA H0060704333A Contact Us For Availability
20
COVER END FC DOOR FPA H0060222453A Contact Us For Availability
20
DEFROST SENSOR FPA H0060402181 Contact Us For Availability
21
HINGE LOWER FPA H0060812439 Contact Us For Availability
21
TRAY ICE CUBE FPA H0060211445 Contact Us For Availability
22
GASKET FPA H0060830865 Contact Us For Availability
23
GASKET INNER SIDE FC FPA H0060302769 Contact Us For Availability
23
COVER PC DUCT LIGHT FPA H0060222470 Contact Us For Availability
24
GASKET FC FPA H0060302770 Contact Us For Availability
25
TRAY EGG FPA H0060211459 Contact Us For Availability
NI
COVER VENTILATION BUILT IN FPA 873917 Contact Us For Availability
× ![]()
