Model Maytag MLE26PDBZW1 COMMERCIAL ELECTRIC DRYER – Common Parts & Diagrams

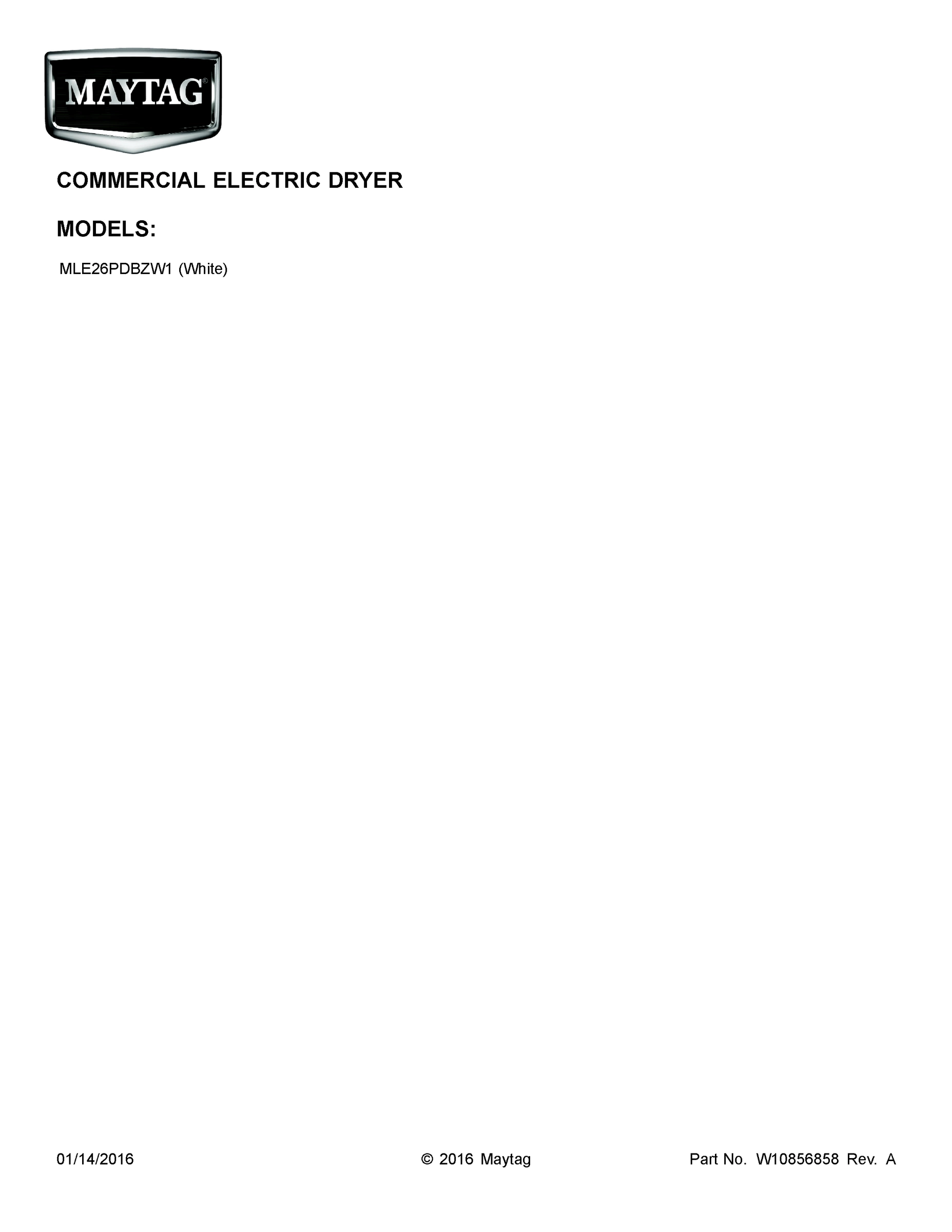

01 - COVER SHEET

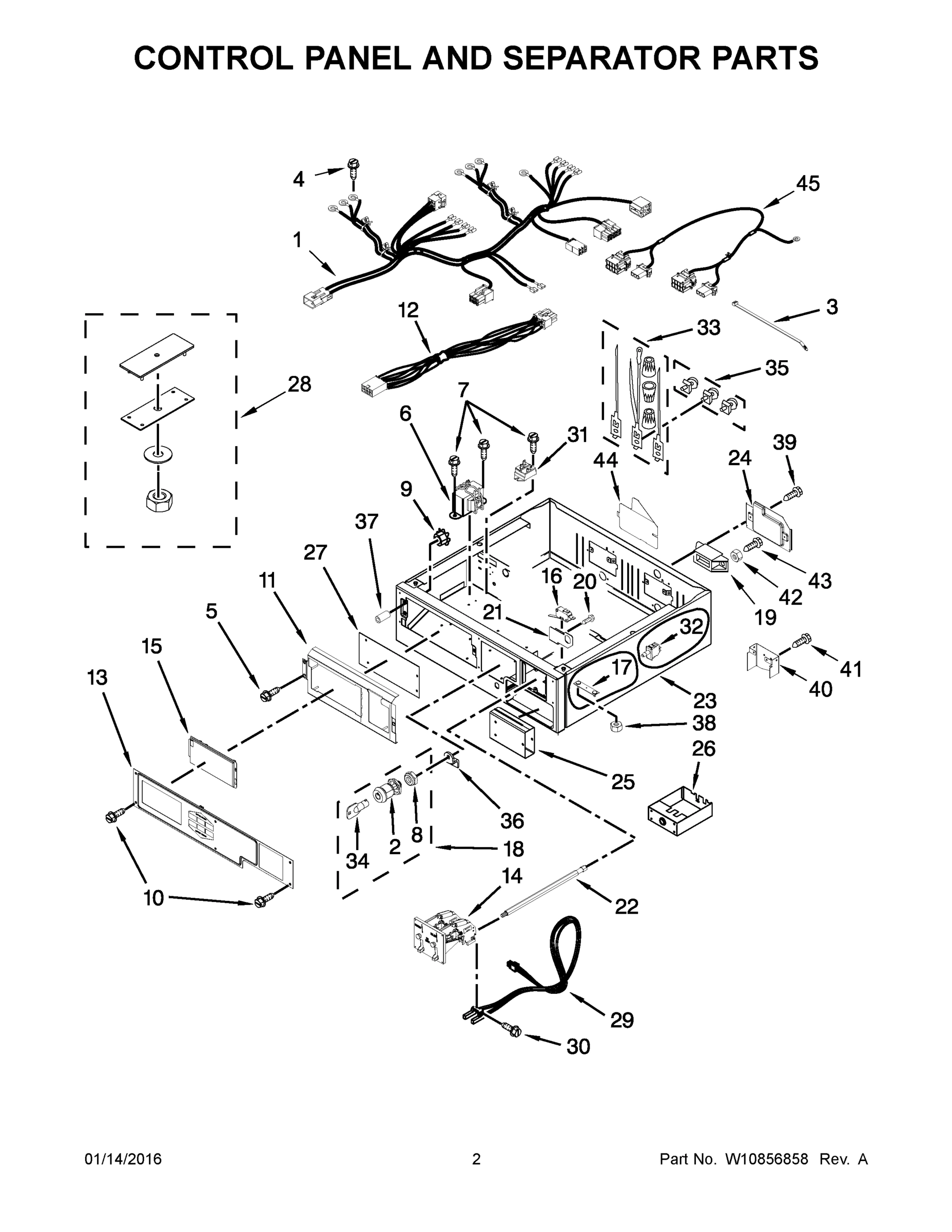

02 - CONTROL PANEL AND SEPARATOR PARTS
03 - LOWER CABINET AND FRONT PANEL PARTS
04 - UPPER CABINET AND FRONT PANEL PARTS
05 - UPPER AND LOWER BULKHEAD PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MLE26PDBZW1 COMMERCIAL ELECTRIC DRYER
1
MAY W10807487 MAY W10807487 Contact Us For Availability
1
MAY W10761033 MAY W10761033 Contact Us For Availability
1
SCREW MAY 3390663 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1A
MAY W10135168 MAY W10135168 Contact Us For Availability
1B
MAY W10738550 MAY W10738550 Contact Us For Availability
2
NUT, HEX MAY W10139762 Contact Us For Availability
2
SCREW MAY 3391915 Contact Us For Availability
2
PLUG, DRUM HOLE MAY 8066086 Contact Us For Availability
3
MAY W10155270 MAY W10155270 Contact Us For Availability
3
SCREW MAY 8533971 Contact Us For Availability
3
MAY 3393657 MAY 3393657 Contact Us For Availability
4
MAY 8533974 MAY 8533974 Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
SCREW MAY 90767 Contact Us For Availability
5
MAY W10140652 MAY W10140652 Contact Us For Availability
5
FOOT, DRYER PLASTIC MAY 689172 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
6
MAY W10133285 MAY W10133285 Contact Us For Availability
6
SCREW MAY 697773 Contact Us For Availability
6
MAY W10181929 MAY W10181929 Contact Us For Availability
7
MAY W10547697 MAY W10547697 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
NUT, HEX MAY W10177242 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
9
NUT MAY W10139046 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
10
MAY W10386302 MAY W10386302 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
11
MAY W10657185 MAY W10657185 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 3357011 Contact Us For Availability
12
MAY W10111027 MAY W10111027 Contact Us For Availability
12
TOP (WHITE) MAY 3389351 Contact Us For Availability
12
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
13
MAY W10684165 MAY W10684165 Contact Us For Availability
13
MAY W10344193 MAY W10344193 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
14
ASSEMBLY, DUAL COIN DROP MAY W10198395 Contact Us For Availability
14
MAY 697215 MAY 697215 Contact Us For Availability
14
MAY 3402841 MAY 3402841 Contact Us For Availability
15
MAY W10133268 MAY W10133268 Contact Us For Availability
15
MAY W10116360 MAY W10116360 Contact Us For Availability
15
MAY 3391943 MAY 3391943 Contact Us For Availability
15
MAY 8578825 MAY 8578825 Contact Us For Availability
16
MAY W10447152 MAY W10447152 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
CLIP MAY 98997 Contact Us For Availability
17
MAY W10159907 MAY W10159907 Contact Us For Availability
17
CLIP, FRONT PANEL MAY 3391846 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
18
ASSEMBLY, LOCK ACCESS DOOR MAY W10133264 Contact Us For Availability
18
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY W10237321 MAY W10237321 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
MAY 3400408 MAY 3400408 Contact Us For Availability
20
HINGE & PIN ASSEMBLY (SILVER) MAY W10279703 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
21
MAY W10160652 MAY W10160652 Contact Us For Availability
21
MAY 8066134 MAY 8066134 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
BOLT, HEX BAR MAY W10137319 Contact Us For Availability
22
SWITCH - BELT MAY 3394881 Contact Us For Availability
22
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
23
MAY W10862445 MAY W10862445 Contact Us For Availability
23
LEVER SWITCH MAY 8066120 Contact Us For Availability
23
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
24
MAY W10850065 MAY W10850065 Contact Us For Availability
24
SCREW MAY 98129 Contact Us For Availability
24
MAY 279457 MAY 279457 Contact Us For Availability
25
MAY W10133258 MAY W10133258 Contact Us For Availability
25
MAY W10167612 MAY W10167612 Contact Us For Availability
25
MAY W10545923 MAY W10545923 Contact Us For Availability
26
MAY W10133248 MAY W10133248 Contact Us For Availability
26
WIRE, JUMPER (BROKEN BELT SWITCH) MAY 3398948 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10678217 MAY W10678217 Contact Us For Availability
27
MAY W10396031 MAY W10396031 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
MAY W10169579 MAY W10169579 Contact Us For Availability
28
MAY 3979115 MAY 3979115 Contact Us For Availability
28
MAY 697557 MAY 697557 Contact Us For Availability
29
COIN OPTIC SENSOR ASSEMBLY (WHITE) MAY W10247389 Contact Us For Availability
29
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
29
MAY 8318314 MAY 8318314 Contact Us For Availability
29A
COIN OPTIC SENSOR ASSEMBLY (BLACK) MAY W10247388 Contact Us For Availability
30
SCREW MAY W10142655 Contact Us For Availability
30
MAY 3387610 MAY 3387610 Contact Us For Availability
30
SCREEN, LINT (WHITE) MAY W10596627 Contact Us For Availability
31
MAY W10827406 MAY W10827406 Contact Us For Availability
31
MAY 3390735 MAY 3390735 Contact Us For Availability
31
MAY W10608837 MAY W10608837 Contact Us For Availability
32
MAY W10131838 MAY W10131838 Contact Us For Availability
32
MAY 3387118 MAY 3387118 Contact Us For Availability
32
MAY W10349492 MAY W10349492 Contact Us For Availability
33
MAY 279318 MAY 279318 Contact Us For Availability
33
MAY 693152 MAY 693152 Contact Us For Availability
33
BAFFLE, DRUM MAY 697693 Contact Us For Availability
34
KEY, ACCESS DOOR MAY W10140858 Contact Us For Availability
34
MAY W10807486 MAY W10807486 Contact Us For Availability
34
MAY W10131836 MAY W10131836 Contact Us For Availability
35
MAY 279393 MAY 279393 Contact Us For Availability
35
SCREW MAY 3387230 Contact Us For Availability
36
MAY W10133266 MAY W10133266 Contact Us For Availability
36
WASHER MAY 3392186 Contact Us For Availability
36
MAY W10135254 MAY W10135254 Contact Us For Availability
37
STANDOFF, CIRCUIT BOARD MAY W10133514 Contact Us For Availability
37
BOLT, SECURITY MAY 3400523 Contact Us For Availability
37
MAY 8066168 MAY 8066168 Contact Us For Availability
38
JUMPER, DOOR SWITCH MAY 8283298 Contact Us For Availability
38
MAY W10157669 MAY W10157669 Contact Us For Availability
39
SCREW MAY 3390814 Contact Us For Availability
39
MAY 696144 MAY 696144 Contact Us For Availability
39
MAY 8066099 MAY 8066099 Contact Us For Availability
40
MAY W10192090 MAY W10192090 Contact Us For Availability
40
MAY W10117347 MAY W10117347 Contact Us For Availability
40
MAY W10193019 MAY W10193019 Contact Us For Availability
41
MAY 3388228 MAY 3388228 Contact Us For Availability
41
SWITCH, DOOR MAY 3406109 Contact Us For Availability
42
NUT, HEX MAY 112432 Contact Us For Availability
42
PANEL, FRONT (WHITE) MAY W10192882 Contact Us For Availability
43
SCREW MAY 98445 Contact Us For Availability
43
MAY 3389233 MAY 3389233 Contact Us For Availability
44
COVER, TERMINAL BLOCK MAY 3396795 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
45
MAY W10807493 MAY W10807493 Contact Us For Availability
45
MAY 342055 MAY 342055 Contact Us For Availability
46
RETAINER MAY 3388229 Contact Us For Availability
47
PLUG, HINGE (WHITE) MAY W10191265 Contact Us For Availability
48
MAY W10323061 MAY W10323061 Contact Us For Availability
49
MAY W10322546 MAY W10322546 Contact Us For Availability
50
MAY W10576519 MAY W10576519 Contact Us For Availability
51
DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING) MAY 279818 Contact Us For Availability
52
MULTIVENT PLUG (WHITE) MAY 697750 Contact Us For Availability
53
ELBOW MAY 49026 Contact Us For Availability
54
MAY 488729 MAY 488729 Contact Us For Availability
55
MAY 3394331 MAY 3394331 Contact Us For Availability
NI
COIN MECH. MAY BE ORDERED 1-800-523-1510 MAY N/P Contact Us For Availability
NI
ACCESSORY PARTS, KIT, SECURITY MAY 285875 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 4392067 MAY 4392067 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
× ![]()
