Model Maytag MHWZ600WR01 WASHER – Common Parts & Diagrams

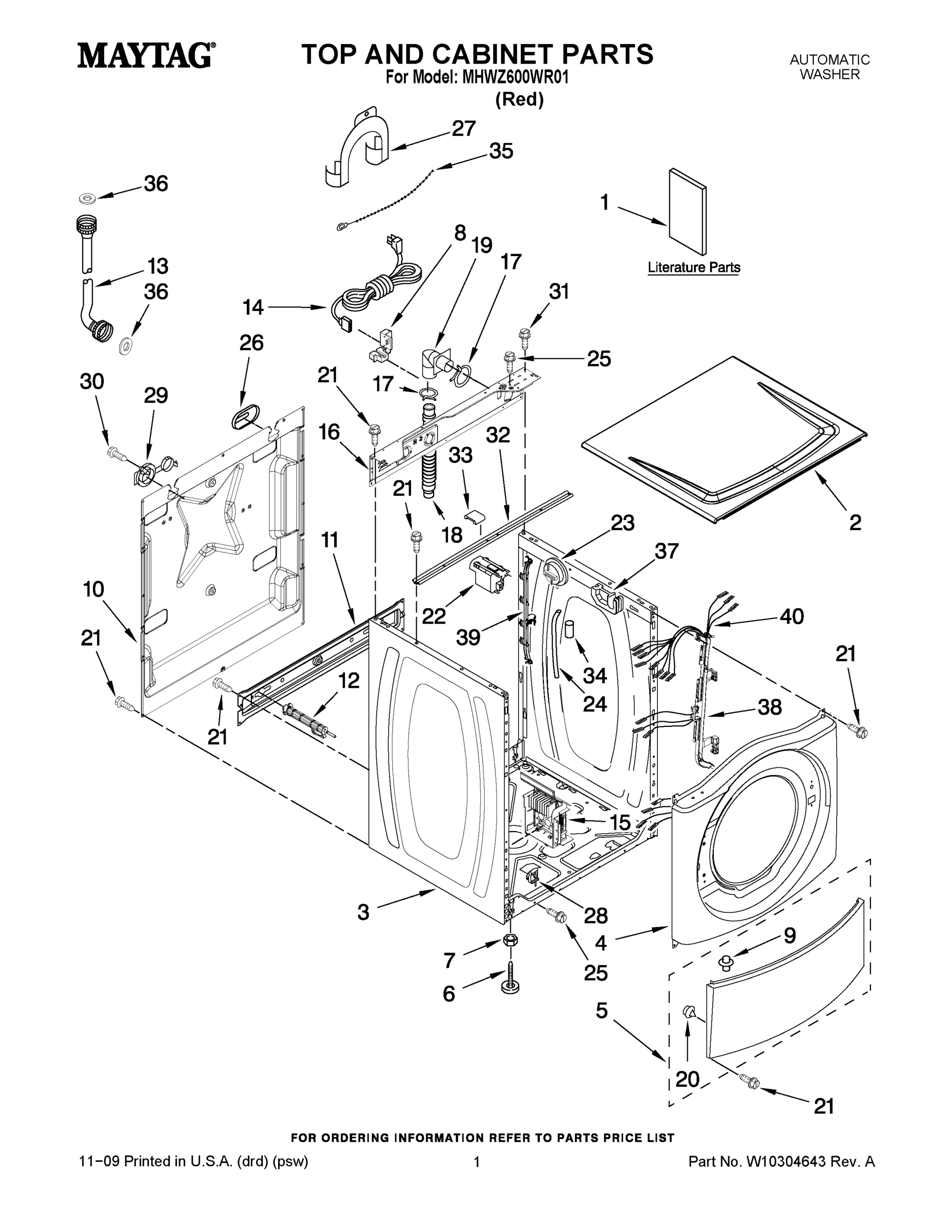

01 - TOP AND CABINET PARTS

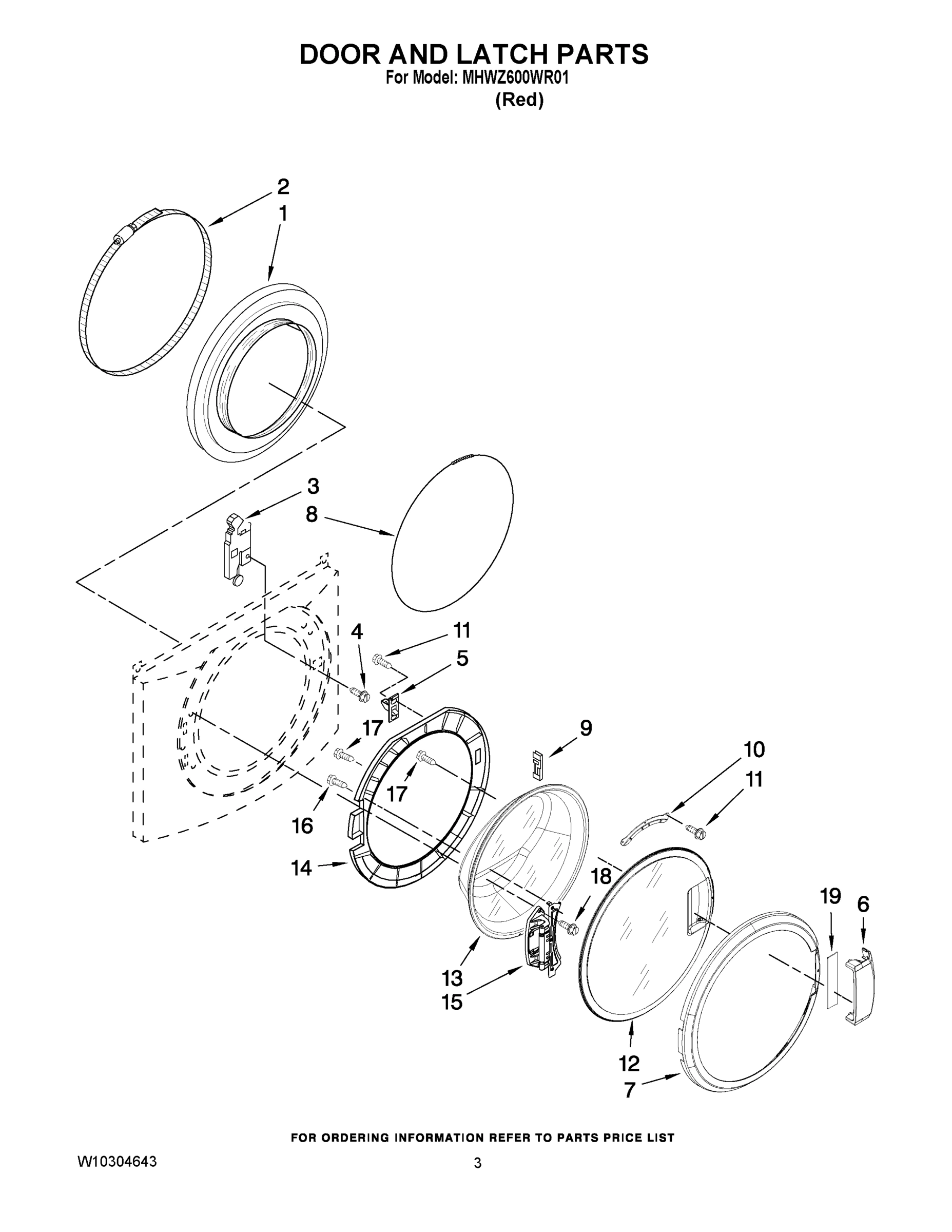

02 - DOOR AND LATCH PARTS
03 - CONTROL PANEL PARTS
04 - DISPENSER PARTS
05 - PUMP AND MOTOR PARTS
06 - TUB AND BASKET PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MHWZ600WR01 WASHER
1
MAY W10171153 MAY W10171153 Contact Us For Availability
1
MAY W10252711 MAY W10252711 Contact Us For Availability
1
MAY W10285612 MAY W10285612 Contact Us For Availability
1
MAY W10290499 MAY W10290499 Contact Us For Availability
1
CONSOLE MAY W10259100 Contact Us For Availability
1
MAY W10212596 MAY W10212596 Contact Us For Availability
1
MAY W10171902 MAY W10171902 Contact Us For Availability
1
MAY 8533999 MAY 8533999 Contact Us For Availability
2
TOP MAY W10255321 Contact Us For Availability
2
MAY 8540108 MAY 8540108 Contact Us For Availability
2
Knob, Control MAY W10119050 Contact Us For Availability
2
MAY W10212598 MAY W10212598 Contact Us For Availability
2
MAY 8540134 MAY 8540134 Contact Us For Availability
2
MAY 8540088C MAY 8540088C Contact Us For Availability
3
CABINET MAY W10251612 Contact Us For Availability
3
MAY W10253483 MAY W10253483 Contact Us For Availability
3
MAY W10117419 MAY W10117419 Contact Us For Availability
3
CLAMP, HOSE (6) MAY 370450 Contact Us For Availability
3
MAY 8540180 MAY 8540180 Contact Us For Availability
3
MAY W10260319 MAY W10260319 Contact Us For Availability
4
MAY W10259097 MAY W10259097 Contact Us For Availability
4
MAY 8540725 MAY 8540725 Contact Us For Availability
4
SCREW, VALVE (2) MAY 8540282 Contact Us For Availability
4
MAY W10240776 MAY W10240776 Contact Us For Availability
4
MAY 8540013 MAY 8540013 Contact Us For Availability
4
SCREW, REAR COUNTERWEIGHT (3) MAY W10246531 Contact Us For Availability
5
TOE PANEL MAY W10254154 Contact Us For Availability
5
MAY 8540221 MAY 8540221 Contact Us For Availability
5
MAY 8540839 MAY 8540839 Contact Us For Availability
5
NOZZLE, INLET (3) MAY 8540042 Contact Us For Availability
5
MAY 8540008 MAY 8540008 Contact Us For Availability
5
MAY W10142720 MAY W10142720 Contact Us For Availability
6
FOOT, LEVELING (4) MAY W10245373 Contact Us For Availability
6
HANDLE, DOOR (INCLUDES ITEM 19) MAY W10117475 Contact Us For Availability
6
MAY W10296382 MAY W10296382 Contact Us For Availability
6
HOSE, VALVE TO DISPENSER (3) MAY W10212611 Contact Us For Availability
6
MAY 8540012 MAY 8540012 Contact Us For Availability
6
MAY 8540010 MAY 8540010 Contact Us For Availability
7
Nut, Lock (4) MAY 3359452 Contact Us For Availability
7
Screw, 8-18 x 5/8 MAY W10015090 Contact Us For Availability
7
Trim Ring, Outer Door MAY W10112915 Contact Us For Availability
7
MAY 8540402 MAY 8540402 Contact Us For Availability
7
MAY 370448 MAY 370448 Contact Us For Availability
7
MAY 8540019 MAY 8540019 Contact Us For Availability
8
MAY W10110676 MAY W10110676 Contact Us For Availability
8
MAY W10277975 MAY W10277975 Contact Us For Availability
8
HARNESS, WIRING (UPPER MAIN) (INCLUDES ITEM 3 MAY W10233003 Contact Us For Availability
8
MAY 8540399 MAY 8540399 Contact Us For Availability
8
MAY W10245724 MAY W10245724 Contact Us For Availability
8
MAY W10200752 MAY W10200752 Contact Us For Availability
9
MAY 8518891 MAY 8518891 Contact Us For Availability
9
MAY 8540115 MAY 8540115 Contact Us For Availability
9
MAY W10117387 MAY W10117387 Contact Us For Availability
9
MAY W10003170 MAY W10003170 Contact Us For Availability
9
MAY W10130913 MAY W10130913 Contact Us For Availability
9
MAY W10200747 MAY W10200747 Contact Us For Availability
10
MAY W10258341 MAY W10258341 Contact Us For Availability
10
Clamp, Glass (2) MAY 8540114 Contact Us For Availability
10
MAY 3400238 MAY 3400238 Contact Us For Availability
10
MAY 8540429 MAY 8540429 Contact Us For Availability
10
MAY W10034820 MAY W10034820 Contact Us For Availability
10
MAY 8540090 MAY 8540090 Contact Us For Availability
11
MAY W10189657 MAY W10189657 Contact Us For Availability
11
MAY 8540513 MAY 8540513 Contact Us For Availability
11
MAY 8540063 MAY 8540063 Contact Us For Availability
11
MAY W10034830 MAY W10034830 Contact Us For Availability
11
MAY W10205253 MAY W10205253 Contact Us For Availability
12
BOLT, SHIPPING (4) MAY W10251449 Contact Us For Availability
12
MAY W10119007 MAY W10119007 Contact Us For Availability
12
MAY 8281276 MAY 8281276 Contact Us For Availability
12
MAY 8540033 MAY 8540033 Contact Us For Availability
12
MAY W10112972 MAY W10112972 Contact Us For Availability
13
Hose, Water Inlet (Hot Water) MAY 8571378 Contact Us For Availability
13
Hose, Water Inlet (Cold Water) MAY W10194208 Contact Us For Availability
13
MAY W10205548 MAY W10205548 Contact Us For Availability
13
MAY W10212602 MAY W10212602 Contact Us For Availability
13
Screw, 10-16 x 1.25 (2) MAY 8533964 Contact Us For Availability
13
BOLT, COUNTERWEIGHT (4) MAY W10094780 Contact Us For Availability
14
MAY W10205499 MAY W10205499 Contact Us For Availability
14
MAY W10240989 MAY W10240989 Contact Us For Availability
14
MAY W10259103 MAY W10259103 Contact Us For Availability
14
MAY 8540025 MAY 8540025 Contact Us For Availability
14
BOLT ASSEMBLY, COUNTERWEIGHT CENTER HOLE (2) MAY W10259288 Contact Us For Availability
15
MAY W10289776 MAY W10289776 Contact Us For Availability
15
MAY 8540416 MAY 8540416 Contact Us For Availability
15
MAY W10112569 MAY W10112569 Contact Us For Availability
15
Filter Assembly (Includes Item 14) MAY 8540996 Contact Us For Availability
15
COUNTERWEIGHT, FRONT (2) MAY W10223198 Contact Us For Availability
16
MAY W10244560 MAY W10244560 Contact Us For Availability
16
MAY 8540284 MAY 8540284 Contact Us For Availability
16
MAY W10201879 MAY W10201879 Contact Us For Availability
16
SPRING, SUSPENSION (SET OF 2) MAY W10010360 Contact Us For Availability
17
MAY 356138 MAY 356138 Contact Us For Availability
17
HOSE, DRAIN- INNER MAY W10272563 Contact Us For Availability
17
SHOCK ABSORBER (3) MAY W10015830 Contact Us For Availability
18
MAY W10003280 MAY W10003280 Contact Us For Availability
18
MAY 8540382 MAY 8540382 Contact Us For Availability
19
Connector, Drain Hose MAY W10003260 Contact Us For Availability
19
MAY W10112927 MAY W10112927 Contact Us For Availability
19
CROSSPIECE ASM MAY W10202464 Contact Us For Availability
20
Bumper (2) MAY 238614 Contact Us For Availability
20
MAY 8540092 MAY 8540092 Contact Us For Availability
21
TUB, FRONT (INCLUDES ITEMS 10, 22, 23 & 24) MAY W10289874 Contact Us For Availability
22
MAY 8540230 MAY 8540230 Contact Us For Availability
22
MAY 8540072 MAY 8540072 Contact Us For Availability
23
MAY W10163980 MAY W10163980 Contact Us For Availability
23
MAY 8540322 MAY 8540322 Contact Us For Availability
24
MAY 8540294 MAY 8540294 Contact Us For Availability
24
MAY 8540880 MAY 8540880 Contact Us For Availability
25
MAY 8540479 MAY 8540479 Contact Us For Availability
25
NEGATIVE THERMISTOR CONTROL MAY W10176659 Contact Us For Availability
26
MAY 8540268 MAY 8540268 Contact Us For Availability
26
MAY W10253993 MAY W10253993 Contact Us For Availability
27
MAY 8540021 MAY 8540021 Contact Us For Availability
28
Microswitch (2) MAY W10085220 Contact Us For Availability
29
Sleeve, Cord Support (2) MAY 8540728 Contact Us For Availability
30
Screw, 3 x 8 mm MAY 8540727 Contact Us For Availability
31
MAY 8540329 MAY 8540329 Contact Us For Availability
32
MAY 8540720 MAY 8540720 Contact Us For Availability
33
MAY 8283273 MAY 8283273 Contact Us For Availability
34
Sleeve, Pressure Switch Hose MAY 2161302 Contact Us For Availability
35
MAY 3347868 MAY 3347868 Contact Us For Availability
36
WASHER, WATER INLET HOSE (4) 1-1/16 X 5/8 MAY 3976300 Contact Us For Availability
37
MAY 8540644 MAY 8540644 Contact Us For Availability
38
MAY W10168546 MAY W10168546 Contact Us For Availability
39
MAY W10168547 MAY W10168547 Contact Us For Availability
40
MAY W10239821 MAY W10239821 Contact Us For Availability
NI
MAY 1903WH MAY 1903WH Contact Us For Availability
NI
Drain Extension MAY 285863 Contact Us For Availability
NI
ALL PURPOSE APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Braided Hoses W/Strai MAY 8212487RP Contact Us For Availability
NI
WASHER DRIP TRAY MAY 8212526 Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE MAY 8212638RP Contact Us For Availability
NI
STACK KIT MAY 8572546 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (RED) MAY W10218245 Contact Us For Availability
× ![]()
