Model Maytag MHW3505FW1 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams
01 - COVER SHEET

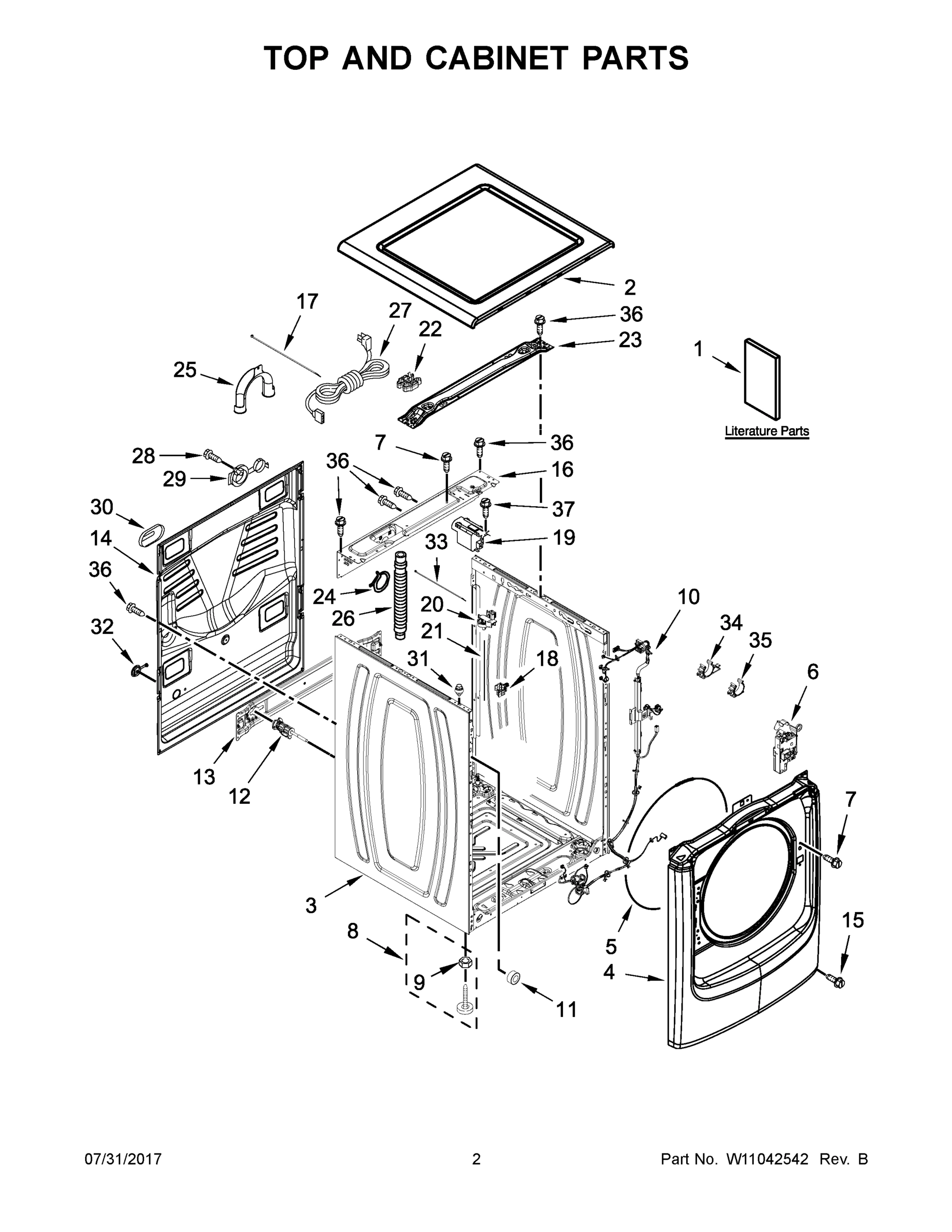

02 - TOP AND CABINET PARTS
03 - DOOR PARTS
04 - CONTROL PANEL PARTS
05 - DISPENSER PARTS
06 - TUB AND BASKET PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MHW3505FW1 LAUNDRY, RESIDENTIAL, WASHER
1
USE & CARE GUIDE MAY W10775517 Contact Us For Availability
1
HINGE, BASE MAY W10208415 Contact Us For Availability
1
ASSEMBLY, CONSOLE (WHITE) MAY W10783709 Contact Us For Availability
1
VALVE, INLET ASSEMBLY MAY W10509710 Contact Us For Availability
1
STATOR, MOTOR MAY W10734060 Contact Us For Availability
1A
TECH SHEET MAY W10602465 Contact Us For Availability
1B
INSTALLATION INSTRUCTIONS MAY W10631155 Contact Us For Availability
1C
ENERGY GUIDE MAY W10912020 Contact Us For Availability
2
TOP (WHITE) MAY W10208373 Contact Us For Availability
2
CAP, HINGE MAY W10208398 Contact Us For Availability
2
HANDLE, DRAWER (WHITE) MAY W10783702 Contact Us For Availability
2
HOSE, GREY MAY W10577770 Contact Us For Availability
2
SCREW, STATOR MOUNTING MAY W10253476 Contact Us For Availability
3
CABINET (WHITE) MAY W10441110 Contact Us For Availability
3
PLATE, HINGE RETAINER MAY W10312805 Contact Us For Availability
3
ASSEMBLY, IML (WHITE) MAY W10825104 Contact Us For Availability
3
CLAMP, HOSE MAY W10096851 Contact Us For Availability
3
ROTOR, MOTOR MAY W10544980 Contact Us For Availability
4
PANEL, FRONT (WHITE) MAY W10650837 Contact Us For Availability
4
BUMPER, DOOR MAY 8572266 Contact Us For Availability
4
ASSEMBLY, CONTROL KNOB (CHROME) MAY W10727011 Contact Us For Availability
4
HOSE, BLACK MAY W10577787 Contact Us For Availability
4
SCREW, ROTOR MOUNTING MAY W10253477 Contact Us For Availability
5
RETAINER, BELLOW (TO FRONT PANEL) MAY W10237503 Contact Us For Availability
5
SCREW MAY W10288126 Contact Us For Availability
5
SCREW MAY W10489172 Contact Us For Availability
5
CLAMP, HOSE MAY W10239910 Contact Us For Availability
5
PIPE, VENTILATION ASSEMBLY MAY W10261582 Contact Us For Availability
6
LOCK, DOOR MAY W10443885 Contact Us For Availability
6
STRIKE, DOOR MAY W10488048 Contact Us For Availability
6
HARNESS, MAIN (UPPER) MAY W10685626 Contact Us For Availability
6
HOSE, DISPENSER TO BELLOW MAY W10239966 Contact Us For Availability
6
COUNTERWEIGHT, BOTTOM MAY W10237535 Contact Us For Availability
7
SCREW MAY 8540513 Contact Us For Availability
7
BRACKET, CONSOLE MAY W10208197 Contact Us For Availability
7
HOUSING, DISPENSER ASSEMBLY MAY W10853531 Contact Us For Availability
7
COUNTERWEIGHT, TOP MAY W10253014 Contact Us For Availability
8
LEVELING LEG ASSEMBLY MAY W10073890 Contact Us For Availability
8
SCREW MAY 8534022 Contact Us For Availability
8
SCREW MAY W10142290 Contact Us For Availability
8
DRAWER, DETERGENT (COMPLETE) MAY W10365885 Contact Us For Availability
8
TUB ASSEMBLY, DRUM MAY W10839953 Contact Us For Availability
9
NUT, HEX MAY 3359452 Contact Us For Availability
9
FRAME, DOOR BACK SUPPORT MAY W10272396 Contact Us For Availability
9
MAY W10796900 MAY W10796900 Contact Us For Availability
9
SEPARATOR, WITH SELECTION SLIDER MAY W10411442 Contact Us For Availability
9
NUT, PUSH-IN MAY 8540072 Contact Us For Availability
10
HARNESS, WIRING (LOWER MAIN) MAY W10746378 Contact Us For Availability
10
CLAMP, GLASS MAY W10003440 Contact Us For Availability
10
HARNESS, UI MAY W10442440 Contact Us For Availability
10
SIPHON, BLEACH/SOFTENER MAY W10365887 Contact Us For Availability
10
BELLOW MAY W10340443 Contact Us For Availability
11
SPACER, FRONT PANEL MAY W10615477 Contact Us For Availability
11
GLASS, DOOR MAY W10208263 Contact Us For Availability
11
CONTROL UNIT, APPLIANCE MAY W11033857 Contact Us For Availability
11
RETAINER, BELLOW TO TUB MAY W10237502 Contact Us For Availability
12
BOLT, SHIPPING MAY W10538711 Contact Us For Availability
12
DOOR, OUTER ASSEMBLY MAY W10424239 Contact Us For Availability
12
BAFFLE, TUB MAY W10597205 Contact Us For Availability
13
BRACE, TRANSPORT MAY W10237498 Contact Us For Availability
13
HANDLE, DOOR (BLACK) MAY W10626041 Contact Us For Availability
13
CLAMP, TUB MAY W10793364 Contact Us For Availability
14
PANEL, REAR MAY W10386102 Contact Us For Availability
14
BADGE, MAYTAG MAY W10639171 Contact Us For Availability
14
AIRTRAP ASSEMBLY MAY W10831586 Contact Us For Availability
15
SCREW MAY W10567155 Contact Us For Availability
15
SCREW MAY 9742177 Contact Us For Availability
15
CLAMP, HOSE MAY 371499 Contact Us For Availability
16
BRACE, REAR MAY W10467483 Contact Us For Availability
16
CLAMP, GLASS SUPPORT MAY W10003430 Contact Us For Availability
16
SPRING, SUSPENSION (SET OF 2) MAY W10312146 Contact Us For Availability
17
TIE, CABLE MAY W10339879 Contact Us For Availability
17
SCREW, COUNTERWEIGHT MAY W10261496 Contact Us For Availability
18
CLIP, PRESSURE SWITCH HOSE MAY W10181028 Contact Us For Availability
18
VENT HOSE COUPLING ASSEMBLY MAY W10568614 Contact Us For Availability
19
FILTER, RFI MAY W10367632 Contact Us For Availability
19
CLAMP, VENT HOSE MAY W10273034 Contact Us For Availability
20
SENSOR, PRESSURE MAY W10448876 Contact Us For Availability
20
CLAMP, HOSE MAY W10353599 Contact Us For Availability
21
HOSE, PRESSURE SWITCH MAY W10525781 Contact Us For Availability
21
VENT TUBE AND COVER MAY W10352818 Contact Us For Availability
22
RETAINER, SPRING MAY W10245452 Contact Us For Availability
22
CLIP, HARNESS DIVERTER MAY W10316388 Contact Us For Availability
23
BRACE, TOP MAY W10467484 Contact Us For Availability
23
SHOCK ABSORBER MAY W10312625 Contact Us For Availability
24
CLAMP, HOSE MAY 356138 Contact Us For Availability
24
SCREW MAY W10306501 Contact Us For Availability
25
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
25
SHIELD, HEATER MAY W10318155 Contact Us For Availability
26
HOSE, DRAIN (EXTERNAL) MAY W10267638 Contact Us For Availability
26
PUMP (COMPLETE) MAY W10605427 Contact Us For Availability
27
POWER CORD MAY W10632346 Contact Us For Availability
27
CAP, FILTER MAY W10365898 Contact Us For Availability
28
SCREW MAY 3351614 Contact Us For Availability
28
FILTER, ELEMENT MAY W10365897 Contact Us For Availability
29
COVER, POWER CORD-TRANSPORT MAY W10275820 Contact Us For Availability
29
SEAL, FILTER CAP MAY W10365899 Contact Us For Availability
30
COVER, TRANSPORT MAY 8540268 Contact Us For Availability
30
BRACKET, MOUNTING MAY W10466674 Contact Us For Availability
31
SCREW AND BUSHING ASSEMBLY MAY W10208380 Contact Us For Availability
31
SHIELD, MOTOR MAY W10490826 Contact Us For Availability
32
COVER, POWER CORD MAY W10304004 Contact Us For Availability
32
DRAIN HOSE (INTERNAL) MAY W10562025 Contact Us For Availability
33
CABLE TIE MAY W10267532 Contact Us For Availability
33
CLAMP, HOSE MAY W10151157 Contact Us For Availability
34
RETAINER, DRAIN HOSE MAY W10441646 Contact Us For Availability
34
ENCLOSURE, VENT MAY W10467494 Contact Us For Availability
35
SCREW MAY 8540282 Contact Us For Availability
35
RETAINER, HOSE MAY W10822038 Contact Us For Availability
36
SCREW MAY 357640 Contact Us For Availability
36
HEATER MAY W10570145 Contact Us For Availability
37
SCREW MAY 8540329 Contact Us For Availability
37
SENSOR, TEMPERATURE MAY W10467289 Contact Us For Availability
NI
ACCESSORY PARTS, LAUNDRY SUPPLY STORAGE CART MAY 1903WH Contact Us For Availability
NI
ACCESSORY PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
ACCESSORY PARTS, APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, REAR GUARD MAY 4396899 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAI MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, STACK MAY W10298318 Contact Us For Availability
× ![]()
