Model LG LW5023.AT1AUSL 5,000 BTU Window Air Conditioner – Common Parts & Diagrams

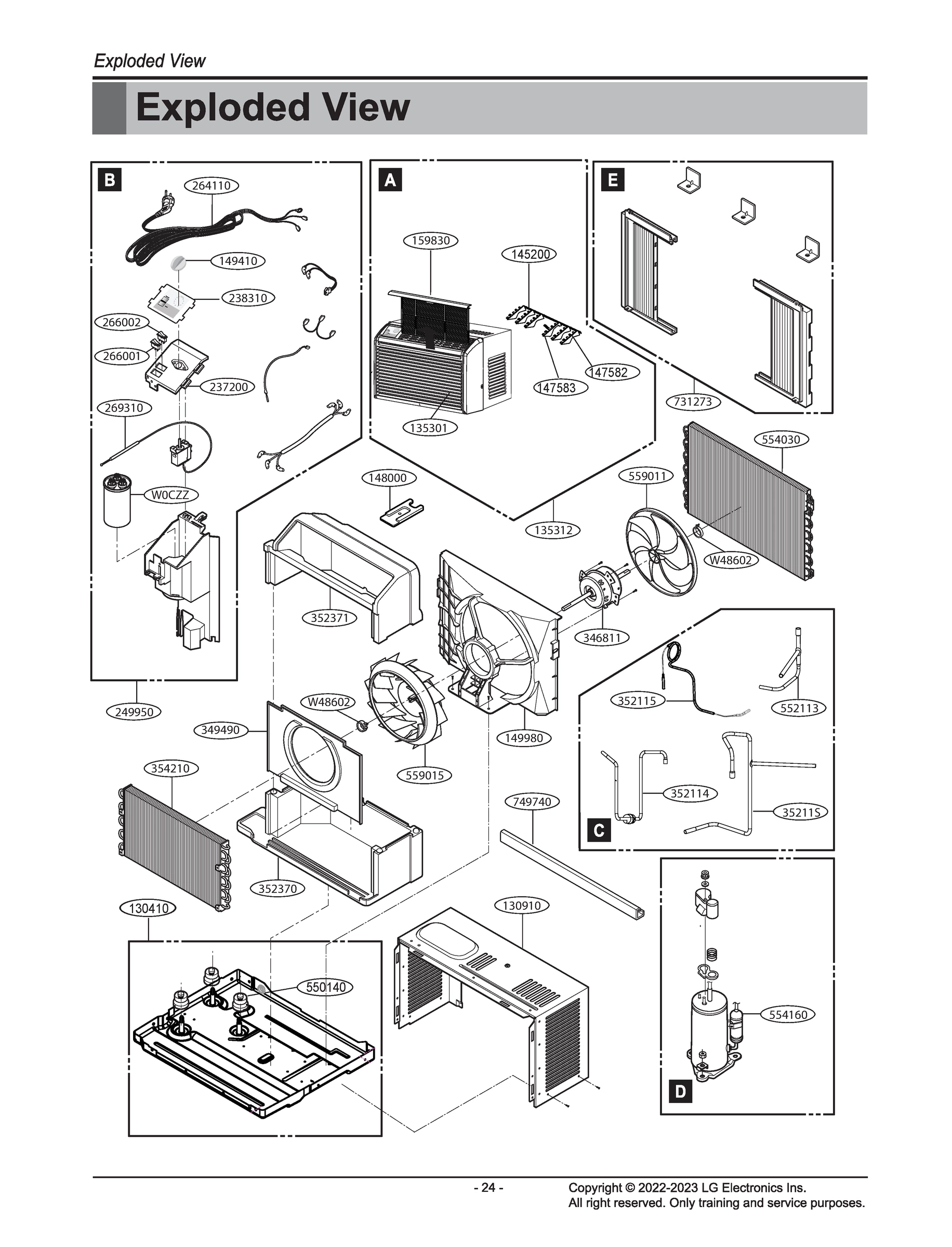

DIAGRAM 1
Common parts from model LG LW5023.AT1AUSL 5,000 BTU Window Air Conditioner
135312
Grille Assembly,Front LGE AEB75624806 Contact Us For Availability
145200
Link LGE 4520A30065C Contact Us For Availability
147582
Louver,Vertical LGE 4758A30041G Contact Us For Availability
147583
Louver,Vertical LGE 4758A30041F Contact Us For Availability
148000
Supporter LGE 4800A30012B Contact Us For Availability
149980
Shroud LGE MHN62842005 Contact Us For Availability
159830
Filter Assembly,Air Cleaner LGE ADQ75233603 Contact Us For Availability
237200
Panel,Control LGE 3720A30090D Contact Us For Availability
238310
Escutcheon LGE MDD62622208 Contact Us For Availability
249950
Case Assembly,Control LGE ABQ30242302 Contact Us For Availability
264110
Power Cord Assembly LGE EAD63469527 Contact Us For Availability
266001
Switch,Rocker LGE EBF64572302 Contact Us For Availability
266002
Switch,Rocker LGE EBF64572301 Contact Us For Availability
269310
Thermostat Assembly LGE 2H01109X Contact Us For Availability
349490
Orifice LGE MFX63041903 Contact Us For Availability
352114
Tube Assembly,Discharge LGE AJR73067219 Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE AJR72960511 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL72920810 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR72962114 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG72924308 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG72924309 Contact Us For Availability
554160
Compressor Set,China LGE TBZ39236201 Contact Us For Availability
559011
Fan,Axial LGE 5900A20042K Contact Us For Availability
559015
Fan,Turbo LGE MDG41758704 Contact Us For Availability
749740
Guide LGE 4974A30066Q Contact Us For Availability
× ![]()
