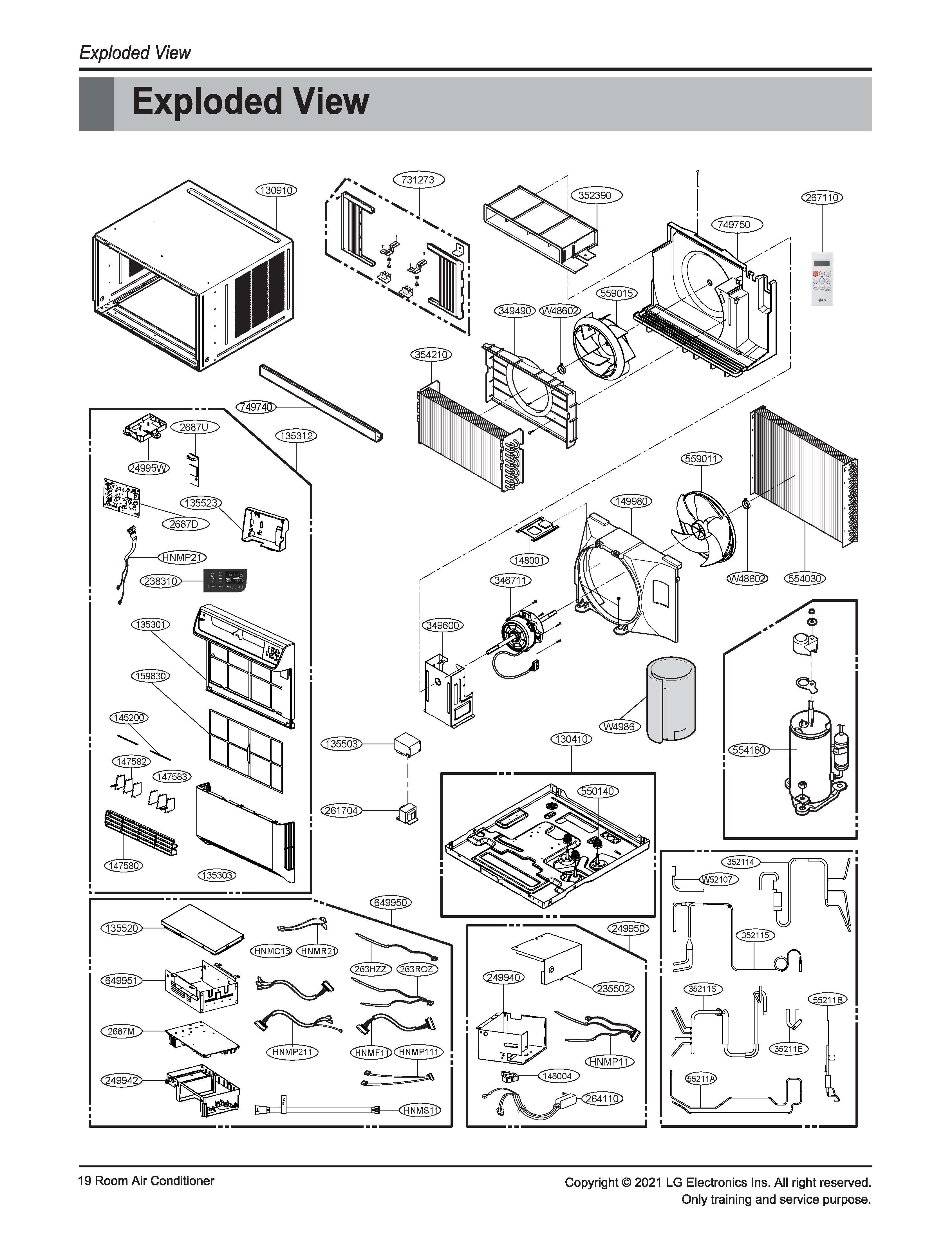

Model LG LW1522IVSM.AT1AUSL 14,000 BTU LG DUAL Inverter Window Air Conditioner - White – Common Parts & Diagrams

35211S
Tube Assembly,Suction
Tube Assembly,Suction LGE AJR76482508 Contact Us For Availability
View on Model
35211S
Tube Assembly,Suction
Tube Assembly,Suction LGE AJR76482513 Contact Us For Availability
View on Model
55211A
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE AJR75643903 Contact Us For Availability
View on Model
55211B
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE AJR76502402 Contact Us For Availability
View on Model
130410
Base Assembly,Single
Base Assembly,Single LGE AAN76669804 Contact Us For Availability
View on Model
135301
Grille,Front
Grille,Front LGE MDX64672104 Contact Us For Availability
View on Model
135303
Grille,Inlet
Grille,Inlet LGE MDX64672204 Contact Us For Availability
View on Model
135312
Grille Assembly,Front
Grille Assembly,Front LGE AEB76289952 Contact Us For Availability
View on Model
135503
Cover
Cover LGE MCK71554201 Contact Us For Availability
View on Model
135523
Cover
Cover LGE MCK69433203 Contact Us For Availability
View on Model
147580
Louver,Horizontal
Louver,Horizontal LGE MFH63603603 Contact Us For Availability
View on Model
147582
Louver,Vertical
Louver,Vertical LGE MFH63603706 Contact Us For Availability
View on Model
147583
Louver,Vertical
Louver,Vertical LGE MFH63603705 Contact Us For Availability
View on Model
149980
Shroud
Shroud LGE 4998A10016J Contact Us For Availability
View on Model
149980
Shroud
Shroud LGE 4998A10016K Contact Us For Availability
View on Model
235502
Cover
Cover LGE MCK69413206 Contact Us For Availability
View on Model
238310
Escutcheon
Escutcheon LGE MDD63324701 Contact Us For Availability
View on Model
249940
Case,Control
Case,Control LGE MBN64644306 Contact Us For Availability
View on Model
249940
Case,Control
Case,Control LGE MBN64644314 Contact Us For Availability
View on Model
249950
Case Assembly,Control
Case Assembly,Control LGE ABQ30243704 Contact Us For Availability
View on Model
261704
Transformer,Reactor
Transformer,Reactor LGE EBJ63570006 Contact Us For Availability
View on Model
264110
Power Cord Assembly
Power Cord Assembly LGE EAD63469533 Contact Us For Availability
View on Model
349490
Orifice
Orifice LGE 4948A10015F Contact Us For Availability
View on Model
352114
Tube Assembly,Discharge
Tube Assembly,Discharge LGE AJR76482602 Contact Us For Availability
View on Model
352114
Tube Assembly,Discharge
Tube Assembly,Discharge LGE AJR76482604 Contact Us For Availability
View on Model
352115
Tube Assembly,Evaporator(In)
Tube Assembly,Evaporator(In) LGE AJR76482703 Contact Us For Availability
View on Model
352115
Tube Assembly,Evaporator(In)
Tube Assembly,Evaporator(In) LGE AJR76482705 Contact Us For Availability
View on Model
352390
Duct Assembly
Duct Assembly LGE 5239A20004L Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE ADL76691819 Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE ADL76691820 Contact Us For Availability
View on Model
554030
Condenser Assembly,First
Condenser Assembly,First LGE ACG72924216 Contact Us For Availability
View on Model
559011
Fan,Axial
Fan,Axial LGE 5900A10009G Contact Us For Availability
View on Model
559011
Fan,Axial
Fan,Axial LGE 5900A10009H Contact Us For Availability
View on Model
559015
Fan,Turbo
Fan,Turbo LGE 5900A20019H Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE ABQ30243603 Contact Us For Availability
View on Model
649951
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE ABQ75984046 Contact Us For Availability
View on Model
749750
Guide Assembly,Air
Guide Assembly,Air LGE AEC74317404 Contact Us For Availability
View on Model
HNMC13
Harness,Multi
Harness,Multi LGE EAD62146308 Contact Us For Availability
View on Model
HNMP111
Harness,Multi
Harness,Multi LGE EAD63989020 Contact Us For Availability
View on Model
W4986
Gasket
Gasket LGE MDS64811411 Contact Us For Availability
View on Model
W4986
Gasket
Gasket LGE MDS64811413 Contact Us For Availability
View on Model
W52107
Tube,Condenser
Tube,Condenser LGE MJU64871310 Contact Us For Availability
View on Model
