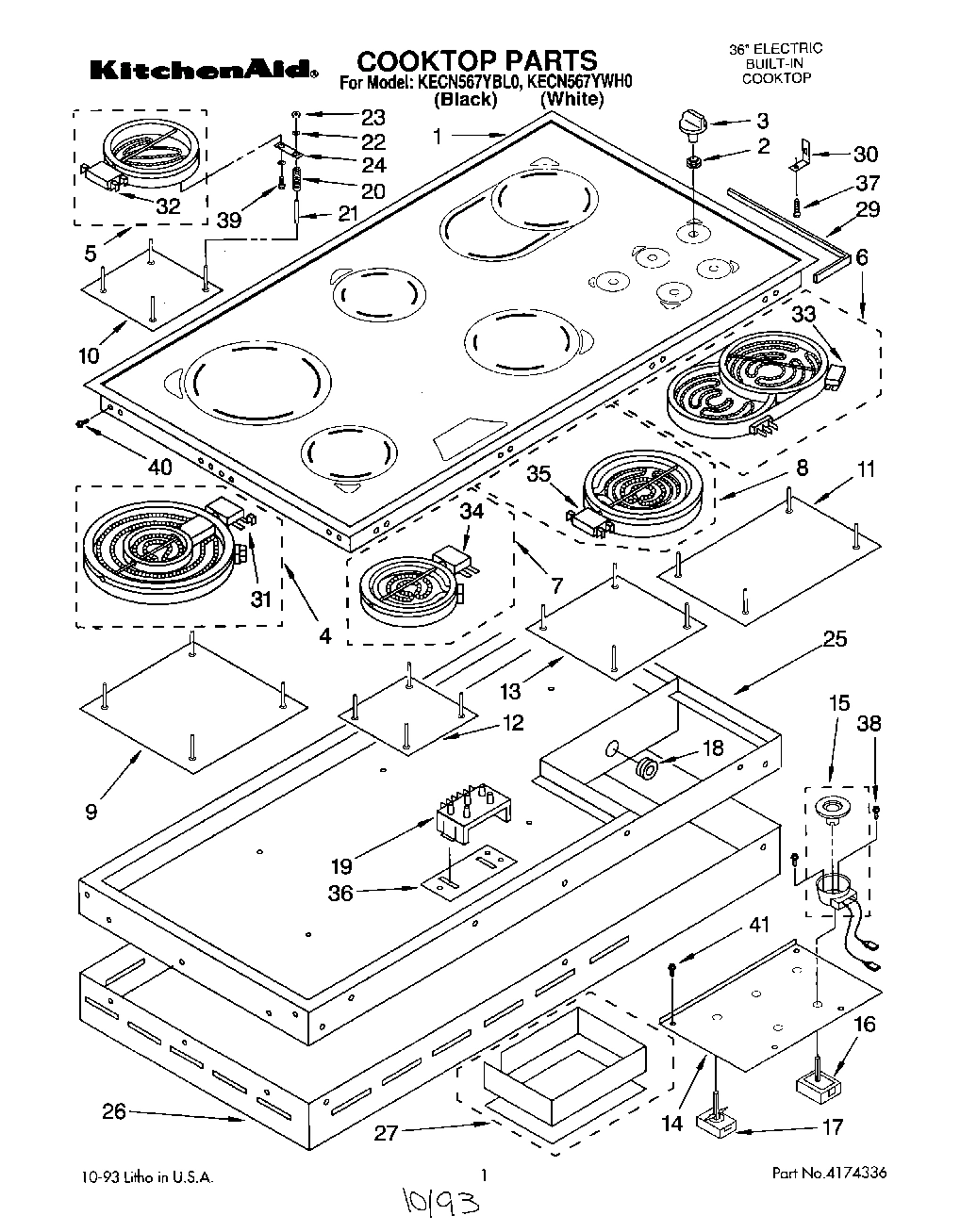

Model Whirlpool KECN567YBL0 – Common Parts & Diagrams
01 - SECTION
Common parts from model Whirlpool KECN567YBL0
Wiring Harness WPL 4380058 Contact Us For Availability
Use & Care Guide WPL LIT4366500 Contact Us For Availability
Installation, Instructions WPL LIT4366501 Contact Us For Availability
1
Cooktop (Black) WPL 4380027 Contact Us For Availability
1
Cooktop (White) WPL 4380028 Contact Us For Availability
2
Seal, Knob (5) WPL 4380015 Contact Us For Availability
3
Knob (5) (Black) WPL 4380016 Contact Us For Availability
3
Knob (5) (White) WPL 4380017 Contact Us For Availability
4
Element, Heating 2100W (700/1400) Left Rear WPL 4380006 Contact Us For Availability
5
enter Top WPL 1200W Contact Us For Availability
5
Element, Heating WPL 4380007 Contact Us For Availability
6
Element, Heating 2200W (1400/800) Right Rear WPL 4380008 Contact Us For Availability
7
Element, Heating 1200W Halogen Left Front WPL 4380009 Contact Us For Availability
8
Element, Heating 1800W Halogen Right Front WPL 4380010 Contact Us For Availability
9
Support, Element 2100W WPL 4380040 Contact Us For Availability
10
Support, Element 1200W WPL 4380041 Contact Us For Availability
11
Support, Element 2200W WPL 4380042 Contact Us For Availability
12
Support, Element 1200W Halogen WPL 4380043 Contact Us For Availability
13
Support, Element 1800W Halogen WPL 4380044 Contact Us For Availability
14
Support, Plate WPL 4380029 Contact Us For Availability
15
Support, Knob (5) WPL 4380000 Contact Us For Availability
16
Switch, Infinite (3) 4380009, 4380010, 438000 WPL 4380005 Contact Us For Availability
17
Switch, Infinite Dual Circuit (2) 4380008, 43 WPL 4380004 Contact Us For Availability
18
Ring, Rubber WPL 4380019 Contact Us For Availability
19
Indicator Light Block WPL 4380002 Contact Us For Availability
20
Spring, Element Support WPL 4380021 Contact Us For Availability
21
Spacer, Element Support WPL 4380048 Contact Us For Availability
22
Washer WPL 4380049 Contact Us For Availability
23
Nut WPL 4380050 Contact Us For Availability
24
Bracket, Element Support WPL 4380022 Contact Us For Availability
25
Burner Box, Inner WPL 4380030 Contact Us For Availability
26
Burner Box, Outer WPL 4380031 Contact Us For Availability
27
Shield, Infinite Switch WPL 4380032 Contact Us For Availability
29
Gasket WPL 4380033 Contact Us For Availability
30
Bracket, Installation WPL 4380051 Contact Us For Availability
31
Limiter, 4380006 Element WPL 3169262 Contact Us For Availability
33
Limiter, 4380008 Element WPL 3169266 Contact Us For Availability
34
Limiter, 4380009 Element WPL 3169267 Contact Us For Availability
35
Limiter, 4380010 Element WPL 3169264 Contact Us For Availability
36
Bracket, Support WPL 4380052 Contact Us For Availability
37
Screw WPL 4380054 Contact Us For Availability
38
Screw WPL 4380055 Contact Us For Availability
39
Screw WPL 4380056 Contact Us For Availability
40
Screw WPL 4380057 Contact Us For Availability
41
Screw WPL 4380061 Contact Us For Availability
× ![]()
