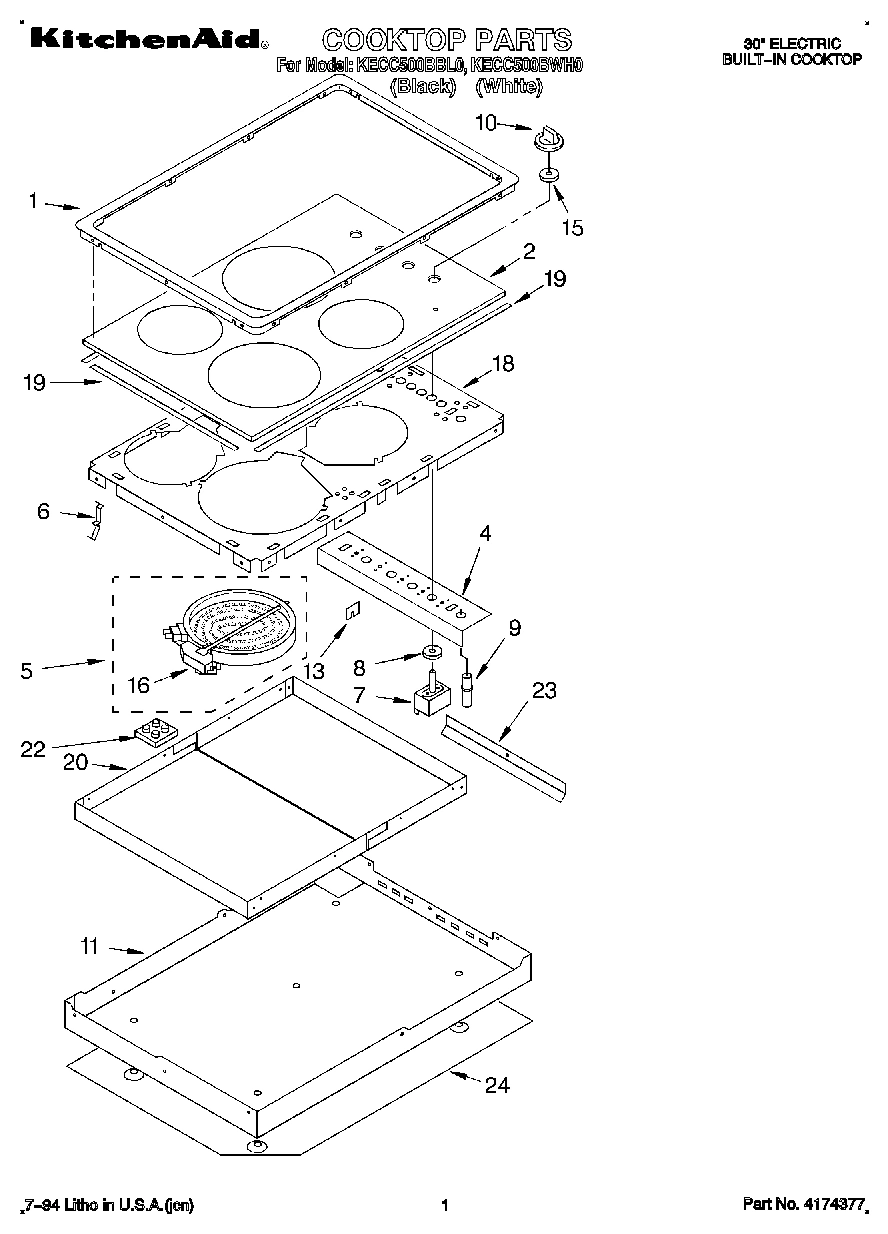

Common parts from model Whirlpool KECC500BBL0
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
Mounting Screws (10A X 2 (2)) WPL 258644 Contact Us For Availability
Clamp (2) WPL 3150320 Contact Us For Availability
Wiring Diagram WPL LIT3181504 Contact Us For Availability
Use & Care Guide WPL LIT3188081 Contact Us For Availability
Installation Instructions WPL LIT3188086 Contact Us For Availability
1

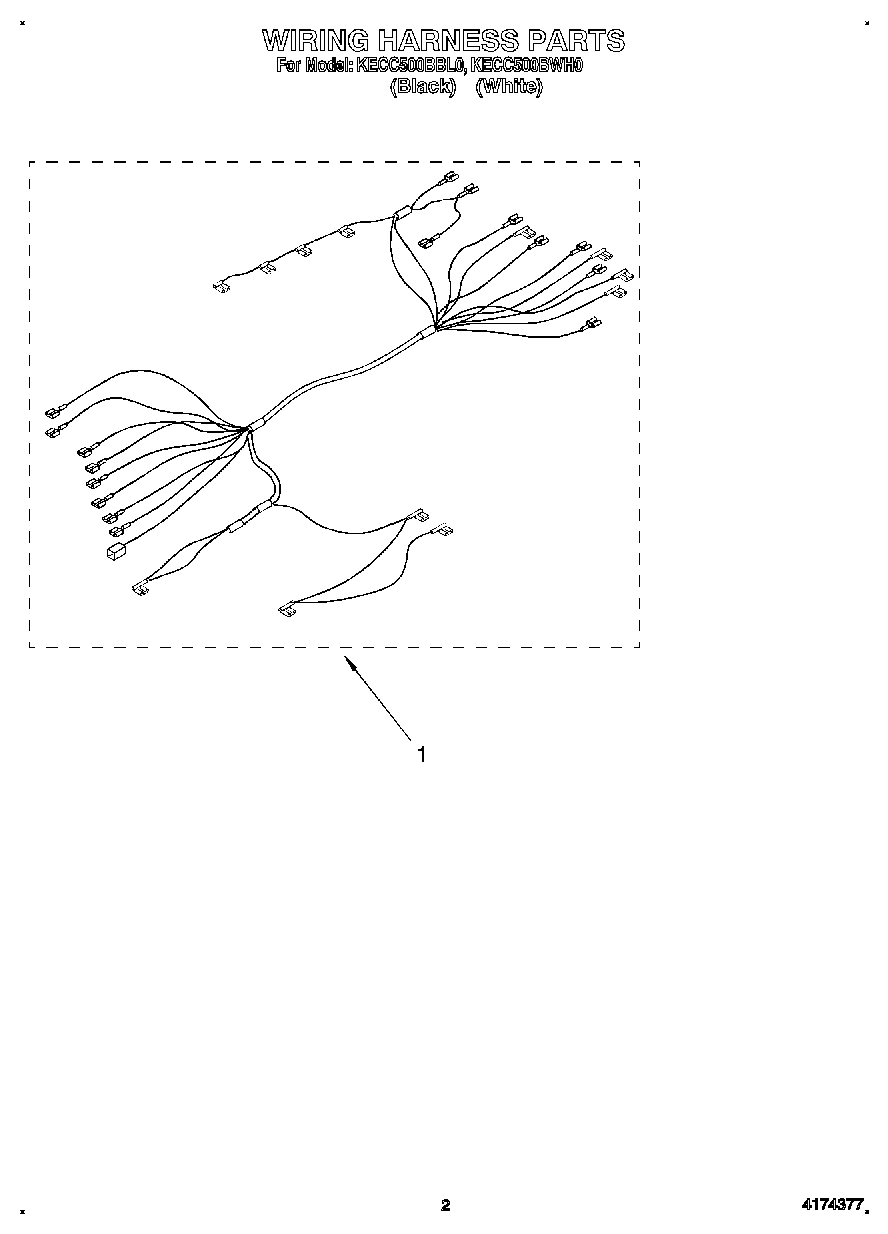

Wiring Harness Surface Unit WPL 3187801 Contact Us For Availability
4
Bracket, Switch Mounting WPL 3187584 Contact Us For Availability
5
Element, Surface (1400W Left Rear) WPL 3184952 Contact Us For Availability
5
Element, Surface (1700W Right Front) WPL 3184954 Contact Us For Availability
5
Element, Surface (2100W Right Rear) WPL 3184957 Contact Us For Availability
6
Spring Locator (8) WPL 3187707 Contact Us For Availability
7
Switch, Infinite (Use W/1400W Left Rear & 170 WPL 3148949 Contact Us For Availability
7
Switch, Infinite (Use W/2100W Right Rear Burn WPL 3148950 Contact Us For Availability
7
Switch, Infinite (Use W/2400W Left Front Burn WPL 3148965 Contact Us For Availability
8
Seal, Switch Shaft WPL 309839 Contact Us For Availability
9
Light, Indicator WPL 3187750 Contact Us For Availability
9
Screw WPL 4168863 Contact Us For Availability
10
Knob, Control (4) (Black) WPL 3150100 Contact Us For Availability
10
Knob, Control (4) (White) WPL 3150096 Contact Us For Availability
11
Box, Burner WPL 3188438 Contact Us For Availability
13
Grommet WPL 3187754 Contact Us For Availability
15
Seal, Switch (4) WPL 3182435 Contact Us For Availability
16
Switch, Limiter (Use W/3184952 Element) WPL 3187528 Contact Us For Availability
16
Switch, Limiter (Use W/3184954 Element) WPL 3187529 Contact Us For Availability
16
Switch, Limiter (Use W/3184957 Element) WPL 3187532 Contact Us For Availability
16
Switch, Limiter (Use W/3184960 Element) WPL 3187535 Contact Us For Availability
18
Plate, Backer WPL 3187427 Contact Us For Availability
19
Seal, Silicone (Small (3)) WPL 3185589 Contact Us For Availability
19
Seal, Silicone (Large (2)) WPL 3185590 Contact Us For Availability
20
Shield, Heat WPL 3187753 Contact Us For Availability
22
Lamp, Hot Surface Indicator WPL 3150304 Contact Us For Availability
23
Plate, Lower WPL 3188320 Contact Us For Availability
23
Screw WPL 4159456 Contact Us For Availability
24
Screw WPL 3148443 Contact Us For Availability
24
Shield, Heat WPL 3188437 Contact Us For Availability
× ![]()
