Model Whirlpool KDP19 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

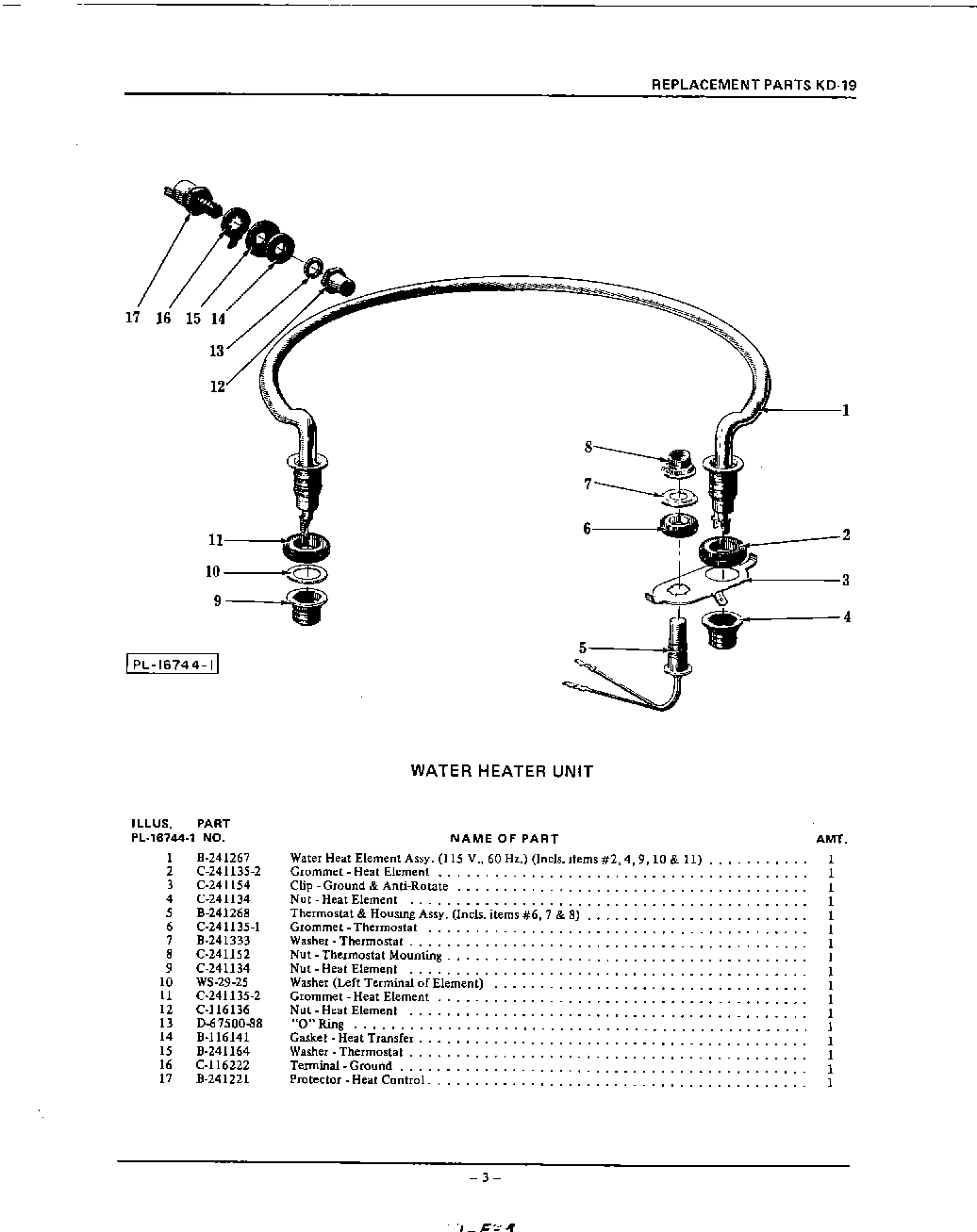

03 - WATER HEATER
05 - SECTION
10 - FILL AND OVERFILL
11 - SECTION
28 - SECTION
09 - SECTION
16 - SECTION
23 - (KDS)
20 - SECTION
22 - SECTION
07 - SECTION
14 - LOWER RACK
18 - LOWER WASH ARM AND STRAINERS
02 - ORDERING

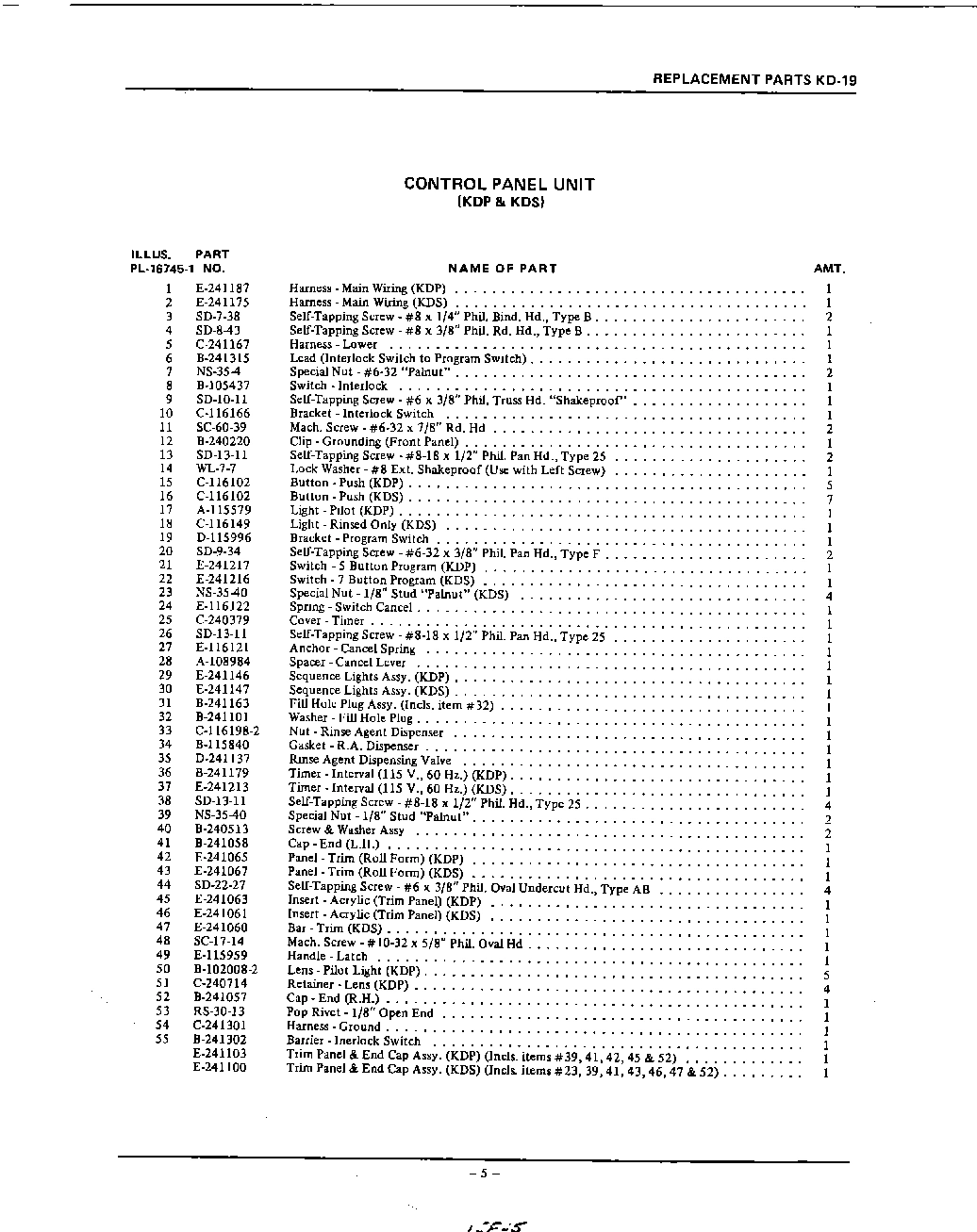

04 - KDP AND KDS
19 - DOOR AND LATCH
21 - TRIM AND CHANNEL
25 - (KDI AND KDP)
12 - WASH AND DRAIN PUMP
13 - SECTION
27 - (KDC)
24 - SECTION
26 - SECTION
06 - KDI AND KDC
08 - FLO-THRU DRYING
15 - UPPER WASH AND RINSE
17 - DRAIN
Common parts from model Whirlpool KDP19 UNDERCOUNTER DISHWASHER
× ![]()
