Model Whirlpool JXT7036ADS HOOD – Common Parts & Diagrams

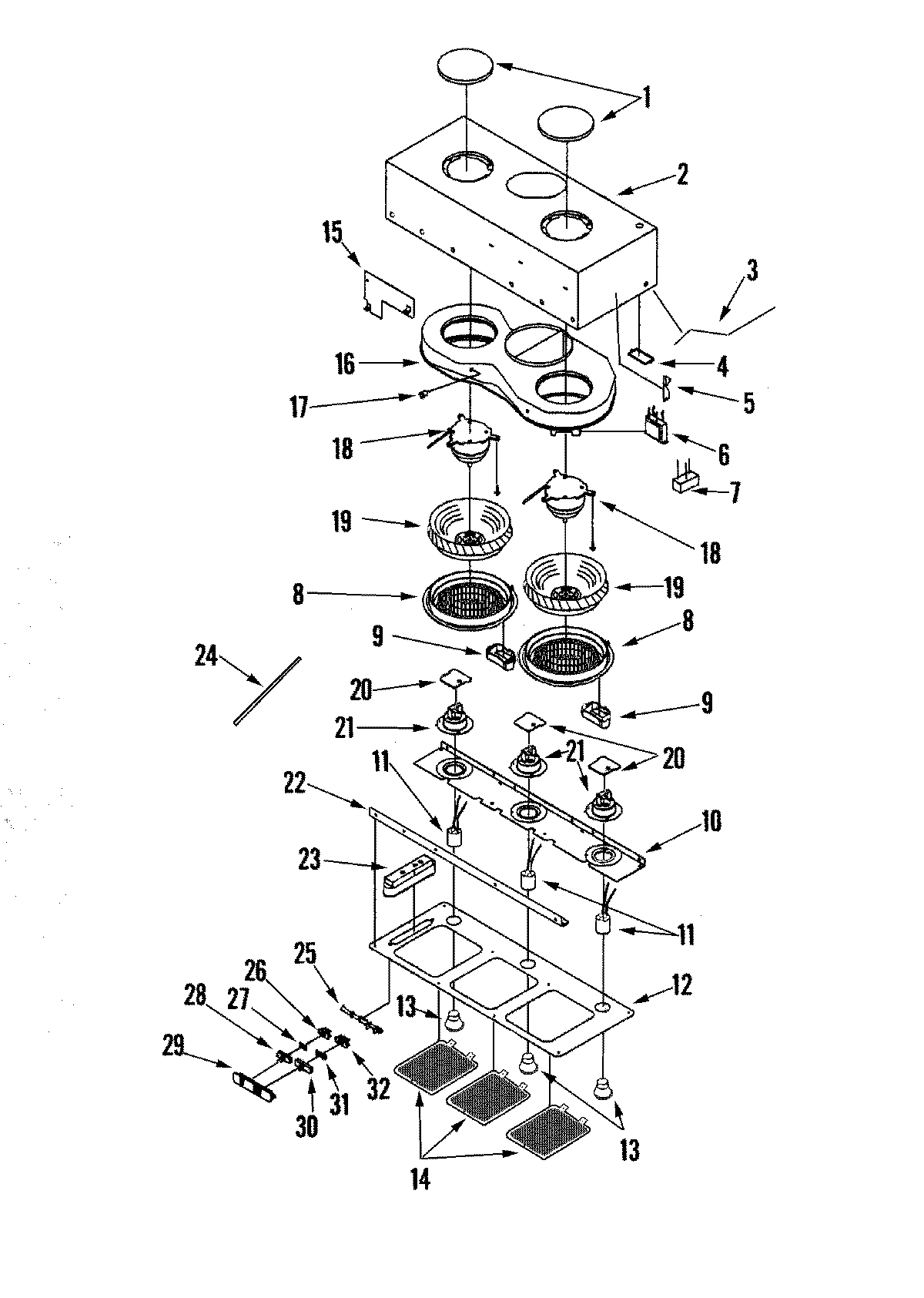

01 - HOOD COMPONENTS (COMPLETE)

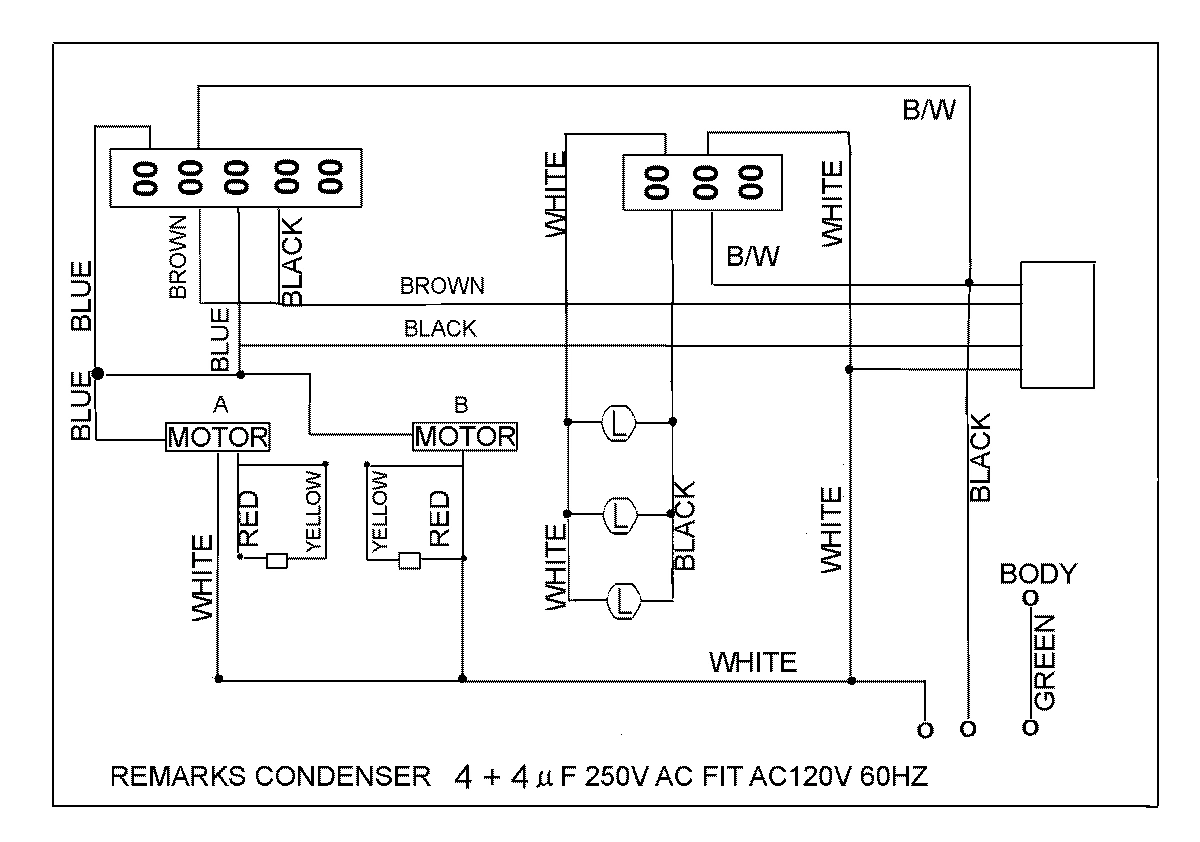

02 - WIRING INFORMATION
Common parts from model Whirlpool JXT7036ADS HOOD
1
ISOLATOR, MOTOR (STL) WPL 49001010 Contact Us For Availability
2
SHELL, HOOD WPL 49001011 Contact Us For Availability
3
CORD, POWER WPL 49001012 Contact Us For Availability
4
COVER PLATE, JUNCTION BOX WPL 49001013 Contact Us For Availability
5
CLIP, SPRING LOADED WPL 49001014 Contact Us For Availability
6
TRANSFORMER WPL 49001015 Contact Us For Availability
7
CONDENSER WPL 49001016 Contact Us For Availability
8
PAN, RESIDUAL WPL 49001017 Contact Us For Availability
9
CUP, GREASE WPL 49001018 Contact Us For Availability
10
PANEL, LIGHT WPL 49001019 Contact Us For Availability
11
SOCKET, LIGHT WPL 49001020 Contact Us For Availability
12
PLATE, STAINLESS BOTTOM WPL 49001021 Contact Us For Availability
13
HALOGEN LIGHT WPL 49001022 Contact Us For Availability
14
PANEL, DIFFUSER (STL) WPL 49001023 Contact Us For Availability
15
ISOLATOR PLATE WPL 49001024 Contact Us For Availability
16
FAN HOUSING WPL 49001025 Contact Us For Availability
17
RING, WIRE PROTECTOR WPL 49001026 Contact Us For Availability
18
MOTOR WPL 49001027 Contact Us For Availability
18
CLIPS, MOTOR HOUSING WPL 49001335 Contact Us For Availability
19
FAN BLADE WPL 49001028 Contact Us For Availability
20
LIGHT ISOLATOR WPL 49001029 Contact Us For Availability
21
COVER, LIGHT SOCKET WPL 49001030 Contact Us For Availability
22
MOUNTING BRACKET WPL 49001031 Contact Us For Availability
23
SWITCH BOX WPL 49001032 Contact Us For Availability
24
WIRE, CONNECTION WPL 49001033 Contact Us For Availability
25
GASKET, SWITCH WPL 49001034 Contact Us For Availability
26
SWITCH, SPEED WPL 49001035 Contact Us For Availability
27
COVER, SPEED (SLIDE) WPL 49001036 Contact Us For Availability
28
KNOB, SPEED SWITCH SLIDE WPL 49001037 Contact Us For Availability
29
SWITCH COVER PLATE WPL 49001038 Contact Us For Availability
30
INDICATOR LIGHT (SLIDE KNOB) WPL 49001039 Contact Us For Availability
31
COVER, INDICATOR LIGHT WPL 49001040 Contact Us For Availability
32
INDICATOR LIGHT ASSEMBLY WPL 49001041 Contact Us For Availability
33
MANUAL, USE & CARE WPL 49001007 Contact Us For Availability
34
KIT, HARDWARE WPL 49001163 Contact Us For Availability
35
42`` LINER-STL (JXT7036ADS) WPL JXT7142ADS Contact Us For Availability
36
48`` LINER-STL (JXT7036ADS) WPL JXT7148ADS Contact Us For Availability
NI
WIRING INFORMATION WPL 15003242 Contact Us For Availability
× ![]()
