Model Huebsch JTD32DG Dryer – Common Parts & Diagrams

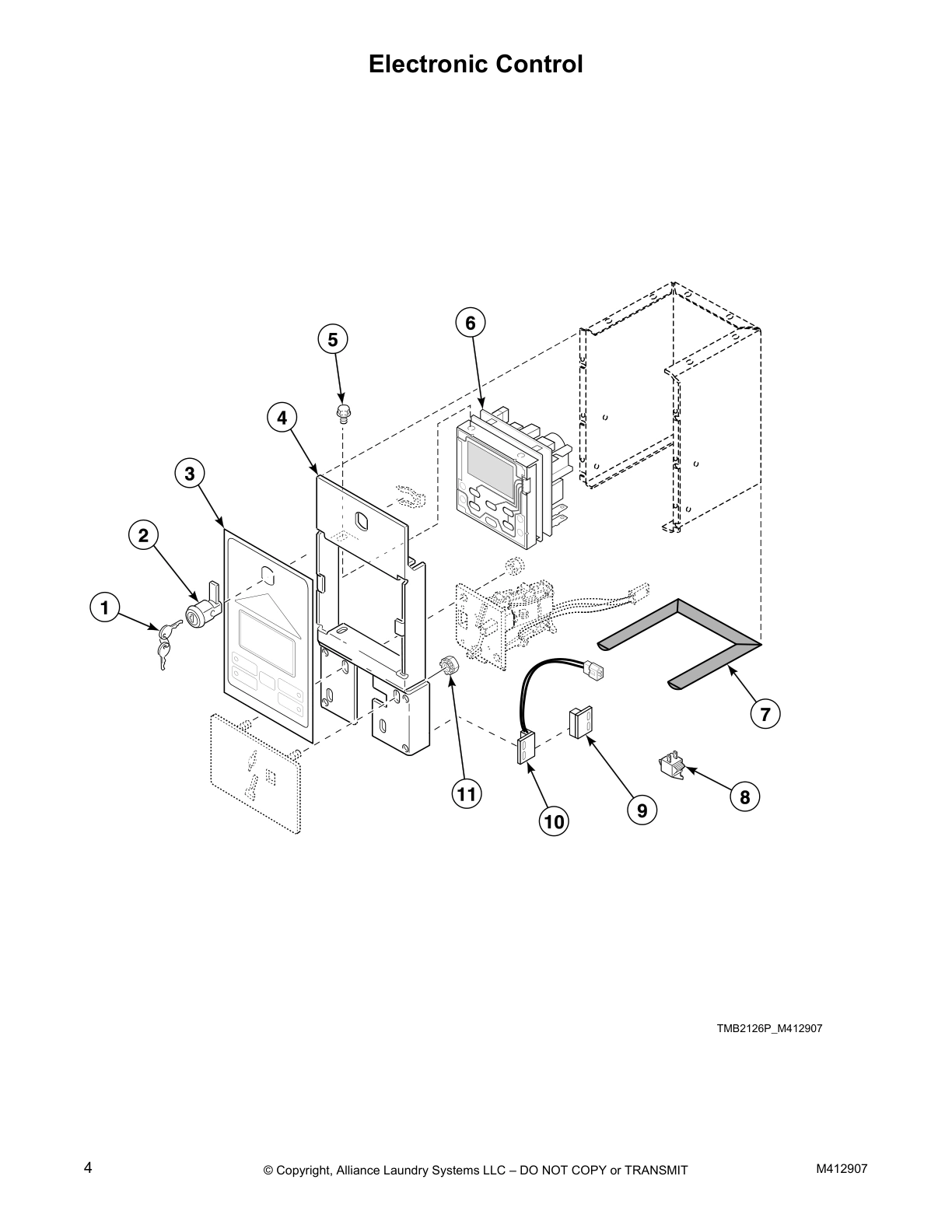

Electronic Control

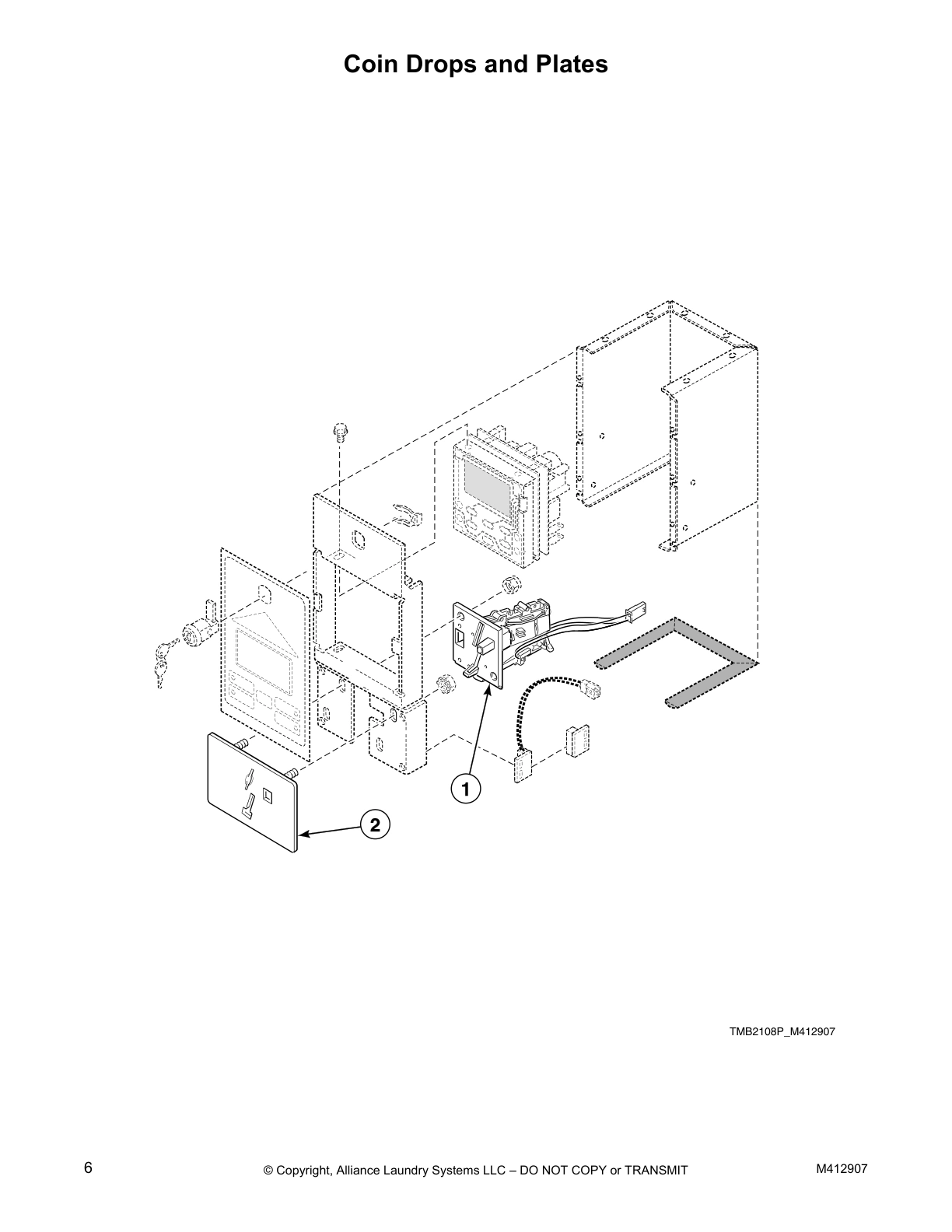

Coin Drops and Plates
Electro-Mechanical Control
Front Panel Assembly
Side Panels
Loading Door - Models 32DG, SCD32DG and STD32DG
Loading Door - Models JCD32DG and JTD32DG
Lint Drawer
Cylinder
Drive Shaft
Blower Housing and Fan
Motor and Belt Guard
Thermostat and Burner
Gas Valve
Gas Valve Coils
Junction Box - 120, 208 or 240 Volt/60 Hertz
Junction Box - 240 Volt/50 Hertz or 220 Volt/60 Hertz
Contactor Box
Stickers and Labels - Front of Machine
Stickers and Labels - Rear of Machine
Common parts from model Huebsch JTD32DG Dryer
SPQ 430938 SPQ 430938 Contact Us For Availability
1
L.P. Valve Replacement SPQ 868P3 Contact Us For Availability
1
Panel Key SPQ M401680 Contact Us For Availability
1
Door Assembly SPQ M410887 Contact Us For Availability
1
Cylinder and Trunnion Assembly SPQ 430580P Contact Us For Availability
1
Fan Shaft Assembly SPQ 430853 Contact Us For Availability
1
Stove Limit Thermostat SPQ 431177 Contact Us For Availability
1
Instant Electronic Ignition Valve Coil Kit SPQ M409253P Contact Us For Availability
1
Fuse Receptacle SPQ 91024P Contact Us For Availability
1
Warning Label SPQ 70534301 Contact Us For Availability
2
Screw SPQ M406129 Contact Us For Availability
2
High Voltage Lead SPQ 430257 Contact Us For Availability
2
Lock and Key SPQ 430429P Contact Us For Availability
2
Thermostat Cover SPQ M414477 Contact Us For Availability
3
Lint Screen Frame Ass SPQ 431215 Contact Us For Availability
3
Seal Strap SPQ 430099 Contact Us For Availability
3
SPQ 02428 SPQ 02428 Contact Us For Availability
3
Screw SPQ M401327 Contact Us For Availability
3
Shut-Off Valve Kit SPQ 431182P Contact Us For Availability
4
SPQ 430929P SPQ 430929P Contact Us For Availability
4
SPQ 430875 SPQ 430875 Contact Us For Availability
4
O-Ring SPQ 431182A Contact Us For Availability
4
Screw SPQ 430641 Contact Us For Availability
5
Terminal Block SPQ 430642 Contact Us For Availability
5
SPQ 430105P SPQ 430105P Contact Us For Availability
5
SPQ 430263 SPQ 430263 Contact Us For Availability
6
Actuator Switch Block SPQ 430489 Contact Us For Availability
6
SPQ 430355P SPQ 430355P Contact Us For Availability
6
Burner Orifice SPQ 431191 Contact Us For Availability
6
Screw SPQ 51778 Contact Us For Availability
7
SPQ M400044 SPQ M400044 Contact Us For Availability
7
Gasket SPQ 431273 Contact Us For Availability
7
SPQ 430219 SPQ 430219 Contact Us For Availability
7
SPQ 430536P SPQ 430536P Contact Us For Availability
7
Washer SPQ 431545 Contact Us For Availability
7
Burner Orifice SPQ 431010 Contact Us For Availability
7
Junction Box Cover SPQ 430554 Contact Us For Availability
8
SPQ 28193 SPQ 28193 Contact Us For Availability
8
SPQ M402585 SPQ M402585 Contact Us For Availability
8
Lock, Key and Nut Kit SPQ 70396901P Contact Us For Availability
8
SPQ 02422 SPQ 02422 Contact Us For Availability
8
SPQ 430534 SPQ 430534 Contact Us For Availability
8
SPQ 430317P SPQ 430317P Contact Us For Availability
8
Screw SPQ 70684136 Contact Us For Availability
8
Vent and Thimble Caution Label SPQ M411815 Contact Us For Availability
9
Instant Electronic Ignition Wire Harness Asse SPQ M406789P Contact Us For Availability
9
SPQ 44102801 SPQ 44102801 Contact Us For Availability
9
SPQ M406103 SPQ M406103 Contact Us For Availability
9
SPQ M400017 SPQ M400017 Contact Us For Availability
9
SPQ 70072901 SPQ 70072901 Contact Us For Availability
10
Motor SPQ 431325P Contact Us For Availability
10
Limit Thermostat SPQ M406412 Contact Us For Availability
10
Door Latch SPQ M401223 Contact Us For Availability
10
Cotter Pin SPQ 02470 Contact Us For Availability
10
N.G. Valve Replacemen SPQ 867P3 Contact Us For Availability
11
Switch Mounting Plate SPQ M411595 Contact Us For Availability
11
Screw SPQ M400063 Contact Us For Availability
11
Sheave SPQ 430800P Contact Us For Availability
11
Key SPQ 430426 Contact Us For Availability
11
Airflow Switch Vane SPQ 70502301 Contact Us For Availability
12
Nut SPQ M400034 Contact Us For Availability
12
Hinge Bracket SPQ 431044 Contact Us For Availability
12
Lint Compartment Labe SPQ 430527 Contact Us For Availability
12
Washer SPQ 430782 Contact Us For Availability
12
Screw SPQ M401938 Contact Us For Availability
13
Spacer SPQ M400991 Contact Us For Availability
13
Hinge Assembly SPQ M410762 Contact Us For Availability
13
Bumper SPQ 431539 Contact Us For Availability
13
Mounting Insulation SPQ H96418728 Contact Us For Availability
14
Jackshaft Assembly SPQ 430054 Contact Us For Availability
14
Shadow Box and Clip SPQ M400131P Contact Us For Availability
14
Washer SPQ M400514 Contact Us For Availability
14
Felt Pad SPQ 430260P Contact Us For Availability
14
Airflow Switch Bracket SPQ 430370 Contact Us For Availability
15
Screw SPQ M400784P Contact Us For Availability
15
Spring SPQ M401930 Contact Us For Availability
15
Drive Idler Arm SPQ 430648 Contact Us For Availability
16
Door Glass Seal Kit SPQ 70133601P Contact Us For Availability
16
Lint Drawer Overlay SPQ 431235 Contact Us For Availability
16
Pop Rivet SPQ M401947 Contact Us For Availability
16
Idler Pulley Bracket SPQ 430618 Contact Us For Availability
17
Replacement Door Handle Kit SPQ 70211901P Contact Us For Availability
17
Screw SPQ M401402 Contact Us For Availability
17
Partition Reinforcing Plate SPQ 430867 Contact Us For Availability
17
Nut SPQ 430250 Contact Us For Availability
18
Nut SPQ 70133501P Contact Us For Availability
18
Retaining Ring SPQ M402144 Contact Us For Availability
18
Key SPQ 430856 Contact Us For Availability
19
Door Ring Gasket SPQ M414215 Contact Us For Availability
19
Blower SPQ 430442 Contact Us For Availability
20
Cylinder Idler Bracket SPQ 430104P Contact Us For Availability
20
Roller Bearing Assembly SPQ M400003 Contact Us For Availability
20
Hinge Pin SPQ M409385 Contact Us For Availability
20
Hinge Pin SPQ M400661 Contact Us For Availability
21
Washer SPQ 430050P Contact Us For Availability
22
Thimble and Vane Assembly SPQ 430252 Contact Us For Availability
23
Bracket SPQ F430264 Contact Us For Availability
23
Cylinder Idler Arm SPQ M400993 Contact Us For Availability
24
Front Seal Kit SPQ 70061 Contact Us For Availability
24
SPQ 430193 SPQ 430193 Contact Us For Availability
26
SPQ M400022 SPQ M400022 Contact Us For Availability
27
SPQ 44127401P SPQ 44127401P Contact Us For Availability
27
Front Cylinder Seal Strap SPQ 431315 Contact Us For Availability
28
Cylinder Assembly SPQ 430019 Contact Us For Availability
31
Trunnion Assembly SPQ 431361 Contact Us For Availability
31
SPQ 430338 SPQ 430338 Contact Us For Availability
32
Cylinder Bearing Stud Plate Assembly SPQ 430954 Contact Us For Availability
34
SPQ 430844P SPQ 430844P Contact Us For Availability
35
SPQ 430845P SPQ 430845P Contact Us For Availability
NI
SPQ 44089302P SPQ 44089302P Contact Us For Availability
NI
SPQ 44089301P SPQ 44089301P Contact Us For Availability
NI
SPQ M410302 SPQ M410302 Contact Us For Availability
NI
SPQ 431546 SPQ 431546 Contact Us For Availability
NI
SPQ 70684110 SPQ 70684110 Contact Us For Availability
NI
SPQ 431192 SPQ 431192 Contact Us For Availability
NI
SPQ 563P3 SPQ 563P3 Contact Us For Availability
NI
SPQ 550P3 SPQ 550P3 Contact Us For Availability
NI
SPQ 430223 SPQ 430223 Contact Us For Availability
× ![]()
