Model GE JGHC56GEJ4 – Common Parts & Diagrams

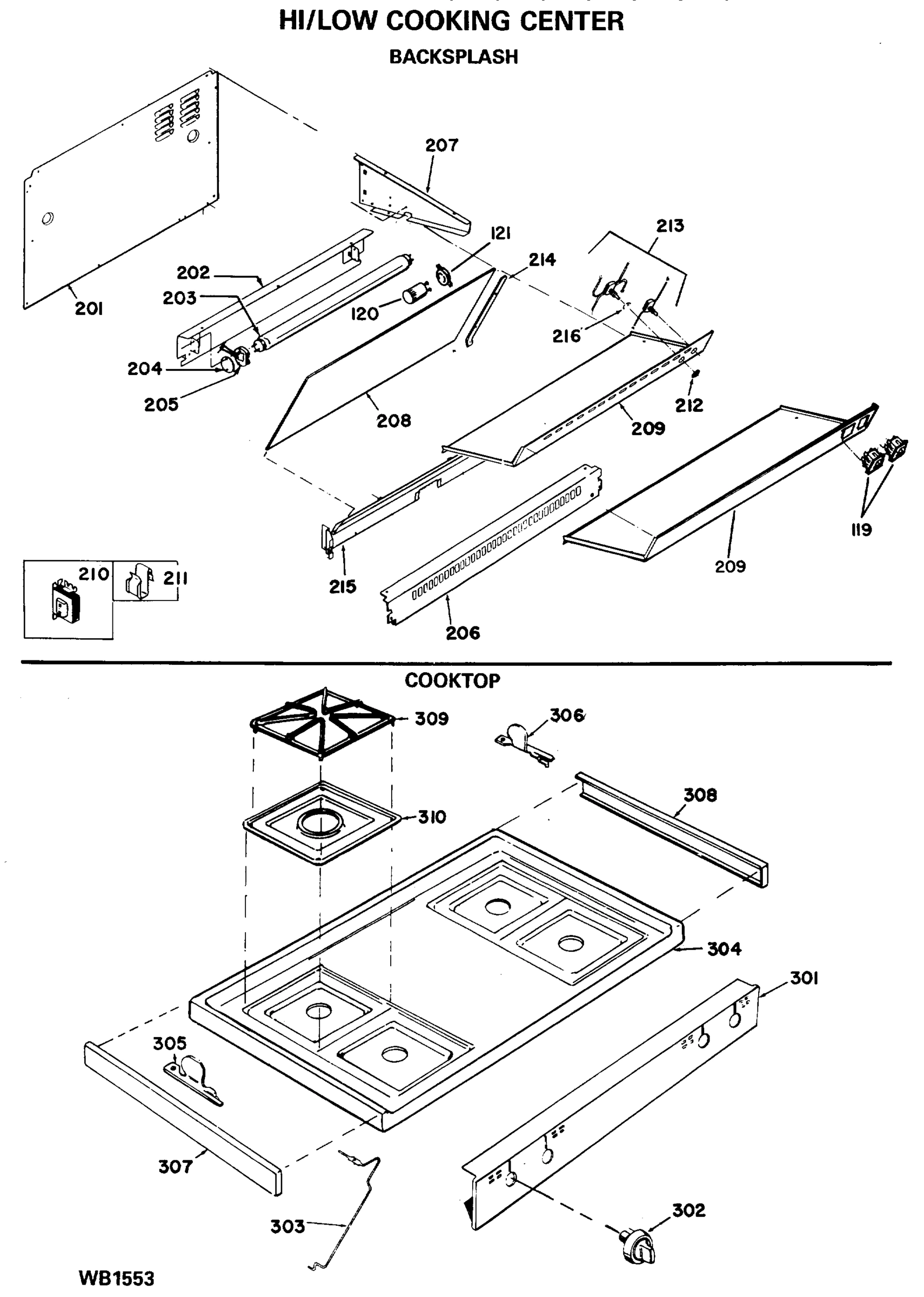

HI/LOW COOKING CENTER

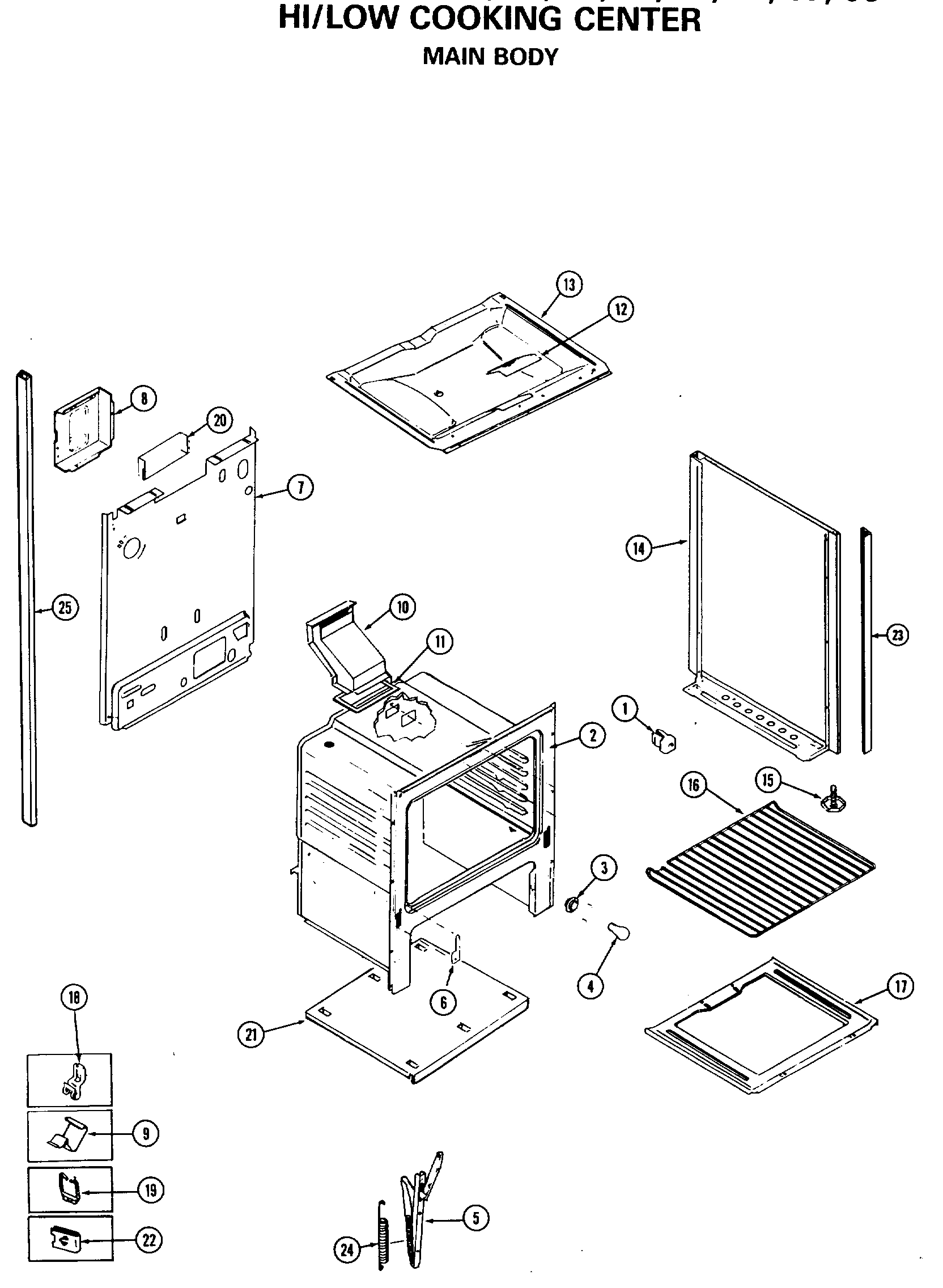

HI/LOW COOKING CENTER
HI/LOW COOKING CENTER
HI/LOW COOKING CENTER
HI/LOW COOKING CENTER
Common parts from model GE JGHC56GEJ4
5
GEN WB10X245 GEN WB10X245 Contact Us For Availability
6
GEN WB2X4763 GEN WB2X4763 Contact Us For Availability
7
GEN WB63X276 GEN WB63X276 Contact Us For Availability
8
GEN WB63X286 GEN WB63X286 Contact Us For Availability
9
GEN WB1X923 GEN WB1X923 Contact Us For Availability
10
GEN WB38X101 GEN WB38X101 Contact Us For Availability
12
COVER PLATE GEN WB2X10084 Contact Us For Availability
13
GEN WB56X1780 GEN WB56X1780 Contact Us For Availability
14
GEN WB63X281 GEN WB63X281 Contact Us For Availability
14
GEN WB63X282 GEN WB63X282 Contact Us For Availability
14
GEN WB63X283 GEN WB63X283 Contact Us For Availability
14
GEN WB63X284 GEN WB63X284 Contact Us For Availability
15
GEN WB1X711 GEN WB1X711 Contact Us For Availability
16
GEN WB48X202 GEN WB48X202 Contact Us For Availability
17
GEN WB2X4776 GEN WB2X4776 Contact Us For Availability
17
GEN WB2X4964 GEN WB2X4964 Contact Us For Availability
17
GEN WB2X4965 GEN WB2X4965 Contact Us For Availability
17
GEN WB53X272 GEN WB53X272 Contact Us For Availability
18
GEN WB18X255 GEN WB18X255 Contact Us For Availability
18
GEN WB2X4968 GEN WB2X4968 Contact Us For Availability
19
GEN WB1X1014 GEN WB1X1014 Contact Us For Availability
20
GEN WB38X99 GEN WB38X99 Contact Us For Availability
21
GEN WB63X288 GEN WB63X288 Contact Us For Availability
22
GEN WB1X1105 GEN WB1X1105 Contact Us For Availability
23
GEN WB7X1532 GEN WB7X1532 Contact Us For Availability
24
GEN WB9X228 GEN WB9X228 Contact Us For Availability
25
GEN WB2X10086 GEN WB2X10086 Contact Us For Availability
25
GEN WB2X10087 GEN WB2X10087 Contact Us For Availability
202
GEN WB61X337 GEN WB61X337 Contact Us For Availability
203
BULB-FLUORESCENT LIGHT GEN WB02X4666 Contact Us For Availability
204
INSULATOR-FL. LT. RECEP. GEN WB2X10079 Contact Us For Availability
205
GEN WB8X242 GEN WB8X242 Contact Us For Availability
206
GEN WB07X1482 GEN WB07X1482 Contact Us For Availability
207
GEN WB7X1482 GEN WB7X1482 Contact Us For Availability
208
GEN WB36X741 GEN WB36X741 Contact Us For Availability
209
GEN WB61X342 GEN WB61X342 Contact Us For Availability
210
GEN WB20X87 GEN WB20X87 Contact Us For Availability
211
FASTENER-CABLE CLAMP GEN WB2X10053 Contact Us For Availability
212
GEN WB7X1479 GEN WB7X1479 Contact Us For Availability
213
GEN WB24X398 GEN WB24X398 Contact Us For Availability
215
GEN WB7X1552 GEN WB7X1552 Contact Us For Availability
216
GEN WB1X808 GEN WB1X808 Contact Us For Availability
301
GEN WB7X1556 GEN WB7X1556 Contact Us For Availability
302
GEN WB3X712 No Longer Available
303
GEN WB02X4736 GEN WB02X4736 Contact Us For Availability
304
GEN WB62X1641 GEN WB62X1641 Contact Us For Availability
304
GEN WB62X1642 GEN WB62X1642 Contact Us For Availability
305
GEN WB10X0239 GEN WB10X0239 Contact Us For Availability
306
GEN WB10X0240 GEN WB10X0240 Contact Us For Availability
307
GEN WB07X1526 GEN WB07X1526 Contact Us For Availability
308
GEN WB07X1527 GEN WB07X1527 Contact Us For Availability
309
GRATE-TOP BURNER GEN WB32X0089 Contact Us For Availability
310
PAN-TOP BURNER GEN WB32X0090 Contact Us For Availability
462
GEN WB56X1834 GEN WB56X1834 Contact Us For Availability
463
GLASS-OVEN DOOR-OUTER GEN WB56X1883 Contact Us For Availability
464
GEN WB15X245 GEN WB15X245 Contact Us For Availability
465
GEN WB7X1483 GEN WB7X1483 Contact Us For Availability
466
GEN WB56X1980 GEN WB56X1980 Contact Us For Availability
467
GEN WB2X4985 GEN WB2X4985 Contact Us For Availability
468
GEN WB56X1974 GEN WB56X1974 Contact Us For Availability
469
GEN WB2X4738 GEN WB2X4738 Contact Us For Availability
470
GEN WB2X4984 GEN WB2X4984 Contact Us For Availability
471
GEN WB1X705 GEN WB1X705 Contact Us For Availability
472
GEN WB1X1016 GEN WB1X1016 Contact Us For Availability
473
GEN WB1X1060 GEN WB1X1060 Contact Us For Availability
474
GEN WB1X688 GEN WB1X688 Contact Us For Availability
475
GEN WB2X4977 GEN WB2X4977 Contact Us For Availability
476
GEN WB1X927 GEN WB1X927 Contact Us For Availability
477
GEN WB55X636 GEN WB55X636 Contact Us For Availability
501
GEN WB10X246 GEN WB10X246 Contact Us For Availability
501
GEN WB10X247 GEN WB10X247 Contact Us For Availability
502
GEN WB1X1059 GEN WB1X1059 Contact Us For Availability
503
GEN WB55X569 GEN WB55X569 Contact Us For Availability
504
GEN WB1X701 GEN WB1X701 Contact Us For Availability
505
GEN WB9X197 GEN WB9X197 Contact Us For Availability
505
GEN WB9X200 GEN WB9X200 Contact Us For Availability
506
GEN WB1X786 GEN WB1X786 Contact Us For Availability
506
GEN WB2X4995 GEN WB2X4995 Contact Us For Availability
506
GEN WB56X1851 GEN WB56X1851 Contact Us For Availability
507
GEN WB56X1853 GEN WB56X1853 Contact Us For Availability
507
GEN WB56X1854 GEN WB56X1854 Contact Us For Availability
508
GEN WB15X233 GEN WB15X233 Contact Us For Availability
508
GEN WB1X1024 GEN WB1X1024 Contact Us For Availability
509
GEN WB1X1025 GEN WB1X1025 Contact Us For Availability
510
GEN WB39X65 GEN WB39X65 Contact Us For Availability
511
GEN WB49X569 GEN WB49X569 Contact Us For Availability
512
GEN WB49X568 GEN WB49X568 Contact Us For Availability
513
GEN WB39X66 GEN WB39X66 Contact Us For Availability
514
GEN WB2X4996 GEN WB2X4996 Contact Us For Availability
701
GEN WB49X593 GEN WB49X593 Contact Us For Availability
702
GEN WB28X74 GEN WB28X74 Contact Us For Availability
703
GEN WB28X67 GEN WB28X67 Contact Us For Availability
704
GEN WB02X9365 GEN WB02X9365 Contact Us For Availability
705
GEN WB2X4742 GEN WB2X4742 Contact Us For Availability
706
GEN WB2X4743 GEN WB2X4743 Contact Us For Availability
707
GEN WB2X4744 GEN WB2X4744 Contact Us For Availability
708
GEN WB2X4745 GEN WB2X4745 Contact Us For Availability
709
GEN WB2X4746 GEN WB2X4746 Contact Us For Availability
710
GEN WB02X9366 GEN WB02X9366 Contact Us For Availability
711
GEN WB2X4749 GEN WB2X4749 Contact Us For Availability
712
GEN WB21X422 GEN WB21X422 Contact Us For Availability
713
GEN WB2X4750 GEN WB2X4750 Contact Us For Availability
714
GEN WB1X1027 GEN WB1X1027 Contact Us For Availability
715
RETAINER-IGNITER/GROUND GEN WB02X9364 Contact Us For Availability
716
GEN WB24X379 GEN WB24X379 Contact Us For Availability
717
OVEN IGNITER GEN WB2X10016 No Longer Available
718
GEN WB2X4753 GEN WB2X4753 Contact Us For Availability
721
FITTING-LOXIT GEN WB2X10012 Contact Us For Availability
722
GEN WB2X10109 GEN WB2X10109 Contact Us For Availability
723
GEN WB2X4758 GEN WB2X4758 Contact Us For Availability
724
GEN WB2X4760 GEN WB2X4760 Contact Us For Availability
725
GEN WB21X423 GEN WB21X423 Contact Us For Availability
726
GEN WB21X424 GEN WB21X424 Contact Us For Availability
727
GEN WB2X4772 GEN WB2X4772 Contact Us For Availability
728
GEN WB2X4385 GEN WB2X4385 Contact Us For Availability
729
GEN WB2X4308 GEN WB2X4308 Contact Us For Availability
730
GEN WB2X10110 GEN WB2X10110 Contact Us For Availability
731
GEN WB28X51 GEN WB28X51 Contact Us For Availability
732
GEN WB1X928 GEN WB1X928 Contact Us For Availability
733
GEN WB01X694 GEN WB01X694 Contact Us For Availability
901
GEN WB1X10107 GEN WB1X10107 Contact Us For Availability
902
GEN WB21X0490 GEN WB21X0490 Contact Us For Availability
904
GEN WB19X241 GEN WB19X241 Contact Us For Availability
905
GEN WB1X774 GEN WB1X774 Contact Us For Availability
906
GEN WB2X4391 GEN WB2X4391 Contact Us For Availability
906
GEN WB36X690 GEN WB36X690 Contact Us For Availability
907
GEN WB2X4390 GEN WB2X4390 Contact Us For Availability
907
GEN WB7X1387 GEN WB7X1387 Contact Us For Availability
908
GEN WB3X628 GEN WB3X628 Contact Us For Availability
909
GEN WB3X738 GEN WB3X738 Contact Us For Availability
910
GEN WB03X0792 GEN WB03X0792 Contact Us For Availability
911
GEN WB03X0793 GEN WB03X0793 Contact Us For Availability
912
GEN WB21X451 GEN WB21X451 Contact Us For Availability
913
GEN WB22X113 GEN WB22X113 Contact Us For Availability
1002
SUPPORT-UPPER OVEN-LH GEN WB2X4369 Contact Us For Availability
1002
SUPPORT-UPPER OVEN-RH GEN WB2X4370 Contact Us For Availability
1003
GEN WB14X88 GEN WB14X88 Contact Us For Availability
1004
GEN WB2X4371 GEN WB2X4371 Contact Us For Availability
1005
GEN WB1X1061 GEN WB1X1061 Contact Us For Availability
1006
GEN WB2X4372 GEN WB2X4372 Contact Us For Availability
1007
GEN WB1X706 GEN WB1X706 Contact Us For Availability
1008
GEN WB2X4374 GEN WB2X4374 Contact Us For Availability
1009
GEN WB2X4373 GEN WB2X4373 Contact Us For Availability
1010
GEN WB2X4375 GEN WB2X4375 Contact Us For Availability
1011
GEN WB2X4376 GEN WB2X4376 Contact Us For Availability
1012
GEN WB2X4377 GEN WB2X4377 Contact Us For Availability
1013
GEN WB39X67 GEN WB39X67 Contact Us For Availability
1014
GEN WB55X581 GEN WB55X581 Contact Us For Availability
1015
GEN WB48X172 GEN WB48X172 Contact Us For Availability
1016
GEN WB48X173 GEN WB48X173 Contact Us For Availability
1017
TRIM-SIDE PANEL-LH GEN WB7X1385 Contact Us For Availability
1017
TRIM-SIDE PANEL-RH GEN WB7X1386 Contact Us For Availability
1017
*SCREW-TRIM MOUNTING GEN WB1X802 Contact Us For Availability
1018
GEN WB63X299 GEN WB63X299 Contact Us For Availability
1018
GEN WB63X300 GEN WB63X300 Contact Us For Availability
1018
GEN WB63X301 GEN WB63X301 Contact Us For Availability
1018
GEN WB63X302 GEN WB63X302 Contact Us For Availability
1019
GEN WB2X4531 GEN WB2X4531 Contact Us For Availability
1019
GEN WB63X304 GEN WB63X304 Contact Us For Availability
1021
GEN WB1X801 GEN WB1X801 Contact Us For Availability
1022
CATCH ASSEMBLY-DOOR GEN WB10X0226 Contact Us For Availability
1022
GEN WB14X90 GEN WB14X90 Contact Us For Availability
1023
BULB-OVEN-40 WATT GEN BUY LOCAL Contact Us For Availability
1024
GEN WB8X262 GEN WB8X262 Contact Us For Availability
1025
GEN WB2X4379 GEN WB2X4379 Contact Us For Availability
1026
GEN WB2X4532 GEN WB2X4532 Contact Us For Availability
1026
GEN WB49X543 GEN WB49X543 Contact Us For Availability
1027
GEN WB63X0305 GEN WB63X0305 Contact Us For Availability
1028
GEN WB2X10111 GEN WB2X10111 Contact Us For Availability
1029
GEN WB1X769 GEN WB1X769 Contact Us For Availability
1030
GEN WB14X89 GEN WB14X89 Contact Us For Availability
1031
GEN WB1X1015 GEN WB1X1015 Contact Us For Availability
1032
BACK-UPPER BASIC BODY GEN WB61X341 Contact Us For Availability
1032
GEN WB2X4381 GEN WB2X4381 Contact Us For Availability
1101
GEN WB2X4365 GEN WB2X4365 Contact Us For Availability
1102
GEN WB36X688 GEN WB36X688 Contact Us For Availability
1103
GEN WB36X689 GEN WB36X689 Contact Us For Availability
1104
GEN WB14X91 GEN WB14X91 Contact Us For Availability
1105
GEN WB1X694 GEN WB1X694 Contact Us For Availability
1106
GEN WB7X1383 GEN WB7X1383 Contact Us For Availability
1107
GEN WB2X4366 GEN WB2X4366 Contact Us For Availability
1108
GEN WB7X1384 GEN WB7X1384 Contact Us For Availability
1109
GEN WB15X210 GEN WB15X210 Contact Us For Availability
1110
SCREW- HANDLE-OVEN DOOR GEN WB1X1062 Contact Us For Availability
1111
GEN WB1X806 GEN WB1X806 Contact Us For Availability
9999
GEN 49-4811 GEN 49-4811 Contact Us For Availability
32767
GEN 31-0642 GEN 31-0642 Contact Us For Availability
× ![]()
