Model Whirlpool JEC8536BDB10 ELECTRIC COOK-TOP – Common Parts & Diagrams

Common parts from model Whirlpool JEC8536BDB10 ELECTRIC COOK-TOP

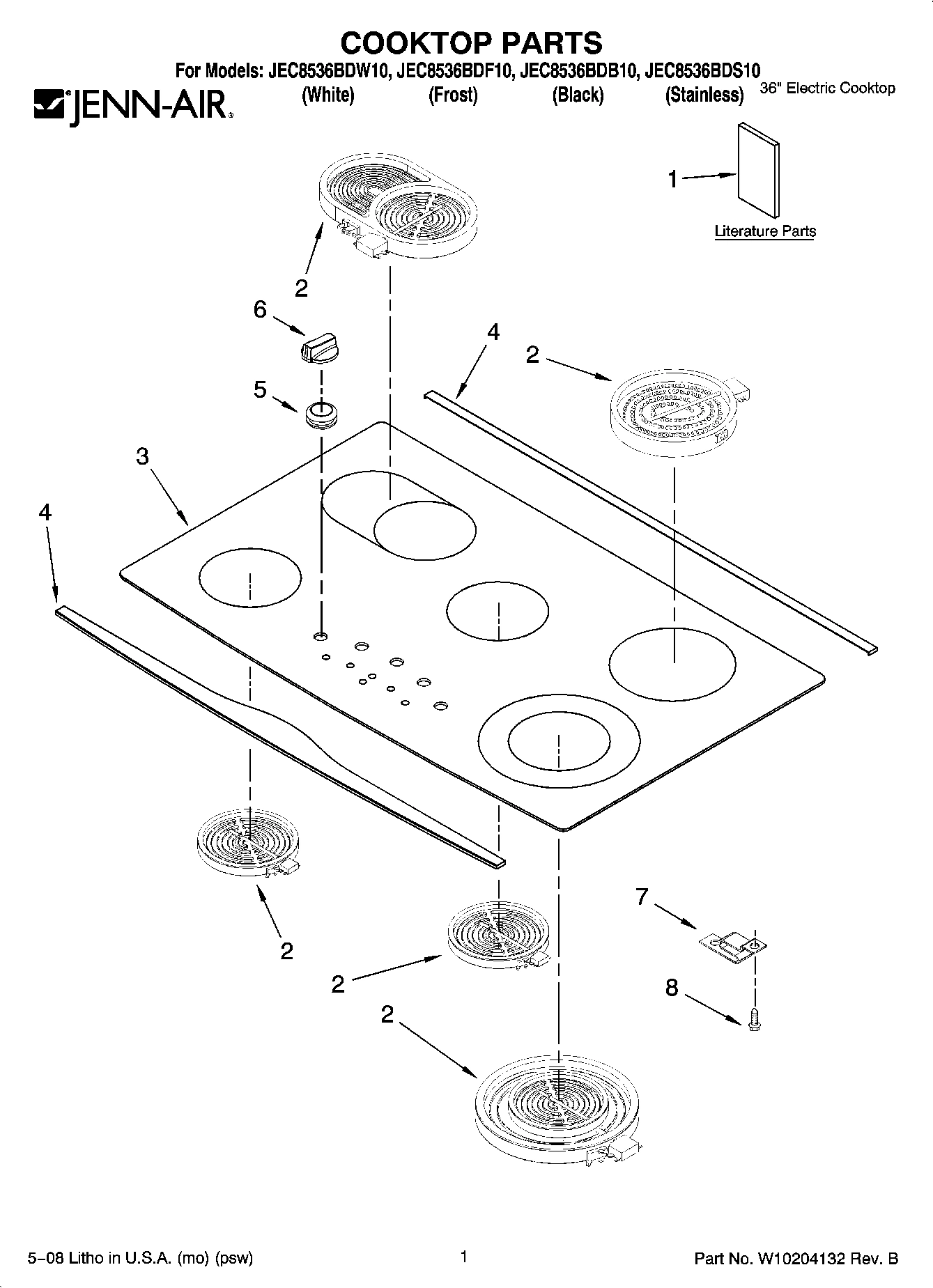

01 - COOKTOP PARTS

Print

• This Diagram
• All Diagrams

Hot Light Assy. WPL 5171P76460 Contact Us For Availability

View on Model

Clamp, Wire 3/4`` WPL 7111P02060 Contact Us For Availability

View on Model

HARNESS, SWITCH (LT) WPL 74011000 Contact Us For Availability

View on Model

HARNESS, SWITCH (RT) WPL 74011003 Contact Us For Availability

View on Model

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI3243A94 Contact Us For Availability

View on Model

WIRING HARNESS PARTS WPL ARI3244A89 Contact Us For Availability

View on Model

1

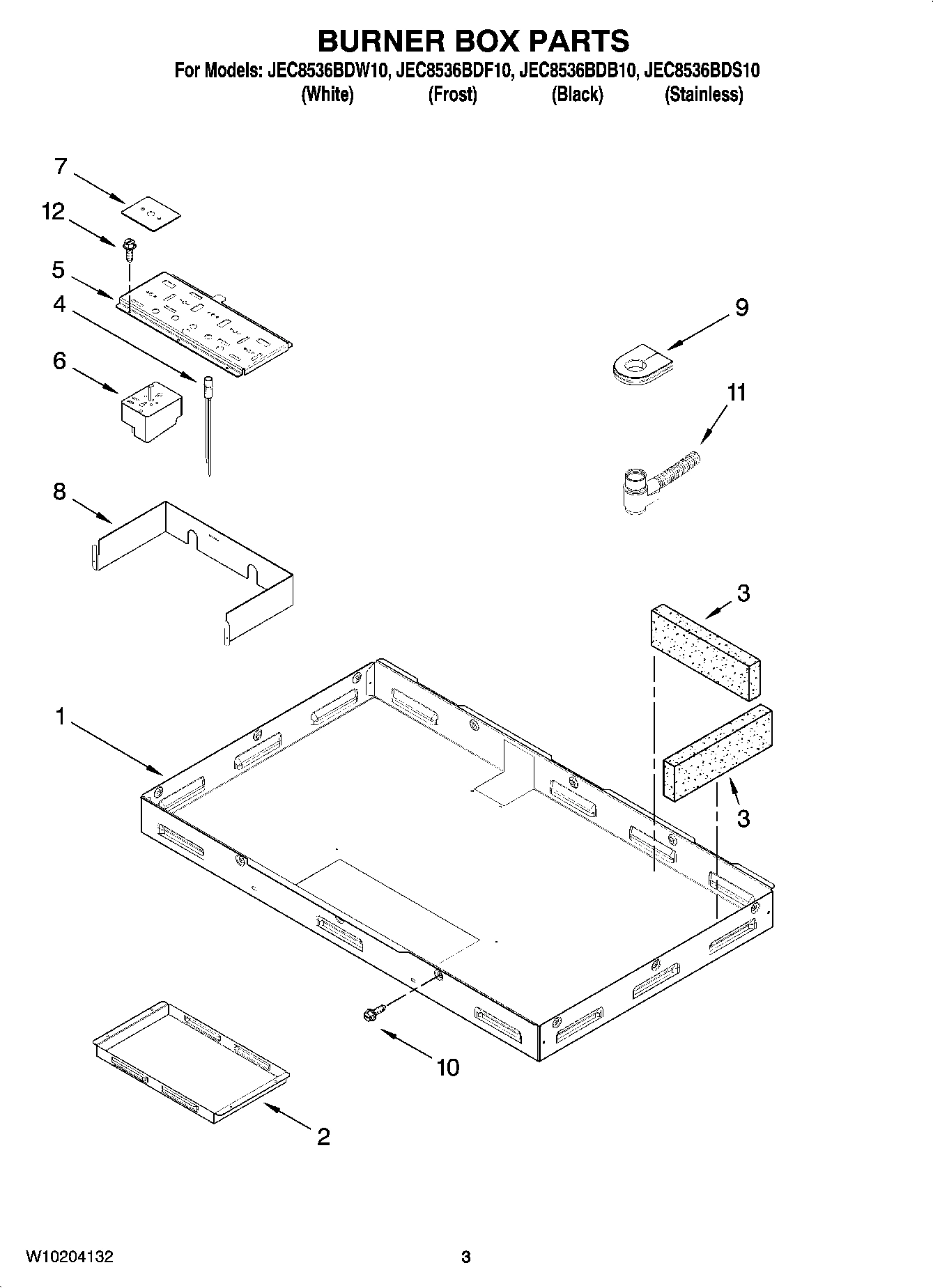

Box, Burner WPL W10204160 Contact Us For Availability

View on Model

2

W10823698 Whirlpool Surface Element Right Rea In Stock WPL W10823698 View Details $117.46

View on Model

2

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 View Details $100.91

View on Model

2

Element (Oval 6`` (LR)) WPL 74011004 Contact Us For Availability

View on Model

2

Baffel, Bottom WPL W10204163 Contact Us For Availability

View on Model

3

Insulation (5) WPL 74007899 Contact Us For Availability

View on Model

3

Top, Main (White/Frost) WPL W10204142 Contact Us For Availability

View on Model

3

Top, Main (Black) WPL W10204143 Contact Us For Availability

View on Model

4

W10168884 Whirlpool Cooktop Trim Backorder WPL W10168884 View Details $226.18

View on Model

4

WPW10168880 Whirlpool Trim Cooktop Backorder WPL WPW10168880 View Details $138.80

View on Model

4

Panel, Light (Red) WPL W10204169 Contact Us For Availability

View on Model

4

Panel, Light (Black) WPL W10204170 Contact Us For Availability

View on Model

4

Panel, Light (Orange) WPL W10204171 Contact Us For Availability

View on Model

4

Panel, Light (Blue) WPL W10204172 Contact Us For Availability

View on Model

4

Panel, Light (Yellow) WPL W10204173 Contact Us For Availability

View on Model

4

Panel, Light (Brown) WPL W10204174 Contact Us For Availability

View on Model

5

WPW10293874 Whirlpool Stove Cooktop Knob Grom In Stock WPL WPW10293874 View Details $3.55

View on Model

5

PLATE, SWITCH WPL 74007856 Contact Us For Availability

View on Model

6

12002121 Whirlpool Dual Infinite Switch In Stock WPL 12002121 View Details $65.96

View on Model

6

WP74007840 Whirlpool Infinite Switch In Stock WPL WP74007840 View Details $117.32

View on Model

6

WP74007841 Whirlpool Infinite Switch Backorder WPL WP74007841 View Details $82.16

View on Model

6

WP7737P412-60 Whirlpool Knob Backorder WPL WP7737P412-60 View Details $37.30

View on Model

7

WP71002569 Whirlpool Gasket In Backorder WPL WP71002569 View Details $4.21

View on Model

8

WP90767 Whirlpool Screw In Stock WPL WP90767 View Details $2.51

View on Model

8

Cvr, Switch Plate WPL 74007935 Contact Us For Availability

View on Model

9

8008P068-60 Whirlpool Grommet Backorder WPL 8008P068-60 View Details $7.34

View on Model

10

Screw WPL 200758 Contact Us For Availability

View on Model

11

Harness, Main WPL W10204181 Contact Us For Availability

View on Model

12

SCREW WPL 7101P30960 Contact Us For Availability

View on Model

×
