Model Alliance JC0350SEL Dryer – Common Parts & Diagrams

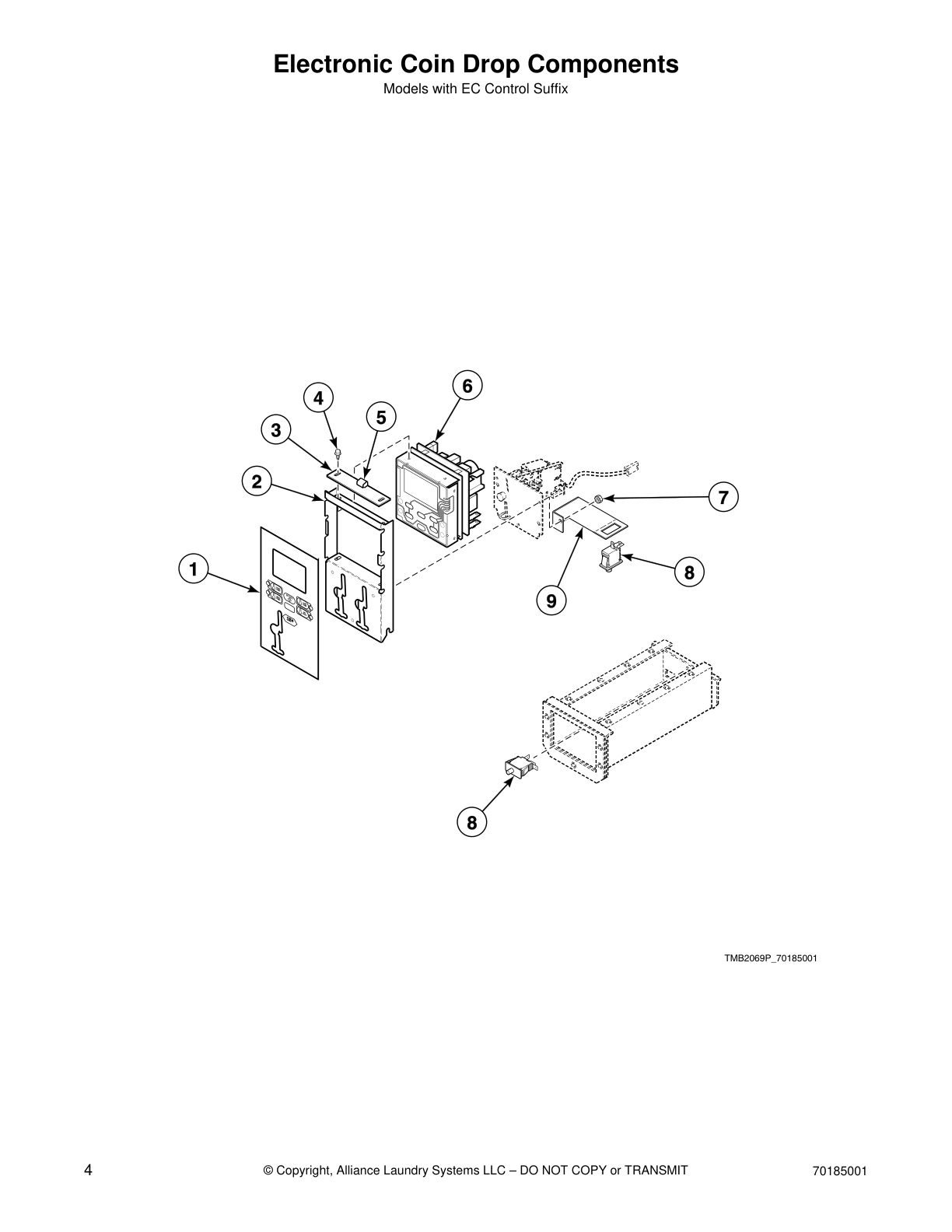

Electronic Coin Drop Components

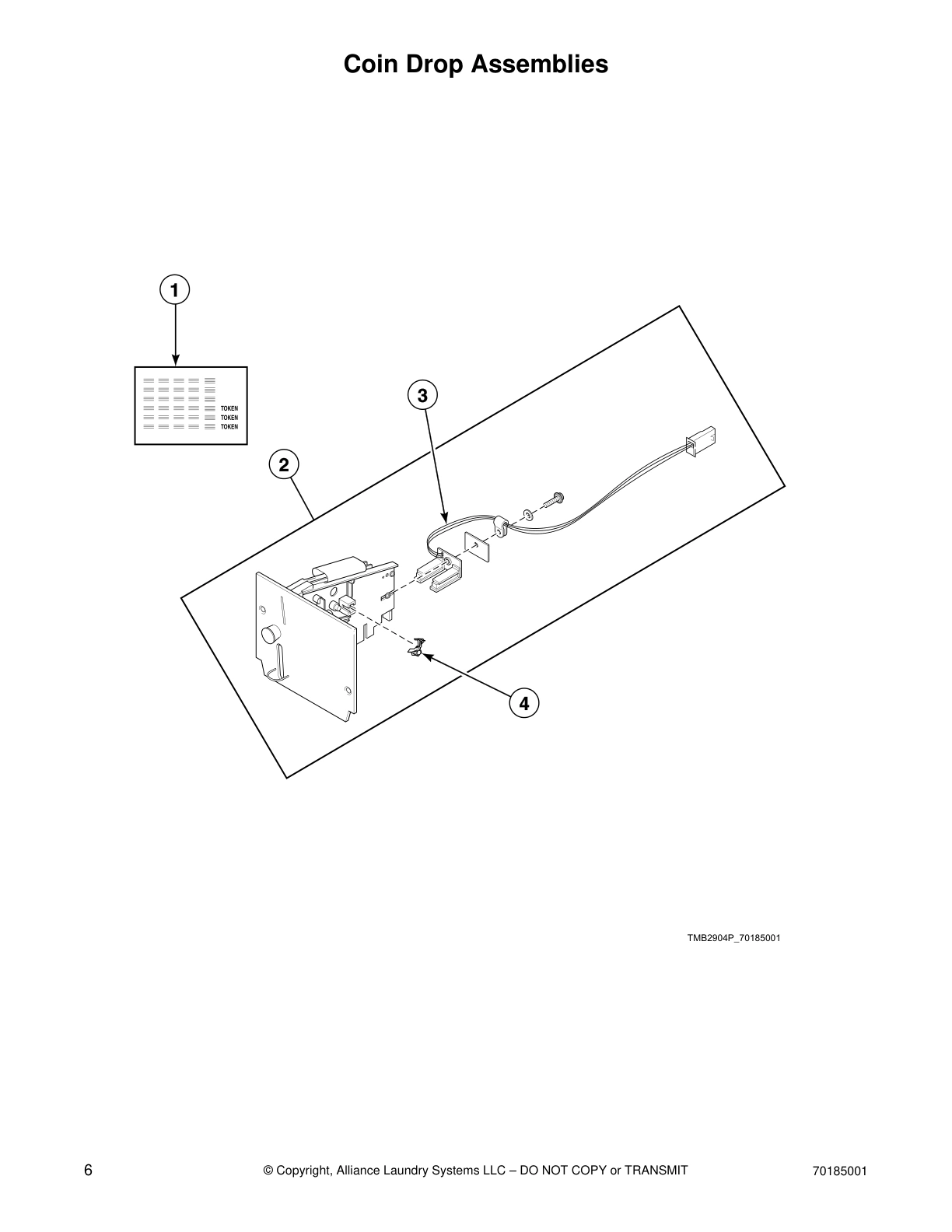

Coin Drop Assemblies
Card Reader Control Components
Electromechanical Coin Drop Components
Coin Meters and Components
Manual Dual Timer Control
NetMaster Card Reader
NetMaster Coin Drop
NetMaster Network Interface Board
NetMaster Network Board
Upper Front Panel Components
Lower Front Panel Components
Emergency Stop Button for CE Models
Upper Cylinder Support Components
Lower Cylinder Support Components
Lint Drawer Components
Door and Hinge Components
Cylinder Components
Drive Motor Components
Drive Motors
Blower and Exhaust Components
Blower Motors
Airflow Switch Components
Gas Burner Housing
Gas Burner Components
Gas Valve and Piping
Gas Valve Assembly
Electric Heater Components
Steam Heater Components
Rear Control Box - Gas Non-CE Models (Drawing 1 of 2)
Rear Control Box - Gas Non-CE Models (Drawing 2 of 2)
Rear Control Box - Steam Non-CE Models
Rear Control Box - Electric Non-CE Models
Rear Control Box - Gas CE Models
Rear Control Box - Steam CE Models
Rear Control Box - Electric CE Models
Through Serial No. 112006347
Rear Control Box - Electric CE Models
Starting Serial No. 112006348
Common parts from model Alliance JC0350SEL Dryer
SPQ 70226701 SPQ 70226701 Contact Us For Availability
SPQ M413508 SPQ M413508 Contact Us For Availability
Jumper Configuration Assembly SPQ M414228P Contact Us For Availability
SPQ 70138801 SPQ 70138801 Contact Us For Availability
1
Partition Baffle SPQ 70022101 Contact Us For Availability
1
Baffle Gasket SPQ 70015701 Contact Us For Availability
1
Door Assembly SPQ 44058001P Contact Us For Availability
1
Drive Motor SPQ 70338101P Contact Us For Availability
1
Blower Motor SPQ 70342601P Contact Us For Availability
1
Handle SPQ 70268001 Contact Us For Availability
2
Key SPQ 70155602 Contact Us For Availability
2
Front Panel Seal SPQ 70125101 Contact Us For Availability
2
Nut SPQ M400661 Contact Us For Availability
2
Motor Pulley SPQ 70284203 Contact Us For Availability
2
Screw SPQ M402797 Contact Us For Availability
2
Fuse Holder SPQ M413544P Contact Us For Availability
3
Door Hinge SPQ 70296801 Contact Us For Availability
3
Door Switch Bracket SPQ 70072901 Contact Us For Availability
3
Thermal Shield SPQ 70015702 Contact Us For Availability
3
Airflow Switch Bracket SPQ 70266301 Contact Us For Availability
3
Mounting Switch Base SPQ M412186 Contact Us For Availability
4
Washer SPQ 70173401P Contact Us For Availability
4
Coin Vault Assembly SPQ 70036601 Contact Us For Availability
4
Expansion Clip SPQ 70022001 Contact Us For Availability
4
Cam and Hinge Kit SPQ M414215 Contact Us For Availability
4
Cylinder Bearing Stud Plate Assembly SPQ 70257101 Contact Us For Availability
4
Burner Grill SPQ 70188801 Contact Us For Availability
4
Gas Burner SPQ 70032801P Contact Us For Availability
4
Fuse SPQ M413889 Contact Us For Availability
4
Ground Lug Connector SPQ M402917 Contact Us For Availability
5
Airflow Switch Vane SPQ 70266201 Contact Us For Availability
5
Screw SPQ D501524 Contact Us For Availability
5
SPQ 70119301 SPQ 70119301 Contact Us For Availability
5
Pop Rivet SPQ 70257201 Contact Us For Availability
5
SPQ 05161 SPQ 05161 Contact Us For Availability
5
Limit Thermostat SPQ M409443 Contact Us For Availability
5
Electric Heater Contactor Kit SPQ M411283 Contact Us For Availability
6
Airflow Switch Kit SPQ 70270901P Contact Us For Availability
6
Rear Cylinder Seal Support SPQ 70013701P Contact Us For Availability
6
SPQ 70115902 SPQ 70115902 Contact Us For Availability
6
Igniter Cover SPQ 70159601 Contact Us For Availability
6
SPQ 70229801P SPQ 70229801P Contact Us For Availability
6
Fan Contactor SPQ M413867 Contact Us For Availability
7
Airflow Switch SPQ 70267301 Contact Us For Availability
7
Jumper Calibration Assembly SPQ 70211703P Contact Us For Availability
7
SPQ F430311 SPQ F430311 Contact Us For Availability
7
SPQ 70062401 SPQ 70062401 Contact Us For Availability
7
Nut SPQ M411307 Contact Us For Availability
7
Screw SPQ M414229P Contact Us For Availability
7
Circuit Breaker SPQ M4919P3 Contact Us For Availability
8
Control Panel Harness Assembly SPQ 70235801 Contact Us For Availability
8
SPQ 70132301 SPQ 70132301 Contact Us For Availability
8
Jumper Harness Assembly SPQ M412693 Contact Us For Availability
9
SPQ 70506402 SPQ 70506402 Contact Us For Availability
9
SPQ M401938 SPQ M401938 Contact Us For Availability
9
Coin Vault Switch Harness Assembly SPQ 70180101 Contact Us For Availability
9
Jumper Configuration Assembly SPQ M412407P Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
10
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Pushbutton Switch SPQ 70413301 Contact Us For Availability
10
Nut SPQ M400022 Contact Us For Availability
10
Airflow Switch Cover SPQ 70281801 Contact Us For Availability
10
End Cover SPQ 70121101 Contact Us For Availability
10
Power Distribution Block Cover SPQ 44014901P Contact Us For Availability
11
Washer SPQ M400991 Contact Us For Availability
11
Screw SPQ 70033502 Contact Us For Availability
11
Key SPQ 44089301P Contact Us For Availability
11
Center Cylinder Seal Assembly SPQ 70066003 Contact Us For Availability
11
Terminal Block SPQ 70120001 Contact Us For Availability
11
Extension Handle SPQ M412371P Contact Us For Availability
12
Pop Rivet SPQ 70126401 Contact Us For Availability
12
Jumper Cable Assembly SPQ M413933 Contact Us For Availability
13
Support Bearing SPQ M400034 Contact Us For Availability
13
Terminal Block SPQ M413865 Contact Us For Availability
13
Pop Rivet SPQ M411072 Contact Us For Availability
13
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
14
Screw SPQ 70448701 Contact Us For Availability
14
Door Glass SPQ 70133601P Contact Us For Availability
14
Finger Guard SPQ M412367 Contact Us For Availability
15
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
15
Key SPQ 70126101 Contact Us For Availability
15
Fan Contactor SPQ M413614P Contact Us For Availability
15
Door Interlock SPQ M412369 Contact Us For Availability
16
Coin Vault Trim SPQ M401223 Contact Us For Availability
17
Cylinder Guide Tool SPQ M4960P3 Contact Us For Availability
17
Door Switch SPQ M400003 Contact Us For Availability
17
Door Ring Gasket SPQ M409385 Contact Us For Availability
17
Electrical Box Access Cover SPQ 70133901 Contact Us For Availability
18
Screw SPQ 430648 Contact Us For Availability
19
Thermistor SPQ 70144101 Contact Us For Availability
19
Idler Wheel Assembly SPQ 70050401P Contact Us For Availability
20
Roller Shaft SPQ 70017701 Contact Us For Availability
21
Rear Cylinder Channel Plate SPQ 70070101 Contact Us For Availability
21
Bolt SPQ 70284201 Contact Us For Availability
22
Nut SPQ 70108501 Contact Us For Availability
23
Temperature Kit SPQ 70082201 Contact Us For Availability
NI
Blower Motor SPQ 70337501P Contact Us For Availability
NI
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
NI
Nut SPQ 70155601 Contact Us For Availability
NI
SPQ 431347P SPQ 431347P Contact Us For Availability
NI
Drive Motor SPQ 70337801P Contact Us For Availability
NI
Card Reader Harness Assembly SPQ 70211801 Contact Us For Availability
NI
Card Reader Network Harness Assembly SPQ 70206601 Contact Us For Availability
NI
Main Harness Assembly SPQ 70204801 Contact Us For Availability
NI
Communication Harness Assembly SPQ 70211101 Contact Us For Availability
NI
Emergency Stop Switch Harnes Assembly SPQ 70235301 Contact Us For Availability
NI
Pop Rivet SPQ 70235201 Contact Us For Availability
NI
Clip SPQ 70296401 Contact Us For Availability
NI
SPQ 70133501P SPQ 70133501P Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ M412985 SPQ M412985 Contact Us For Availability
NI
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
NI
Drive Motor Kit SPQ 70338001P Contact Us For Availability
NI
Blower Motor Kit SPQ 70337701P Contact Us For Availability
NI
High Limit Harness SPQ M413509 Contact Us For Availability
NI
SPQ M413505 SPQ M413505 Contact Us For Availability
NI
SPQ 70067001P SPQ 70067001P Contact Us For Availability
NI
High Limit Harness SPQ 70121001 Contact Us For Availability
NI
Jumper Assembly SPQ M412401 Contact Us For Availability
× ![]()
