Model Whirlpool HP41240X GAS WATER HEATER – Common Parts & Diagrams

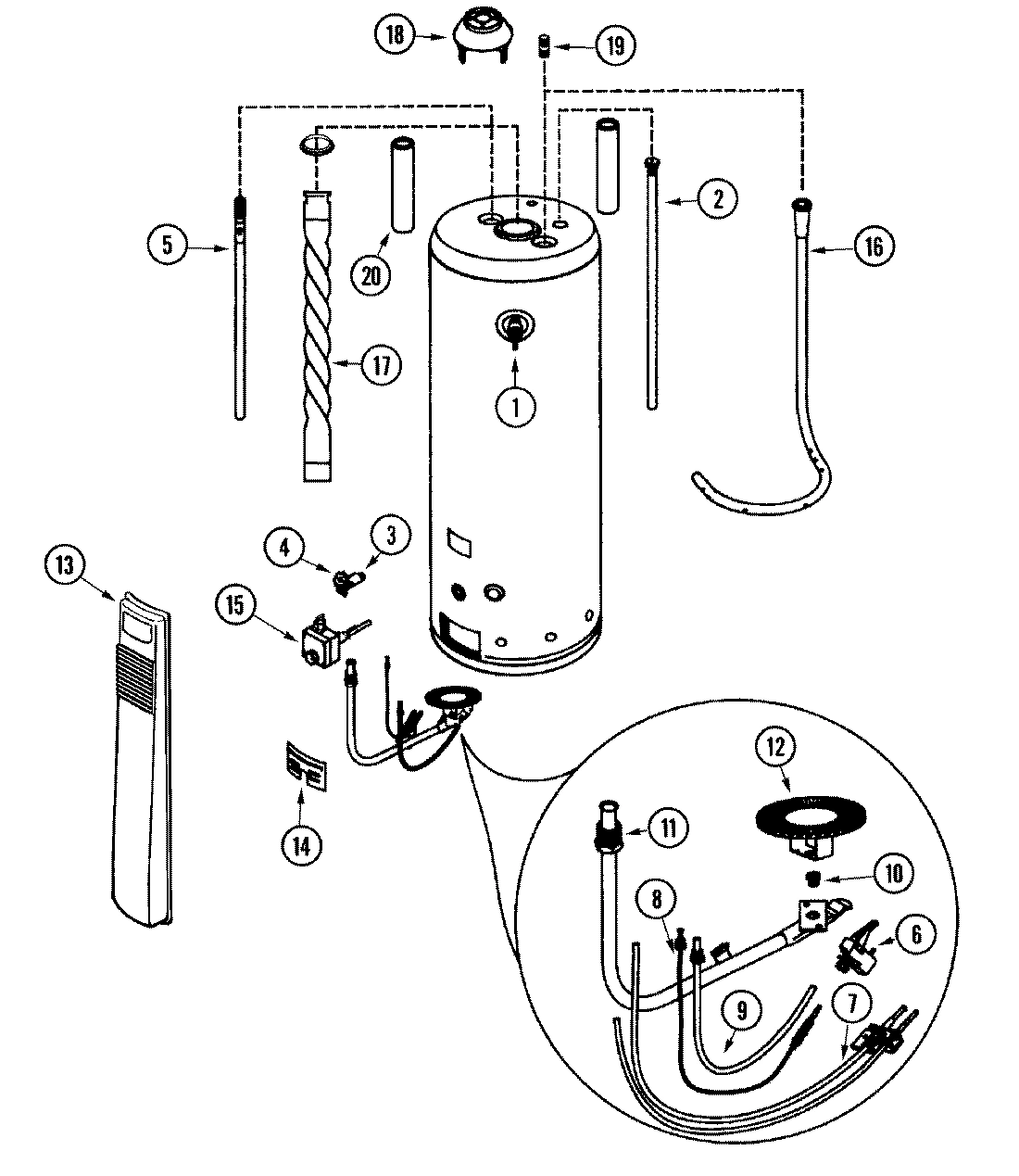

01 - BODY
Common parts from model Whirlpool HP41240X GAS WATER HEATER
1
VALVE, TEMP/PRESSURE RELIEF WPL 66001010 Contact Us For Availability
2
ROD, ANODE (PRIMARY) WPL 66001020 Contact Us For Availability
3
VALVE, DRAIN (2`` LONG) WPL 66001015 Contact Us For Availability
4
WASHER, DRAIN VALVE WPL 66001021 Contact Us For Availability
5
ANODE ROD SEC. WPL 9002419 Contact Us For Availability
7
PILOT/TUBING & THERMOCOUPLE WPL 66001036 Contact Us For Availability
8
THERMOCOUPLE (20``) WPL 66001017 Contact Us For Availability
9
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
10
ORIFICE, BURNER (No.49) WPL Y0230223 Contact Us For Availability
11
MANIFOLD WPL 9002414 Contact Us For Availability
12
BURNER WPL 66001027 Contact Us For Availability
13
OUTER DOOR WPL 9002410 Contact Us For Availability
14
DOOR, INNER WPL 66001029 Contact Us For Availability
15
VALVE, GAS CONTROL (LP) WPL 66001004 Contact Us For Availability
16
TUBE, DIP WPL 66001030 Contact Us For Availability
17
FLUE BAFFLE WPL 9001206 Contact Us For Availability
18
HOOD, DRAFT WPL 66001032 Contact Us For Availability
19
TRAP, COLD WATER INLET WPL 66001033 Contact Us For Availability
20
INSULATION, PIPE (2 EA) WPL 66001034 Contact Us For Availability
21
TANK, EXPANSION (2 GAL.) WPL 66001013 Contact Us For Availability
22
MANUAL, USE & CARE WPL 66001089 Contact Us For Availability
× ![]()
