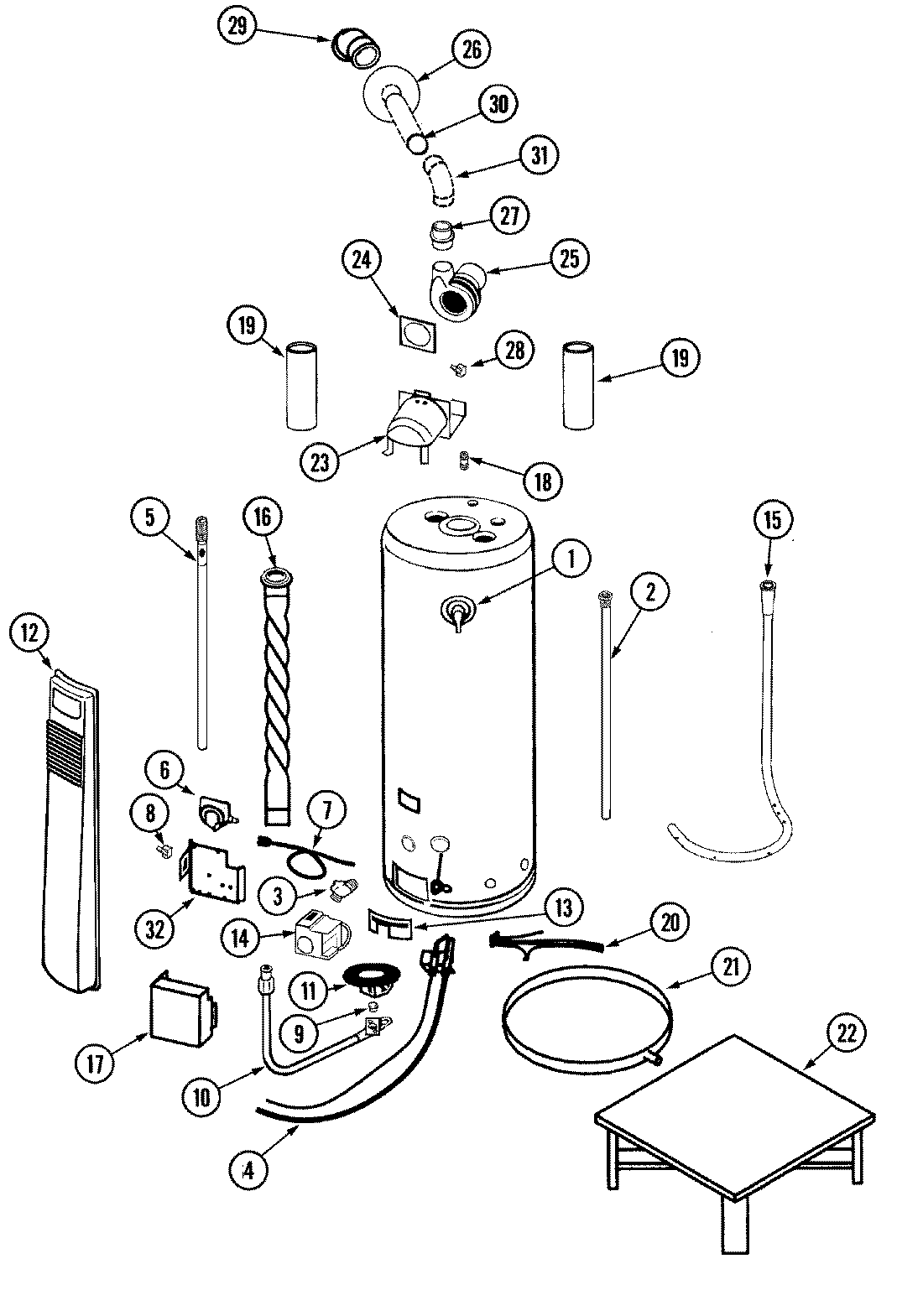

Model Whirlpool HN41240PCAN GAS WATER HEATER – Common Parts & Diagrams

1
VALVE, TEMP/PRESSURE RELIEF
VALVE, TEMP/PRESSURE RELIEF WPL 66001010 Contact Us For Availability
View on Model
2
ROD, ANODE (PRIMARY)
ROD, ANODE (PRIMARY) WPL 66001020 Contact Us For Availability
View on Model
3
VALVE, DRAIN (2`` LONG)
VALVE, DRAIN (2`` LONG) WPL 66001015 Contact Us For Availability
View on Model
3
WASHER, DRAIN VALVE
WASHER, DRAIN VALVE WPL 66001021 Contact Us For Availability
View on Model
4
IGNITER
IGNITER WPL 9002518 Contact Us For Availability
View on Model
5
ROD, SECONDARY ANODE
ROD, SECONDARY ANODE WPL 66001022 Contact Us For Availability
View on Model
6
SWITCH, PRESSURE
SWITCH, PRESSURE WPL 9001976 Contact Us For Availability
View on Model
7
CORD, POWER
CORD, POWER WPL 9001513 Contact Us For Availability
View on Model
8
SWITCH, ON/OFF
SWITCH, ON/OFF WPL 9001773 Contact Us For Availability
View on Model
9
ORIFICE, BURNER (No.33)
ORIFICE, BURNER (No.33) WPL 66001025 Contact Us For Availability
View on Model
10
MANIFOLD
MANIFOLD WPL 9002599 Contact Us For Availability
View on Model
11
BURNER
BURNER WPL 66001027 Contact Us For Availability
View on Model
12
DOOR, OUTER
DOOR, OUTER WPL 9002596 Contact Us For Availability
View on Model
13
DOOR, INNER
DOOR, INNER WPL 66001029 Contact Us For Availability
View on Model
14
FACE PLATE, VALVE
FACE PLATE, VALVE WPL 0004702370 Contact Us For Availability
View on Model
14
VALVE, GAS CONTROL (NAT)
VALVE, GAS CONTROL (NAT) WPL 66001081 Contact Us For Availability
View on Model
15
TUBE, DIP
TUBE, DIP WPL 66001030 Contact Us For Availability
View on Model
16
BAFFLE, FLUE
BAFFLE, FLUE WPL 9002600 Contact Us For Availability
View on Model
17
COVER, JUNCTION BOX
COVER, JUNCTION BOX WPL 9002597 Contact Us For Availability
View on Model
18
TRAP, COLD WATER INLET
TRAP, COLD WATER INLET WPL 66001033 Contact Us For Availability
View on Model
19
INSULATION, PIPE (2 EA)
INSULATION, PIPE (2 EA) WPL 66001034 Contact Us For Availability
View on Model
20
HARNESS, WIRE
HARNESS, WIRE WPL 9002520 Contact Us For Availability
View on Model
21
PAN, DRIP (26``)
PAN, DRIP (26``) WPL 9000743 Contact Us For Availability
View on Model
22
STAND, WATER HEATER
STAND, WATER HEATER WPL 9001422 Contact Us For Availability
View on Model
23
DRAFT HOOD ASSY
DRAFT HOOD ASSY WPL 9001963 Contact Us For Availability
View on Model
24
GASKET, BLOWER
GASKET, BLOWER WPL 9000736 Contact Us For Availability
View on Model
25
BLOWER
BLOWER WPL 9002672 Contact Us For Availability
View on Model
26
COLLAR, WALL
COLLAR, WALL WPL 9001993 Contact Us For Availability
View on Model
27
ADAPTER, VENT-BLOWER
ADAPTER, VENT-BLOWER WPL 9002506 Contact Us For Availability
View on Model
28
SWITCH, VENTING
SWITCH, VENTING WPL 9002678 Contact Us For Availability
View on Model
29
TERMINAL, VENT (3`` ABS)
TERMINAL, VENT (3`` ABS) WPL 9002120 Contact Us For Availability
View on Model
30
PIPE, VENT (5`)
PIPE, VENT (5`) WPL 9002106 Contact Us For Availability
View on Model
31
ELBOW (90 DEGREE)
ELBOW (90 DEGREE) WPL 9002107 Contact Us For Availability
View on Model
32
BRACKET, MOUNTING
BRACKET, MOUNTING WPL 9002512 Contact Us For Availability
View on Model
33
TANK, EXPANSION (2 GAL.)
TANK, EXPANSION (2 GAL.) WPL 66001013 Contact Us For Availability
View on Model
34
MANUAL, USE & CARE (ENG/FRCH)
MANUAL, USE & CARE (ENG/FRCH) WPL 66001093 Contact Us For Availability
View on Model
