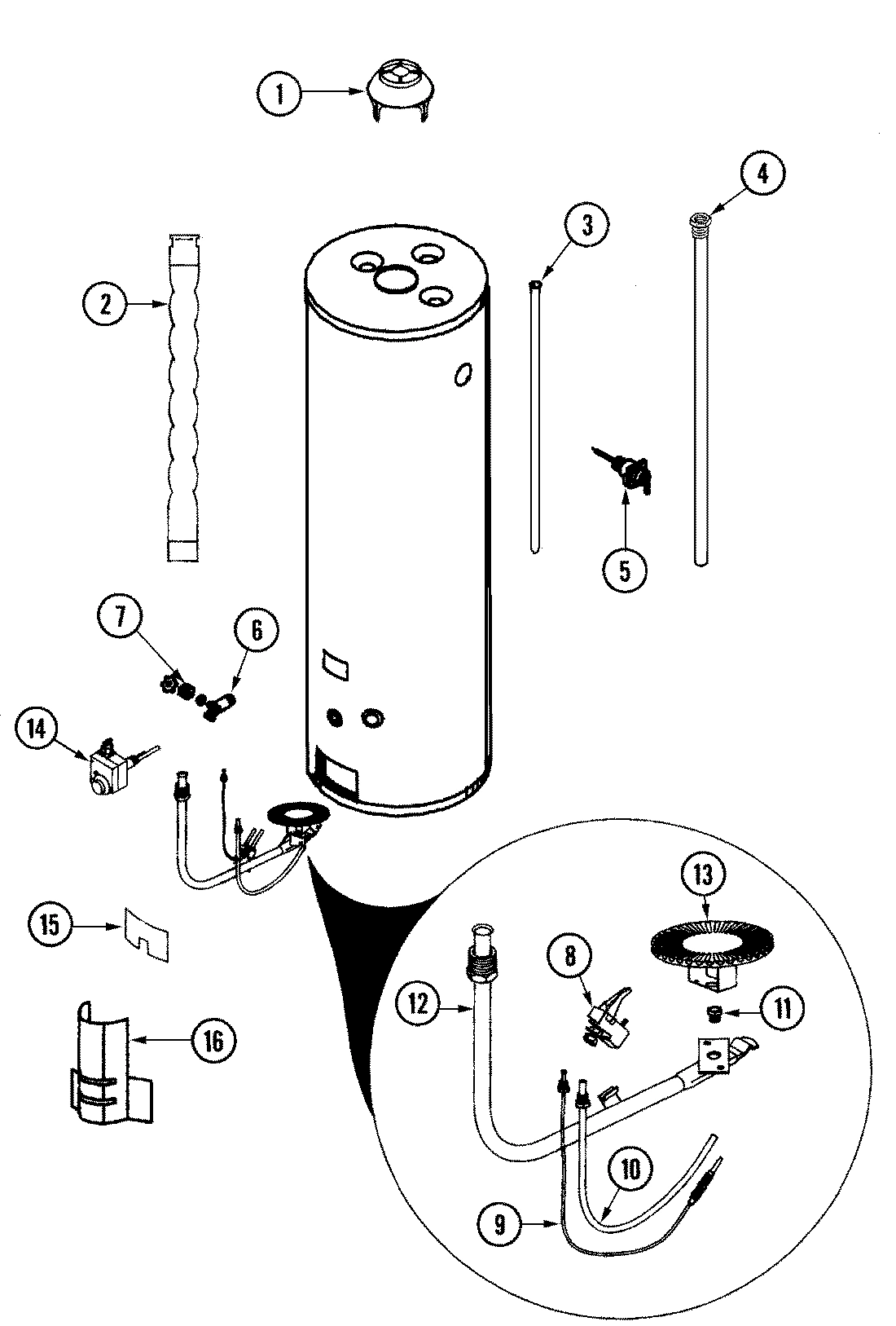

Model Whirlpool HJ650NKRTCGA GAS WATER HEATER – Common Parts & Diagrams

1
HOOD, DRAFT
HOOD, DRAFT WPL 66001184 Contact Us For Availability
View on Model
2
BAFFLE, FLUE
BAFFLE, FLUE WPL 66001220 Contact Us For Availability
View on Model
3
TUBE, DIP
TUBE, DIP WPL 66001307 Contact Us For Availability
View on Model
4
ROD, ANODE
ROD, ANODE WPL 66001189 Contact Us For Availability
View on Model
5
VALVE, TEMPERATURE/RELIEF
VALVE, TEMPERATURE/RELIEF WPL 66001079 Contact Us For Availability
View on Model
6
VALVE, DRAIN (1 1/4`` SHORT)
VALVE, DRAIN (1 1/4`` SHORT) WPL 66001016 Contact Us For Availability
View on Model
7
WASHER, DRAIN VALVE
WASHER, DRAIN VALVE WPL 66001021 Contact Us For Availability
View on Model
8
PILOT (NAT)
PILOT (NAT) WPL 66001023 Contact Us For Availability
View on Model
9
THERMOCOUPLE
THERMOCOUPLE WPL 66001391 Contact Us For Availability
View on Model
10
TUBING, PILOT (W/FITTINGS)
TUBING, PILOT (W/FITTINGS) WPL 66001276 Contact Us For Availability
View on Model
11
ORIFICE, BURNER (No.36)
ORIFICE, BURNER (No.36) WPL 66001035 Contact Us For Availability
View on Model
11
ORIFICE, BURNER (No.39)
ORIFICE, BURNER (No.39) WPL 66001162 Contact Us For Availability
View on Model
12
MANIFOLD
MANIFOLD WPL 66001326 Contact Us For Availability
View on Model
13
BURNER
BURNER WPL 66001027 Contact Us For Availability
View on Model
14
VALVE, GAS CONTROL (NAT)
VALVE, GAS CONTROL (NAT) WPL 66001410 Contact Us For Availability
View on Model
15
DOOR, INNER
DOOR, INNER WPL 66001029 Contact Us For Availability
View on Model
16
DOOR, OUTER
DOOR, OUTER WPL 66001186 Contact Us For Availability
View on Model
17
MANUAL, USE & CARE (FRCH/ENG)
MANUAL, USE & CARE (FRCH/ENG) WPL 66001126 Contact Us For Availability
View on Model
