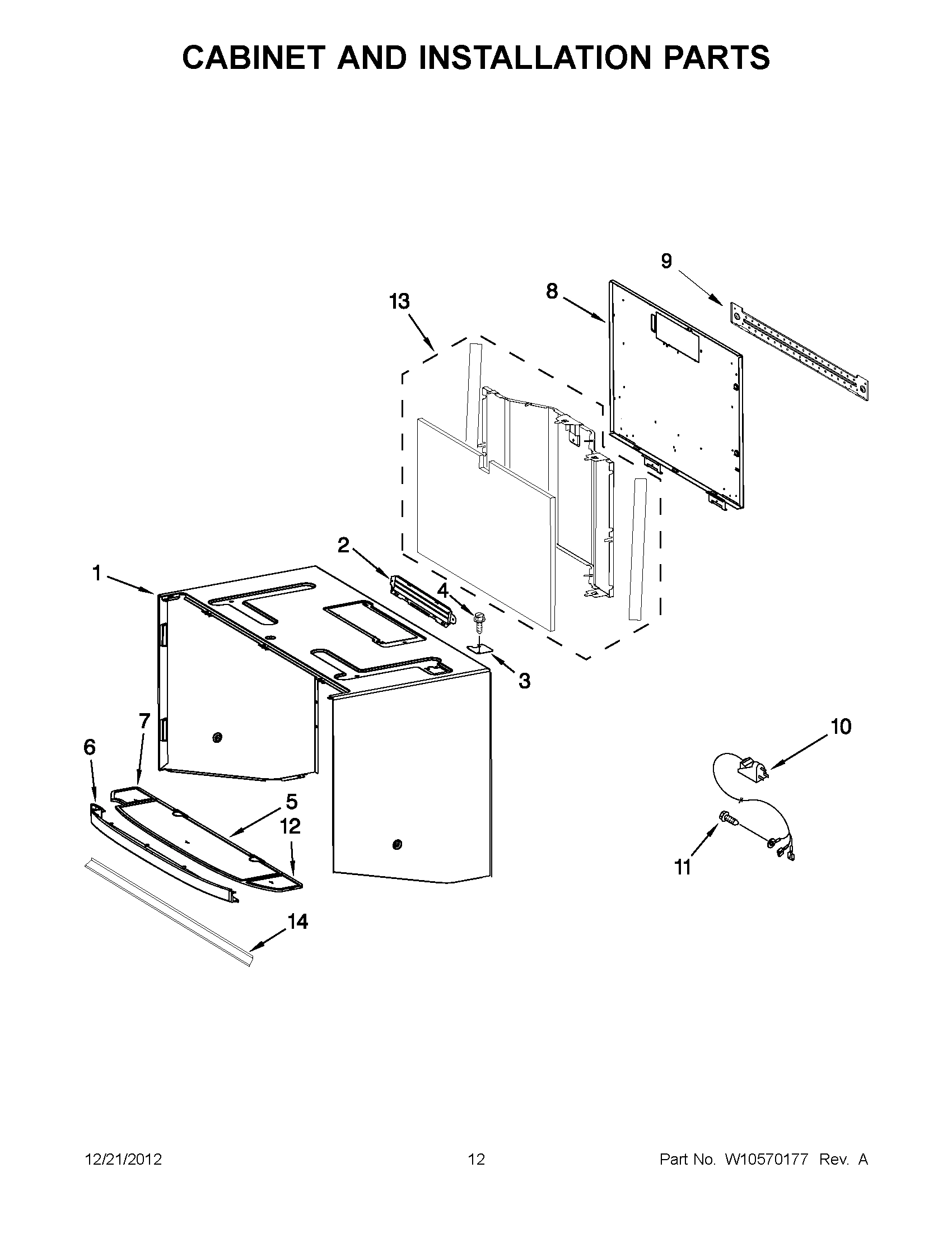

Model Whirlpool GH7208XRQ4 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

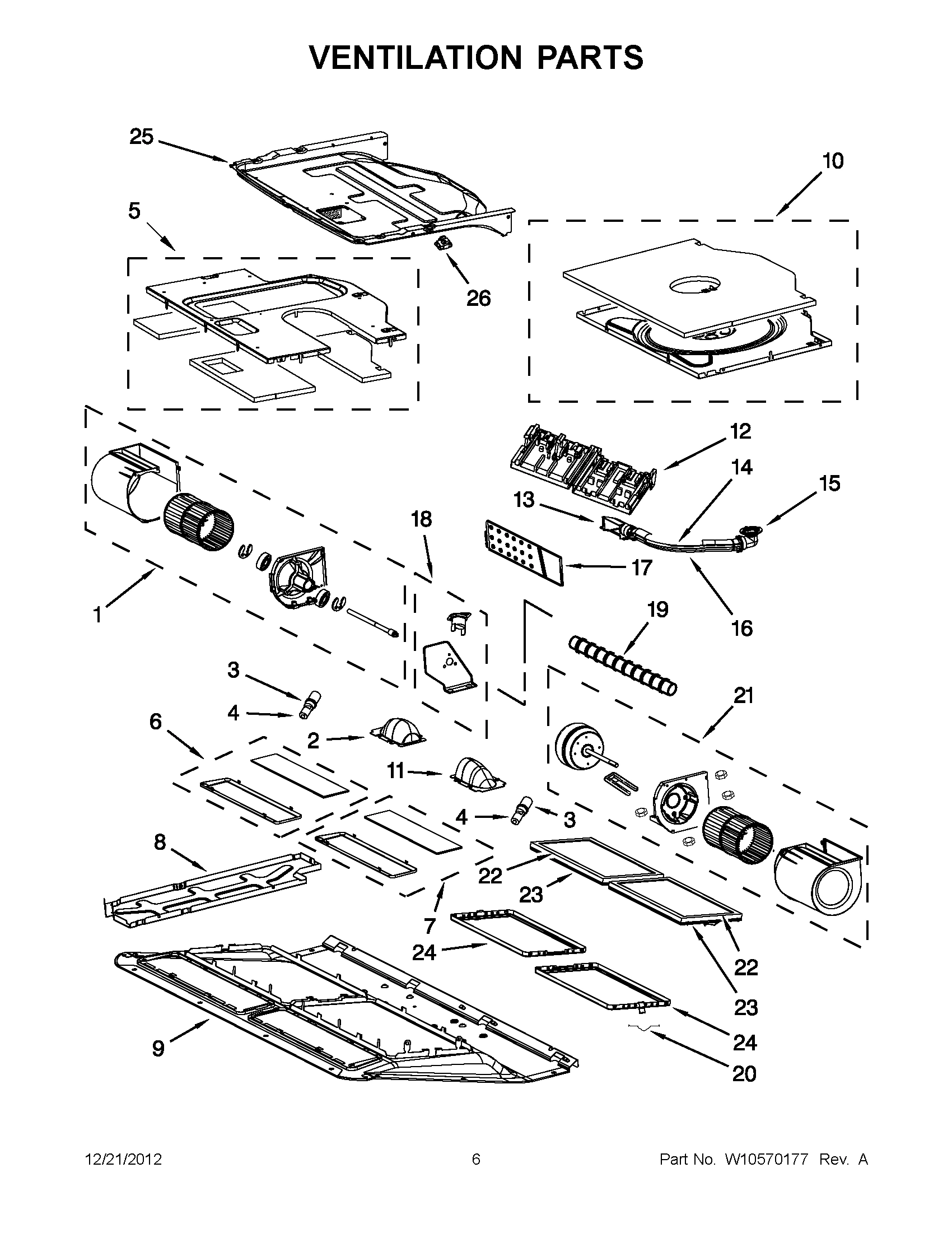

1
HOUSING, BLOWER LEFT SIDE
HOUSING, BLOWER LEFT SIDE WPL 8206092 Contact Us For Availability
View on Model
1
Handle (White)
Handle (White) WPL W10244764 Contact Us For Availability
View on Model
1
Handle (Black)
Handle (Black) WPL 8206121 Contact Us For Availability
View on Model
1
Tech Sheet
Tech Sheet WPL 8205293 Contact Us For Availability
View on Model
1
Quick Reference
Quick Reference WPL 8206637 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL W10170439 Contact Us For Availability
View on Model
1
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS WPL W10502371 Contact Us For Availability
View on Model
2
Trim, Door (White)
Trim, Door (White) WPL 8206144 Contact Us For Availability
View on Model
2
REFLECTOR, LAMP LEFT SIDE
REFLECTOR, LAMP LEFT SIDE WPL 8184194 Contact Us For Availability
View on Model
2
Trim, Door (Black)
Trim, Door (Black) WPL W10115583 Contact Us For Availability
View on Model
2
IMPELLER ASSEMBLY
IMPELLER ASSEMBLY WPL 8206069 Contact Us For Availability
View on Model
2
Support, Cavity (Left)
Support, Cavity (Left) WPL 8206039 Contact Us For Availability
View on Model
3
DOOR CONTROL ASSY (BLACK AND STAINLESS MODELS
DOOR CONTROL ASSY (BLACK AND STAINLESS MODELS WPL 8206149 Contact Us For Availability
View on Model
3
Door Control Assy (White)
Door Control Assy (White) WPL 8206148 Contact Us For Availability
View on Model
3
HOLDER, LAMP GRILL
HOLDER, LAMP GRILL WPL W10113781 Contact Us For Availability
View on Model
3
Bracket, Motor
Bracket, Motor WPL W10115572 Contact Us For Availability
View on Model
4
HEATER, ASSEMBLY CONVECTION
HEATER, ASSEMBLY CONVECTION WPL 8206071 Contact Us For Availability
View on Model
4
Outer Door Frame (White)
Outer Door Frame (White) WPL W10115585 Contact Us For Availability
View on Model
4
Outer Door Frame (Black)
Outer Door Frame (Black) WPL W10115586 Contact Us For Availability
View on Model
4
Side Panel, Left (White)
Side Panel, Left (White) WPL 8206041 Contact Us For Availability
View on Model
4
Side Panel, Left (Black)
Side Panel, Left (Black) WPL 8206042 Contact Us For Availability
View on Model
5
Board, User (Interface)
Board, User (Interface) WPL W10233387 Contact Us For Availability
View on Model
5
Washer
Washer WPL 8206073 Contact Us For Availability
View on Model
5
BUTTON (WHITE)
BUTTON (WHITE) WPL W10418888 Contact Us For Availability
View on Model
5
BUTTON (BLACK)
BUTTON (BLACK) WPL W10418890 Contact Us For Availability
View on Model
6
Support, Vent Screen (White)
Support, Vent Screen (White) WPL 8206011 Contact Us For Availability
View on Model
6
LCD Module
LCD Module WPL W10115589 Contact Us For Availability
View on Model
6
Fan Wheel
Fan Wheel WPL 8206074 Contact Us For Availability
View on Model
6
Hood/Light Switch Board
Hood/Light Switch Board WPL 8206049 Contact Us For Availability
View on Model
7
VENT SCREEN LEFT SIDE
VENT SCREEN LEFT SIDE WPL 8206207 Contact Us For Availability
View on Model
7
Deflector, Air Guide
Deflector, Air Guide WPL 8206163 Contact Us For Availability
View on Model
7
Plate, Spring Lock
Plate, Spring Lock WPL W10115575 Contact Us For Availability
View on Model
7
Side Panel, Right (White)
Side Panel, Right (White) WPL 8206056 Contact Us For Availability
View on Model
7
Side Panel, Right (Black)
Side Panel, Right (Black) WPL W10115571 Contact Us For Availability
View on Model
8
Control Board, (Relay)
Control Board, (Relay) WPL 8206602 Contact Us For Availability
View on Model
8
AIR GUIDE
AIR GUIDE WPL W10291312 Contact Us For Availability
View on Model
8
Washer, Adjustable
Washer, Adjustable WPL W10115573 Contact Us For Availability
View on Model
9
Plate, Bottom
Plate, Bottom WPL W10222517 Contact Us For Availability
View on Model
9
Cable Cover, Door
Cable Cover, Door WPL W10115591 Contact Us For Availability
View on Model
9
Plate, Protection (Right)
Plate, Protection (Right) WPL 8206061 Contact Us For Availability
View on Model
10
Inner Door
Inner Door WPL 8206139 Contact Us For Availability
View on Model
10
Plate, Chassis
Plate, Chassis WPL W10113785 Contact Us For Availability
View on Model
11
REFLECTOR, LAMP RIGHT SIDE
REFLECTOR, LAMP RIGHT SIDE WPL 8184132 Contact Us For Availability
View on Model
11
GASKET
GASKET WPL 8206166 Contact Us For Availability
View on Model
11
Support, Cavity (Right)
Support, Cavity (Right) WPL 8206065 Contact Us For Availability
View on Model
12
Board, Relay
Board, Relay WPL 8206603 Contact Us For Availability
View on Model
12
RING, TURNTABLE SOFTSTART
RING, TURNTABLE SOFTSTART WPL 8206222 Contact Us For Availability
View on Model
12
VENT SCREEN RIGHT SIDE
VENT SCREEN RIGHT SIDE WPL 8206206 Contact Us For Availability
View on Model
12
FERRITE RING
FERRITE RING WPL W10252581 Contact Us For Availability
View on Model
12
Screw, Top Mountng
Screw, Top Mountng WPL 8206167 Contact Us For Availability
View on Model
13
HOLDER, MICROCOMPUTER
HOLDER, MICROCOMPUTER WPL W10282647 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4393827 Contact Us For Availability
View on Model
14
AC Line Filter
AC Line Filter WPL 8206062 Contact Us For Availability
View on Model
15
COMPLETE DOOR (WHITE)
COMPLETE DOOR (WHITE) WPL W10146404 Contact Us For Availability
View on Model
15
Holder, Filter
Holder, Filter WPL 8206060 Contact Us For Availability
View on Model
15
COMPLETE DOOR (BLACK)
COMPLETE DOOR (BLACK) WPL W10146406 Contact Us For Availability
View on Model
16
Air Guide, Magnetron
Air Guide, Magnetron WPL 8206494 Contact Us For Availability
View on Model
16
SPACER
SPACER WPL W10113784 Contact Us For Availability
View on Model
17
Motor, Turntable
Motor, Turntable WPL W10143959 Contact Us For Availability
View on Model
17
SPACER, BOTTOM
SPACER, BOTTOM WPL 8206178 Contact Us For Availability
View on Model
18
Spring, Interlock
Spring, Interlock WPL 8206091 Contact Us For Availability
View on Model
18
SUPPORT & BASE THERMOSTAT ASSEMBLY
SUPPORT & BASE THERMOSTAT ASSEMBLY WPL 8206212 Contact Us For Availability
View on Model
19
Connector Shaft
Connector Shaft WPL 8206263 Contact Us For Availability
View on Model
19
Screw
Screw WPL 8169478 Contact Us For Availability
View on Model
20
Holder, Fuse
Holder, Fuse WPL W10117908 Contact Us For Availability
View on Model
20
SPRING, FILTER FRAME
SPRING, FILTER FRAME WPL 8206499 Contact Us For Availability
View on Model
20
Frame, Glass
Frame, Glass WPL 8169646 Contact Us For Availability
View on Model
21
HOUSING, BLOWER RIGHT SIDE
HOUSING, BLOWER RIGHT SIDE WPL 8206112 Contact Us For Availability
View on Model
22
Lid, Lamp
Lid, Lamp WPL 8206476 Contact Us For Availability
View on Model
24
HUMIDITY SENSOR & THERMOSTAT ASSEMBLY
HUMIDITY SENSOR & THERMOSTAT ASSEMBLY WPL 8206026 Contact Us For Availability
View on Model
24
FRAME, FILTERS
FRAME, FILTERS WPL W10113792 Contact Us For Availability
View on Model
24
Rack, Convection
Rack, Convection WPL 8205995 Contact Us For Availability
View on Model
27
CAM PLATE, LOWER
CAM PLATE, LOWER WPL W10244759 Contact Us For Availability
View on Model
30
PISTON ASSEMBLY TEMPERATURE
PISTON ASSEMBLY TEMPERATURE WPL 8206210 Contact Us For Availability
View on Model
31
SENSOR, CONVECTION TEMPERATURE
SENSOR, CONVECTION TEMPERATURE WPL 8206023 Contact Us For Availability
View on Model
34
CAM PLATE, UPPER
CAM PLATE, UPPER WPL W10113786 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, HARDWARE, INSTALLATION
MISCELLANEOUS, HARDWARE, INSTALLATION WPL 8205979 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, TEMPLATE, BACK WALL
MISCELLANEOUS, TEMPLATE, BACK WALL WPL W10517169 Contact Us For Availability
View on Model
