Model GE GEH50DNSRSA Hybrid Water Heater – Common Parts & Diagrams

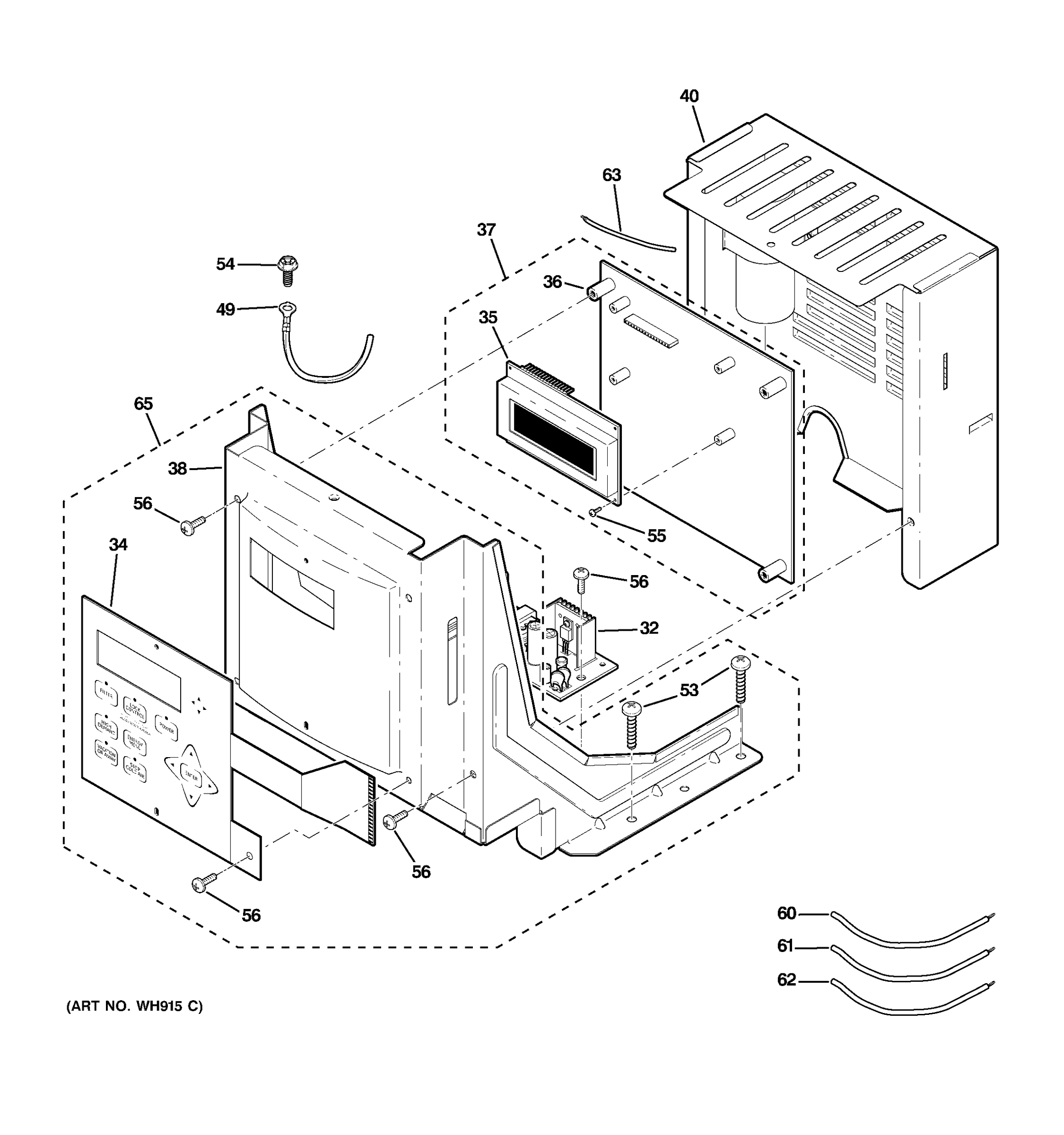

CONTROL PANEL

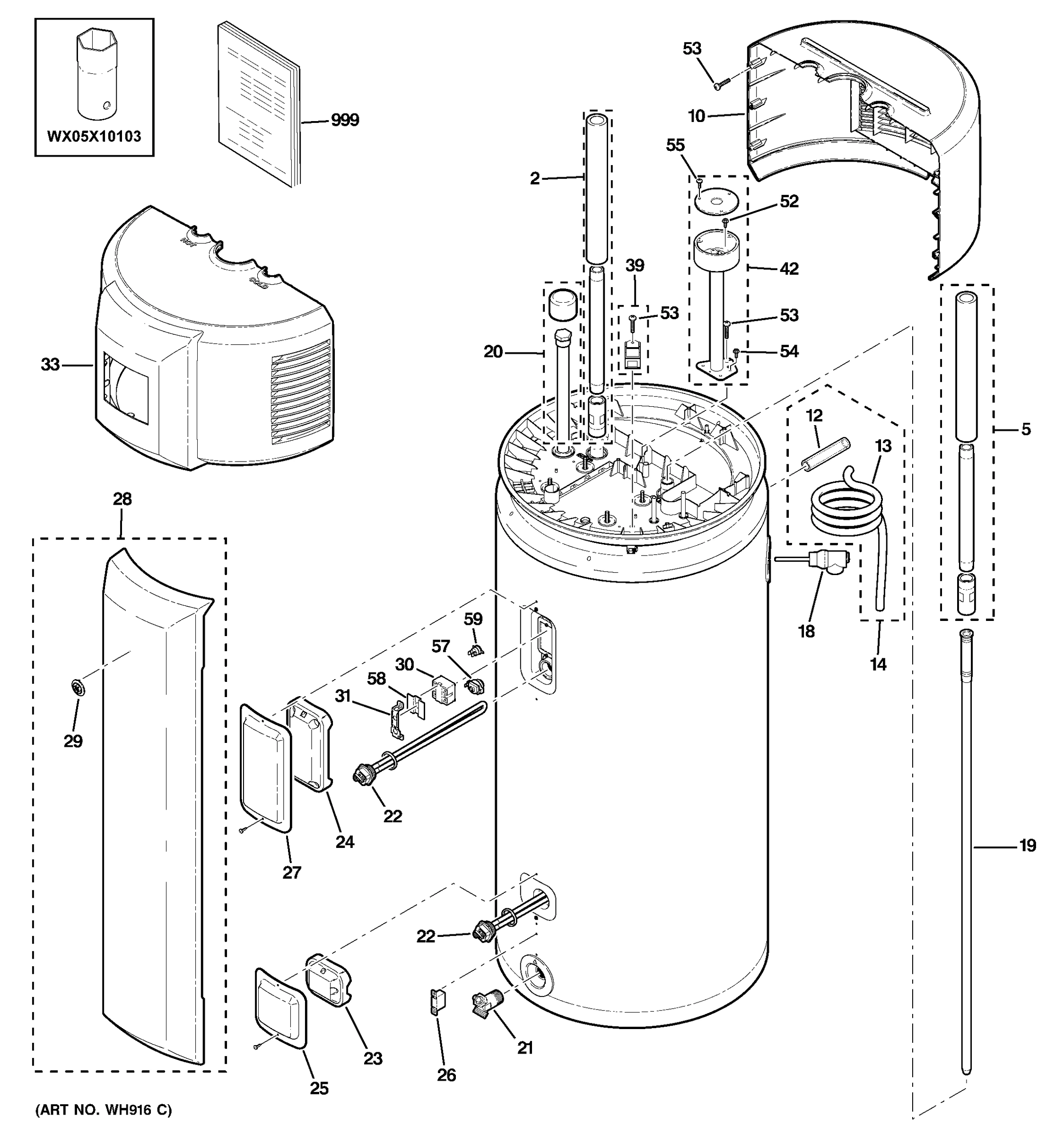

BODY PARTS
UNIT PARTS
Common parts from model GE GEH50DNSRSA Hybrid Water Heater
2
OUTLET PIPE KIT GEN WS07X10026 Contact Us For Availability
3
ACCUMULATOR TANK ASM GEN WS32X10029 Contact Us For Availability
4
EXPANSION VALVE TXV & MA GEN WS06X10010 Contact Us For Availability
5
INLET PIPE KIT GEN WS07X10025 Contact Us For Availability
6
AIR FILTER GEN WS02X10070 Contact Us For Availability
8
EVAP FAN & WIRE TIES GEN WS26X10024 Contact Us For Availability
9
FAN SHROUD, GASKETS, BRA GEN WS28X10068 Contact Us For Availability
10
REAR SHROUD GEN WS31X10045 Contact Us For Availability
11
EVAPORATOR SEAL GEN WS02X10059 Contact Us For Availability
12
CONDENSATE TUBE, 3 INCH GEN WS07X10027 Contact Us For Availability
13
CONDENSATE TUBE, 6 FT GEN WS07X10028 Contact Us For Availability
14
INSTALLATION KIT GEN WS35X10059 Contact Us For Availability
15
T3B EVAP OUTLET THERMIST GEN WS17X10003 Contact Us For Availability
16
T4 COMP DISCHARGE THERMI GEN WS17X10001 Contact Us For Availability
17
T3A EVAP INLET THERMISTO GEN WS17X10002 Contact Us For Availability
18
TEMP & PRES RELIEF VALVE GEN WS06X10011 Contact Us For Availability
19
DIP TUBE ASM GEN WS07X10029 Contact Us For Availability
20
ANODE ROD & INSULATION GEN WS02X10060 Contact Us For Availability
21
DRAIN VALVE GEN WS06X10012 Contact Us For Availability
22
HEAT ELEMENT & GASKET GEN WS51X10001 Contact Us For Availability
23
LOWER ELEMENT EPS COVER GEN WS82X10003 Contact Us For Availability
24
UPPER ELEMENT EPS COVER GEN WS82X10004 Contact Us For Availability
25
LOWER ELEMENT COVER GEN WS31X10046 Contact Us For Availability
26
MAGNET ASM GEN WS02X10061 Contact Us For Availability
27
UPPER ELEMENT COVER GEN WS31X10047 Contact Us For Availability
28
FRONT COVER ASM GEN WS31X10048 Contact Us For Availability
29
GE BADGE GEN WS34X10019 Contact Us For Availability
30
TCO2 DLB (170F) GEN WS21X10050 Contact Us For Availability
31
TCO BRACKET GEN WS28X10069 Contact Us For Availability
32
POWER SUPPLY BOARD GEN WS55X10009 Contact Us For Availability
33
FRONT SHROUD GEN WS31X10049 Contact Us For Availability
36
MAIN CONTROL BOARD GEN WS55X10020 Contact Us For Availability
39
DSM KIT GEN WS35X10060 Contact Us For Availability
41
HIGH PRESSURE CUT OUT GEN WS15X10071 Contact Us For Availability
42
JUNCTION BOX KIT GEN WS31X10050 Contact Us For Availability
43
T5 ROOM AMBIENT SENSOR GEN WS17X10004 Contact Us For Availability
46
FILTER DRYER GEN WS86X10001 Contact Us For Availability
47
COMPRESSOR ELECTRICALS K GEN WS19X10026 Contact Us For Availability
48
WIRE (G-B) GROUND GEN WS19X10027 Contact Us For Availability
50
4 PK COMPRESSOR NUT GEN WS02X10063 Contact Us For Availability
51
4 PK COMPRESSOR WASHER GEN WS02X10064 Contact Us For Availability
52
10 PK GROUND SCREW, JCN GEN WS02X10065 Contact Us For Availability
53
10 PK PAN HEAD PHILLIPS GEN WS02X10066 Contact Us For Availability
54
10 PK GROUND SCREW GEN WS02X10067 Contact Us For Availability
55
10 PK PHILLIPS SCREW LCD GEN WS02X10068 Contact Us For Availability
56
10 PK PHILLIPS SCREW MAI GEN WS02X10069 Contact Us For Availability
57
TCO1 SLB (160F) GEN WS21X10051 Contact Us For Availability
58
TCO DIELECTRIC GEN WS82X10005 Contact Us For Availability
59
T2 TANK THERMISTOR GEN WS17X10005 Contact Us For Availability
60
L1 WIRE JBOX TO POWER SU GEN WS19X10029 Contact Us For Availability
61
L2 WIRE JBOX TO POWER SU GEN WS19X10030 Contact Us For Availability
62
L2 WIRE POWER SUPPLY TO GEN WS19X10031 Contact Us For Availability
63
RELAY JUMPER WIRE GEN WS19X10032 Contact Us For Availability
65
MEMBRANE HOUSING GEN WS55X10015 Contact Us For Availability
999
PM MINI MANUAL GEN 3175007 Contact Us For Availability
999
PM USE & CARE GEN 4950254 Contact Us For Availability
999
MASTIC T3A GEN WS03X10070 Contact Us For Availability
999
MASTIC T3B GEN WS03X10071 Contact Us For Availability
× ![]()
