Model Whirlpool FCG20510W GAS RANGE – Common Parts & Diagrams

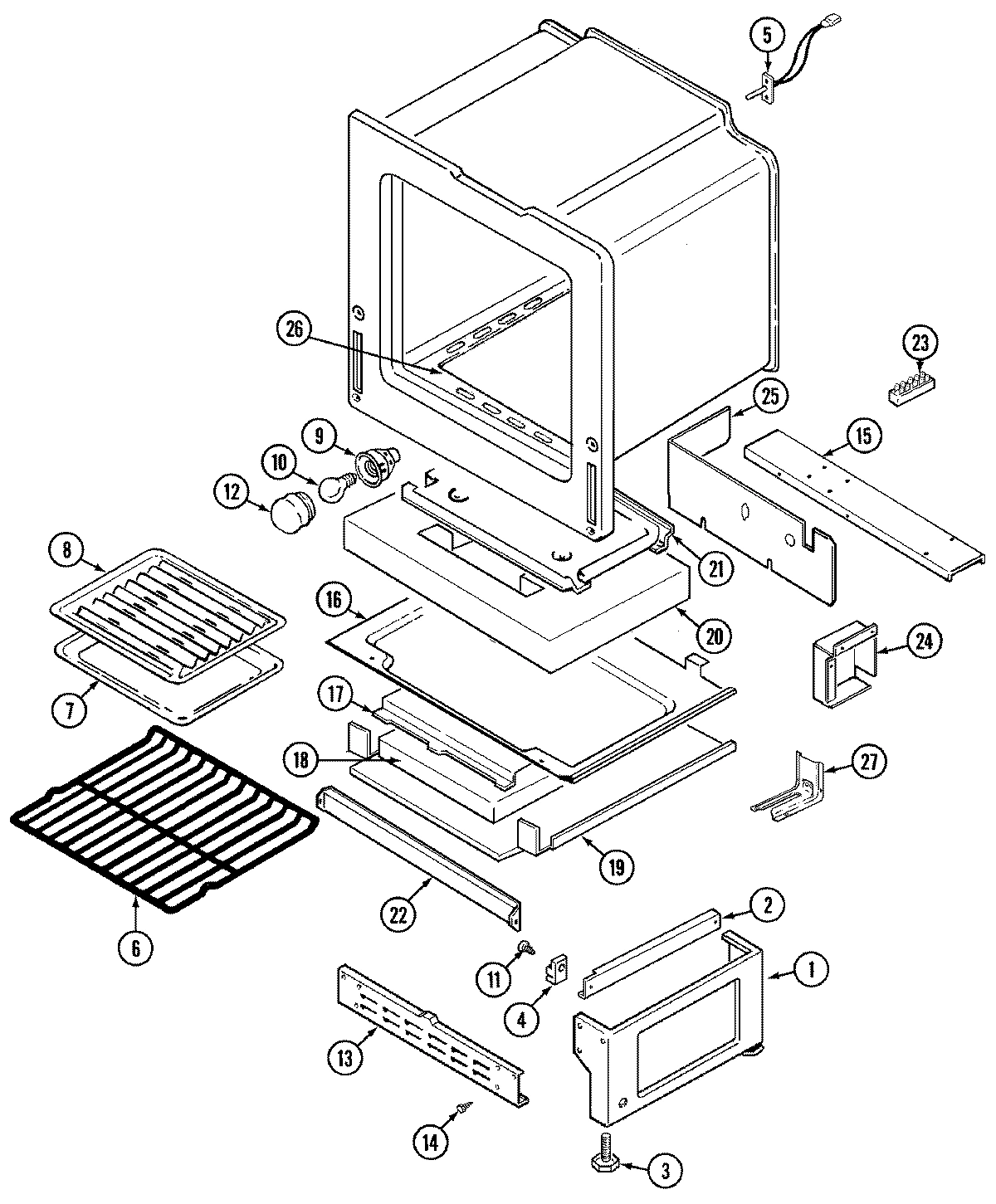

05 - OVEN/BASE

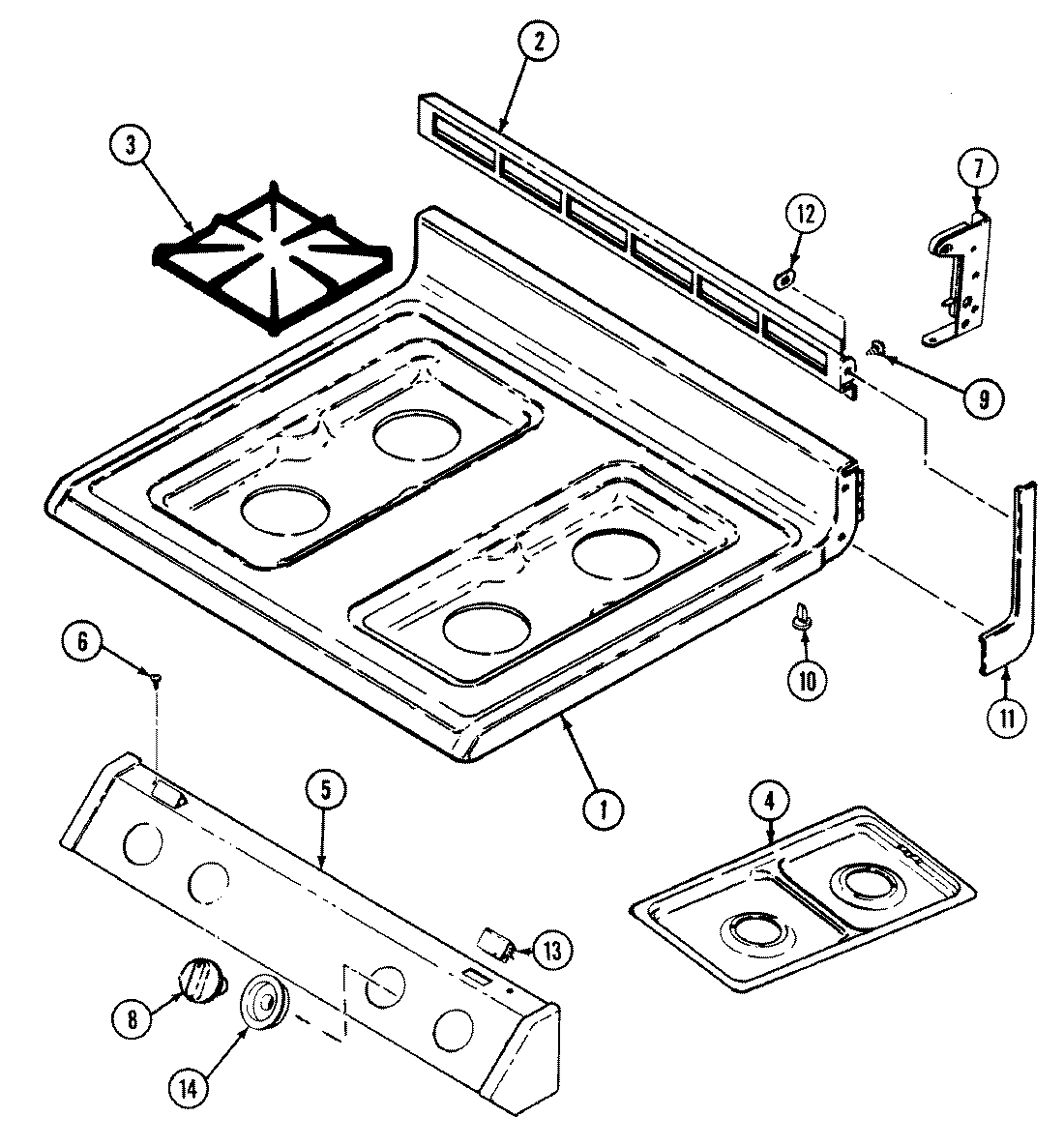

06 - TOP ASSEMBLY
07 - WIRING INFORMATION
04 - GAS CONTROLS
01 - BODY
03 - DOOR/DRAWER
02 - CONTROL PANEL
Common parts from model Whirlpool FCG20510W GAS RANGE
1
TOP, MAIN (WHT) WPL 74001532 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
BACK, MAIN WPL 4002F21180 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 74002057 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
TRIM, VENT (DARK GRAY) WPL 3608F04226 Contact Us For Availability
2
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
2
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
2
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
3
LEG, LEVELING WPL 74001311 Contact Us For Availability
3
GRATE WPL 7518P02660 Contact Us For Availability
3
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
3
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
3
BOX, BURNER WPL 4011F25080 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
3
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
4
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
4
HINGE WPL 7106P05660 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
5
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
5
PANEL, MANIFOLD (WHT) WPL 74002047 Contact Us For Availability
5
NUT, SPEED WPL 7103P04460 Contact Us For Availability
5
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
RACK, OVEN WPL 7801P04760 Contact Us For Availability
6
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
6
SEALED BURNER ASSY. (GRY) WPL 3412D01826 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SCREW (WHT) WPL 7101P34860 Contact Us For Availability
6
PANEL, CONTROL (WHT) WPL 74002082 Contact Us For Availability
7
PAN, BROIL WPL 3401F01419 Contact Us For Availability
7
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
7
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
7
HANDLE (WHT) WPL 74002062 Contact Us For Availability
7
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
8
INSERT, BROIL PAN WPL 3413F01319 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
8
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
8
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
8
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
8
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
9
NUT, LOCK WPL 7103P13960 Contact Us For Availability
9
KIT, CLOCK/OVERLAY (WHITE) WPL 74002031 Contact Us For Availability
10
BULB, OVEN WPL 7407P09560 Contact Us For Availability
10
GLIDE WPL 8016P01560 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
10
BRACKET, SWITCH WPL 3801F26745 Contact Us For Availability
10
INSULATOR, DOOR LOCK SWITCH WPL 7003P06360 Contact Us For Availability
10
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
10
LINING, DOOR WPL 2402W20919 Contact Us For Availability
10
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
10
NUT, SNAP WPL 7103P11460 Contact Us For Availability
10
NUT, SNAP WPL 7103P13660 Contact Us For Availability
10
BRACKET, CLOCK WPL 74001506 Contact Us For Availability
11
SCREW WPL 7101P10360 Contact Us For Availability
11
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
11
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
11
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
11
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
11
WASHER WPL 7109P01560 Contact Us For Availability
11
LEVER, LATCH ASSY. WPL 8009P02360 Contact Us For Availability
11
INSULATION, DOOR WPL 74001842 Contact Us For Availability
11
END CAP (RT-WHT) WPL 74002033 Contact Us For Availability
11
END CAP (LT-WHT) WPL 74002034 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
12
SCREW WPL 7101P29060 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
12
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2416W00271 Contact Us For Availability
12
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
12
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
13
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
13
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
13
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
13
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
13
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
14
HANDLE, DOOR LATCH (WHT) WPL 7701P15360 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
14
COVER, BACKGUARD (WHT) WPL 74002043 Contact Us For Availability
15
SUPPORT, VALVE & REGULATOR WPL 3807F44751 Contact Us For Availability
15
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
15
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
15
GLASS, INNER WPL 74001841 Contact Us For Availability
15
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
16
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
16
NUT, WING WPL 7103P03060 Contact Us For Availability
16
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
16
RETAINER, GLASS WPL 74001844 Contact Us For Availability
16
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
16
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
16
COVER, WIRE (LIGHT) WPL 7724P06660 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
17
ORIFICE FITTING ASSEMBLY WPL 5187D03460 Contact Us For Availability
17
ORIFICE FITTING ASSEMBLY WPL 5187D03560 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
17
BALLAST WPL 7412P00760 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
18
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
18
SCREW WPL 7101P30060 Contact Us For Availability
18
SCREW (WHT) WPL 74001278 Contact Us For Availability
18
STARTER WPL 7415P00160 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
HARNESS, SENSOR & LOCK WPL 5170P20460 Contact Us For Availability
19
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
19
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
19
SCREW WPL 7101P27760 Contact Us For Availability
19
WASHER WPL 7109P02860 Contact Us For Availability
19
FRAME, DOOR (WHT) WPL 7706P31060 Contact Us For Availability
19
HARNESS, CONTROL PANEL WPL 5180D15160 Contact Us For Availability
19
WIRES, LOOSE WPL 74002040 Contact Us For Availability
20
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
20
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
20
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
20
BOX, VENT WPL 4006W11345 Contact Us For Availability
20
TRIM, TOP (WHT) WPL 74002066 Contact Us For Availability
20
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
20
WARRANTY WPL 74001517 Contact Us For Availability
20
MANUAL, USE & CARE WPL 74002041 Contact Us For Availability
21
PAN, BAKE BURNER WPL 3401F02445 Contact Us For Availability
21
HARNESS, SPARK MODULE/TOP WPL 5120D01960 Contact Us For Availability
21
WIRES, IGNITER SWITCH(3BK/3TN) WPL 5125A35760 Contact Us For Availability
21
WIRES, IGNITER WPL 5140D03560 Contact Us For Availability
21
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
21
LINING WPL 2404F04480 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
22
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
22
END CAP, DRAWER (WHT) WPL 7744P09060 Contact Us For Availability
23
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
23
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
23
INSULATION, BACK WPL 74001800 Contact Us For Availability
23
TAPE WPL 8270P09860 Contact Us For Availability
24
SUPPORT, SPARK MODULE WPL 3807F47351 Contact Us For Availability
24
CORD, POWER WPL 7402P04360 Contact Us For Availability
24
INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability
25
COVER, VALVE WPL 4005F42951 Contact Us For Availability
25
WASHER WPL 7109P02060 Contact Us For Availability
25
BUMPER, ROD WPL 74001631 Contact Us For Availability
26
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
26
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
26
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
27
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
28
HARNESS, PEDESTAL WPL 5185D28060 Contact Us For Availability
28
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
29
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
30
SWITCH, DOOR LIGHT WPL 74001628 Contact Us For Availability
31
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001546 Contact Us For Availability
× ![]()
