Model Maytag DU18D4A DISHWASHER – Common Parts & Diagrams
01 - BASKET
02 - CONTROL PANEL

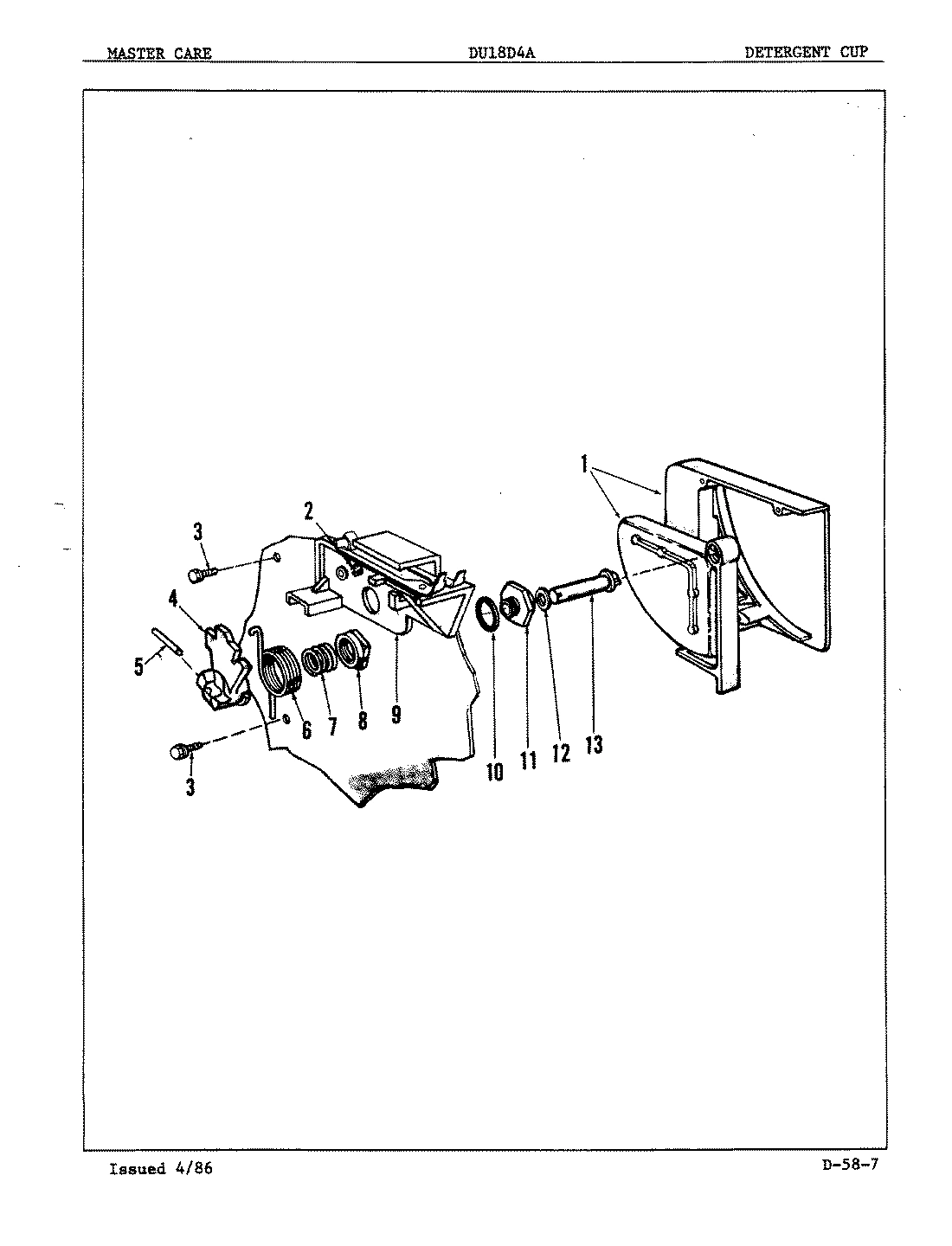

03 - DETERGENT CUP

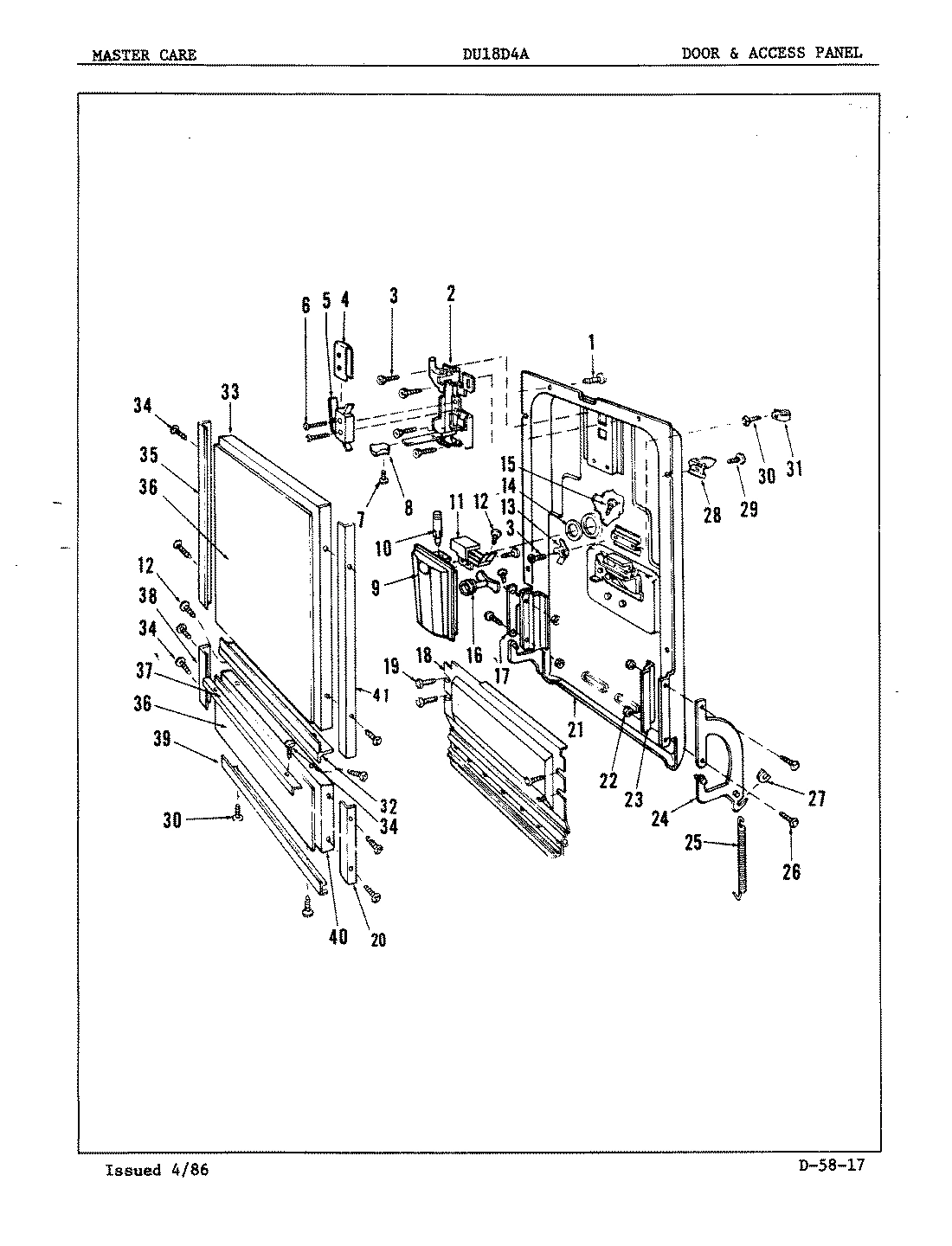

04 - DOOR & ACCESS PANEL
05 - FRAME
06 - INNER TUB
07 - PUMP & MOTOR
Common parts from model Maytag DU18D4A DISHWASHER
1
LOWER RACK MAY 808869 Contact Us For Availability
1
SCREW MAY 806943 Contact Us For Availability
1
DETRG CUP KIT MAY 807261 Contact Us For Availability
1
DEFLECTOR MAY 807558 Contact Us For Availability
1
TAPPING PLATE MAY 808868 Contact Us For Availability
1
MAY 806353 MAY 806353 Contact Us For Availability
2
SLVRWARE BASKET MAY 808845 Contact Us For Availability
2
LH END CAP MAY 808811 Contact Us For Availability
2
O RING MAY 808210 Contact Us For Availability
2
LATCH ASM MAY 807016 Contact Us For Availability
2
CLAMP MAY 806723 Contact Us For Availability
2
CLIP MAY 808289 Contact Us For Availability
2
MAY 803367 MAY 803367 Contact Us For Availability
3
RACK MAY 807684 Contact Us For Availability
3
PUSH BUTTON MAY 807091 Contact Us For Availability
3
SCREW MAY 806894 Contact Us For Availability
3
SCREW MAY 806565 Contact Us For Availability
3
MAY 803830 MAY 803830 Contact Us For Availability
3
GROUND TERMINAL MAY 807213 Contact Us For Availability
3
HEATER KIT MAY 806864 Contact Us For Availability
4
WHEEL ASM MAY 807245 Contact Us For Availability
4
MAY 808713 MAY 808713 Contact Us For Availability
4
MAY 806566 MAY 806566 Contact Us For Availability
4
SWITCH COVER MAY 807450 Contact Us For Availability
4
MAY 808658 MAY 808658 Contact Us For Availability
4
MAY 807524 MAY 807524 Contact Us For Availability
4
UPPER IMPELLER MAY 808041 Contact Us For Availability
5
END CAP MAY 807234 Contact Us For Availability
5
MAY 808717 MAY 808717 Contact Us For Availability
5
MAY 808719 MAY 808719 Contact Us For Availability
5
MAY 808720 MAY 808720 Contact Us For Availability
5
MAY 808721 MAY 808721 Contact Us For Availability
5
MAY 808766 MAY 808766 Contact Us For Availability
5
ROLL PIN MAY 808827 Contact Us For Availability
5
MAY 807043 MAY 807043 Contact Us For Availability
5
TOE PLATE MAY 807559 Contact Us For Availability
5
STRIKE SHIM MAY 807073 Contact Us For Availability
5
MACERATOR BLADE MAY 808075 Contact Us For Availability
6
SLIDE RAIL MAY 807568 Contact Us For Availability
6
VENT TRIM MAY 808477 Contact Us For Availability
6
SPRING MAY 805227 Contact Us For Availability
6
SCREW MAY 808425 Contact Us For Availability
6
BRACKET MAY 807675 Contact Us For Availability
6
STRIKE MAY 807015 Contact Us For Availability
6
SHROUD MAY 806267 Contact Us For Availability
7
WHEEL ASM MAY 807008 Contact Us For Availability
7
MAY 808475 MAY 808475 Contact Us For Availability
7
SPRING MAY 806567 Contact Us For Availability
7
SCREW MAY 808715 Contact Us For Availability
7
MAY 806890 MAY 806890 Contact Us For Availability
7
PUMP PLATE MAY 807884 Contact Us For Availability
8
MAY 807094 MAY 807094 Contact Us For Availability
8
NUT MAY 806568 Contact Us For Availability
8
MAY 806398 MAY 806398 Contact Us For Availability
8
MAY 807501 MAY 807501 Contact Us For Availability
8
CLIP KIT (TUB GASKET) MAY 805763 Contact Us For Availability
8
GASKET MAY 807709 Contact Us For Availability
9
SCREW MAY 808422 Contact Us For Availability
9
DET CUP TRIGGER MAY 808507 Contact Us For Availability
9
DISPENSER MAY 806753 Contact Us For Availability
9
MAY 807486 MAY 807486 Contact Us For Availability
9
SEALER MAY 805776 Contact Us For Availability
9
O RING MAY 806521 Contact Us For Availability
10
RED LENS MAY 805664 Contact Us For Availability
10
GASKET MAY 802836 Contact Us For Availability
10
MAY 806757 MAY 806757 Contact Us For Availability
10
MAY 806593 MAY 806593 Contact Us For Availability
10
PUMP SEAL KIT MAY 808722 Contact Us For Availability
11
RH END CAP MAY 808810 Contact Us For Availability
11
MAY 805626 MAY 805626 Contact Us For Availability
11
BRACKET MAY 806756 Contact Us For Availability
11
MAY 804672 MAY 804672 Contact Us For Availability
11
ROLLER MAY 807180 Contact Us For Availability
11
GASKET MAY 803903 Contact Us For Availability
12
O RING MAY 806647 Contact Us For Availability
12
RELAY MAY 805255 Contact Us For Availability
12
HARDWARE KIT MAY 808564 Contact Us For Availability
12
MAY 807710 MAY 807710 Contact Us For Availability
13
MAY 805584 MAY 805584 Contact Us For Availability
13
SHAFT KIT MAY 806674 Contact Us For Availability
13
SCREW MAY 807001 Contact Us For Availability
13
MAY 804630 MAY 804630 Contact Us For Availability
13
MAY 807268 MAY 807268 Contact Us For Availability
14
MAY 808483 MAY 808483 Contact Us For Availability
14
GROMMET MAY 805631 Contact Us For Availability
14
MAY 804619 MAY 804619 Contact Us For Availability
14
MAY 808700 MAY 808700 Contact Us For Availability
15
SPACER MAY 808424 Contact Us For Availability
15
SCREW MAY 806863 Contact Us For Availability
15
TEENUT MAY 807671 Contact Us For Availability
15
TUB/GASKET ASM MAY 808917 Contact Us For Availability
15
CLAMP RING MAY 807712 Contact Us For Availability
16
LIGHT ASM MAY 808711 Contact Us For Availability
16
MAY 807673 MAY 807673 Contact Us For Availability
16
MAY 806889 MAY 806889 Contact Us For Availability
16
PLATE, FLOAT TUBE MAY 808064 Contact Us For Availability
16
WATER SHLD, FAN MAY 808899 Contact Us For Availability
17
RH TIMER HOUSNG MAY 808231 Contact Us For Availability
17
LH ARM MAY 807539 Contact Us For Availability
17
MAY 807950 MAY 807950 Contact Us For Availability
17
GASKET MAY 808063 Contact Us For Availability
17
RING MAY 808898 Contact Us For Availability
18
MAY 808333 MAY 808333 Contact Us For Availability
18
VENT PANEL ASM MAY 808370 Contact Us For Availability
18
SCREW MAY 808368 Contact Us For Availability
18
LH GUIDE MAY 807599 Contact Us For Availability
18
MOTOR MAY 806300 Contact Us For Availability
19
TERMINAL MAY 808334 Contact Us For Availability
19
SCREW MAY 806810 Contact Us For Availability
19
VALVE BRACKET MAY 807613 Contact Us For Availability
19
MAY 803346 MAY 803346 Contact Us For Availability
19
SEAL TOOL MAY 803923 Contact Us For Availability
20
MAY 808671 MAY 808671 Contact Us For Availability
20
TRIM MAY 808103 Contact Us For Availability
20
FITTING MAY 808337 Contact Us For Availability
20
MAY 808115 MAY 808115 Contact Us For Availability
20
SHIM GAUGE MAY 807077 Contact Us For Availability
21
MAY 808583 MAY 808583 Contact Us For Availability
21
INLET VALVE KIT MAY 808668 Contact Us For Availability
21
MAY 803319 MAY 803319 Contact Us For Availability
21
MAY 808699 MAY 808699 Contact Us For Availability
22
MAY 807425 MAY 807425 Contact Us For Availability
22
LOCKNUT MAY 808470 Contact Us For Availability
22
MAY 807672 MAY 807672 Contact Us For Availability
22
O RING MAY 807759 Contact Us For Availability
22
CLAMP MAY 806090 Contact Us For Availability
23
MAY 808724 MAY 808724 Contact Us For Availability
23
ARM BRACKET MAY 806717 Contact Us For Availability
23
MAY 808469 MAY 808469 Contact Us For Availability
23
RH GUIDE MAY 807600 Contact Us For Availability
23
GROMMET MAY 806833 Contact Us For Availability
24
SHIELD MAY 808574 Contact Us For Availability
24
RH ARM MAY 807538 Contact Us For Availability
24
MAY 806100 MAY 806100 Contact Us For Availability
24
WIRE,GASKT JUNC MAY 808118 Contact Us For Availability
24
NUT MAY 806834 Contact Us For Availability
25
MAY 806594 MAY 806594 Contact Us For Availability
25
MAY 807534 MAY 807534 Contact Us For Availability
25
SUDS DEFLECTOR MAY 807563 Contact Us For Availability
25
DOOR GASKET MAY 809003 Contact Us For Availability
25
MAY 807270 MAY 807270 Contact Us For Availability
26
WIRE CLAMP MAY 808442 Contact Us For Availability
26
MAY 807141 MAY 807141 Contact Us For Availability
26
MAY 803311 MAY 803311 Contact Us For Availability
26
BASE ANGLE MAY 807564 Contact Us For Availability
26
FLOAT ASM MAY 807677 Contact Us For Availability
27
MAY 809002 MAY 809002 Contact Us For Availability
27
SPRING PAD MAY 805884 Contact Us For Availability
27
WIRE SHIELD MAY 808013 Contact Us For Availability
27
FLOAT SWITCH MAY 807680 Contact Us For Availability
27
PUMPHOUSING KIT MAY 806978 Contact Us For Availability
28
MAY 807970 MAY 807970 Contact Us For Availability
28
DOOR GUIDE MAY 807537 Contact Us For Availability
28
MAY 808670 MAY 808670 Contact Us For Availability
28
BOLT MAY 804594 Contact Us For Availability
28
SCREW MAY 807359 Contact Us For Availability
29
MAY 808749 MAY 808749 Contact Us For Availability
29
MAY 807566 MAY 807566 Contact Us For Availability
29
SCREW MAY 806901 Contact Us For Availability
29
MAY 804526 MAY 804526 Contact Us For Availability
30
SCREW MAY 803416 Contact Us For Availability
30
TERMINAL COVER MAY 800222 Contact Us For Availability
30
GASKET MAY 806797 Contact Us For Availability
30
MAY 804527 MAY 804527 Contact Us For Availability
31
BRACKET MAY 807019 Contact Us For Availability
31
MAY 808705 MAY 808705 Contact Us For Availability
31
LOWER BEARING MAY 808175 Contact Us For Availability
32
TRIM MAY 808323 Contact Us For Availability
32
HINGE MAY 807674 Contact Us For Availability
32
MAY 808706 MAY 808706 Contact Us For Availability
32
NUT MAY 808176 Contact Us For Availability
33
DOOR PANEL MAY 808298 Contact Us For Availability
33
RETAINER MAY 808458 Contact Us For Availability
33
INLET TUBE MAY 807891 Contact Us For Availability
33
BEARING SHIELD MAY 808924 Contact Us For Availability
34
MAY 807293 MAY 807293 Contact Us For Availability
34
MAY 807813 MAY 807813 Contact Us For Availability
34
SPRAY ARM MAY 808848 Contact Us For Availability
35
LH DOOR TRIM MAY 808851 Contact Us For Availability
35
INLET NOZZLE MAY 808707 Contact Us For Availability
35
TOWER BASE MAY 808178 Contact Us For Availability
36
INSERT MAY 808299 Contact Us For Availability
36
SCREW MAY 808818 Contact Us For Availability
36
MAY 808179 MAY 808179 Contact Us For Availability
37
ACCESS PNL TRIM MAY 808471 Contact Us For Availability
37
MAY 806291 MAY 806291 Contact Us For Availability
37
MAY 808849 MAY 808849 Contact Us For Availability
38
TRIM MAY 808104 Contact Us For Availability
38
TAPPING PLATE MAY 807038 Contact Us For Availability
39
TRIM MAY 808303 Contact Us For Availability
40
ACCESS PANEL MAY 808304 Contact Us For Availability
41
RH DOOR TRIM MAY 808850 Contact Us For Availability
× ![]()
