Model Whirlpool DCS-416-1W DISHWASHER – Common Parts & Diagrams

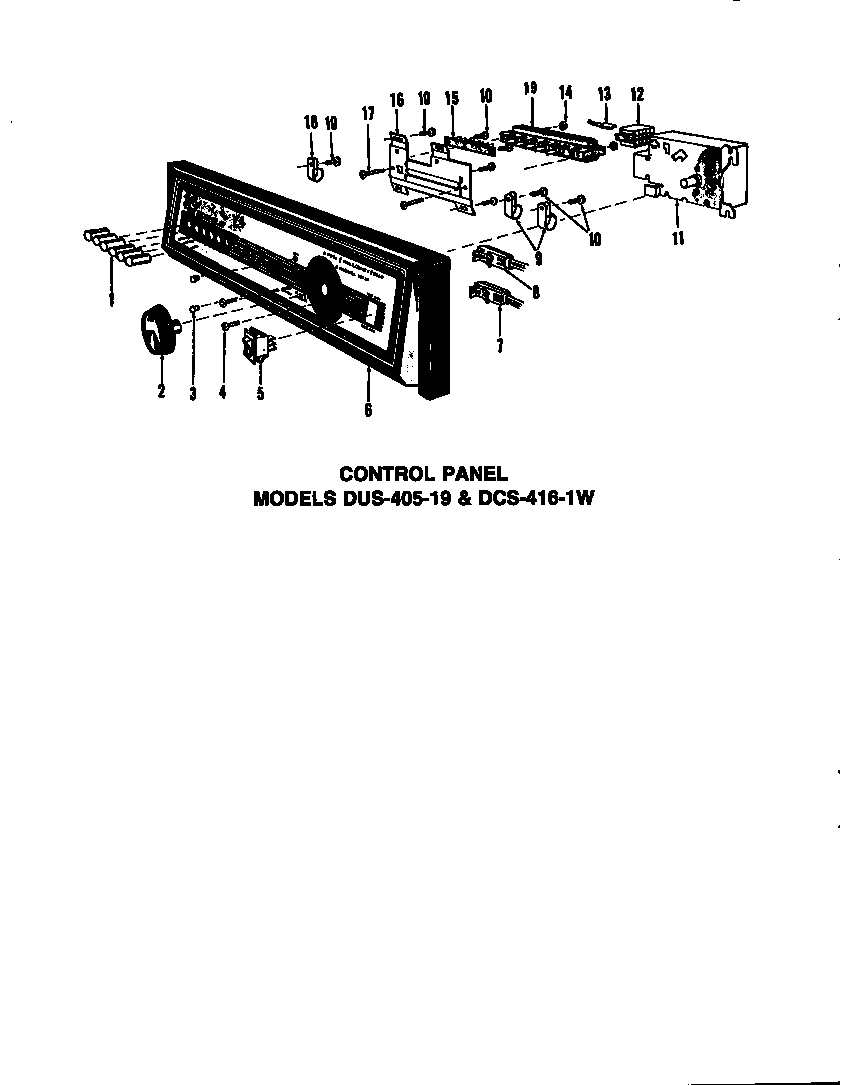

01 - COUNTER PANEL

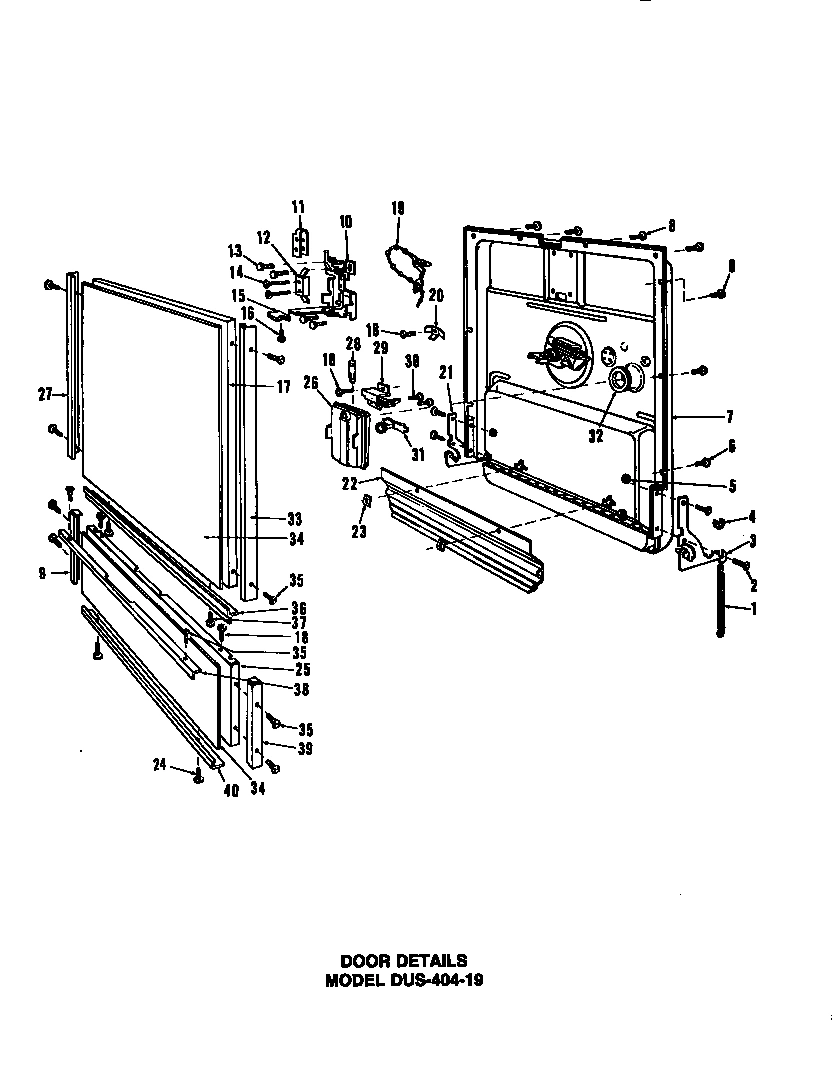

03 - DOOR DETAILS
02 - DETERGENT CUP
07 - TUB DETAILS
04 - DOOR DETAILS
06 - TOP DETAILS
05 - RACK DETAILS
Common parts from model Whirlpool DCS-416-1W DISHWASHER
1
PUSHBUTTON WPL Y0807091 Contact Us For Availability
1
SPIROL PIN WPL Y0808827 Contact Us For Availability
1
LATCH TAPPING PLATE WPL 0808868 Contact Us For Availability
1
DOOR SPRING WPL Y0809360 Contact Us For Availability
1
SCREW WPL 0806976 Contact Us For Availability
1
LOWER RACK ASSY WPL Y0808874 Contact Us For Availability
2
KNOB WPL 0809356 Contact Us For Availability
2
SCREW WPL 0803311 Contact Us For Availability
2
CAM WPL Y0806566 Contact Us For Availability
2
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0808845 Contact Us For Availability
3
LENS WPL 0809036 Contact Us For Availability
3
SPRING WPL Y0805227 Contact Us For Availability
3
TUB PAD WPL 807454 Contact Us For Availability
3
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
3
SCREW WPL 0807270 Contact Us For Availability
4
SCREW WPL 0805324 Contact Us For Availability
4
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
4
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
4
SPRING PAD WPL 0805884 Contact Us For Availability
4
CLIP WPL 0809088 Contact Us For Availability
4
RACK, UPPER WPL 0807902 Contact Us For Availability
5
SWITCH, ROCKER WPL Y0809359 Contact Us For Availability
5
SHIM WPL 0809214 Contact Us For Availability
5
TOP, CHIPBOARD WPL 0809130 Contact Us For Availability
5
ROLLER WPL Y0807957 Contact Us For Availability
6
CONTROL PANEL WPL 0809367 Contact Us For Availability
6
BI-METAL ASSY. WPL Y0809072 Contact Us For Availability
6
STRIKE WPL Y0807015 Contact Us For Availability
6
CLAMP, TOP WPL Y0807819 Contact Us For Availability
6
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
7
LIGHT ASSY. WPL 0809332 Contact Us For Availability
7
LID, DISPENSER WPL Y0809028 Contact Us For Availability
7
DOOR ASSY. WPL 0809054 Contact Us For Availability
7
SCREW WPL Y0807817 Contact Us For Availability
7
RACK SLIDE WPL 0807854 Contact Us For Availability
8
LIGHT, ASSY. WPL 0809317 Contact Us For Availability
8
``O`` RING WPL Y0806647 Contact Us For Availability
8
FASTENER GASKET WPL Y0805763 Contact Us For Availability
8
SCREW WPL Y0808749 Contact Us For Availability
8
ESCUTCHEON WPL 0809131 Contact Us For Availability
8
WHEEL ASSY WPL Y0807008 Contact Us For Availability
9
CLAMP WPL Y0808442 Contact Us For Availability
9
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
9
THERMOSTAT WPL Y0808956 Contact Us For Availability
10
SCREW WPL 0809175 Contact Us For Availability
10
WASHER, SEALING WPL 0809044 Contact Us For Availability
10
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
10
CORD, ESCUTCHEON WPL 0809132 Contact Us For Availability
11
x TIMER WPL 0809190 Contact Us For Availability
11
ROLLER WPL 0807180 Contact Us For Availability
11
SWITCH COVER WPL 0807450 Contact Us For Availability
11
HINGE PIN WPL Y0808530 Contact Us For Availability
12
TIMER, TERMINAL HOUSING WPL 0809296 Contact Us For Availability
12
KIT, SCREW & WASHER WPL 0808564 Contact Us For Availability
12
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
12
LID WPL 0809133 Contact Us For Availability
13
TERMINAL, (PACK OF 25) WPL 0808333 Contact Us For Availability
13
NUT PLASTIC WPL 0805669 Contact Us For Availability
13
HOSE ESCUTCHEON WPL 0809134 Contact Us For Availability
14
FLOAT WPL Y0804630 Contact Us For Availability
14
SCREW WPL 0808618 Contact Us For Availability
15
TERMINAL BOARD ASSY. WPL Y0808483 Contact Us For Availability
15
SCREW WPL Y0807268 Contact Us For Availability
15
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
16
BRACKET, SW. MTG. WPL 0809334 Contact Us For Availability
16
RING WPL Y0808064 Contact Us For Availability
16
USE 0806830 WPL 0809163 Contact Us For Availability
17
SCREW WPL 0807103 Contact Us For Availability
17
GASKET WPL Y0808063 Contact Us For Availability
17
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
18
USE M0217224 WPL Y0803416 Contact Us For Availability
19
SWITCH WPL 0809333 Contact Us For Availability
19
GASKET & WIRE ASSY WPL Y0809035 Contact Us For Availability
19
THERMOSTAT RETAINER WPL 0809097 Contact Us For Availability
20
GASKET, WIRE JUNCTION WPL 0809320 Contact Us For Availability
20
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
21
CLIP, GASKET WPL 0808115 Contact Us For Availability
21
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
22
``0`` RING WPL Y0807759 Contact Us For Availability
22
BAFFLE SEAL WPL Y0809025 Contact Us For Availability
23
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
23
SPEEDNUT WPL 0809026 Contact Us For Availability
24
FLOAT SWITCH WPL Y0807680 Contact Us For Availability
25
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
25
ACCESS PANEL, WHITE WPL 0809108 Contact Us For Availability
26
WIRE SHIELD WPL 0809144 Contact Us For Availability
26
BODY DISPENSER, WETTING AGENT WPL Y0806753 Contact Us For Availability
27
WIRING CLAMP WPL 0806723 Contact Us For Availability
27
TRIM, ACC SIDE WPL 0808104 Contact Us For Availability
28
PLUNGER WPL 0806757 Contact Us For Availability
29
BI-METAL ASSY WPL Y0809109 Contact Us For Availability
30
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
31
HINGE WELD ASSY. WPL 0808739 Contact Us For Availability
31
SUB 807673, FILL PLUG WPL Y0806755 Contact Us For Availability
32
GROMMET, MOUNTING WPL 0805631 Contact Us For Availability
33
TUBE, INLET WPL 0807891 Contact Us For Availability
33
DOOR PANEL TRIM, RH WPL 0808990 Contact Us For Availability
34
CLAMP WPL Y0807813 Contact Us For Availability
34
DOOR & ACCESS PANEL INSERT,ALM WPL 0808908 Contact Us For Availability
34
DOOR & ACCESS PNL INSERTS HARV WPL 0808912 Contact Us For Availability
34
DOOR AND ACCESS PANEL INSERTS WPL 0808914 Contact Us For Availability
35
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
36
DOOR TRIM, BOTTOM WPL Y0807347 Contact Us For Availability
37
SCREW WPL 0804672 Contact Us For Availability
37
DOOR PANEL TRIM, LH WPL 0808991 Contact Us For Availability
38
RELAY WPL 0805255 Contact Us For Availability
38
TRIM, TOP, ACCESS PANEL WPL 0808346 Contact Us For Availability
39
USE M0281003 WPL 0803346 Contact Us For Availability
39
TRIM, ACC SIDE WPL 0808103 Contact Us For Availability
40
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
40
TRIM, ACCESS, BOTTOM WPL Y0808521 Contact Us For Availability
41
WASHER WPL Y0803573 Contact Us For Availability
41
TOE PLATE WPL Y0808522 Contact Us For Availability
42
WATER INLET ASSY WPL Y0806470 Contact Us For Availability
43
TUB & GASKET ASSY WPL 0809347 Contact Us For Availability
× ![]()
