Model GE CTS99AWN General Electric Model CTS99AWN – Common Parts & Diagrams

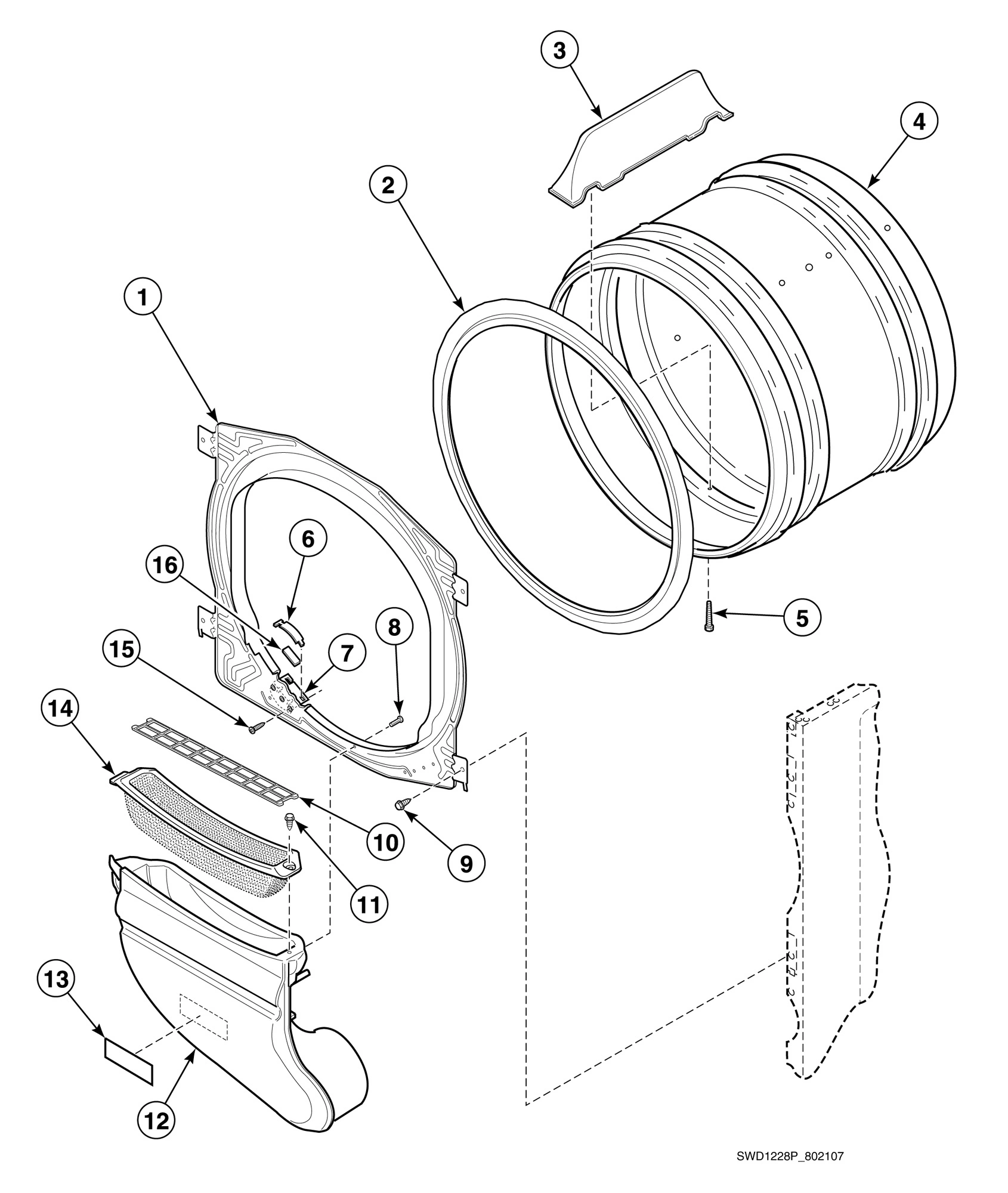

Front Bulkhead, Air Duct, Felt Seal and Cylinder

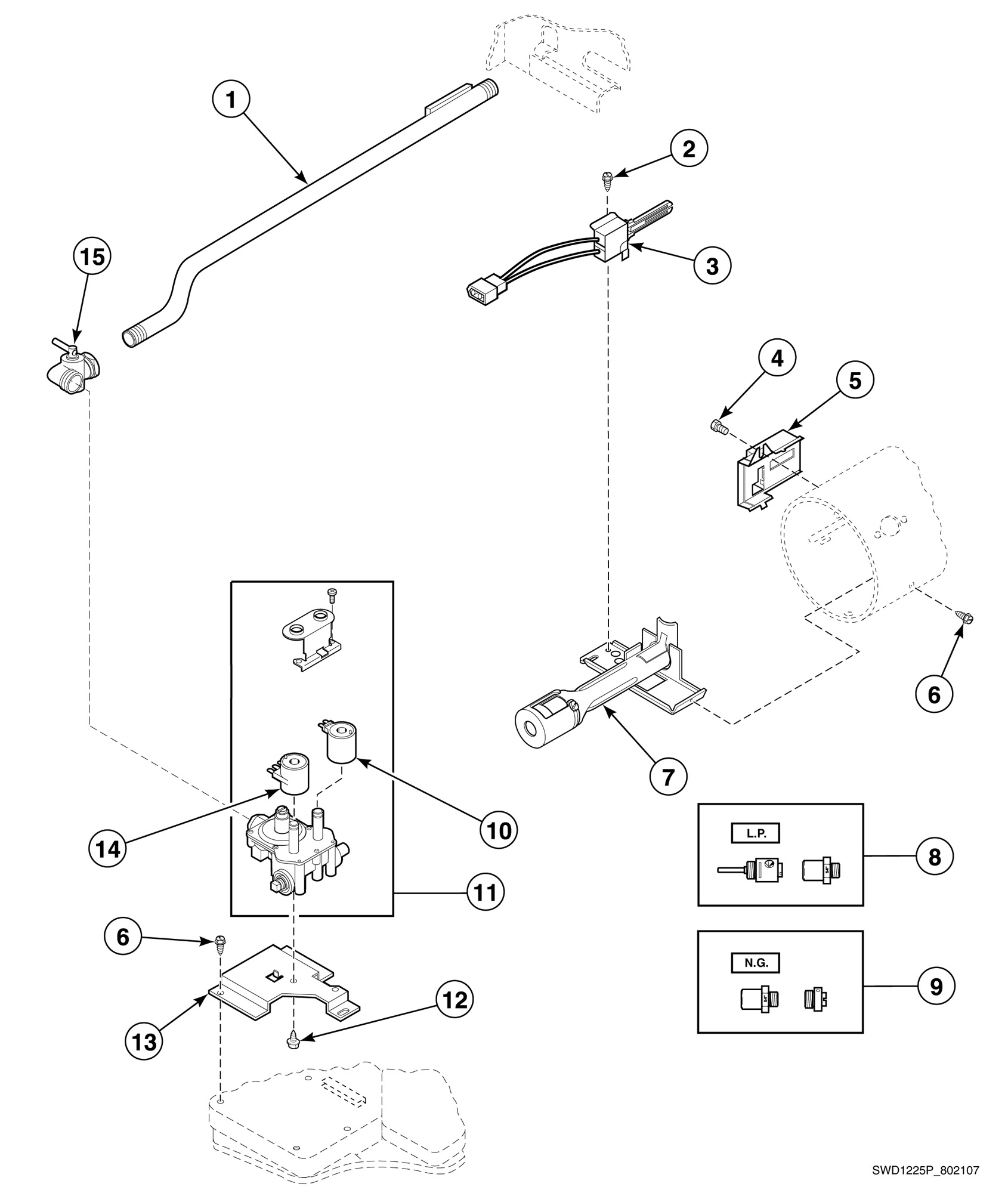

Gas Valve, Igniter and Gas Conversion Kits
Heater Duct Assembly
Inner Basket, Trunnion, Bearing Housing and Pulley
Labels
Mixing Valve, Valve-to-Dispenser Inlet Hose and Fill Hose
Outer Tub, Front and Clamp Ring
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Shipping Materials
Special Tools
Washer Base, Panels and Rear Panel
Washer Front Panel, Door Assembly and Door Seal
Washer Lead-In Cord, Wire Ties and Clips
Washer Motor and Belt
Wire Harnesses and Wires
Common parts from model GE CTS99AWN General Electric Model CTS99AWN
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Use for cylinder seal) GEN D511637P Contact Us For Availability
1
Lead-In Pipe Assembly GEN D510204 Contact Us For Availability
1
Tension Rod Assembly GEN 800666 Contact Us For Availability
1
Screw GEN M400043 Contact Us For Availability
1
Door Locked Label GEN 685947 Contact Us For Availability
1
Hose Clamp GEN 802164 Contact Us For Availability
1
Screw GEN D503661 Contact Us For Availability
1
Nut GEN F430218 Contact Us For Availability
1
Dispenser Drawer Tool (Comment: Use to remove GEN 318P4 Contact Us For Availability
1
Bumper Pad GEN 56128 Contact Us For Availability
1
Outer Door Bezel GEN 801904W Contact Us For Availability
1
Wire Tie (Comment: Push mount) GEN 38663 Contact Us For Availability
1
Control Panel Harness Assembly GEN 801326P Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Heat Duct Shroud GEN D510101 Contact Us For Availability
2
Inner Basket Assembly (Comment: Includes (3) GEN 803007P Contact Us For Availability
2
Washer GEN 800457 Contact Us For Availability
2
Oversudsing Label GEN 802074 Contact Us For Availability
2
Valve-to-Dispenser Inlet Hose GEN 801464 Contact Us For Availability
2
Washer GEN M400014 Contact Us For Availability
2
Pulley Bolt Tightening Fixture (Comment: Use GEN 802336 Contact Us For Availability
2
Door Glass GEN 800343P Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
2
Inverter Control Assembly GEN 803254P Contact Us For Availability
2
Upper Harness Assembly GEN D511325P Contact Us For Availability
3
Cylinder Baffle GEN D510102W Contact Us For Availability
3
Igniter and Bracket Assembly GEN D510184P Contact Us For Availability
3
Outlet Cover GEN D500820 Contact Us For Availability
3
Trunnion Shaft and Hardware Kit (Comment: Inc GEN 800749P Contact Us For Availability
3
Screw GEN 800462 Contact Us For Availability
3
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
3
Backflow Preventer GEN 34500 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D511082P Contact Us For Availability
3
Shipping Bracket GEN 802890 Contact Us For Availability
3
Wrench (Comment: Use to adjust leveling legs) GEN 392P4 Contact Us For Availability
3
Nut GEN 801994 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Control Shield GEN 801061 Contact Us For Availability
3
Control Harness Assembly GEN 801324P Contact Us For Availability
4
Cylinder Assembly (Comment: Includes item 3) GEN D510265WP Contact Us For Availability
4
Screw GEN 23222 Contact Us For Availability
4
Heater Duct and Screw Assembly (Comment: Incl GEN D510025P Contact Us For Availability
4
Inner Basket Assembly (Comment: Includes item GEN 800429P Contact Us For Availability
4
Venting Instruction Label GEN D502791 Contact Us For Availability
4
Mixing Valve Plate GEN 800323 Contact Us For Availability
4
Shipping Cord and Brace Assembly GEN 800364P Contact Us For Availability
4
Cabinet Panel Kit (Comment: Left panel, Inclu GEN 800004WP Contact Us For Availability
4
Inner Door Bezel GEN 801903 Contact Us For Availability
4
Wire Clip (Comment: Small) GEN D504034 Contact Us For Availability
4
Screw GEN D501524 Contact Us For Availability
4
Motor Harness Assembly GEN 801063P Contact Us For Availability
5
Screw GEN 62588 Contact Us For Availability
5
Sensor GEN D510213 Contact Us For Availability
5
Combustion Duct GEN D510131 Contact Us For Availability
5
Nut GEN 685844 Contact Us For Availability
5
Exhaust Warning Label GEN D500497 Contact Us For Availability
5
Out-of-Balance Switch Assembly GEN 801006 Contact Us For Availability
5
Warning Label (Comment: Non-grounded) GEN 800632 Contact Us For Availability
5
Locking Catch GEN 685430 Contact Us For Availability
5
Wire Clip (Comment: Large) GEN 687500 Contact Us For Availability
5
Inverter Assembly Kit (Comment: Includes item GEN 801526P Contact Us For Availability
5
Base Harness Assembly GEN 800590P Contact Us For Availability
6
Cylinder Glide GEN D510188 Contact Us For Availability
6
Screw GEN 51782 Contact Us For Availability
6
Warning Label GEN D500049 Contact Us For Availability
6
Washer GEN 20290 Contact Us For Availability
6
Wire Clamp GEN 800811 Contact Us For Availability
6
NOT ON YOUR MODEL GEN - Contact Us For Availability
6
Rear Panel GEN 800010P Contact Us For Availability
6
Screw GEN 801993 Contact Us For Availability
6
Nut GEN 03673 Contact Us For Availability
6
Fuse (Comment: Use for inverter control) GEN 801755 Contact Us For Availability
6
Security Cabinet Harness Assembly GEN D511323 Contact Us For Availability
7
Cylinder Glide Bracket GEN D510145 Contact Us For Availability
7
Burner Assembly GEN D510149P Contact Us For Availability
7
Limit Thermostat (Comment: Color code black GEN D510702 Contact Us For Availability
7
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
7
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
7
Washer GEN M400081 Contact Us For Availability
7
Screw GEN 61199 Contact Us For Availability
7
Shipping Materials Kit (Comment: Includes ite GEN 728P3 Contact Us For Availability
7
Screw Label (Comment: Left hand thread) GEN 685928 Contact Us For Availability
7
Screw GEN 800548 Contact Us For Availability
7
Washer GEN 03815 Contact Us For Availability
7
Screw GEN M400057 Contact Us For Availability
8
Screw GEN 52864 Contact Us For Availability
8
L.P. Conversion Kit (Comment: Used to convert GEN 649P3 Contact Us For Availability
8
Hose Mounting Plate GEN 800552 Contact Us For Availability
8
Fill Hose (Comment: 8 feet) GEN 20617 Contact Us For Availability
8
Fill Hose (Comment: 10 feet) GEN 20618 Contact Us For Availability
8
Water Hose (Comment: 4 feet, Includes 2 of it GEN F200116 Contact Us For Availability
8
Screw GEN 800461 Contact Us For Availability
8
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
8
Shipping Bracket Label GEN 686901 Contact Us For Availability
8
Hole Plug GEN M412154 Contact Us For Availability
8
Screw GEN 801019 Contact Us For Availability
8
Screw GEN 685837 Contact Us For Availability
8
Washer GEN 02834 Contact Us For Availability
9
N.G. Conversion Kit (Comment: Used to convert GEN 650P3 Contact Us For Availability
9
Hose Clip GEN 800553 Contact Us For Availability
9
Screw GEN D501086 Contact Us For Availability
9
Switch Mounting Bracket GEN 800663 Contact Us For Availability
9
Cylinder Roller GEN D510708P Contact Us For Availability
9
Rear Access Panel GEN 800011 Contact Us For Availability
9
Door Hinge GEN 802934 Contact Us For Availability
9
Strain Relief GEN 38384 Contact Us For Availability
9
Washer GEN M400080 Contact Us For Availability
10
Secondary Coil GEN 58804B Contact Us For Availability
10
Nut GEN 800452 Contact Us For Availability
10
Pop Rivet GEN 685847 Contact Us For Availability
10
Mixing Valve Screen GEN 802926 Contact Us For Availability
10
Nut GEN 56156 Contact Us For Availability
10
Motor Access Hole Edging GEN 801702 Contact Us For Availability
10
Nut GEN 23951 Contact Us For Availability
10
Lead-In Cord GEN 34458 Contact Us For Availability
10
Drive Belt GEN 800319P Contact Us For Availability
11
Gas Valve Assembly (Comment: 60 Hertz, 22,500 GEN D510506P Contact Us For Availability
11
Driven Pulley GEN 800866 Contact Us For Availability
11
Mixing Valve GEN 802220P Contact Us For Availability
11
Shaft GEN 56461P Contact Us For Availability
11
Side Panel Kit (Comment: Right panel, Include GEN 800005WP Contact Us For Availability
11
Hold-Down Clip GEN 800906 Contact Us For Availability
11
Motor and Rod Assembly Kit (Comment: Includes GEN 801684P Contact Us For Availability
12
Screw GEN 56124 Contact Us For Availability
12
Screw (Comment: Left hand thread) GEN 685831 Contact Us For Availability
12
Grommet GEN 29175 Contact Us For Availability
12
Washer GEN D504082 Contact Us For Availability
12
Retaining Ring GEN 23748 Contact Us For Availability
12
Panel Locator GEN 56079 Contact Us For Availability
12
Screw GEN 31645 Contact Us For Availability
13
Gas Valve Mounting Bracket GEN D510128 Contact Us For Availability
13
Washer GEN M403958 Contact Us For Availability
13
Pressure Bulb GEN 30907 Contact Us For Availability
13
Washer GEN 52549 Contact Us For Availability
13
Screw GEN 39733 Contact Us For Availability
13
Cabinet Brace (Comment: Right) GEN 801492 Contact Us For Availability
14
Booster and Holding Coil GEN 58804A Contact Us For Availability
14
Washer GEN 800464 Contact Us For Availability
14
Tubing GEN 800648P Contact Us For Availability
14
Rubber Foot GEN 34318 Contact Us For Availability
14
Door Latch/Switch Assembly GEN 685429 Contact Us For Availability
14
Motor Mount Rod GEN 801062 Contact Us For Availability
15
Elbow Shut-Off Valve GEN D510205 Contact Us For Availability
15
Hose Clamp GEN 39282 Contact Us For Availability
15
Anchor (Comment: Includes 4 rubber discs with GEN 155P3 Contact Us For Availability
15
Hinge Plate GEN 802412 Contact Us For Availability
16
Bearing Housing Kit (Comment: Includes 838P3 GEN 800428P Contact Us For Availability
16
Outer Tub Assembly GEN 801081P Contact Us For Availability
16
Leveling Leg GEN 34319 Contact Us For Availability
16
Wire Clamp Ring GEN 800438 Contact Us For Availability
17
Tub Shock Absorber Kit (Comment: Upper) GEN 800622P Contact Us For Availability
17
Nut GEN 21899 Contact Us For Availability
17
Door Seal Clamp (Comment: Seal to outer tub f GEN 685743P Contact Us For Availability
18
Base Shock Absorber Kit (Comment: Lower) GEN 800623P Contact Us For Availability
18
Base Assembly GEN 802245 Contact Us For Availability
18
Door Seal and Hose Assembly Kit (Comment: Bla GEN 800232P Contact Us For Availability
18
Door Seal and Hose Assembly Kit (Comment: Gra GEN 801784P Contact Us For Availability
19
Grounding Clip GEN 00161 Contact Us For Availability
19
Cabinet Brace (Comment: Left) GEN 801491 Contact Us For Availability
20
Ballast Weight GEN 800205 Contact Us For Availability
20
Brace Kit (Comment: Includes items 12, 13 and GEN 918P3 Contact Us For Availability
20
Hose Clamp GEN 800803 Contact Us For Availability
21
Tub Front Assembly GEN 800430 Contact Us For Availability
21
Extension Spring GEN 800346 Contact Us For Availability
22
Tub Front Seal GEN 800432P Contact Us For Availability
22
Nut GEN 36020 Contact Us For Availability
23
Clamp Ring GEN 800312 Contact Us For Availability
24
Access Panel Damper GEN 685368 Contact Us For Availability
25
Screw GEN 801045 Contact Us For Availability
26
Access Panel Assembly GEN D514250WP Contact Us For Availability
27
Front Panel GEN 800336WP Contact Us For Availability
28
Door Switch GEN 800211 Contact Us For Availability
29
Door Assembly (Comment: Includes items 1-11) GEN 801928WP Contact Us For Availability
NA
Anti-Seize Compound (Comment: Pulley to inner GEN 27604P Contact Us For Availability
NA
Hardware Kit (Comment: Includes (8) of item 6 GEN 838P3 Contact Us For Availability
NA
Porcelain Touch-Up Paint GEN 122P4P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
