Model LG ARND203DCR4.ENCULUS Split rooftop dedicated outdoor air system (DOAS) – Common Parts & Diagrams

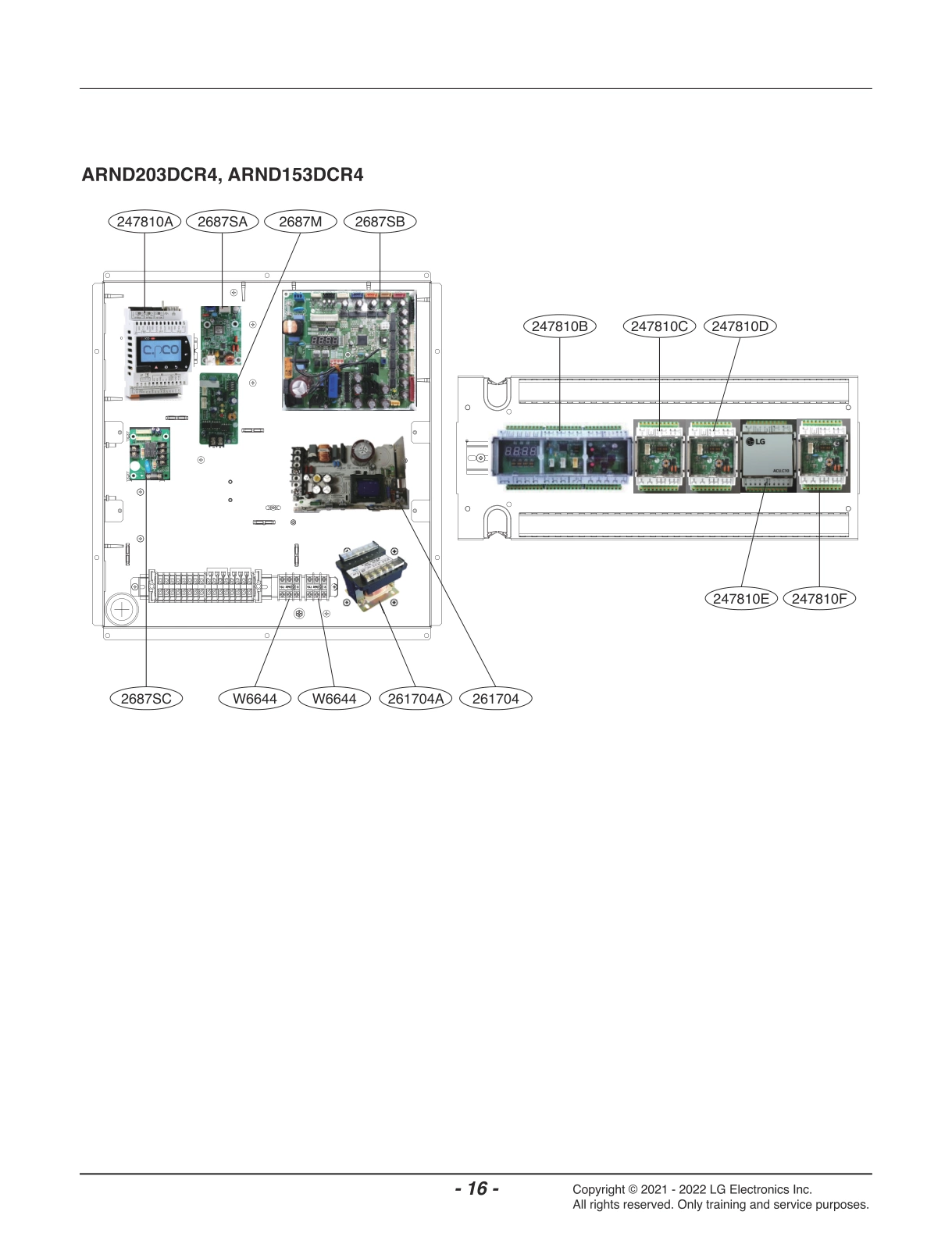

DIAGRAM 1

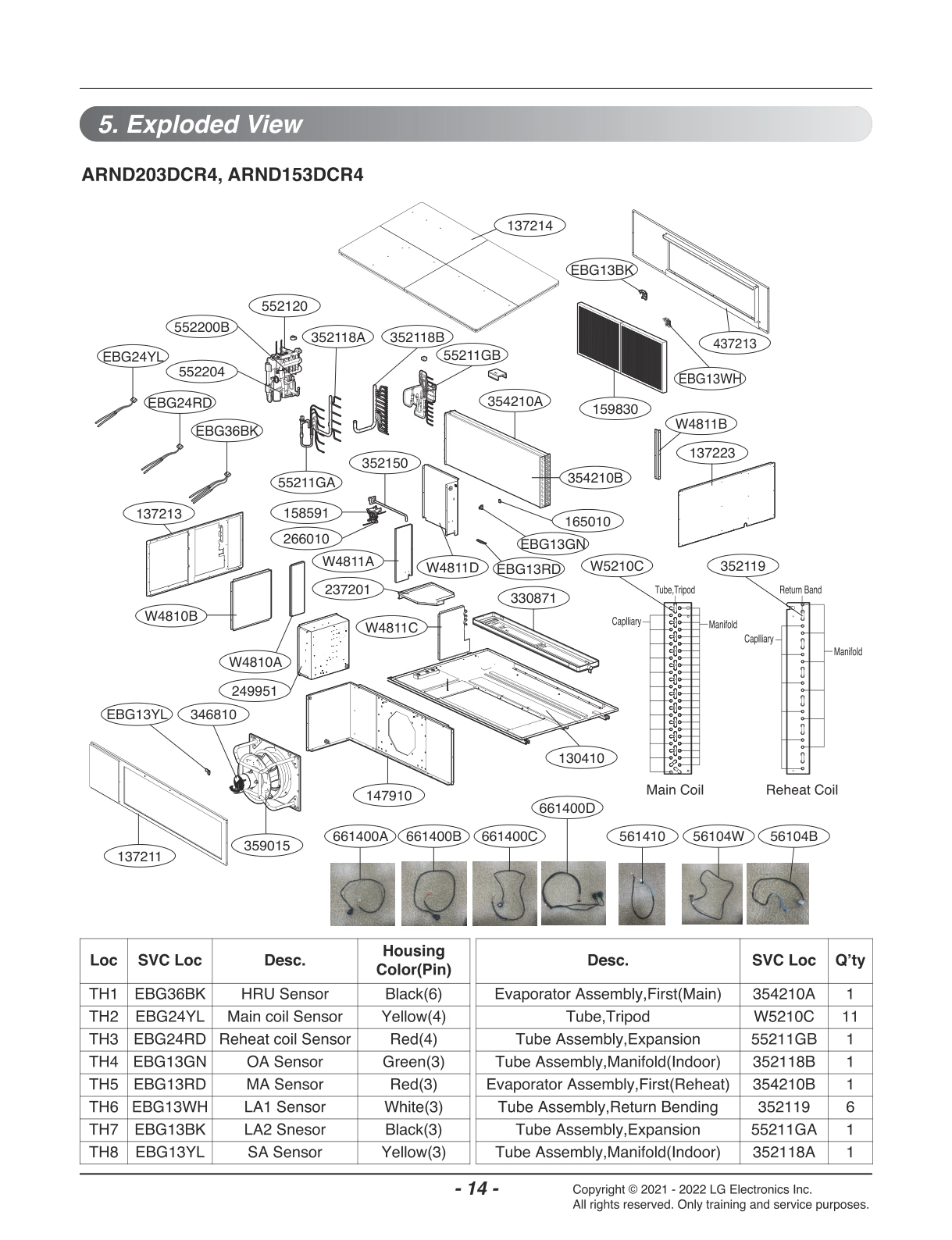

DIAGRAM 2
Common parts from model LG ARND203DCR4.ENCULUS Split rooftop dedicated outdoor air system (DOAS)
2687M
PCB Assembly,Main LGE EBR80922303 Contact Us For Availability
2687SA
PCB Assembly,Sub LGE EBR80820308 Contact Us For Availability
2687SC
PCB Assembly,Sub LGE 6871A20554D Contact Us For Availability
55211GA
Tube Assembly,Expansion LGE AJR30038301 Contact Us For Availability
55211GB
Tube Assembly,Expansion LGE AJR30038101 Contact Us For Availability
56104B
Solenoid LGE EBE60659013 Contact Us For Availability
56104W
Solenoid LGE EBE60660901 Contact Us For Availability
130410
Base Assembly,Single LGE AAN30022303 Contact Us For Availability
137211
Panel Assembly,Front(Indoor) LGE AGL30061802 Contact Us For Availability
137213
Panel Assembly,Side LGE AGL30058401 Contact Us For Availability
137214
Panel Assembly,Upper LGE AGL30058802 Contact Us For Availability
137223
Panel Assembly,Side LGE AGL30058502 Contact Us For Availability
147910
Barrier Assembly,Single LGE AAM75395801 Contact Us For Availability
158591
Pump Assembly LGE AHA76459101 Contact Us For Availability
159830
Filter Assembly,Clean LGE ADQ75794802 Contact Us For Availability
165010
Sensor Assembly LGE EBD64126203 Contact Us For Availability
237201
Panel,Base LGE MGC66372201 Contact Us For Availability
247810A
Controller Assembly LGE ACM76185902 Contact Us For Availability
247810B
Controller Assembly LGE ACM75098806 Contact Us For Availability
247810D
Controller Assembly LGE ACM75338802 Contact Us For Availability
247810E
Controller Assembly LGE ACM75338903 Contact Us For Availability
247810F
Controller Assembly LGE ACM75338902 Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE ABQ30097601 Contact Us For Availability
261704
SMPS,AC/DC LGE EAY65008803 Contact Us For Availability
261704A
Transformer,power LGE EBJ60670103 Contact Us For Availability
266010
Switch Assembly LGE 6601A20013M Contact Us For Availability
330871
Pan Assembly,Drain LGE AGK34943710 Contact Us For Availability
346810
Motor Assembly,DC,Indoor LGE EAU65063001 Contact Us For Availability
352118A
Tube Assembly,Manifold(Indoor) LGE AJR30038401 Contact Us For Availability
352118B
Tube Assembly,Manifold(Indoor) LGE AJR30038201 Contact Us For Availability
352150
Hose Assembly,Drain LGE AEM75694701 Contact Us For Availability
354210A
Evaporator Assembly,First LGE ADL76690801 Contact Us For Availability
354210B
Evaporator Assembly,First LGE ADL76690901 Contact Us For Availability
359015
Fan Assembly,Turbo LGE ADP73773309 Contact Us For Availability
437213
Panel Assembly,Rear(Indoor) LGE AGL30061702 Contact Us For Availability
552120
Tube Assembly LGE AJR30039001 Contact Us For Availability
561410
Solenoid LGE EBE60659018 Contact Us For Availability
661400A
Coil,Expansion LGE EAP63107103 Contact Us For Availability
661400A
Coil Module,Expansion LGE EAP65270708 Contact Us For Availability
661400B
Coil,Expansion LGE EAP63107111 Contact Us For Availability
661400B
Coil Module,Expansion LGE EAP65270712 Contact Us For Availability
661400C
Coil Assembly,Expansion LGE EAP65263801 Contact Us For Availability
661400C
Coil Assembly,Expansion LGE EAP65263804 Contact Us For Availability
661400D
Coil Assembly,Expansion LGE EAP65263802 Contact Us For Availability
661400D
Coil Assembly,Expansion LGE EAP65263805 Contact Us For Availability
EBG13BK
Thermistor Assembly,NTC LGE EBG63929510 Contact Us For Availability
EBG13GN
Thermistor Assembly,NTC LGE EBG63929507 Contact Us For Availability
EBG13RD
Thermistor Assembly,NTC LGE EBG63929508 Contact Us For Availability
EBG13WH
Thermistor Assembly,NTC LGE EBG63929509 Contact Us For Availability
EBG13YL
Thermistor Assembly,NTC LGE EBG63929511 Contact Us For Availability
EBG24RD
Thermistor Assembly,NTC LGE EBG61106932 Contact Us For Availability
EBG24YL
Thermistor Assembly,NTC LGE EBG61110716 Contact Us For Availability
EBG36BK
Thermistor Assembly,NTC LGE EBG61107338 Contact Us For Availability
W4810A
Bracket LGE MAZ67510801 Contact Us For Availability
W4810B
Bracket LGE MAZ67511001 Contact Us For Availability
W4811A
Bracket Assembly LGE ABA30039501 Contact Us For Availability
W4811B
Bracket Assembly LGE ABA30049301 Contact Us For Availability
W4811C
Bracket Assembly LGE ABA30052501 Contact Us For Availability
W4811D
Bracket Assembly LGE ABA30050801 Contact Us For Availability
W6644
Connector,Terminal Block LGE EAG38884401 Contact Us For Availability
× ![]()
