Model Electrolux AH118K2A2 ROOM AIR CONDITIONER – Common Parts & Diagrams

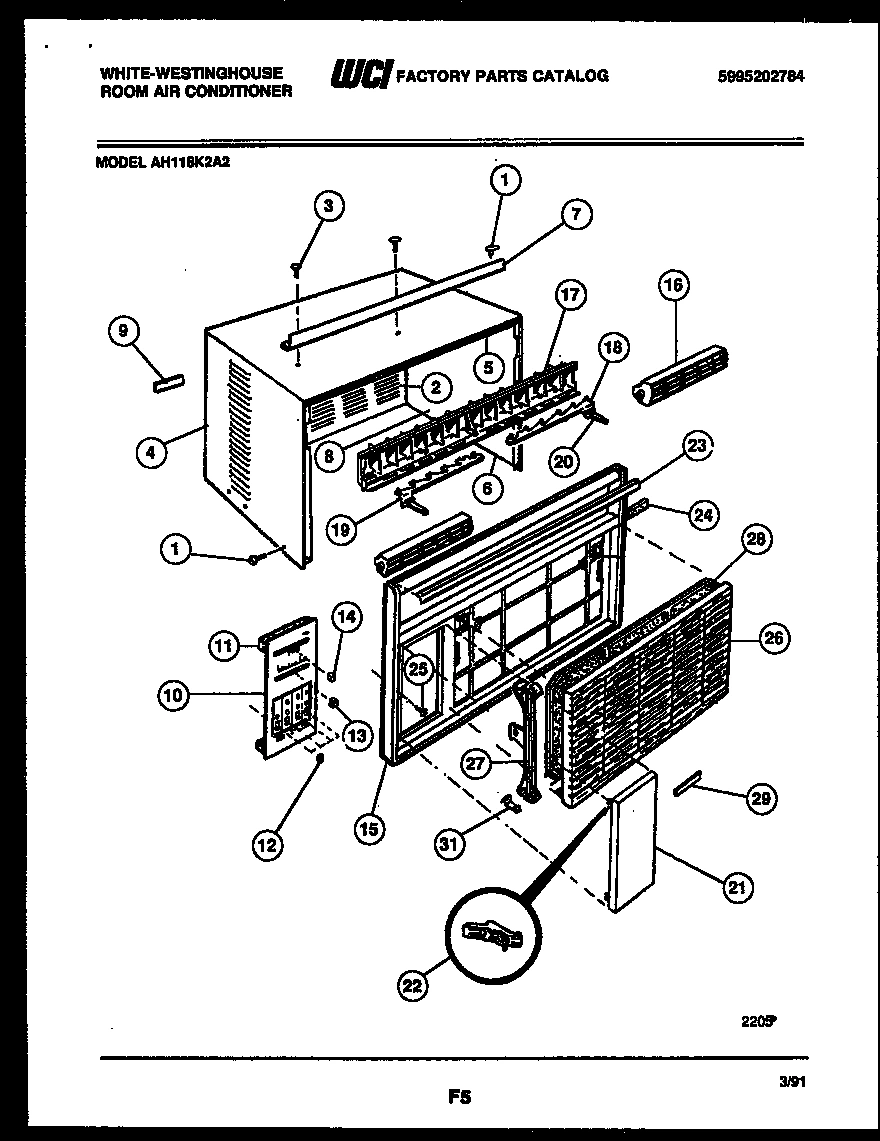

02 - CABINET PARTS

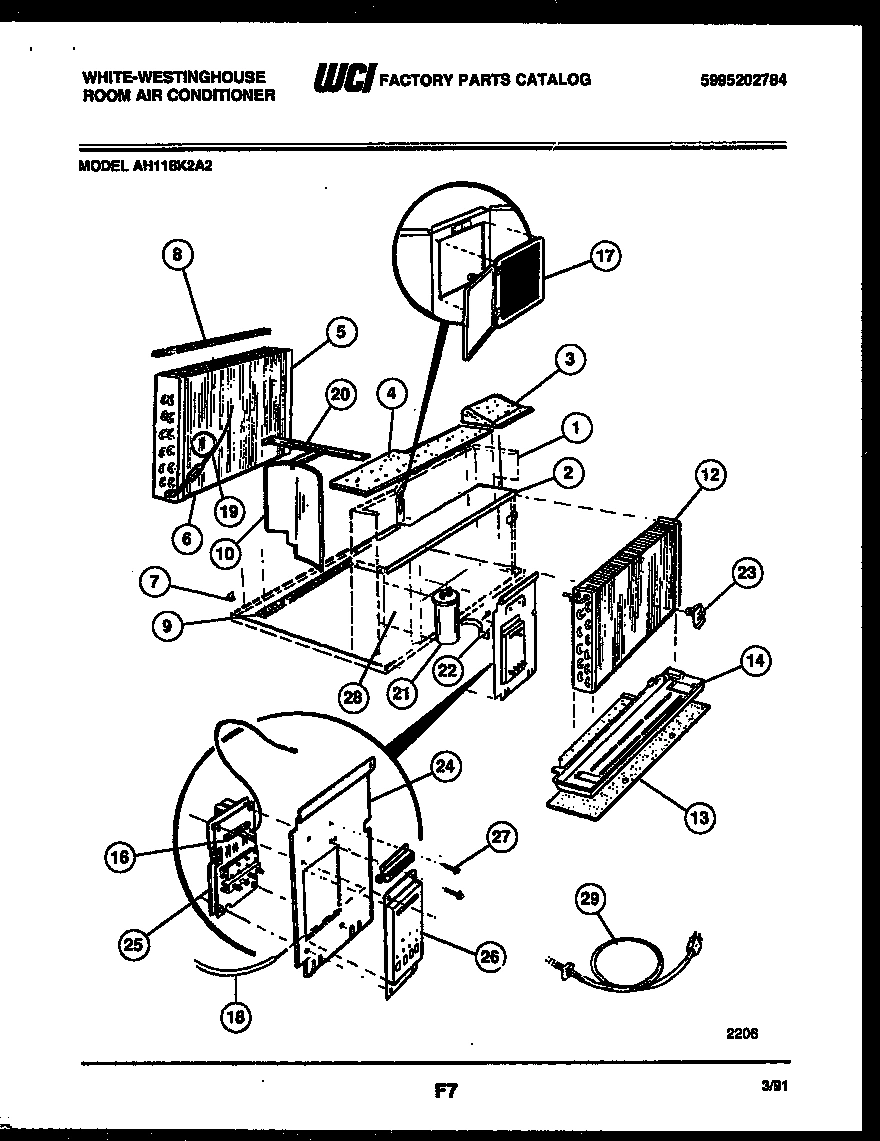

03 - ELECTRICAL PARTS

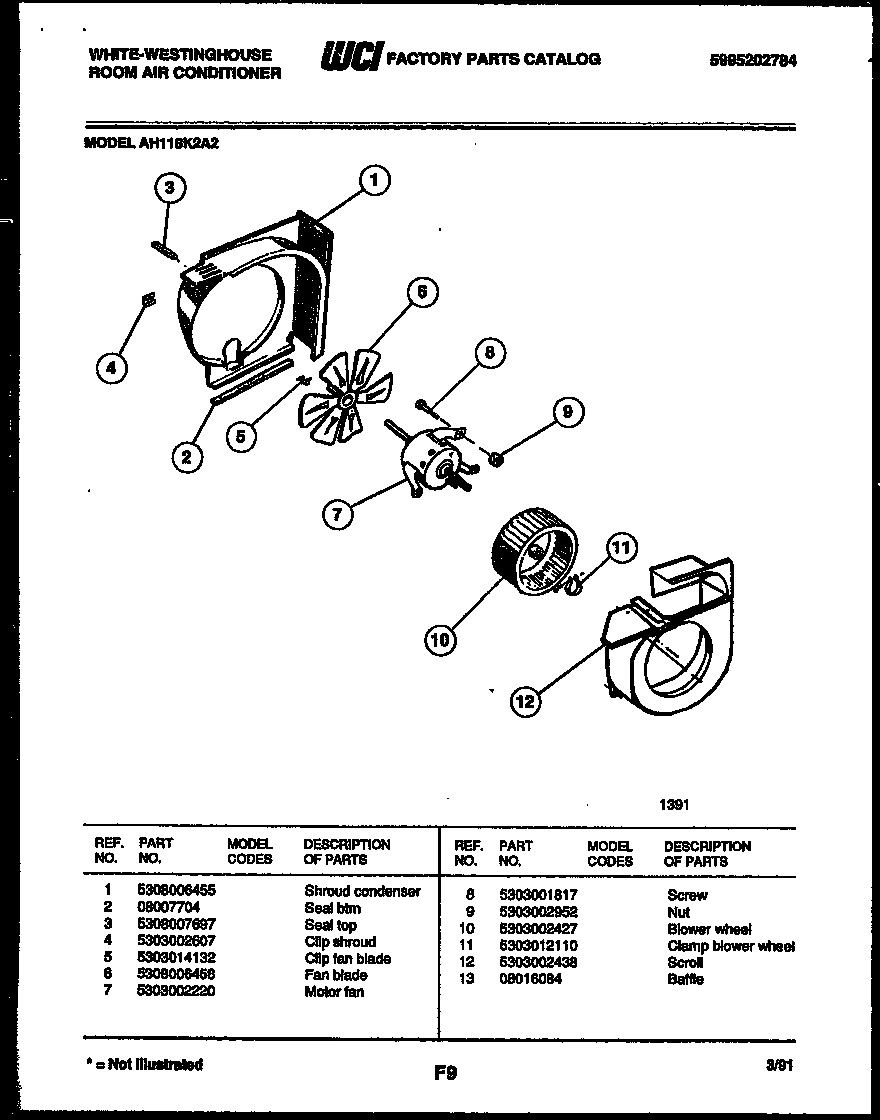

04 - AIR HANDLING PARTS

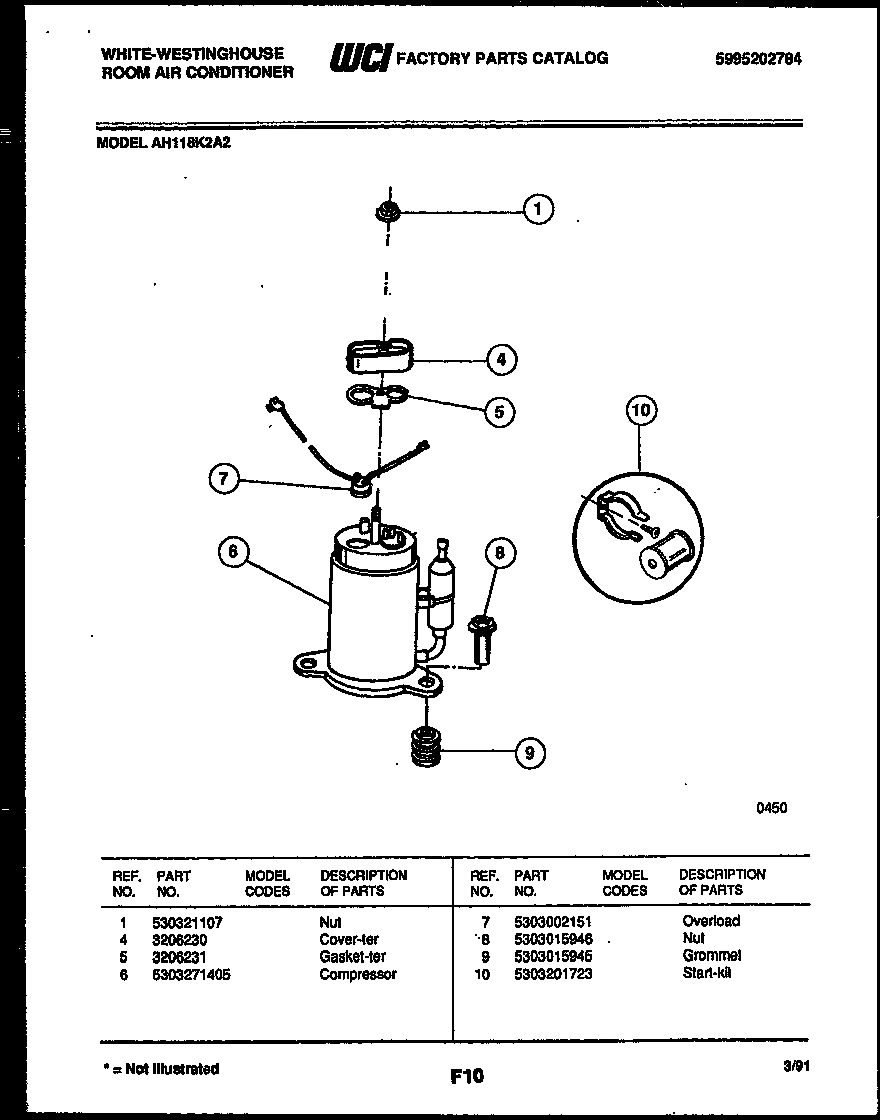

05 - COMPRESSOR PARTS

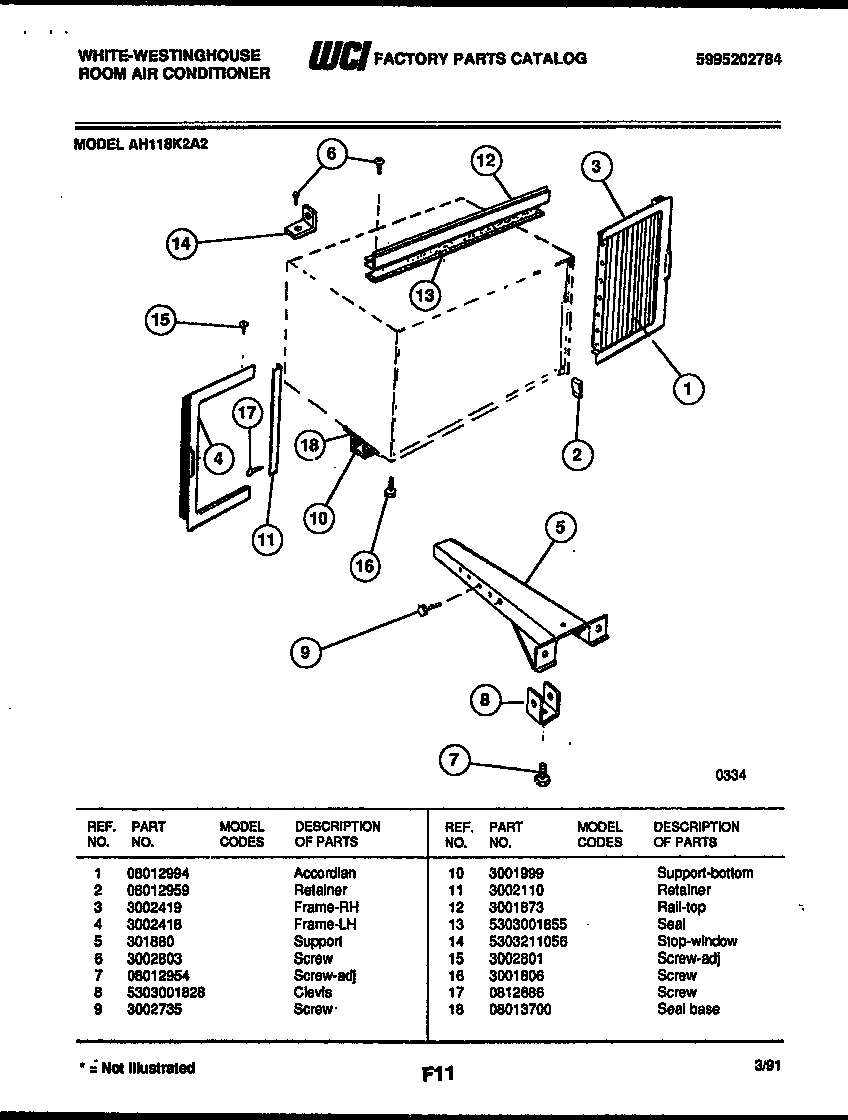

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AH118K2A2 ROOM AIR CONDITIONER
1
WCI 08007688 WCI 08007688 Contact Us For Availability
1
WCI 5308006455 WCI 5308006455 Contact Us For Availability
1
WCI 530321107 WCI 530321107 Contact Us For Availability
1
WCI 08012994 WCI 08012994 Contact Us For Availability
2
WCI 5308006428 WCI 5308006428 Contact Us For Availability
2
WCI 08007547 WCI 08007547 Contact Us For Availability
2
SEAL BTM WCI 08007704 Contact Us For Availability
2
RETAINER WCI 08012959 Contact Us For Availability
3
WCI 08016237 WCI 08016237 Contact Us For Availability
3
SEAL TOP WCI 5308007697 Contact Us For Availability
3
WCI 3002419 WCI 3002419 Contact Us For Availability
4
WCI 3017288 WCI 3017288 Contact Us For Availability
4
WCI 08012971 WCI 08012971 Contact Us For Availability
4
WCI 5303002607 WCI 5303002607 Contact Us For Availability
4
COVER-TER WCI 3206230 Contact Us For Availability
4
WCI 3002418 WCI 3002418 Contact Us For Availability
5
SEAL WRAPPER FRONT WCI 08007530 Contact Us For Availability
5
WCI 5303002242 WCI 5303002242 Contact Us For Availability
5
WCI 5303014132 WCI 5303014132 Contact Us For Availability
5
GASKET-TER WCI 3206231 Contact Us For Availability
5
WCI 301880 WCI 301880 Contact Us For Availability
6
WCI 08009358 WCI 08009358 Contact Us For Availability
6
WCI 5308006458 WCI 5308006458 Contact Us For Availability
6
WCI 5303271405 WCI 5303271405 Contact Us For Availability
6
WCI 3002803 WCI 3002803 Contact Us For Availability
6A
WCI 08009359 WCI 08009359 Contact Us For Availability
7
WCI 5303209136 WCI 5303209136 Contact Us For Availability
7
WCI 5303002220 WCI 5303002220 Contact Us For Availability
7
WCI 5303002151 WCI 5303002151 Contact Us For Availability
7
SCREW-ADJ WCI 08012954 Contact Us For Availability
8
WCI 5303206876 WCI 5303206876 Contact Us For Availability
8
SCREW WCI 5303001817 Contact Us For Availability
8
NUT WCI 5303015946 Contact Us For Availability
8
WCI 5303001828 WCI 5303001828 Contact Us For Availability
9
WCI 5303271448 WCI 5303271448 Contact Us For Availability
9
WCI 5303002952 WCI 5303002952 Contact Us For Availability
9
GROMMET WCI 5303015945 Contact Us For Availability
9
WCI 3002735 WCI 3002735 Contact Us For Availability
10
WCI 3205735 WCI 3205735 Contact Us For Availability
10
WCI 08007703 WCI 08007703 Contact Us For Availability
10
WCI 5303002427 WCI 5303002427 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
10
SUPPORT-BOTTOM WCI 3001999 Contact Us For Availability
11
SPACER WCI 5308016088 Contact Us For Availability
11
WCI 5303207639 WCI 5303207639 Contact Us For Availability
11
WCI 5303012110 WCI 5303012110 Contact Us For Availability
11
RETAINER WCI 3002110 Contact Us For Availability
12
WCI 3001873 WCI 3001873 Contact Us For Availability
12
KNOB WCI 5308016116 Contact Us For Availability
12
WCI 5303206718 WCI 5303206718 Contact Us For Availability
12
WCI 5303002438 WCI 5303002438 Contact Us For Availability
13
WCI 5303002189 WCI 5303002189 Contact Us For Availability
13
BAFFLE WCI 08016084 Contact Us For Availability
13
WCI 5303018414 WCI 5303018414 Contact Us For Availability
13
WCI 5303001855 WCI 5303001855 Contact Us For Availability
14
STOP-WINDOW WCI 5303211056 Contact Us For Availability
14
KNOB WCI 5308017143 Contact Us For Availability
14
WCI 5303002332 WCI 5303002332 Contact Us For Availability
14A
WCI 5300462706 WCI 5300462706 Contact Us For Availability
15
WCI 5303271449 WCI 5303271449 Contact Us For Availability
15
RETAINER - ACTUATOR WCI 5303202999 Contact Us For Availability
15
SCREW-ADJ WCI 3002801 Contact Us For Availability
16
FRAME-HORIZ LOUVER WCI 5308017244 Contact Us For Availability
16
WCI 5303002127 WCI 5303002127 Contact Us For Availability
16
SCREW WCI 3001806 Contact Us For Availability
17
WCI 5303002458 WCI 5303002458 Contact Us For Availability
17
VENT DOOR WCI 5303012455 Contact Us For Availability
17
WCI 0812686 WCI 0812686 Contact Us For Availability
18
WCI 5303002164 WCI 5303002164 Contact Us For Availability
18
WCI 5303002132 WCI 5303002132 Contact Us For Availability
18
WCI 08013700 WCI 08013700 Contact Us For Availability
19
WCI 5303002165 WCI 5303002165 Contact Us For Availability
19
CAPILLARY TUBE-CUT TO 35`` WCI 5308017253 Contact Us For Availability
20
CLIP WCI 5303001844 Contact Us For Availability
20
WCI 08007696 WCI 08007696 Contact Us For Availability
21
WCI 5303201645 WCI 5303201645 Contact Us For Availability
21
WCI 5303012042 WCI 5303012042 Contact Us For Availability
22
WCI 5303017980 WCI 5303017980 Contact Us For Availability
22
WCI 5303001770 WCI 5303001770 Contact Us For Availability
23
WCI 5300344902 WCI 5300344902 Contact Us For Availability
23
CLIP THERMISTOR WCI 08016082 Contact Us For Availability
24
WCI 5300301157 WCI 5300301157 Contact Us For Availability
24
WCI 08017245 WCI 08017245 Contact Us For Availability
25
SCREW-FRONT WCI 5308008175 Contact Us For Availability
25
WCI 5308017317 WCI 5308017317 Contact Us For Availability
26
WCI 5300454703 WCI 5300454703 Contact Us For Availability
26
COVER CONTROL WCI 5308017139 Contact Us For Availability
27
WCI 5300346201 WCI 5300346201 Contact Us For Availability
27
SCREW WCI 08016220 Contact Us For Availability
28
WCI 5300462201 WCI 5300462201 Contact Us For Availability
28
DIVIDER WCI 08007534 Contact Us For Availability
28A
HOUSING ELEC CONTROL (NON-ILLUSTRATED) WCI 08016086 Contact Us For Availability
29
WCI 5300138101 WCI 5300138101 Contact Us For Availability
29
POWER CORD WCI 08017363 Contact Us For Availability
29A
BRACKET FRAME (NON-ILLUSTRATED) WCI 5308017124 Contact Us For Availability
31
CLIP-FRONT WCI 5308010914 Contact Us For Availability
× ![]()
