Model GE AGJE607FAXR1 Room Air Conditioner Built In – Common Parts & Diagrams
0
1

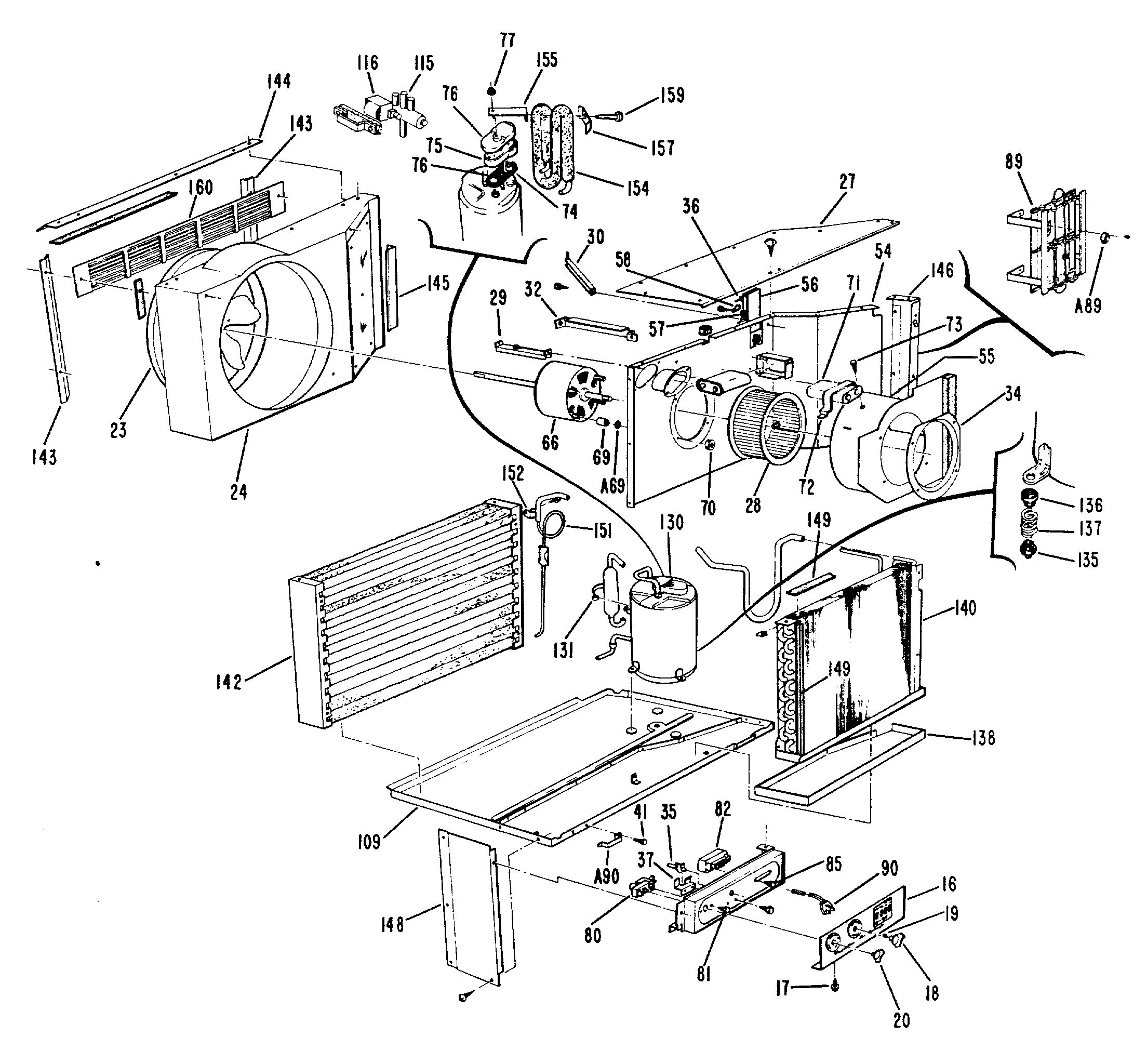

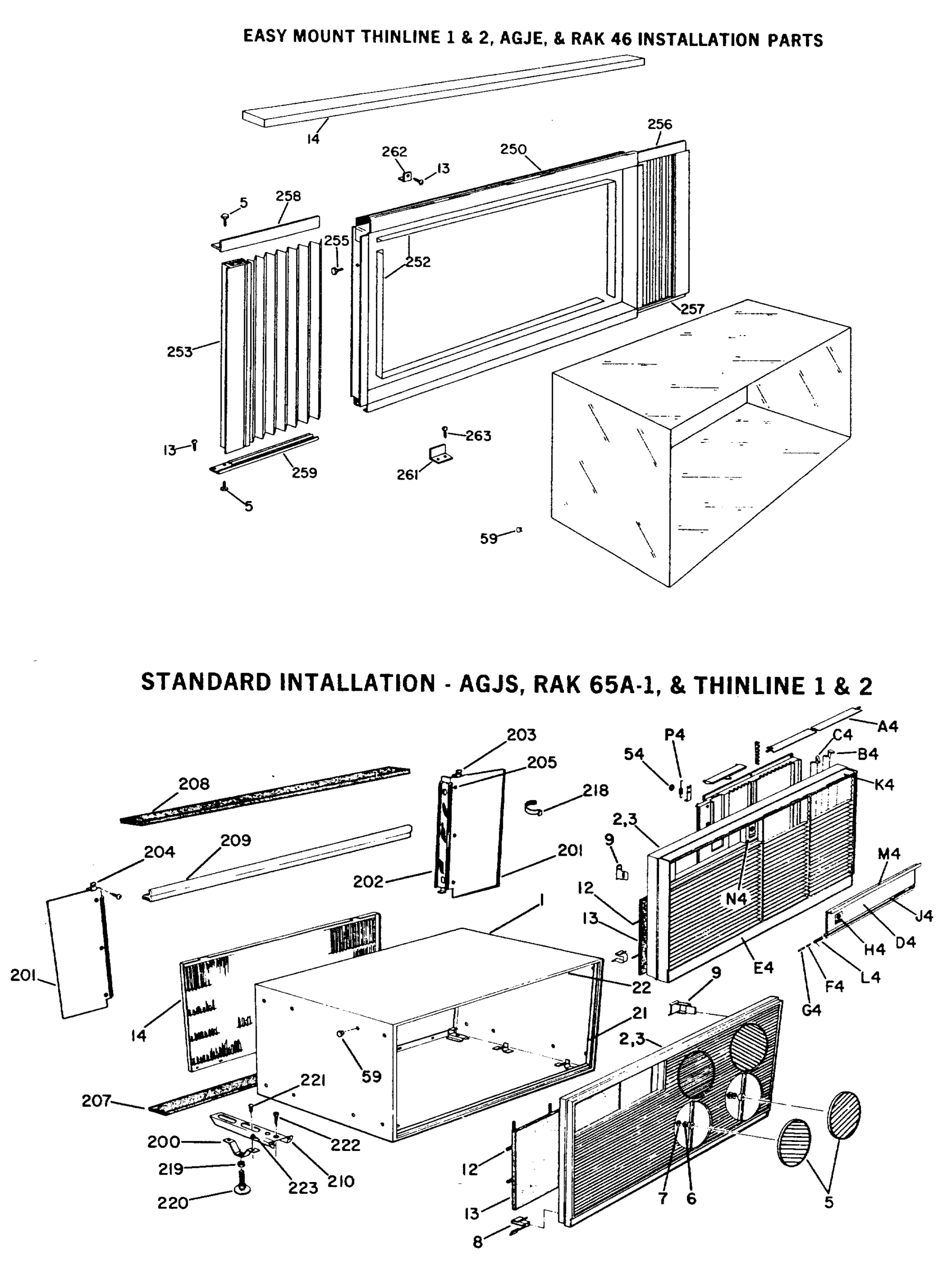

Common parts from model GE AGJE607FAXR1 Room Air Conditioner Built In
1
GEN WJ90X0050 GEN WJ90X0050 Contact Us For Availability
2
GEN WJ71X0244 GEN WJ71X0244 Contact Us For Availability
3
GEN WJ71X0240 GEN WJ71X0240 Contact Us For Availability
4
GEN WJ02X0281 GEN WJ02X0281 Contact Us For Availability
4
GEN WJ02X0310 GEN WJ02X0310 Contact Us For Availability
4
GEN WJ02X0322 GEN WJ02X0322 Contact Us For Availability
4
GEN WJ03X0225 GEN WJ03X0225 Contact Us For Availability
4
GEN WJ03X0231 GEN WJ03X0231 Contact Us For Availability
4
GEN WJ07X0342 GEN WJ07X0342 Contact Us For Availability
4
NAMEPLATE, FRONT GRILLE- GEN WJ07X0355 Contact Us For Availability
4
GEN WJ07X0362 GEN WJ07X0362 Contact Us For Availability
4
GEN WJ07X0363 GEN WJ07X0363 Contact Us For Availability
4
GEN WJ07X0364 GEN WJ07X0364 Contact Us For Availability
4
GEN WJ07X0365 GEN WJ07X0365 Contact Us For Availability
4
GEN WJ21X0302 GEN WJ21X0302 Contact Us For Availability
4
GEN WJ70X0215 GEN WJ70X0215 Contact Us For Availability
4
GEN WJ71X0230 GEN WJ71X0230 Contact Us For Availability
4
LOUVER VERTICAL GEN WJ71X0231 Contact Us For Availability
4
LOUVER VERTICAL GEN WJ71X0232 Contact Us For Availability
8
CLIP GRILLE BOTTOM GEN WJ02X0290 Contact Us For Availability
9
CLIP GRILLE TOP GEN WJ02X0320 Contact Us For Availability
12
RETAINER FILTER GEN WJ66X0263 Contact Us For Availability
13
GEN WJ85X0041 GEN WJ85X0041 Contact Us For Availability
14
GEN WJ07X0332 GEN WJ07X0332 Contact Us For Availability
16
GEN WJ07X0366 GEN WJ07X0366 Contact Us For Availability
17
SCREW 10 16X7/16 HEX GEN WZ04X0275 Contact Us For Availability
19
SPRING, KNOB INSERT GEN WJ02X0187 Contact Us For Availability
20
GEN WJ12X0082 GEN WJ12X0082 Contact Us For Availability
20
GEN WJ12X0088 GEN WJ12X0088 Contact Us For Availability
21
GEN WJ43X0261 GEN WJ43X0261 Contact Us For Availability
22
GEN WJ43X0262 GEN WJ43X0262 Contact Us For Availability
23
SCREW, FAN BLADE CLAMP GEN WJ01X0507 Contact Us For Availability
23
CLAMP, FAN BLADE TO SHAFT GEN WJ03X0215 Contact Us For Availability
23
GEN WJ73X0063 GEN WJ73X0063 Contact Us For Availability
24
GEN WJ76X0117 GEN WJ76X0117 Contact Us For Availability
27
GEN WJ79X0224 GEN WJ79X0224 Contact Us For Availability
28
GEN WJ65X0266 GEN WJ65X0266 Contact Us For Availability
28
GEN WJ74X0060 GEN WJ74X0060 Contact Us For Availability
29
GEN WJ65X0261 GEN WJ65X0261 Contact Us For Availability
30
GEN WJ65X0262 GEN WJ65X0262 Contact Us For Availability
32
GEN WJ65X0294 GEN WJ65X0294 Contact Us For Availability
34
GEN WJ76X0118 GEN WJ76X0118 Contact Us For Availability
35
GEN WJ14X0076 GEN WJ14X0076 Contact Us For Availability
36
GEN WJ03X0221 GEN WJ03X0221 Contact Us For Availability
37
BRACKET, DAMPER SHAFT GEN WJ03X0211 Contact Us For Availability
41
SCREW, CLAMP 10-32X1/2 HEX GEN WZ05X0156 Contact Us For Availability
55
GEN WJ76X0116 GEN WJ76X0116 Contact Us For Availability
56
DAMPER DOOR ASM. GEN WJ70X0166 Contact Us For Availability
57
SPRING GEN WJ02X0277 Contact Us For Availability
58
CLIP, DAMPER HINGE GEN WJ02X0231 Contact Us For Availability
59
BUTTON, HOLE FILLER GEN WJ01X0449 Contact Us For Availability
66
SEAL, MOTOR END RING GEN WJ43X0240 Contact Us For Availability
66
MOTOR, FAN GEN WJ94X0502 Contact Us For Availability
71
GEN WJ20X0108 GEN WJ20X0108 Contact Us For Availability
75
COVER, TERMINAL GEN WJ79X0198 Contact Us For Availability
76
CAP GEN WJ79X0199 Contact Us For Availability
77
NUT GEN WJ01X0292 Contact Us For Availability
80
CLIP, T-STAT BULB TO COIL GEN WJ03X0203 Contact Us For Availability
80
GEN WJ28X0090 GEN WJ28X0090 Contact Us For Availability
82
GEN WJ26X0081 GEN WJ26X0081 Contact Us For Availability
90
CLAMP, LINE CORD GEN WJ03X0169 Contact Us For Availability
130
SCREW, PURGE VALVE CAP GEN WJ01X0444 Contact Us For Availability
130
GEN WJ01X0470 GEN WJ01X0470 Contact Us For Availability
130
GEN WJ01X0471 GEN WJ01X0471 Contact Us For Availability
130
WASHER, 2 IN ODX 5/16 IN ID GEN WJ01X0499 Contact Us For Availability
130
GEN WJ66X0260 GEN WJ66X0260 Contact Us For Availability
130
GEN WJ98X0280 GEN WJ98X0280 Contact Us For Availability
131
BAND, ACCUMULATOR GEN WJ02X0148 Contact Us For Availability
135
GEN WJ01X0421 GEN WJ01X0421 Contact Us For Availability
138
GEN WJ70X0172 GEN WJ70X0172 Contact Us For Availability
138
GEN WJ70X0173 GEN WJ70X0173 Contact Us For Availability
140
GEN WJ65X0267 GEN WJ65X0267 Contact Us For Availability
140
GEN WJ71X0139 GEN WJ71X0139 Contact Us For Availability
142
GEN WJ43X0280 GEN WJ43X0280 Contact Us For Availability
142
SEAL, TUBES THROUGH BARRIER GEN WJ60X0013 Contact Us For Availability
142
GEN WJ88X0073 GEN WJ88X0073 Contact Us For Availability
144
GEN WJ65X0265 GEN WJ65X0265 Contact Us For Availability
145
GEN WJ65X0264 GEN WJ65X0264 Contact Us For Availability
146
GEN WJ82X0053 GEN WJ82X0053 Contact Us For Availability
148
GEN WJ82X0054 GEN WJ82X0054 Contact Us For Availability
149
GASKET GEN WJ43X0249 Contact Us For Availability
151
CAPILLARY .049 CUT TO 12 IN. GEN WJ53X0129 Contact Us For Availability
151
COUPLING, CAP. TO LIQ. LINE GEN WJ56X0034 Contact Us For Availability
160
GEN WJ65X0268 GEN WJ65X0268 Contact Us For Availability
250
GEN WJ65X0256 GEN WJ65X0256 Contact Us For Availability
252
GEN WJ43X0237 GEN WJ43X0237 Contact Us For Availability
253
GEN WJ69X0043 GEN WJ69X0043 Contact Us For Availability
255
SCREW 8--18X1/2 HEX-WASH GEN WZ04X0294 Contact Us For Availability
256
GEN WJ65X0257 GEN WJ65X0257 Contact Us For Availability
257
GEN WJ65X0260 GEN WJ65X0260 Contact Us For Availability
258
GEN WJ65X0258 GEN WJ65X0258 Contact Us For Availability
259
GEN WJ65X0259 GEN WJ65X0259 Contact Us For Availability
261
BRACKET GEN WJ66X0228 Contact Us For Availability
262
BRACKE GEN WJ66X0221 Contact Us For Availability
263
CLIP, STRAIN REL. 1/8 IN GEN WJ01X0262 Contact Us For Availability
263
PIN, HOLDING CHASSIS TO GEN WJ01X0468 Contact Us For Availability
263
SCREW #10-16X1/2 PAN REC SS GEN WJ01X0515 Contact Us For Availability
263
CLIP, STRAIN REL. 5/8 IN. ID GEN WJ02X0252 Contact Us For Availability
263
GEN WJ43X0194 GEN WJ43X0194 Contact Us For Availability
263
GASKET 3/4X3/4X14 1/2 UR GEN WJ43X0257 Contact Us For Availability
263
GEN WJ43X0283 GEN WJ43X0283 Contact Us For Availability
263
BOLT COMPRESSOR MOUNT GEN WZ02X0524 Contact Us For Availability
263
SCREW 10 12X1/2 HEX SLOT SS GEN WZ04X0283 Contact Us For Availability
263
GEN WZ04X0295 GEN WZ04X0295 Contact Us For Availability
263
SCREW GEN WZ05X0178 Contact Us For Availability
263
GEN WZ06X0041 GEN WZ06X0041 Contact Us For Availability
263
GEN WZ06X0050 GEN WZ06X0050 Contact Us For Availability
263
CLIP, STRAIN REL. 3/8 IN GEN WZ20X0008 Contact Us For Availability
× ![]()
