Model GE AFP15DAE1 – Common Parts & Diagrams
0
1
2

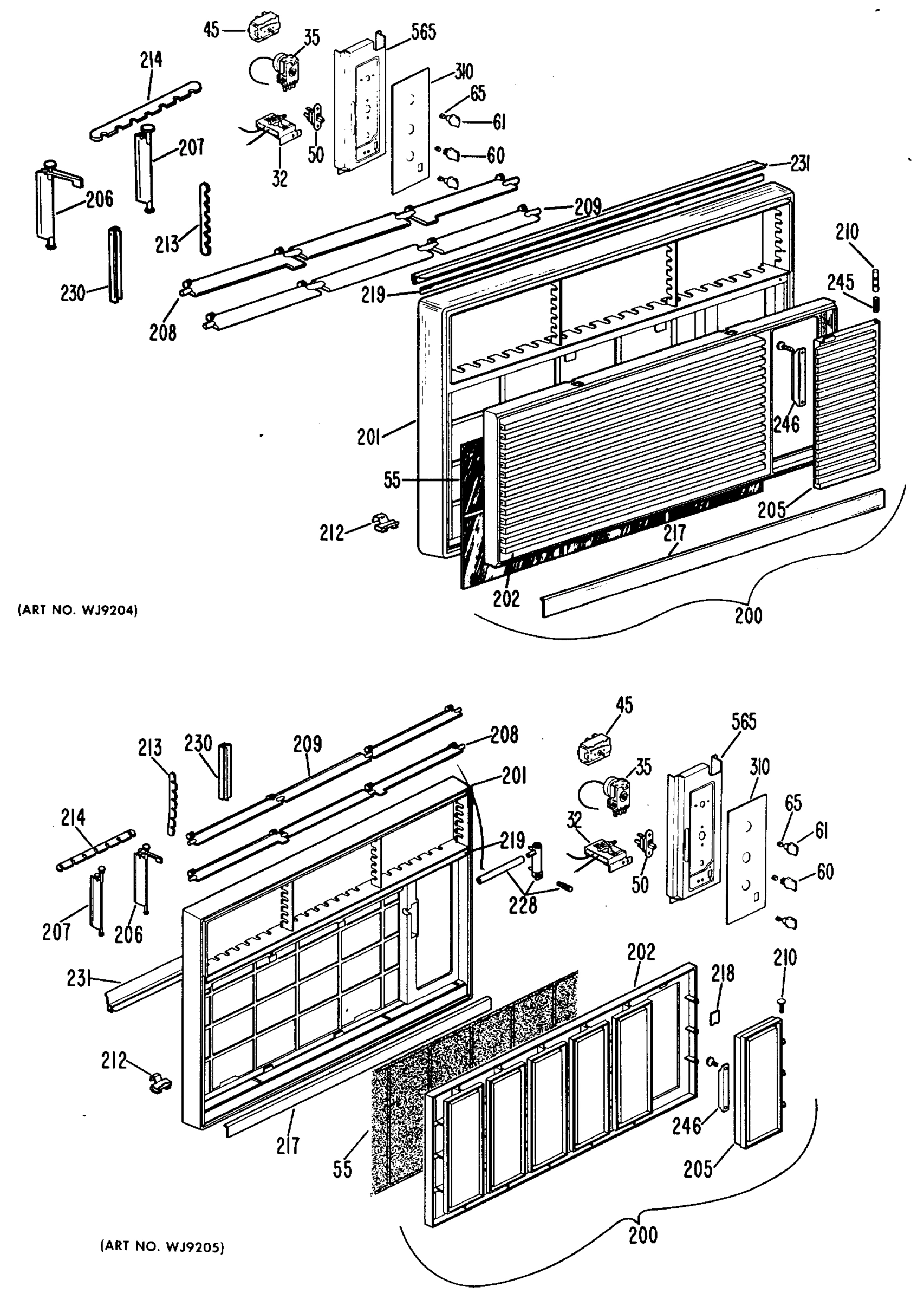

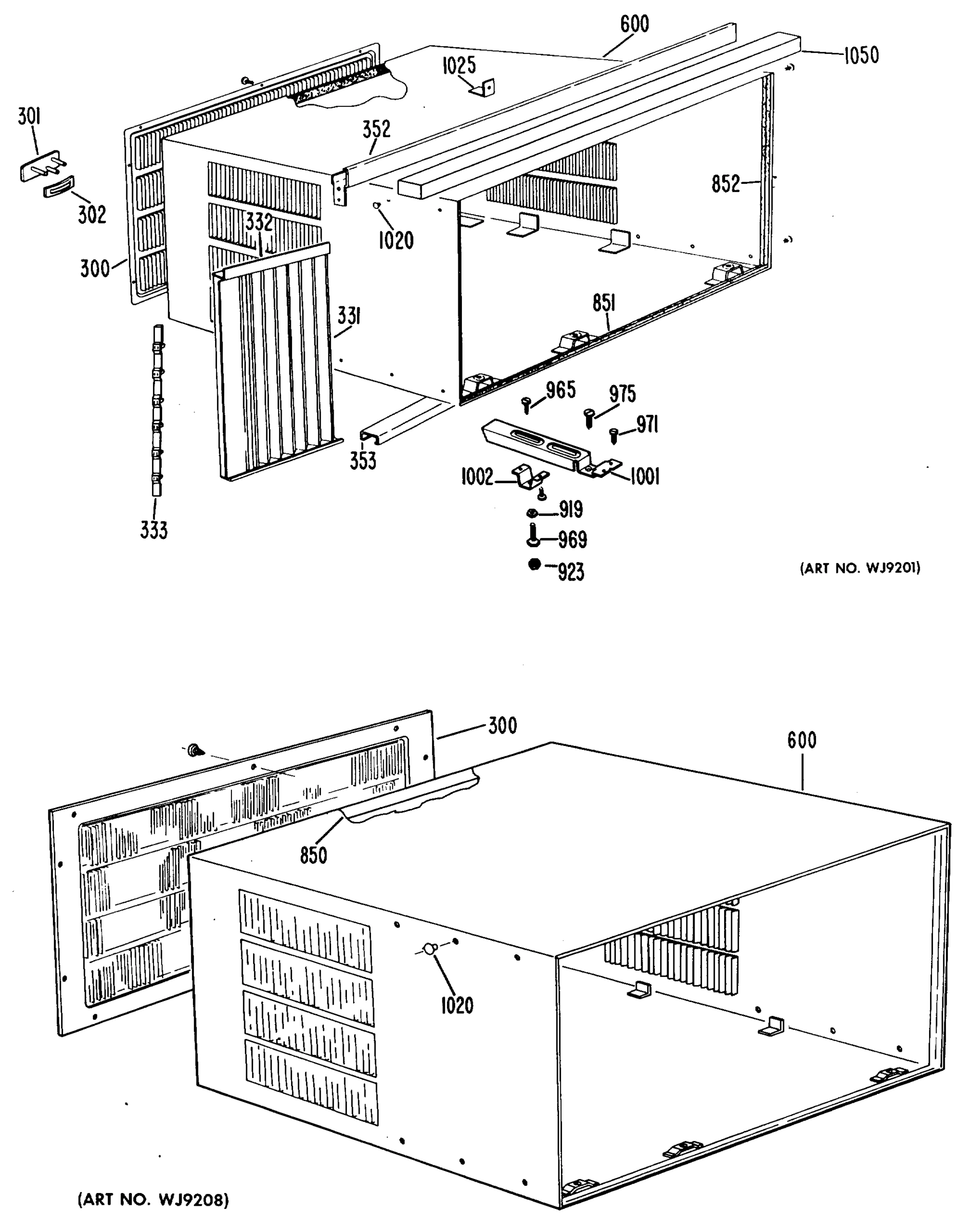

Common parts from model GE AFP15DAE1
10
GEN WJ20X0404 GEN WJ20X0404 Contact Us For Availability
20
GEN WJ23X0093 GEN WJ23X0093 Contact Us For Availability
25
GEN WJ94X0513 GEN WJ94X0513 Contact Us For Availability
35
GEN WJ28X0500 GEN WJ28X0500 Contact Us For Availability
45
GEN WJ26X0135 GEN WJ26X0135 Contact Us For Availability
55
GEN WJ85X0110 GEN WJ85X0110 Contact Us For Availability
60
GEN WJ12X0131 GEN WJ12X0131 Contact Us For Availability
61
GEN WJ12X0132 GEN WJ12X0132 Contact Us For Availability
65
GEN WJ02X0187 GEN WJ02X0187 Contact Us For Availability
70
GEN WJ35X0102 GEN WJ35X0102 Contact Us For Availability
73
CLAMP POWER CORD GEN WJ03X0169 Contact Us For Availability
74
GEN WJ01X0329 GEN WJ01X0329 Contact Us For Availability
100
GEN WJ98X0504 GEN WJ98X0504 Contact Us For Availability
110
GEN WJ88X0088 GEN WJ88X0088 Contact Us For Availability
120
EVAPORATOR KIT GEN WJ87X0197 Contact Us For Availability
160
CAPILLARY .042 CUT TO 14 GEN WJ53X0127 Contact Us For Availability
160
CAPILLARY .054 CUT TO 17 GEN WJ53X0130 Contact Us For Availability
160
CAPILLARY .031 CUT TO 22 GEN WJ53X0136 Contact Us For Availability
165
GEN WJ56X0034 GEN WJ56X0034 Contact Us For Availability
165
GEN WJ56X0037 GEN WJ56X0037 Contact Us For Availability
165
GEN WJ56X0051 GEN WJ56X0051 Contact Us For Availability
165
GEN WJ62X0220 GEN WJ62X0220 Contact Us For Availability
180
INDOOR BLOWER GEN WJ74X0095 Contact Us For Availability
181
BLOWER CLAMP GEN WJ03X0284 Contact Us For Availability
186
GEN WJ76X0231 GEN WJ76X0231 Contact Us For Availability
186
GEN WJ76X0242 GEN WJ76X0242 Contact Us For Availability
190
GEN WJ73X0043 GEN WJ73X0043 Contact Us For Availability
192
GEN WJ03X0215 GEN WJ03X0215 Contact Us For Availability
193
GEN WJ01X0508 GEN WJ01X0508 Contact Us For Availability
194
FAN SCREW GEN WJ01X0507 Contact Us For Availability
196
SHROUD OUTDOOR GEN WJ76X0236 Contact Us For Availability
197
GEN WJ70X0188 GEN WJ70X0188 Contact Us For Availability
200
GEN WJ71X0958 GEN WJ71X0958 Contact Us For Availability
201
GEN WJ71X0863 GEN WJ71X0863 Contact Us For Availability
202
GEN WJ71X0835 GEN WJ71X0835 Contact Us For Availability
205
GEN WJ71X0800 GEN WJ71X0800 Contact Us For Availability
206
GEN WJ71X0777 GEN WJ71X0777 Contact Us For Availability
207
GEN WJ71X0778 GEN WJ71X0778 Contact Us For Availability
208
GEN WJ71X0867 GEN WJ71X0867 Contact Us For Availability
209
GEN WJ71X0868 GEN WJ71X0868 Contact Us For Availability
210
GEN WJ01X0619 GEN WJ01X0619 Contact Us For Availability
212
GEN WJ02X0372 GEN WJ02X0372 Contact Us For Availability
213
GEN WJ71X0515 GEN WJ71X0515 Contact Us For Availability
214
GEN WJ71X0514 GEN WJ71X0514 Contact Us For Availability
217
GEN WJ07X0619 GEN WJ07X0619 Contact Us For Availability
219
GEN WJ07X0551 GEN WJ07X0551 Contact Us For Availability
230
GEN WJ71X0743 GEN WJ71X0743 Contact Us For Availability
231
GEN WJ71X0513 GEN WJ71X0513 Contact Us For Availability
246
GEN WJ66X0319 GEN WJ66X0319 Contact Us For Availability
252
GEN WJ02X0404 GEN WJ02X0404 Contact Us For Availability
300
GEN WJ71X0113 GEN WJ71X0113 Contact Us For Availability
301
GEN WJ07X0526 GEN WJ07X0526 Contact Us For Availability
302
CLIP NAMEPLATE GEN WJ02X0380 Contact Us For Availability
310
GEN WJ07X0616 GEN WJ07X0616 Contact Us For Availability
360
GEN WJ70X0166 GEN WJ70X0166 Contact Us For Availability
360
GEN WJ70X0283 GEN WJ70X0283 Contact Us For Availability
361
DAMPER DOOR HINGE CLAMP GEN WJ02X0407 Contact Us For Availability
363
GEN WJ02X0397 GEN WJ02X0397 Contact Us For Availability
364
SHAFT DAMPER DOOR GEN WJ14X0096 Contact Us For Availability
365
GEN WJ14X0095 GEN WJ14X0095 Contact Us For Availability
400
SPRING COMPRESSOR BLUE GEN WJ02X0257 Contact Us For Availability
400
SPRING COMPRESSOR GREEN GEN WJ02X0258 Contact Us For Availability
400
SPRING COMPRESSOR RED GEN WJ02X0259 Contact Us For Availability
401
SPACER COMPRESSOR MOUNT GEN WJ01X0348 Contact Us For Availability
402
GEN WJ01X0347 GEN WJ01X0347 Contact Us For Availability
406
GEN WJ79X0302 GEN WJ79X0302 Contact Us For Availability
407
GEN WJ79X0301 GEN WJ79X0301 Contact Us For Availability
408
GEN WJ01X0292 GEN WJ01X0292 Contact Us For Availability
410
GEN WJ43X0333 GEN WJ43X0333 Contact Us For Availability
411
GEN WP37X0002 GEN WP37X0002 Contact Us For Availability
436
ACCUMULATOR CLAMP GEN WJ02X0432 Contact Us For Availability
441
GEN WJ02X0436 GEN WJ02X0436 Contact Us For Availability
565
GEN WJ79X0356 GEN WJ79X0356 Contact Us For Availability
590
TOP COVER ASSEMBLY GEN WJ79X0232 Contact Us For Availability
600
GEN WJ90X0043 GEN WJ90X0043 Contact Us For Availability
603
GEN WJ89X0078 GEN WJ89X0078 Contact Us For Availability
610
GEN WJ81X0065 GEN WJ81X0065 Contact Us For Availability
615
GEN WJ79X0348 GEN WJ79X0348 Contact Us For Availability
616
GEN WJ79X0286 GEN WJ79X0286 Contact Us For Availability
625
GEN WJ82X0065 GEN WJ82X0065 Contact Us For Availability
701
GEN WP36X0002 GEN WP36X0002 Contact Us For Availability
702
GEN WJ43X0351 GEN WJ43X0351 Contact Us For Availability
708
GEN WJ01X0445 GEN WJ01X0445 Contact Us For Availability
709
SINK HEAT GEN WJ02X0361 Contact Us For Availability
713
GEN WJ03X0294 GEN WJ03X0294 Contact Us For Availability
715
GEN WJ02X0392 GEN WJ02X0392 Contact Us For Availability
715
GEN WJ02X0410 GEN WJ02X0410 Contact Us For Availability
715
GEN WJ02X0413 GEN WJ02X0413 Contact Us For Availability
718
GEN WJ02X0416 GEN WJ02X0416 Contact Us For Availability
721
GEN WJ40X0028 GEN WJ40X0028 Contact Us For Availability
724
GEN WJ02X0405 GEN WJ02X0405 Contact Us For Availability
800
GEN WJ65X0321 GEN WJ65X0321 Contact Us For Availability
801
GEN WJ79X0341 GEN WJ79X0341 Contact Us For Availability
809
TUBE SEAL CLAMP GEN WJ79X0340 Contact Us For Availability
810
GEN WJ79X0289 GEN WJ79X0289 Contact Us For Availability
813
GEN WJ70X0152 GEN WJ70X0152 Contact Us For Availability
900
GEN WJ60X0018 GEN WJ60X0018 Contact Us For Availability
902
GEN WJ60X0008 GEN WJ60X0008 Contact Us For Availability
916
GEN WJ08X0006 GEN WJ08X0006 Contact Us For Availability
917
GEN WJ02X0263 GEN WJ02X0263 Contact Us For Availability
924
GEN WJ01X0208 GEN WJ01X0208 Contact Us For Availability
931
GEN WZ08X0006 GEN WZ08X0006 Contact Us For Availability
947
GEN WZ04X0386 GEN WZ04X0386 Contact Us For Availability
950
GEN WJ01X0638 GEN WJ01X0638 Contact Us For Availability
952
GEN WZ06X0083 GEN WZ06X0083 Contact Us For Availability
953
GEN WZ02X0529 GEN WZ02X0529 Contact Us For Availability
956
GEN WZ06X0108 GEN WZ06X0108 Contact Us For Availability
957
GEN WZ06X0050 GEN WZ06X0050 Contact Us For Availability
958
SCR 10-16 AB HXW 1 S GEN WZ04X0264 Contact Us For Availability
967
SCREW 10-16 X 1/2" HEX GEN WZ04X0275 Contact Us For Availability
972
GEN WZ05X0245 GEN WZ05X0245 Contact Us For Availability
980
SCREW GEN WZ05X0145 Contact Us For Availability
993
GEN WZ04X0350 GEN WZ04X0350 Contact Us For Availability
994
GEN WZ04X0362 GEN WZ04X0362 Contact Us For Availability
998
GEN WJ01X0402 GEN WJ01X0402 Contact Us For Availability
1019
GEN WJ41X0092 GEN WJ41X0092 Contact Us For Availability
1020
GEN WJ01X0449 GEN WJ01X0449 Contact Us For Availability
5000
GEN WJ02X0209 GEN WJ02X0209 Contact Us For Availability
5000
GEN WJ02X0216 GEN WJ02X0216 Contact Us For Availability
5000
GEN WJ44X0083 GEN WJ44X0083 Contact Us For Availability
5000
GEN WJ84X0029 GEN WJ84X0029 Contact Us For Availability
5000
GEN WJ84X0031 GEN WJ84X0031 Contact Us For Availability
9999
GEN 30-7404 GEN 30-7404 Contact Us For Availability
9999
GEN 30-7692 GEN 30-7692 Contact Us For Availability
9999
GEN 31-6517 GEN 31-6517 Contact Us For Availability
× ![]()
